Performance Specifications

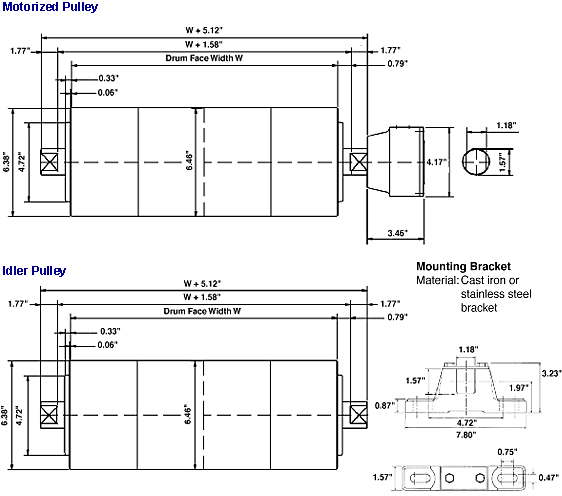

Standard Face Widths - Weight (lbs)

1. Maximum face width is 96"
2. Other speeds and face widths are available
3. Add 3.94" to min. face width for bolt-on end caps
4. Maximum lagging thickness is 1/4" (8% increase in finished speed)
5. For V-groove tube dia. of 6.50", length must be two times the min. face width
6. For V-groove tube dia. of 7.45", length can be same as min. face length (17% inrease in finished speed)
7. All motors can be single or dual voltage 230v or 460v 3 phase
