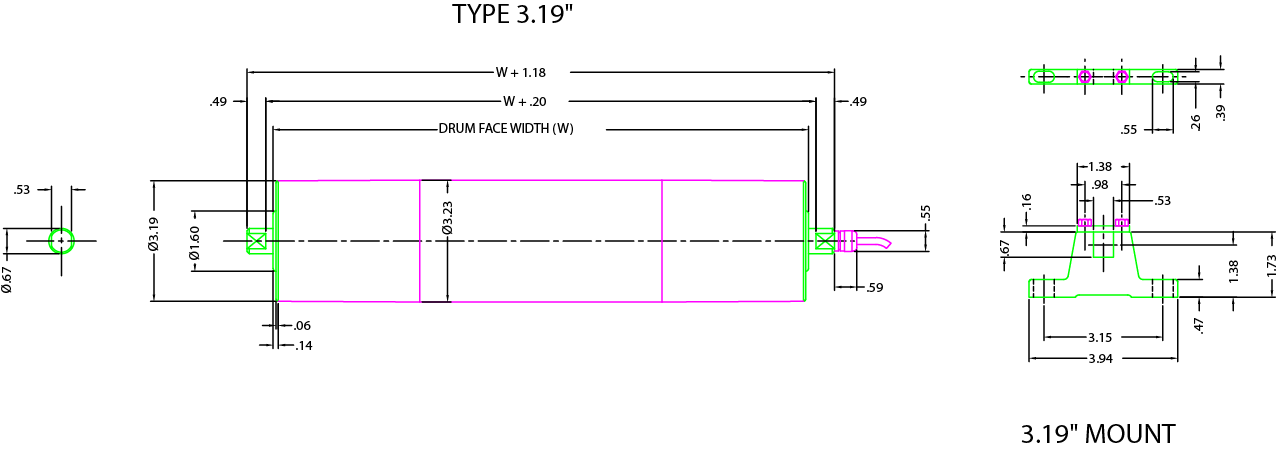

3.19" Diameter Drum Motor

Downloads:
319drummotor.dwg
electrical_connection.dwg

(To download CAD files: Right Click on file name, Select "Save Target As..", Select the directory where you want the file to be saved to, and then click "Save". Use your own CAD program to open files.)

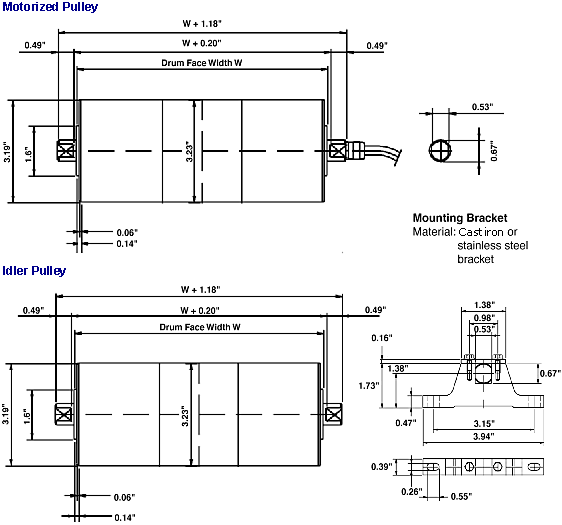

3.19in Diameter Drum Motor

Performance Specifications


HP
Minimum Face Width
FPM (nominal)
Belt Pull (lbs)
Drum Torque (ft/lbs)
0.045
9.84"
12
18
124
82
16
11
0.07*
7.87" - 9.83" only
27
35
47
59
94
118
85
66
49
39
25
20
11
9
7
5
3
3
0.095*
9.84"
27
35
47
59
94
118
116
89
67
53
33
27
15
12
9
7
4
4
0.16*
9.84"
47
71
94
118
189
236
112
74
56
45
28
22
15
10
7
6
4
3

Standard Face Widths - Weight (lbs)

1. Maximum face width is 37.40"
2. Other speeds and face widths are available
3. Maximum lagging thickness is 1/8" (8% increase in finished speed)
4. V-groove option must be two times the min. face width
5. Same dia. (3.23") grooved tube is only option
6. All motors are single voltage
7. * Next to HP output means these units are available in single phase single voltage 110v. All units are available in 3 phase single voltage 460v.
8. Starting torque on single phase units is reduced by 30%
