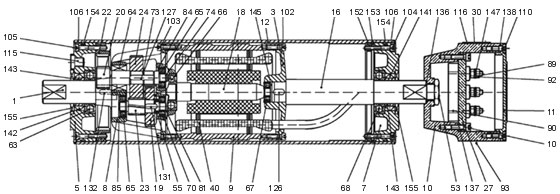

1
Fixed shaft
3 Rear flange
5 Front end cap
7 Rear end cap
8 Gear box
9 Stator casing
10 Terminal box
11 Terminal box cover
12 Drum shell
16 Variable shaft
18 Rotor pinion
19 Input wheel
20 Output pinion
22 Ring gear
23 Interm. pinion
24 Interm. wheel
27 Terminal board
30 Data plate
40 Stator
53 Collar nipple
55 Spacer bush
63 Ball bearing |
64
Needle bearing
65 Ball bearing
66 Ball bearing
67 Ball bearing
68 Ball bearing
70 Ball bearing
73 Retaining ring
74 Retaining ring
81 Retaining ring
84 Retaining ring
85 Retaining ring
89 Nut
90 Cable connector
92 Connecting screw
93 Cable hole
102 Socket screw
104 Socket screw
104 Socket screw
105 Socket screw
109 Socket screw
110 Cylinder head screw
115 Oil plug
116 Blind rivet
|
126
Key
127 Key
131 Key
132 Key
136 Gasket
137 Gasket
138 Gasket
141 Oil seal
142 Oil seal
143 Ground sleeve
144 Gasket
145 Washer
147 Washer
152 Fixed ring
153 Retaining ring
154 O-ring seal
155 Labyrinth seal |
