Belting Technical Data Sheets

Photo Name Part Number Technical Data

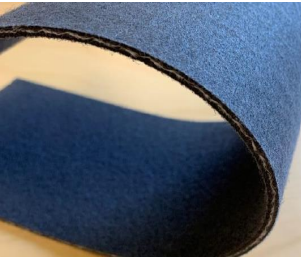

Screenshot 2023 06 08 125458 Wear Flex 140 FxB FR

Commonly used in logistics. Backing reduces noise as well as HP required to drive traditional interwoven belts. Flame retardant per ASTMD 378-10 standards.

02-088 Download
Wear Flex 140 Fxf Fr Pic Wear Flex 140 FxF FR

Low stretch, quiet running with very good resistance to oils. Excellent belt for general conveying, diverting, and merging applications in logistics and warehousing applications. Fire resistant to ASTM D 378.

02-710 Download

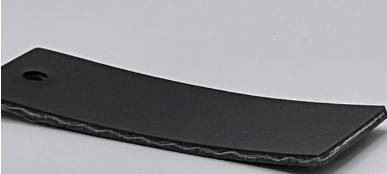

Wear Flex Nsf 120 Hm X F Black Fr Pic Wear Flex NSF 120 HM x F Black FR

Low stretch, quiet running with very good resistance to oils. Excellent belt for general conveying, logistic and warehousing applications. This belt is commonly used in horizontal applications including metering conveyors. Outstanding choice for troughing scenarios. Fire resistant to ASTM D 378.

02-049 Download

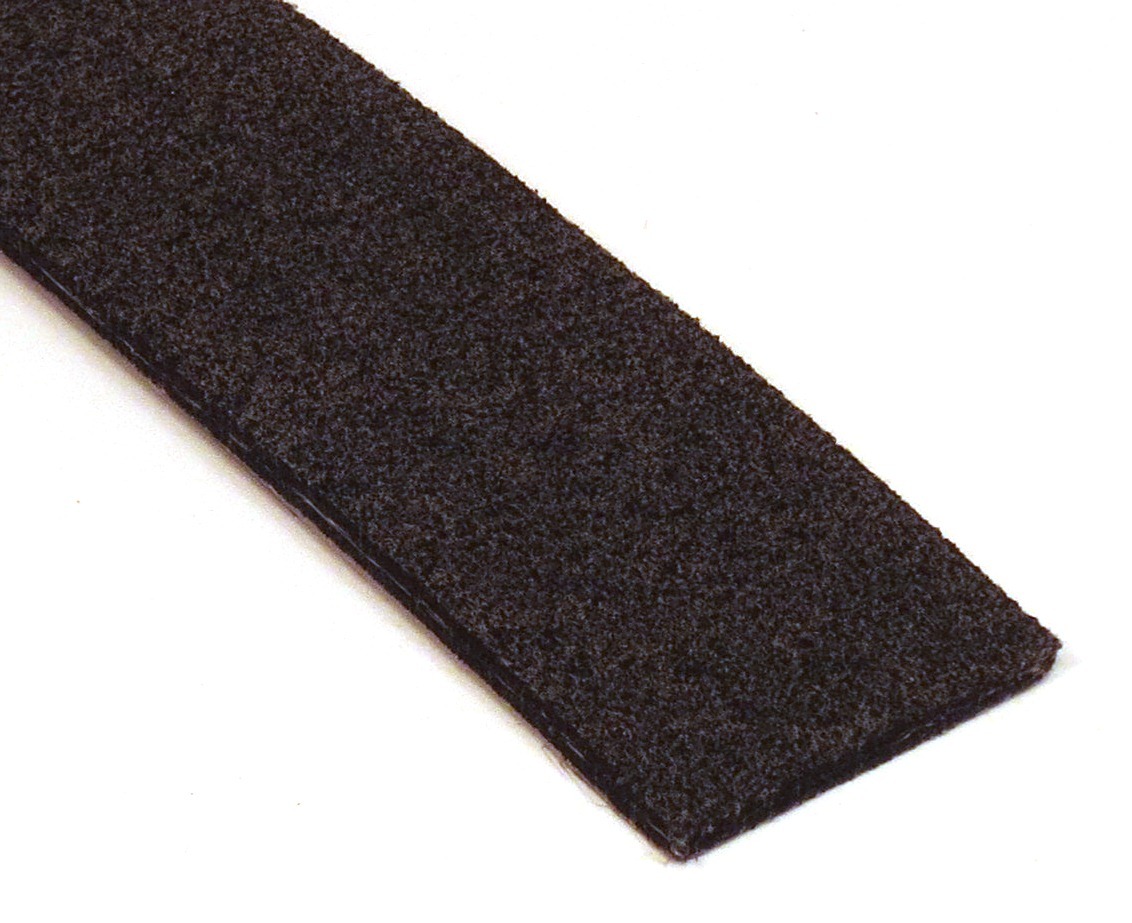

Wear Flex Nsf 15 As Cover Wear Flex NSF 15 A/S

Very good resistance to oil as it absorbs fluids without impacting belt performance. Limited resistance to acids and solvents, especially in high concentrations. This belt is anti-static, has low stretch, low coefficient of friction, good cut resistance, absorbs shock and is quiet-running. Excellent choice for package handling, sorting in warehouses as well as airports and automotive stamping on transfer lines. Not recommended for accumulation or diverting.

02-802 Download
Wear Flex NSF 15 AS FR Download

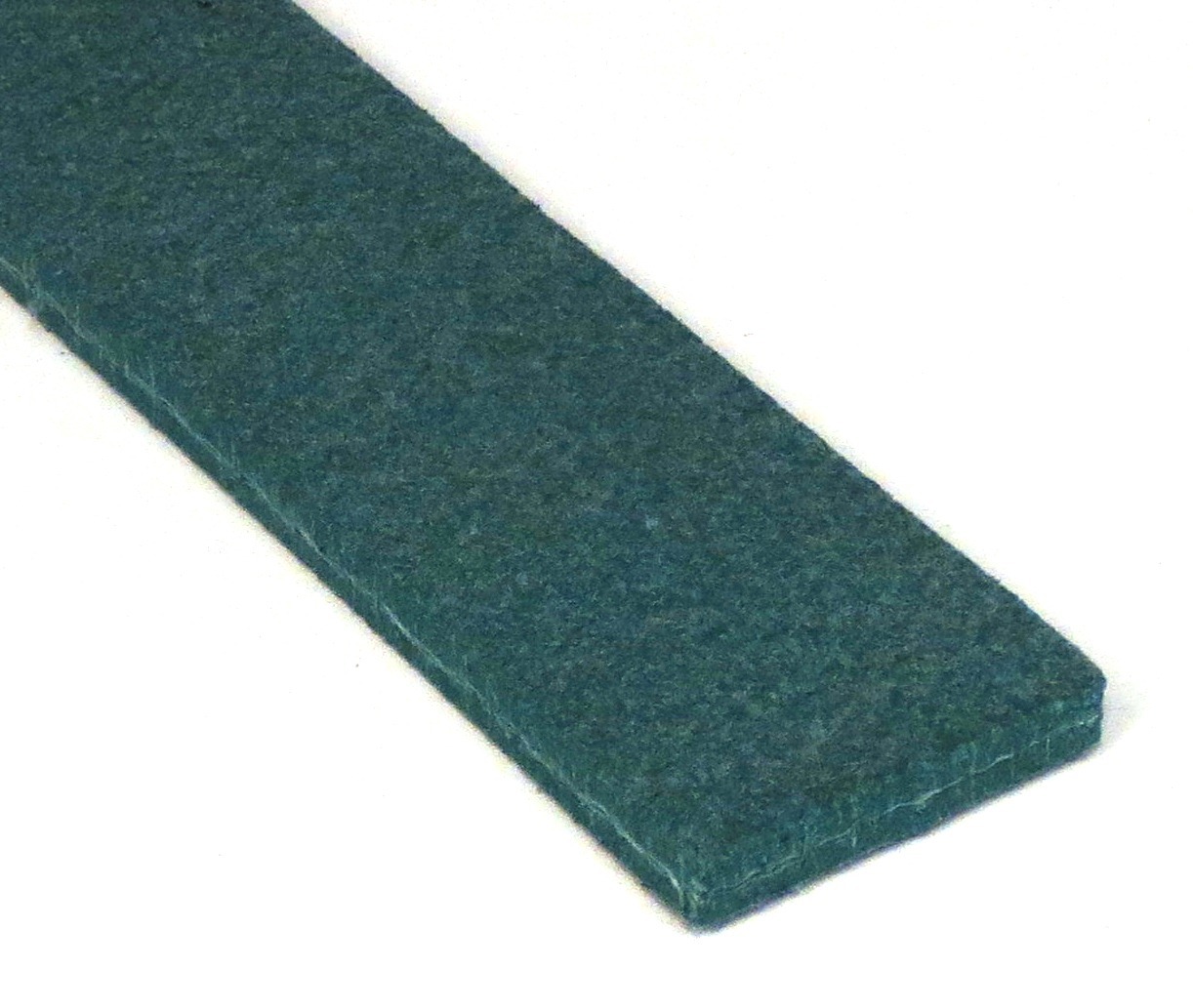

Wear Flex Nsf 24 Cover Wear Flex NSF 24

Very good resistance to oil as it absorbs fluids without impacting belt performance. Limited resistance to acids and solvents, especially in high concentrations. Belt is not flame retardant. This belt has low stretch, low coefficient of friction, good cut resistance, absorbs shock and is quiet-running. Proven performance on paper/tissue applications, in warehouses or airports, on transfer lines and in the tire/rubber industry. Not recommended for accumulation or diverting.

02-800 Download

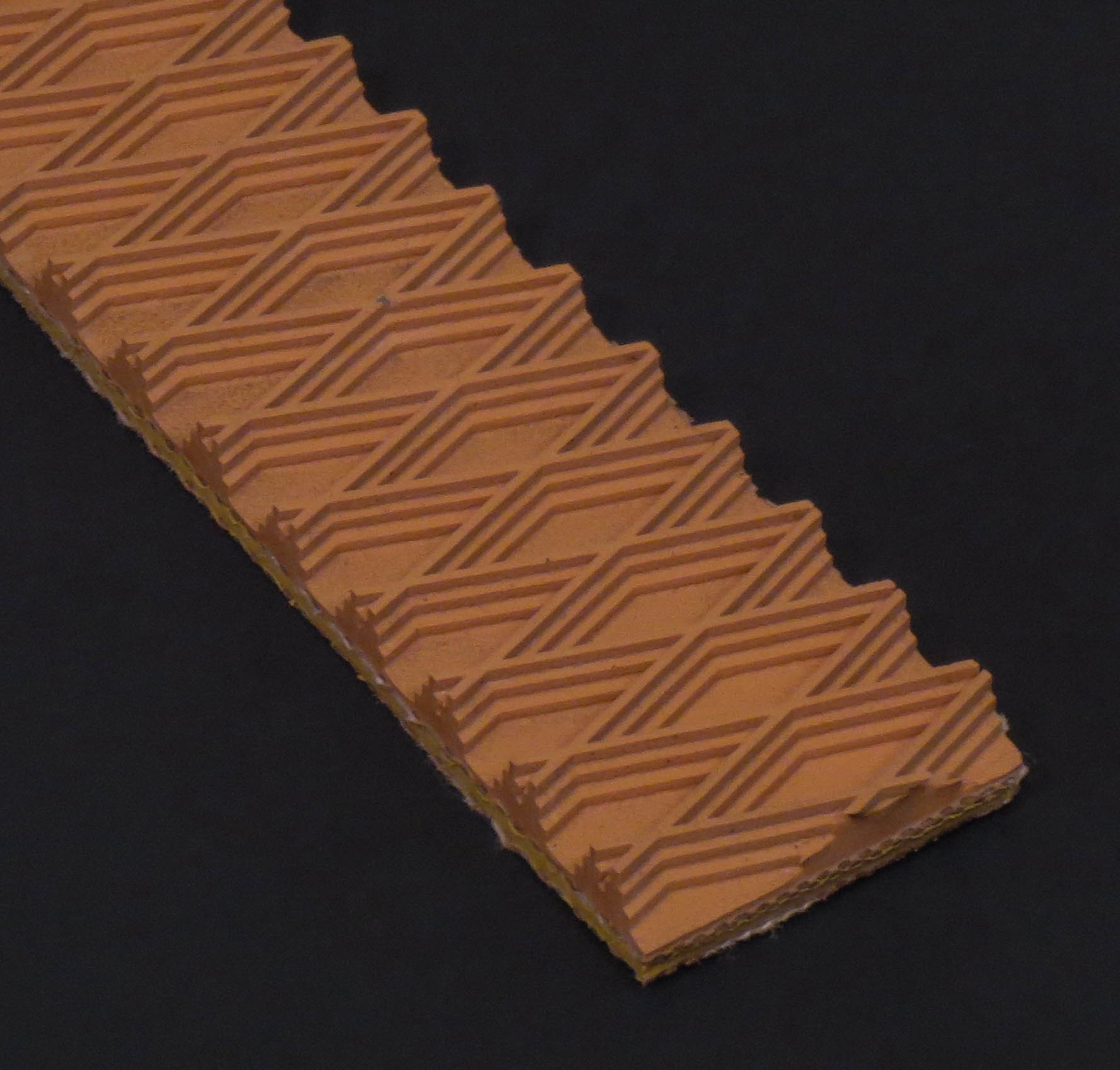

Wedge Grip 2 Ply Cover Wedge Grip

Avoid oils, greases and solvents. Treated carcass increases ply adhesion and decreases edge curl. Extra thick non-marking covers are very abrasion resistant. Soft criss-crossing ribs form diamond pattern. Handles some products up to 35 degrees. Good for lightweight, wax-coated or hard surfaced products. Used extensively in airports and package/parcel handling. For laces, a recessed cover is recommended.

02-370 Download

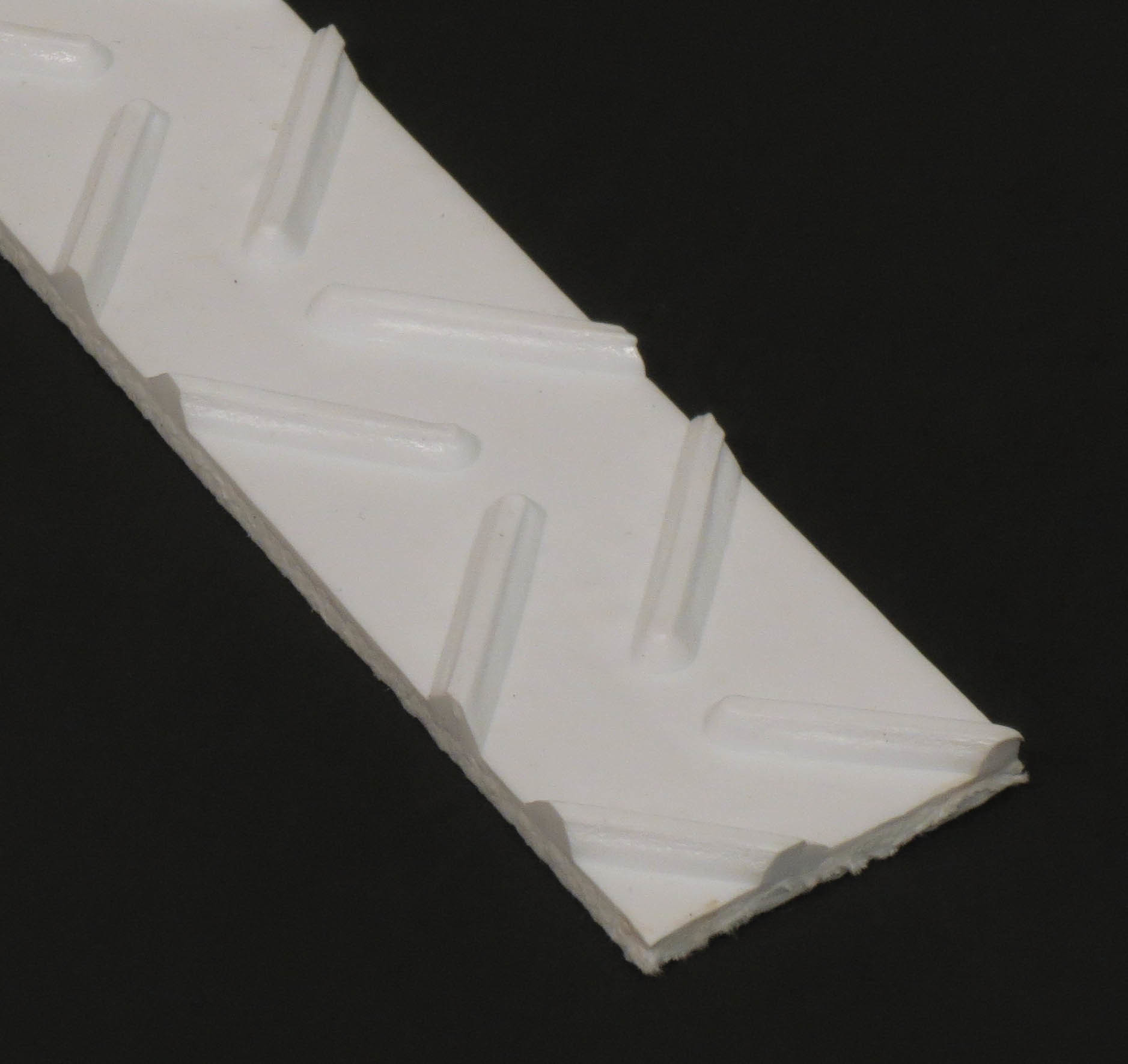

White Chevron Top Cover White PVC Chevron Top

Woven carcass eliminates ply separation. Ideal for use in fish processing, fruits and vegetables, and bulk food products.

01-020 Download

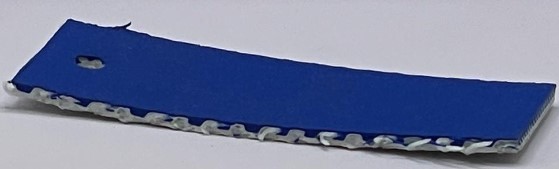

Zl Blue 110 Pic ZL Blue 110

Ziplink belting can be installed without expensive tooling or the need for prolonged downtime. Ziplink belts are common throughout the corrugated industry. The splice area as flat and seamless which nearly mirrors a truly endless belt at a fraction of the cost. Smooth Carboxylated Nitrile is an excellent choice for applications which require some accumulation and demand high wear characteristics from the belt.

02-700 Download

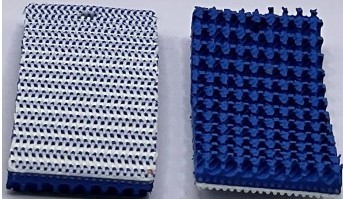

Zl Blue 130 Pic ZL Blue 130

Ziplink belting can be installed without expensive tooling or the need for prolonged downtime. Ziplink belts are common throughout the corrugated industry. The splice area as flat and seamless which nearly mirrors a truly endless belt at a fraction of the cost. The Carboxylated Nitrile roughtop surface is the premium surface for abrasive applications that still require grip against the product.

02-701 Download
Zl Brown 130 Pic ZL Brown 130

Ziplink belting can be installed without expensive tooling or the need for prolonged downtime. Ziplink belts are common throughout the corrugated industry. The splice area as flat and seamless which nearly mirrors a truly endless belt at a fraction of the cost. The soft brown Nitrile rough top is a non-marking surface that offers oil resistance as well as excellent product grip.

02-703 Download

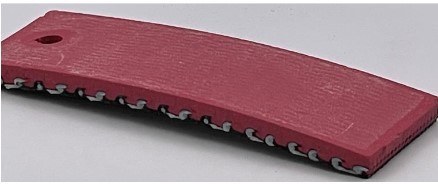

Zl Red 110 Pic ZL Red 110

Ziplink belting can be installed without expensive tooling or the need for prolonged downtime. Ziplink belts are common throughout the corrugated industry. The splice area as flat and seamless which nearly mirrors a truly endless belt at a fraction of the cost. The soft natural rubber cover is ideal for demanding applications that require a belt to actively grip the product. This belt utilizes the entire surface as opposed to a profile for increased COF.

02-702 Download
