Belting Technical Data Sheets

Photo Name Part Number Technical Data

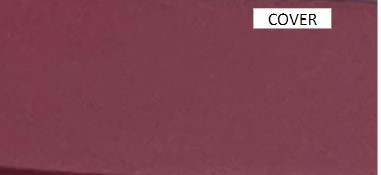

Feed Belt 200 H Pic Feed Belt 200 H

Sparlon 15 P backing with a .200" OAG highly abrasion resistant 60 durometer red natural rubber cover. Ideal for infeed belts on folder gluer applications.

Download

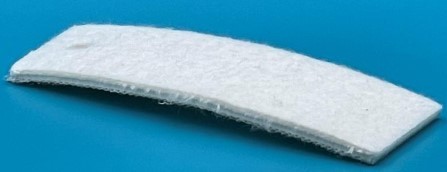

Felt Top Pic Felt Top

Ideal for dough release in bakeries. .5% recommended standard tension for this belt.

03-718 Download

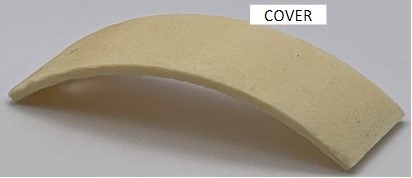

Fmu Foam Belt Pic FMU Foam Belt

FMU foam cover provides great grip for positive feeding of carton blanks while helping to prevent damage to delicate or high end cartons with sensitive coatings.

Download

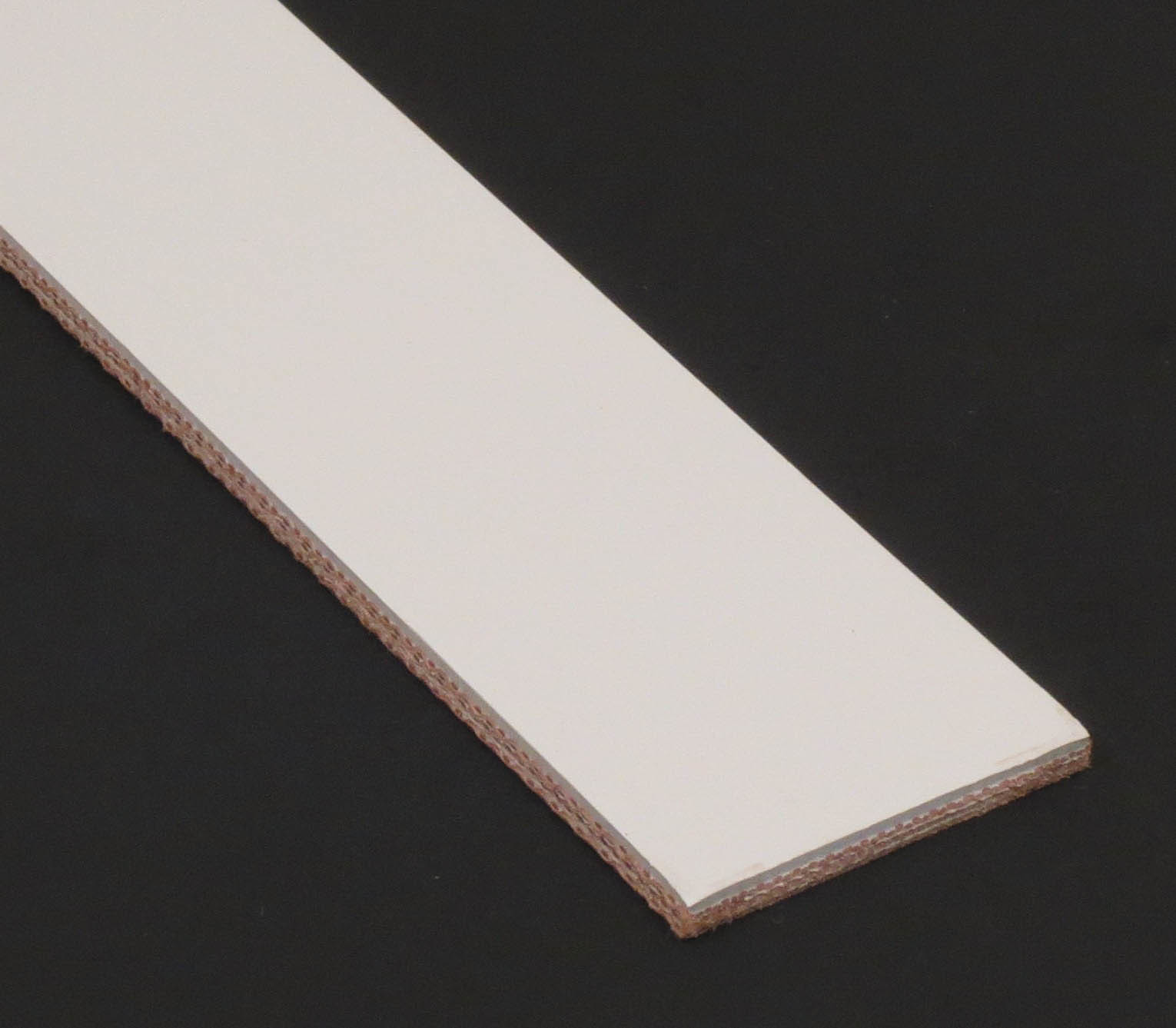

Food King 1 W Cover Food King 1W

Excellent and oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. First choice in many meat and poultry plants on boning tables and trimming applications. Combines needed bulk with high performance fabric and compound to handle most food handling applications.

02-001 Download

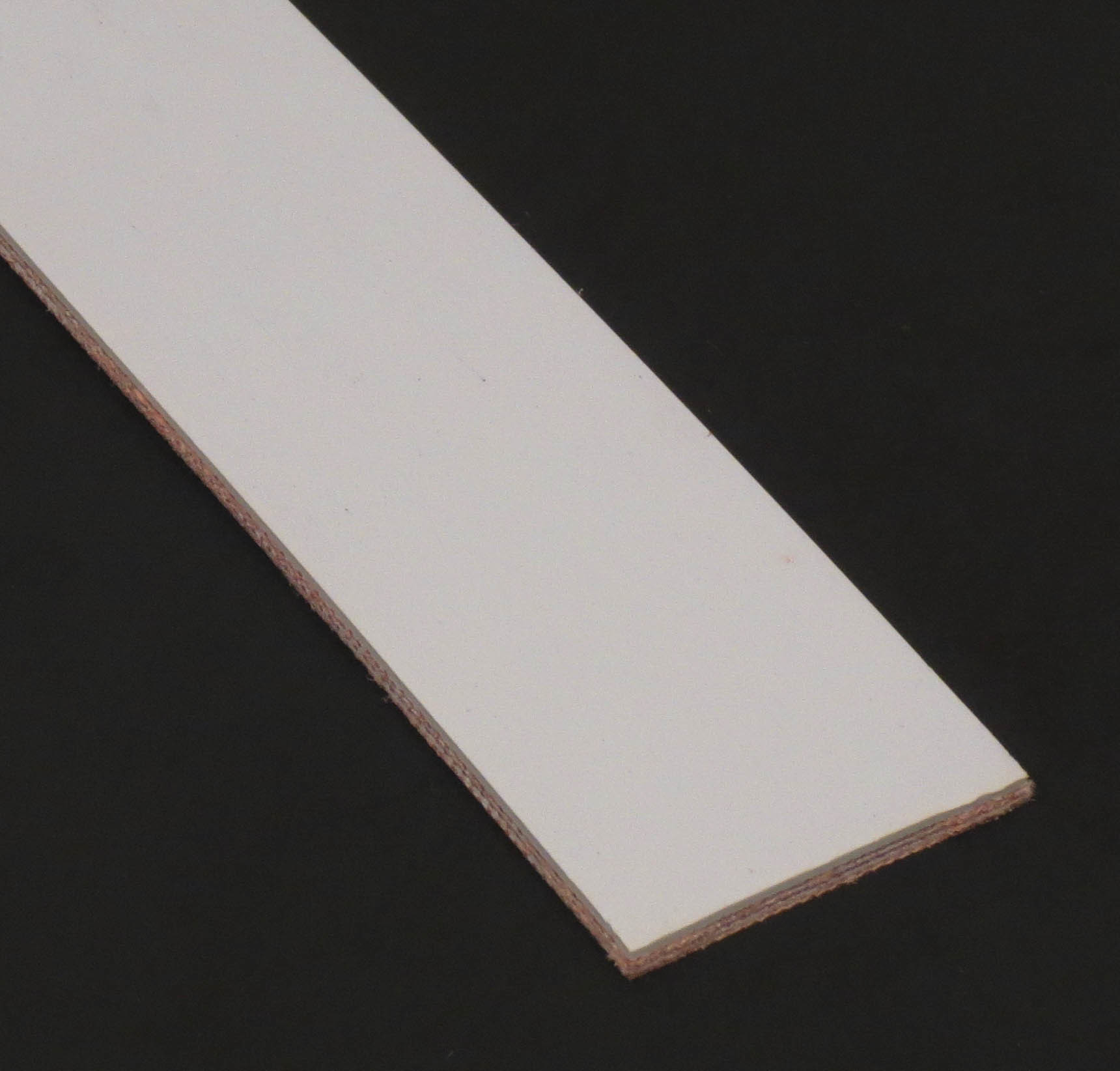

Food King 3 W Cover Food King 3W

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. A favorite in many meat, poultry, fish, pizza, dairy, fruit, vegetable and pharmaceutical applications. Other uses include vacuum suction belts in packaging lines in food plants.

02-002 Download

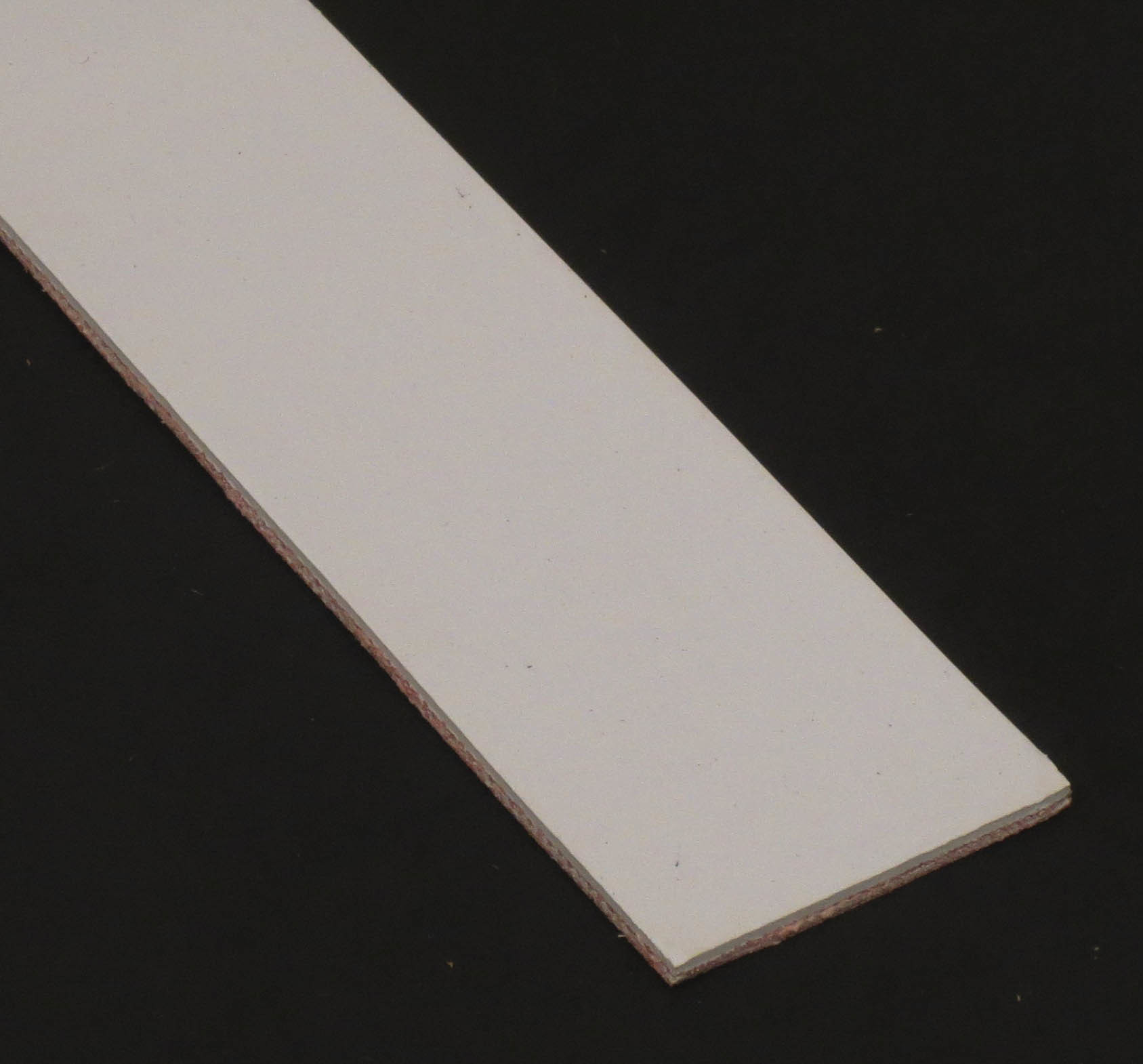

Food King Jr Cover Food King Jr.

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Thin, flexible and highly oil resistant. Good choice on light duty food applications for slicing, skinning and transporting meat and vegetables. Other uses include bakery and confectionery applications requiring temperature resistance up to 250 degrees F.

02-003 Download

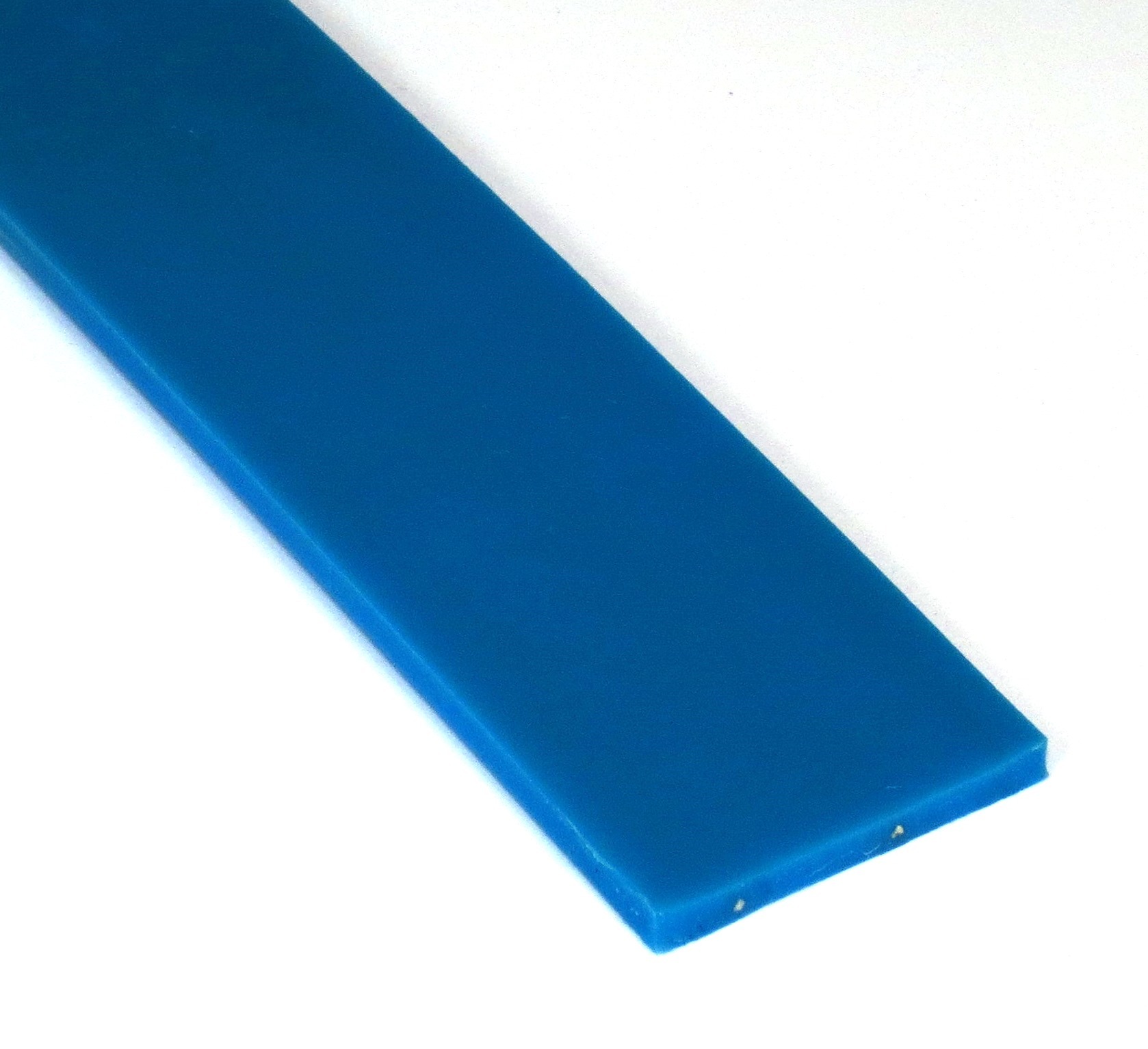

Foodthane 90 Am Blue Cover Foodthane 90 AM Blue

Belt material has USDA and 3A Dairy approval. The polyurethane compound has a blend of antimicrobial additives. The kevlar cords are spaced on 1/2" centers and limits the belt's elongation. The polyurethane compound provides excellent resistance to abrasion, oil, grease and cleaning solutions, in addition to cut and tear resistance required in deboning, dicing and other meat processing service applications.

01-024 Download
FRLW 2.0

Fabric reinforced to eliminate excessive stretch and provide added strength. Suitable for use in most food products.

08-266 Download

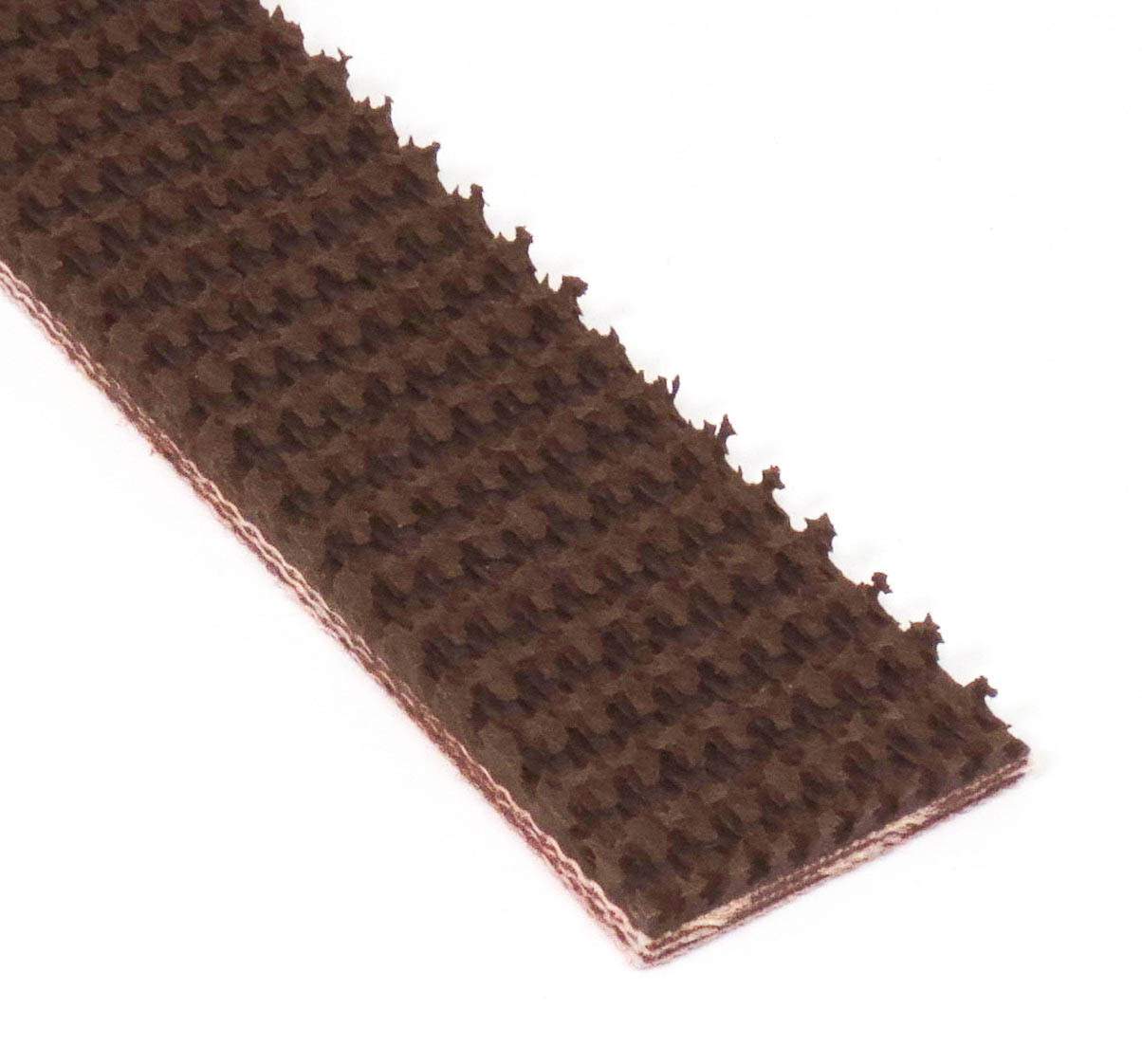

Grip Tex Cover Grip Tex

Excellent oil (including sesame seed oil) and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesions and decreases edge curl. Has deep rough top impression. Proven performance in wood and metal sanders and bakery bun slicer. FDA approved rough top. For laces, a recessed cover is recommended.

02-320 Download

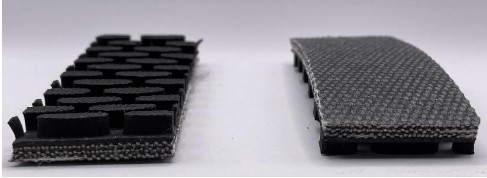

Hi Grade 120 R Pic Hi Grade 120 R

Avoid oil, grease, and solvents. Treated carcass increases ply adhesion and decreases edge curl. This belt has oval nubs which create hundreds of individual contact points. The natural flexing of the cover provides self-cleaning. Excellent for incline/decline applications of irregular surfaces or uneven weight distribution.

02-353 Download

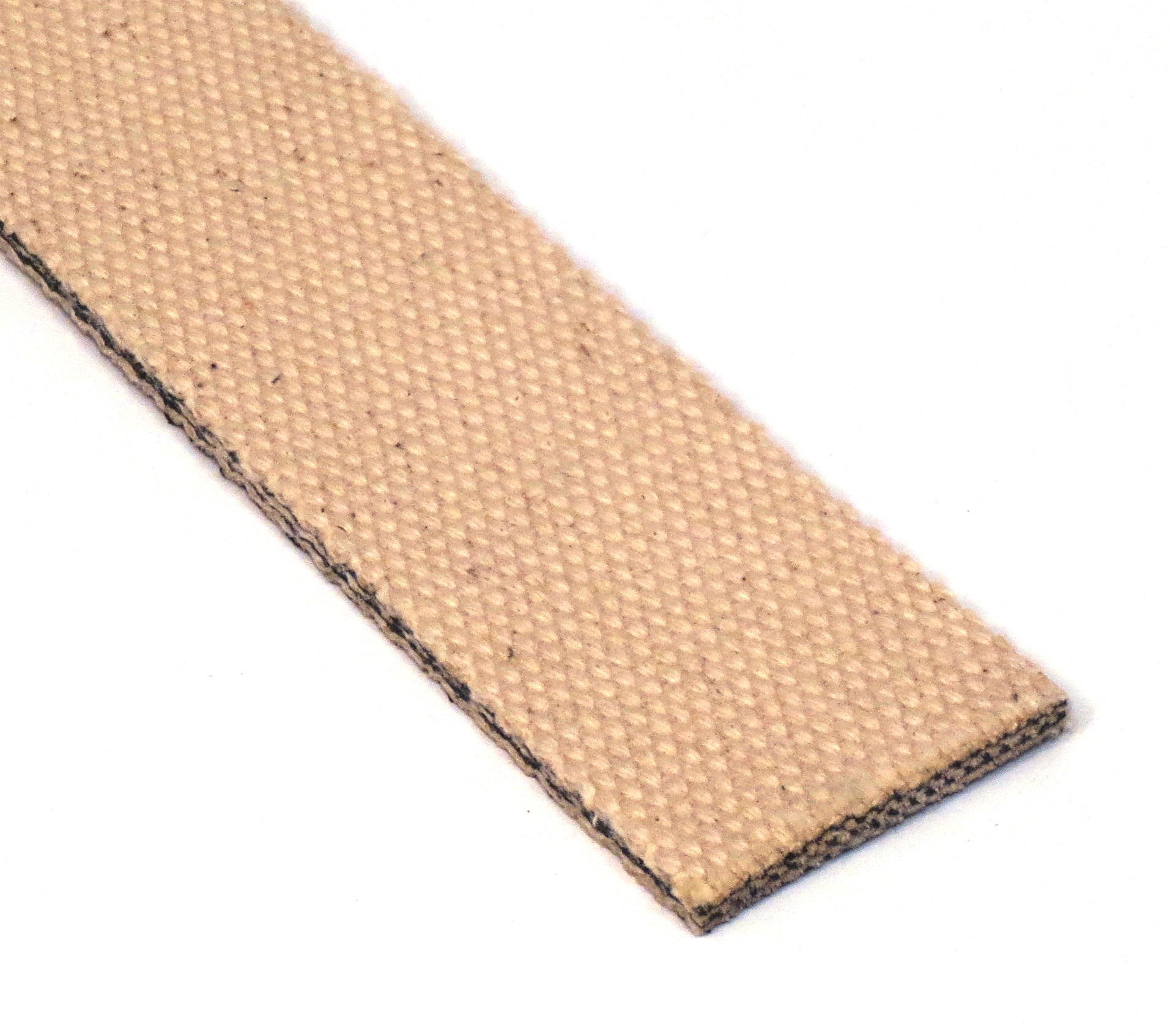

Hsw Rubber 3 Ply Cover Hot, Stock & Water Rubber

Very limited resistance to oil, grease, acids and solvents. The cotton surface of the belt will absorb moisture. Good choice where non-marking or low friction qualities are required. Applications include conveying warm rubber extrusions and as an extra-wide down-stacker in the corrugated box industry. On slider bed applications needing low friction drag, run cotton duck surface as pulley side. Makes a great belt for special covers (like cast urethane in the die cutting industry).

02-401 Download

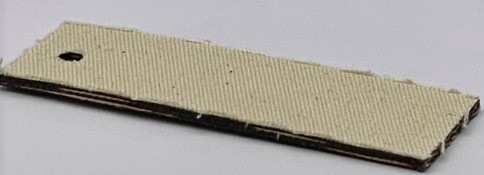

Hsw P Pic HSW P

Very limited resistance to oil, grease, acids and solvents. The polyester top surface will not absorb moisture and has good release properties. Good choice where non-marking or low friction qualities are required. This is the industry standard belt in the tire industry and is ideal for applications conveying warm rubber extrusions. HSW-P can also be used as an extra-wide down-stacker in the corrugated box industry.

02-057 Download

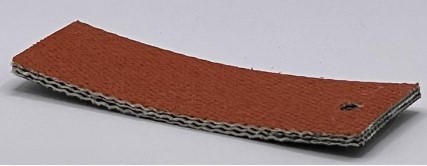

Hsw Silicone Mrt Red Pic HSW Silicone MRT Red

Ideal for handling uncured or green rubber in the tire or rubber industry. The belt will operate in a 250° F ambient temperature and the cover can handle product temperatures up to 500°F. Not suited to run inside oven applications.

02-707 Download

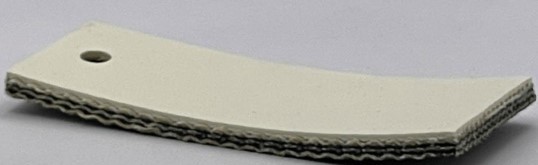

Hsw White Silicone Pic HSW White Silicone

Specially designed for applications requiring release of wet, sticky, or warm products such as uncured/green rubber while its cooled by water in various stages of rubber processing. The silicone cover provides excellent resistance to heat with great release qualities. Do not use in oven applications.

02-708 Download

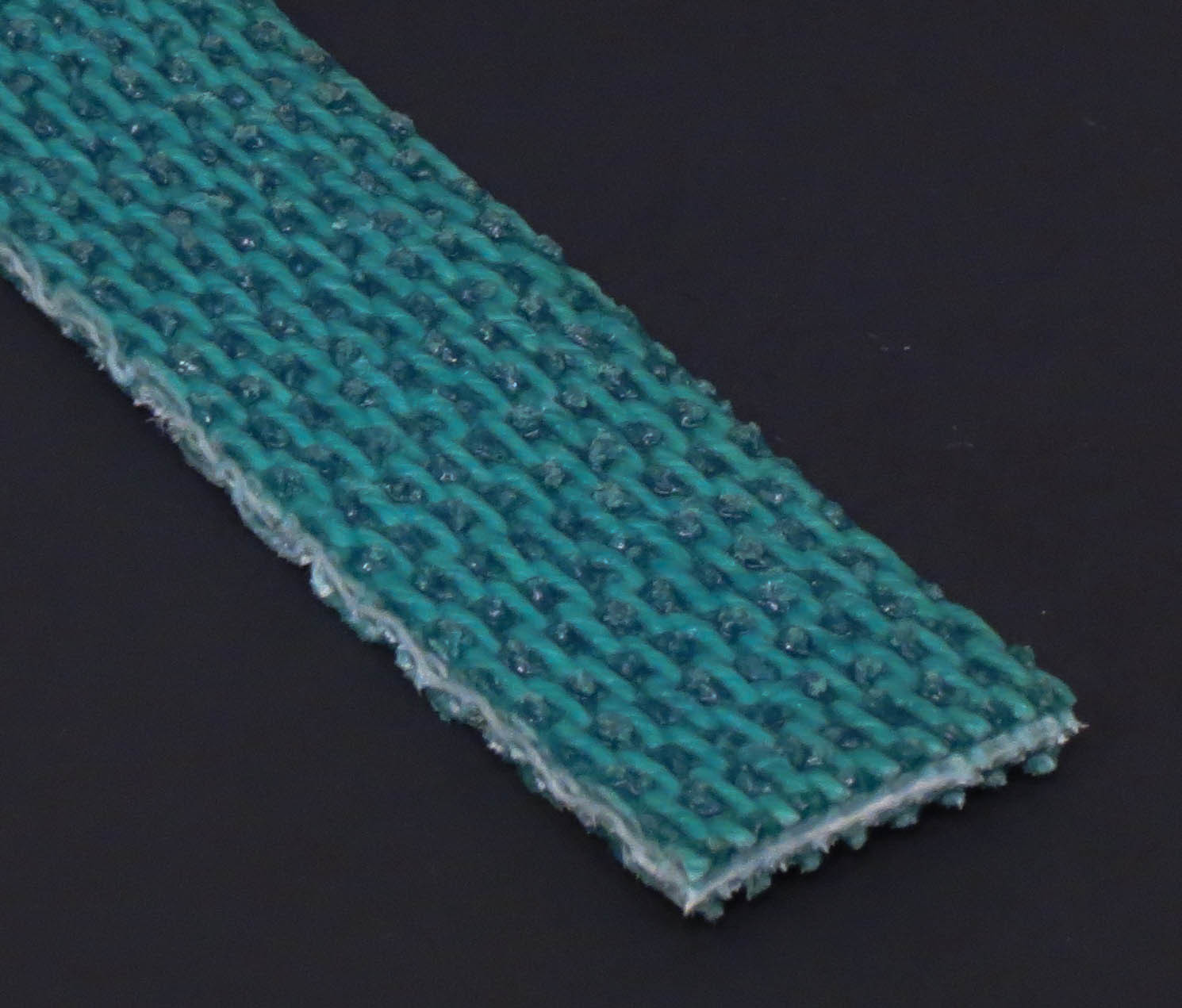

Load Star 550 Bb Cover Load Star 550 BB x Ski

Excellent oil and grease resistance. Good resistance to acids and chemicals. Woven carcass eliminates ply separation. Stretches to less than 2%. Ideal for tough, sharp automotive and appliance stampings. The strong carcass and premium urethane compound make this belt resistant to abrasion, cutting and gouging. Also used on some labeling machines. Best tracking on conveyors with 5:1 ratio (length:width). For laces, stainless steel is recommended.

01-553 Download
Ls 1000 Pic LS 1000

Filter belts are used in a combination of screening/filter/drying and conveying applications. The base material consists of single-ply, woven monofilament polyester in different thickness' and mesh widths. The material is equipped with PVC reinforcement strips in the longitudinal and transverse directions to add body and strength. V-Guides, Sidewalls, and cleats can be added into these reinforcement strips.LS 1000 is used for final washing applications involving only the finest of debris.

Download
Ls 2000 Pic LS 2000

Filter belts are used in a combination of screening/filter/drying and conveying applications. The base material consists of single-ply, woven monofilament polyester in different thickness' and mesh widths. The material is equipped with PVC reinforcement strips in the longitudinal and transverse directions to add body and strength. V-Guides, Sidewalls, and cleats can be added into these reinforcement strips. LS 2000 is designed for intermediate service when washing items with smaller debris.

Download
Ls 2000 Pic LS 4000

Filter belts are used in a combination of screening/filter/drying and conveying applications. The base material consists of single-ply, woven monofilament polyester in different thickness' and mesh widths. The material is equipped with PVC reinforcement strips in the longitudinal and transverse directions to add body and strength. V-Guides, Sidewalls, and cleats can be added into these reinforcement strips.LS 4000 allows for maximum passage of liquid and allows larger debris to pass through in the washing process.

Download

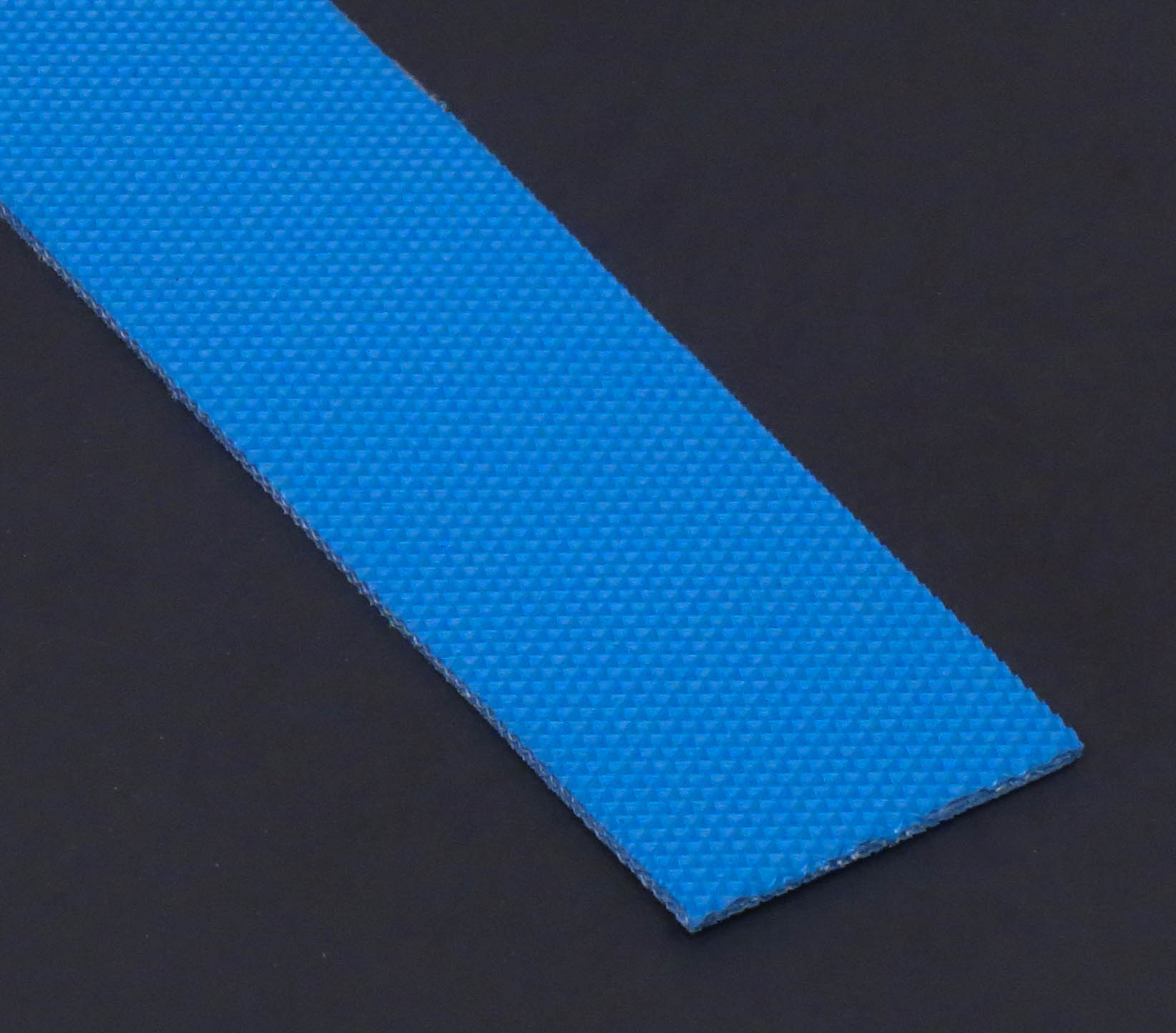

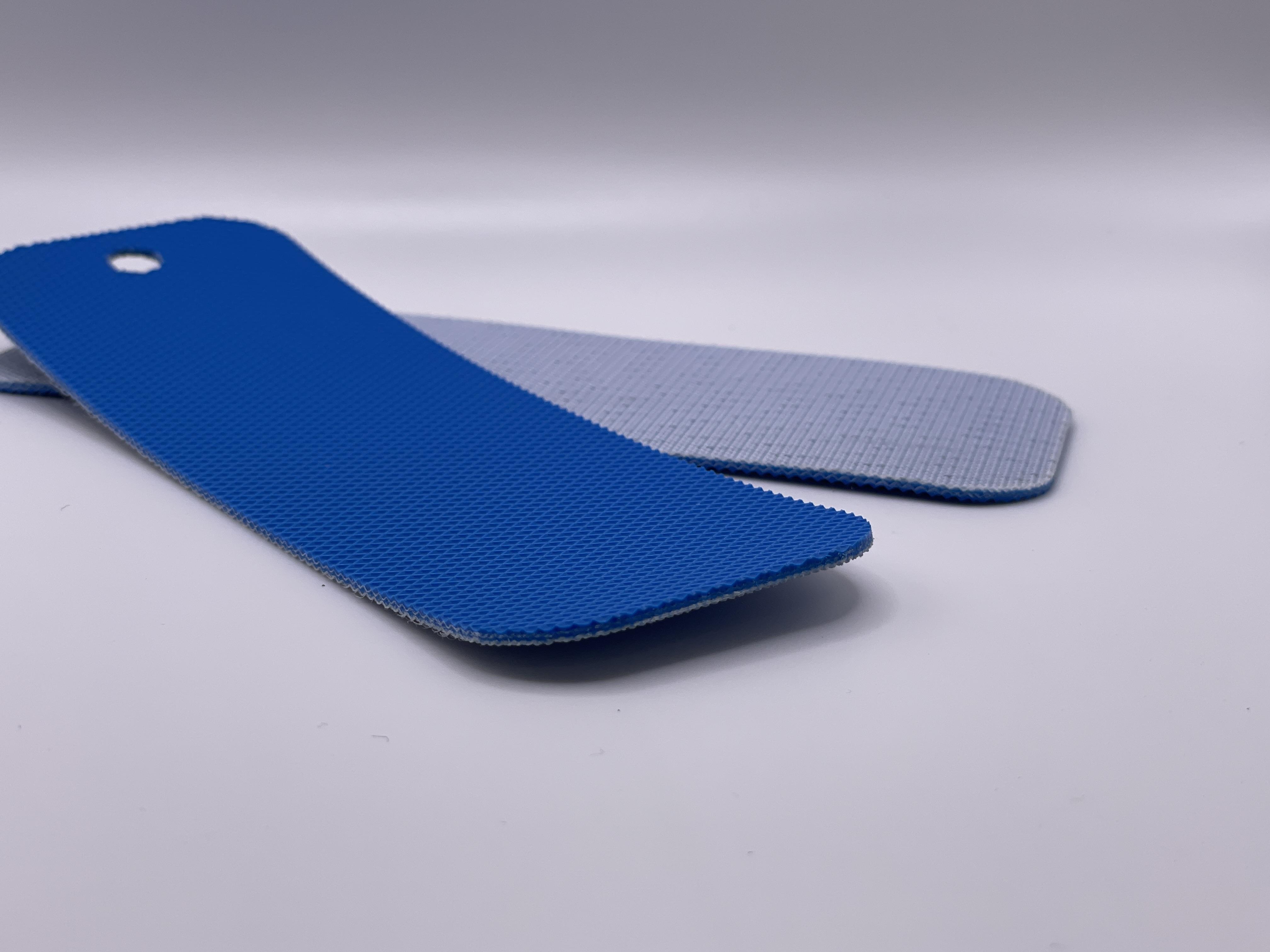

Mab Blu 2210 Cover MAB BLU 2210

Monofiliment polyester fabric lays flat eliminating edge curl. Fine diamond surface excellent for use in bakeries, frozen foods and fish processing applications.

03-040 Download

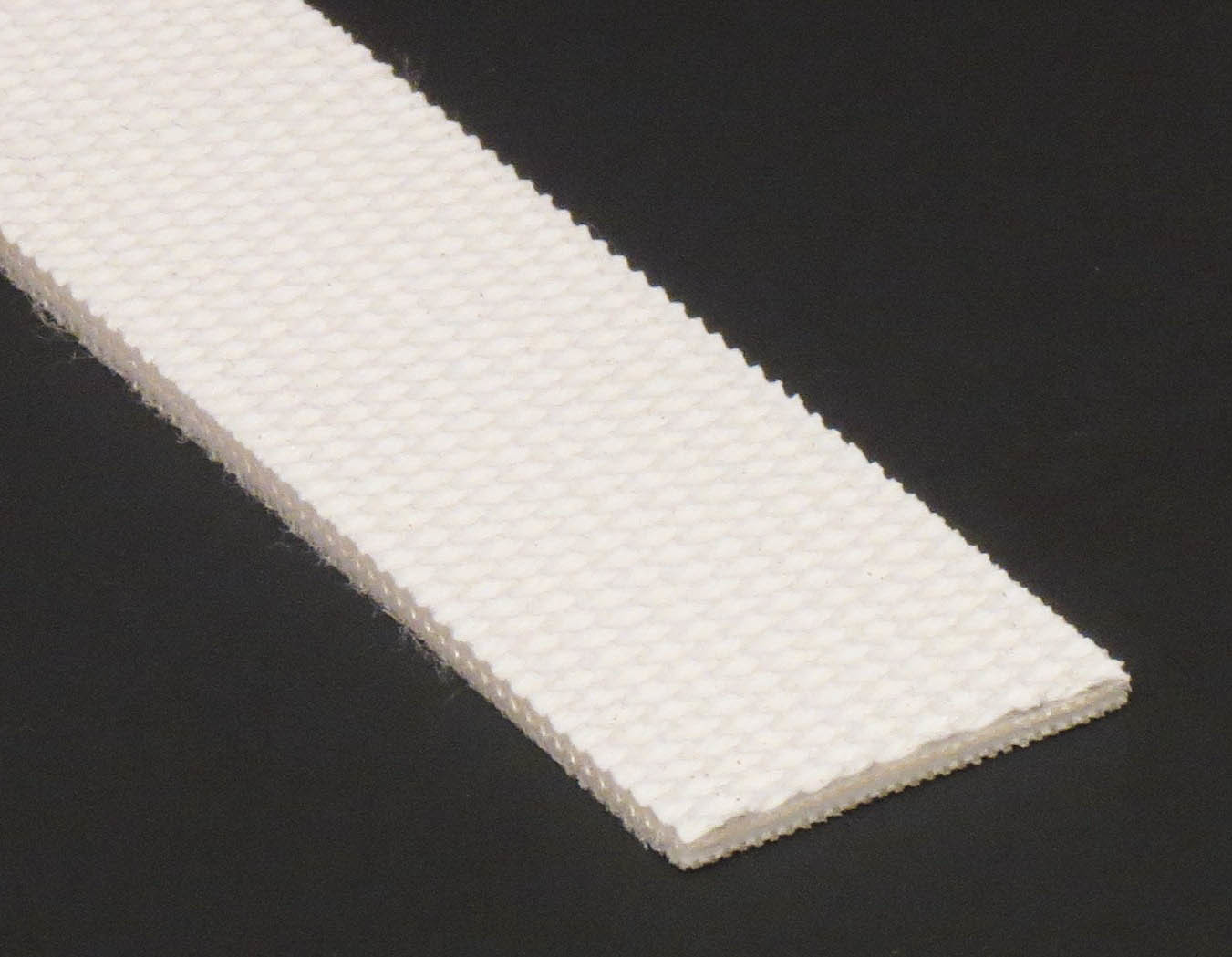

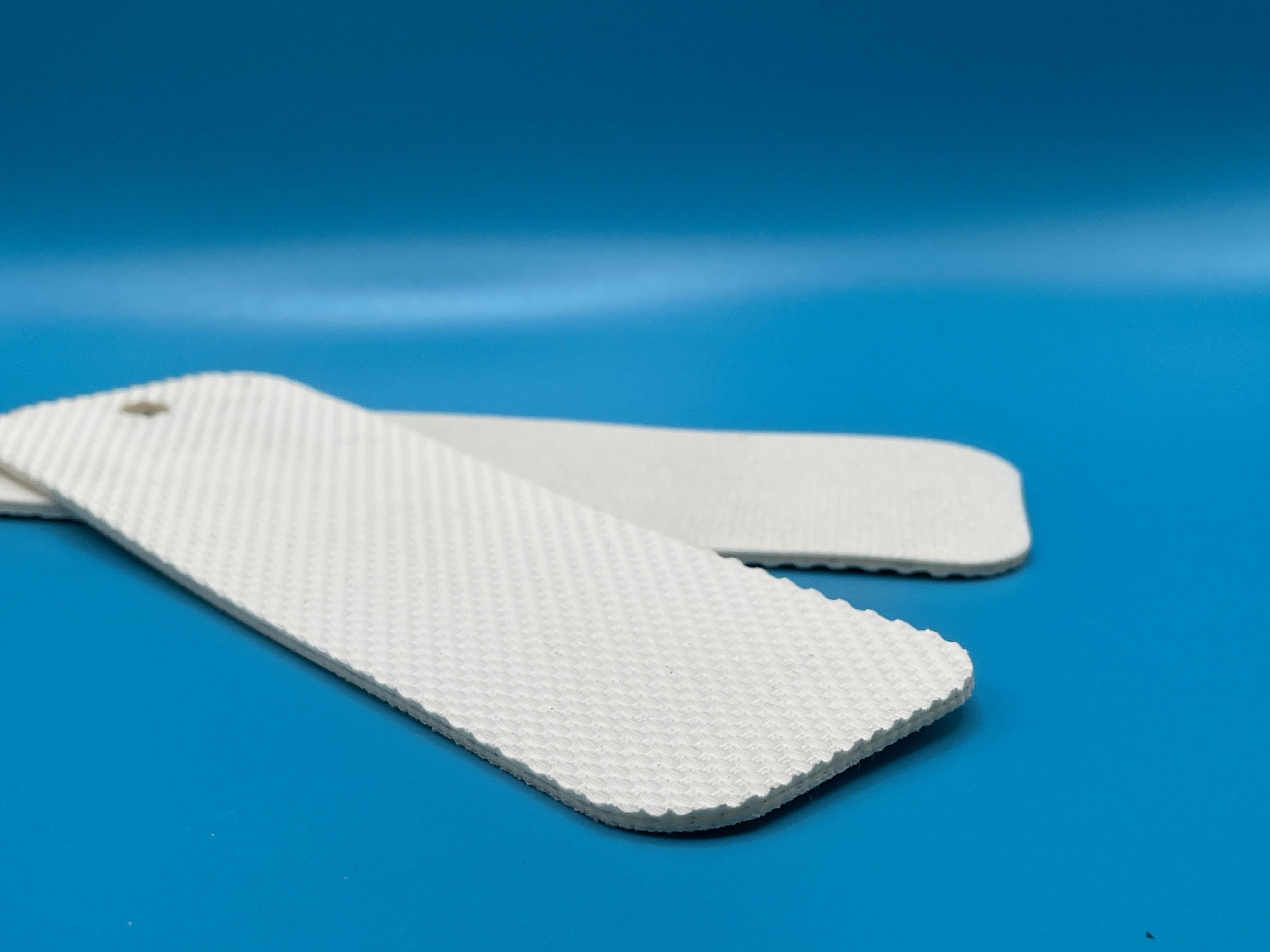

Mab Wp 2140 Cover MAB WP 2140

Good resistance to oils, fats, solvents, acids and salts. Belt lays flat with no edge curl. Heavy cover prolongs belt life. Excellent base belt for cleats and sidewalls. Other uses include fish filleting lines and handling frozen foods.

03-235 Download
