Belting Technical Data Sheets

Photo Name Part Number Technical Data

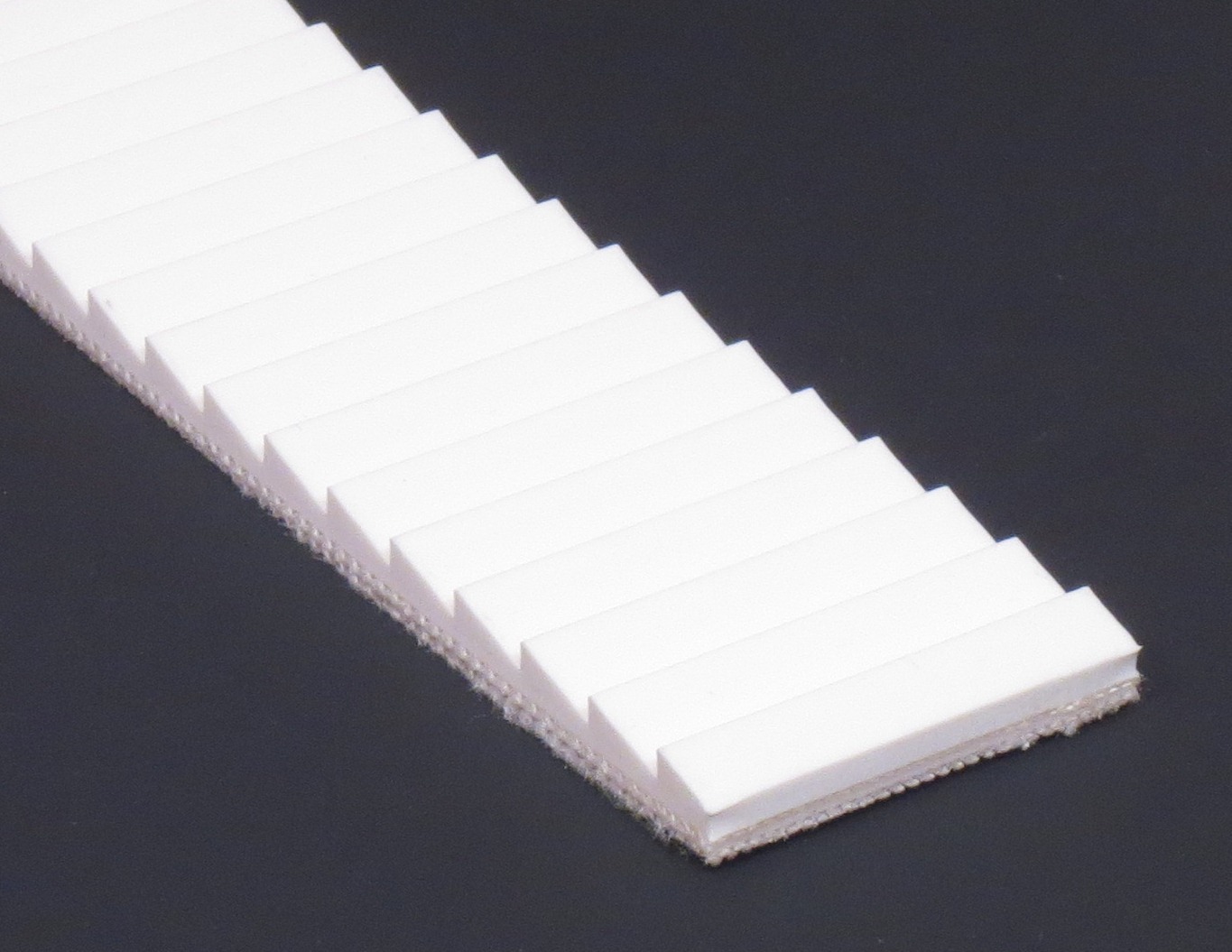

Mono Flex Wp 280 Cover Mono Flex WP 280

Oil and Grease Resistant. Use in applications such as food and vegetables were additional grip is required to feed product, such as slicers and dicers.

03-036 Download

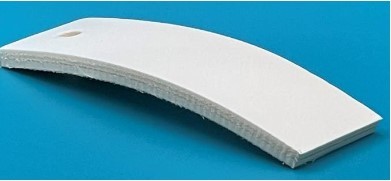

Mf Wp 310 Pic Mono Flex WP 310

M/F WP 310 is the go-to choice for Depanner belts in the bakery industry. The 3-ply construction is carefully engineered for recessed holes required for depanner retainer clips. Please reference bolt hole templates to accurately specify required recessed perforation patterns for these belts.

03-712 Download

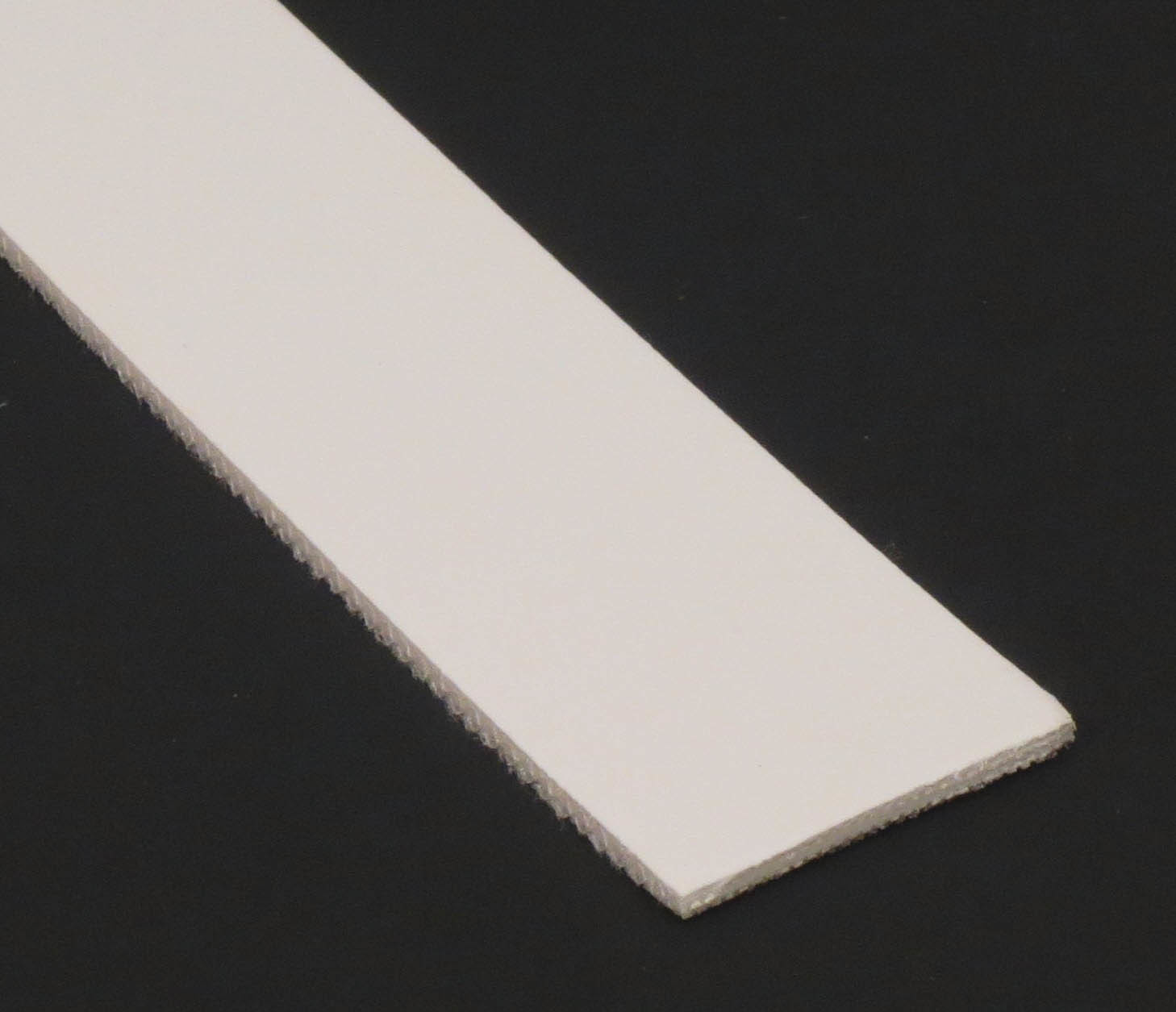

Mono Flex Wr 210 S Cover Mono Flex WR 210 S

Moderate to good oil resistance. Limited resistance to chemicals and solvents. Check the specific chemical prior to recommending. Belt lays very flat with no edge curl. Good choice as base belt for cleats and sidewalls. Extra heavy monofilament strands provide additional crosswise rigidity. An excellent belt for horizontal to vertical inclines where hold-down rollers are used on the belt edges and you want to minimize belt lift in the middle.

03-249 Download

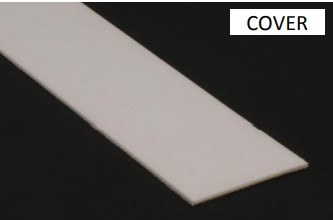

03 644 Mono Flex WS 210

Limited oil, grease, acid and solvent resistance. Very good resistance to wide surface temperature ranges. Belt lays very flat with no edge curl. Ideal belt for applications requiring release from sticky products (marshmallows, carmel) and excellent tracking of monfilament polyester. Offers good release to polyethylene wrapped food products, sticky dough, hot oily chocolate, and hot plastic sheets, labels, and stickers.

03-644 Download

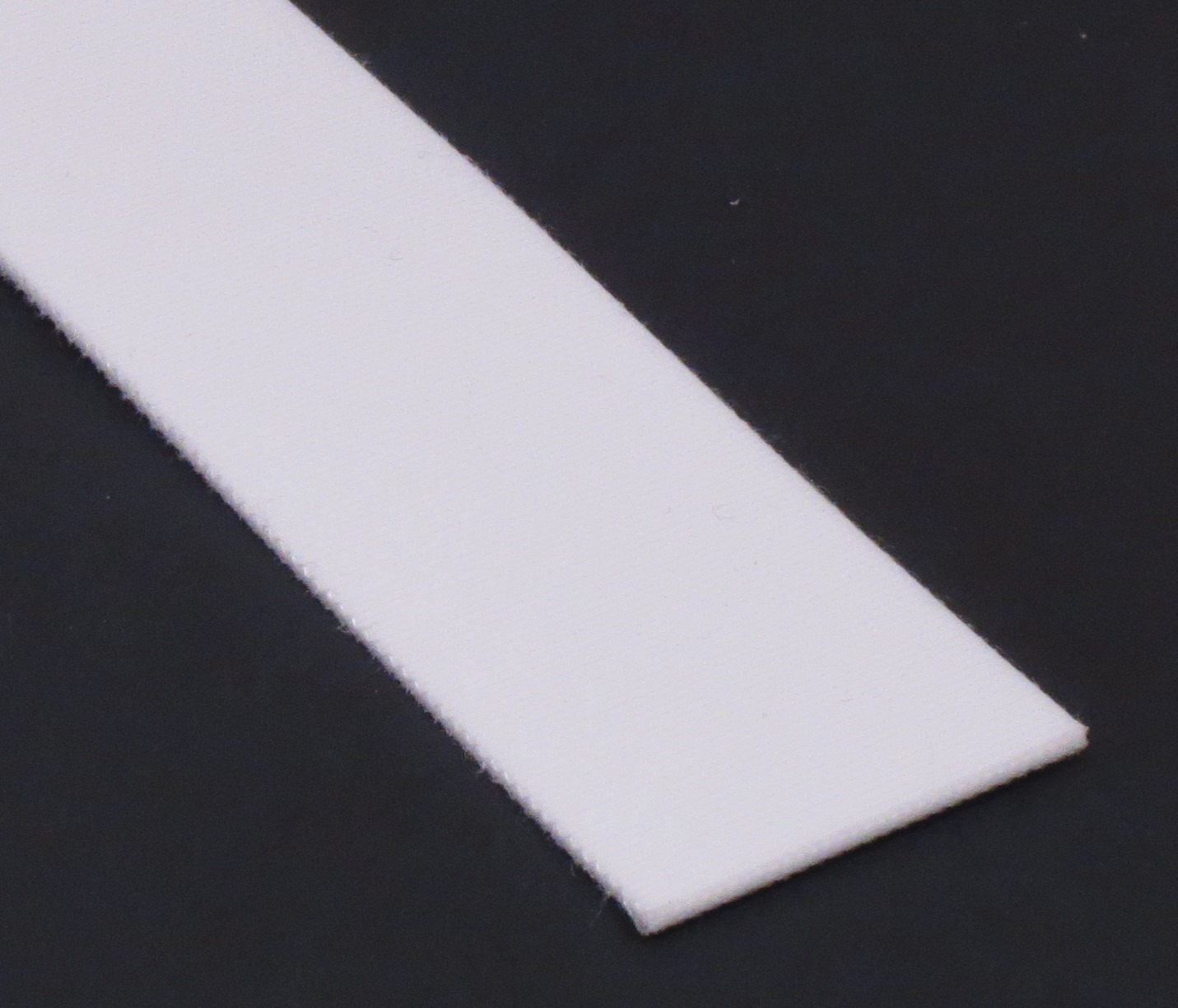

Mono Flex Ws 210 U Cover Mono Flex WS 210 U

Limited oil, grease, acid and solvent resistance. Very good resistance to wide surface temperature ranges. Belt lays very flat with no edge curl. Ideal belt for applications requiring release from sticky products (marshmallows, caramel) and excellent tracking of monfilament polyester. Offers good release to polyethylene wrapped food products, sticky dough, hot oily chocolate, and hot plastic sheets, labels, and stickers.

03-050 Download

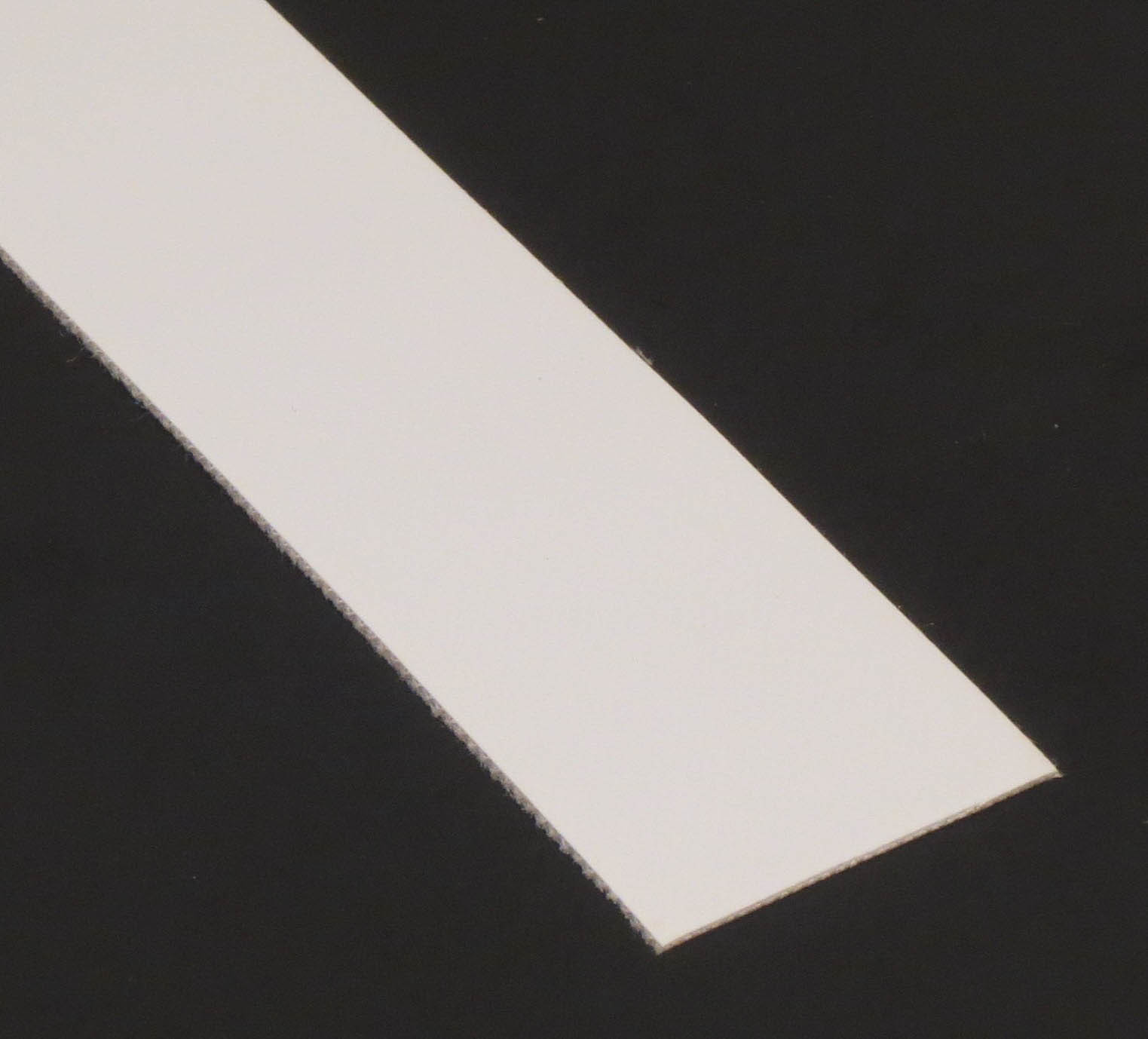

Mono Flex Wu 110 As Cover Mono Flex WU 110 A/S

Excellent oil and grease resistance, including coconut oil and cocoa butter. Limited resistance to acids, solvents, and alkaline solutions. Excellent product release. Easy to clean. Belt lays very flat. Proven performance on cooling applications for chocolate, confectionery, and baked goods. Other uses include dough forming, scale belts, and packaging line belts.

03-111 Download

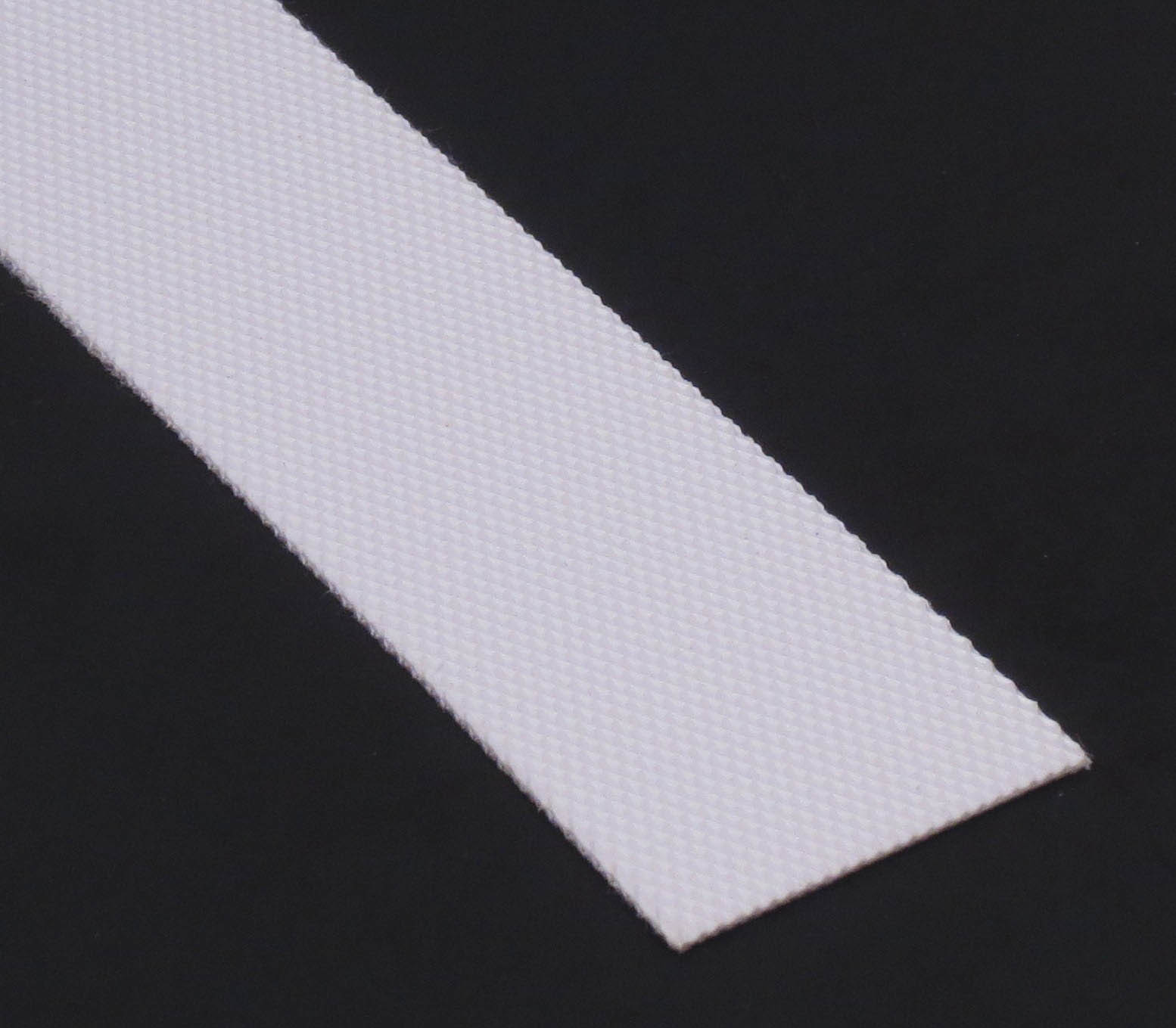

Mono Flex Wu 120 M Cover Mono Flex WU 120 M

Very good oil and grease resistance. Limited resistance to acids, solvents, and alkaline solutions. Very good product release. Easy to clean. Excellent choice for pretzel proofer. The hard impression surface releases dough, chocolate, and confectionary products very well.

03-119 Download

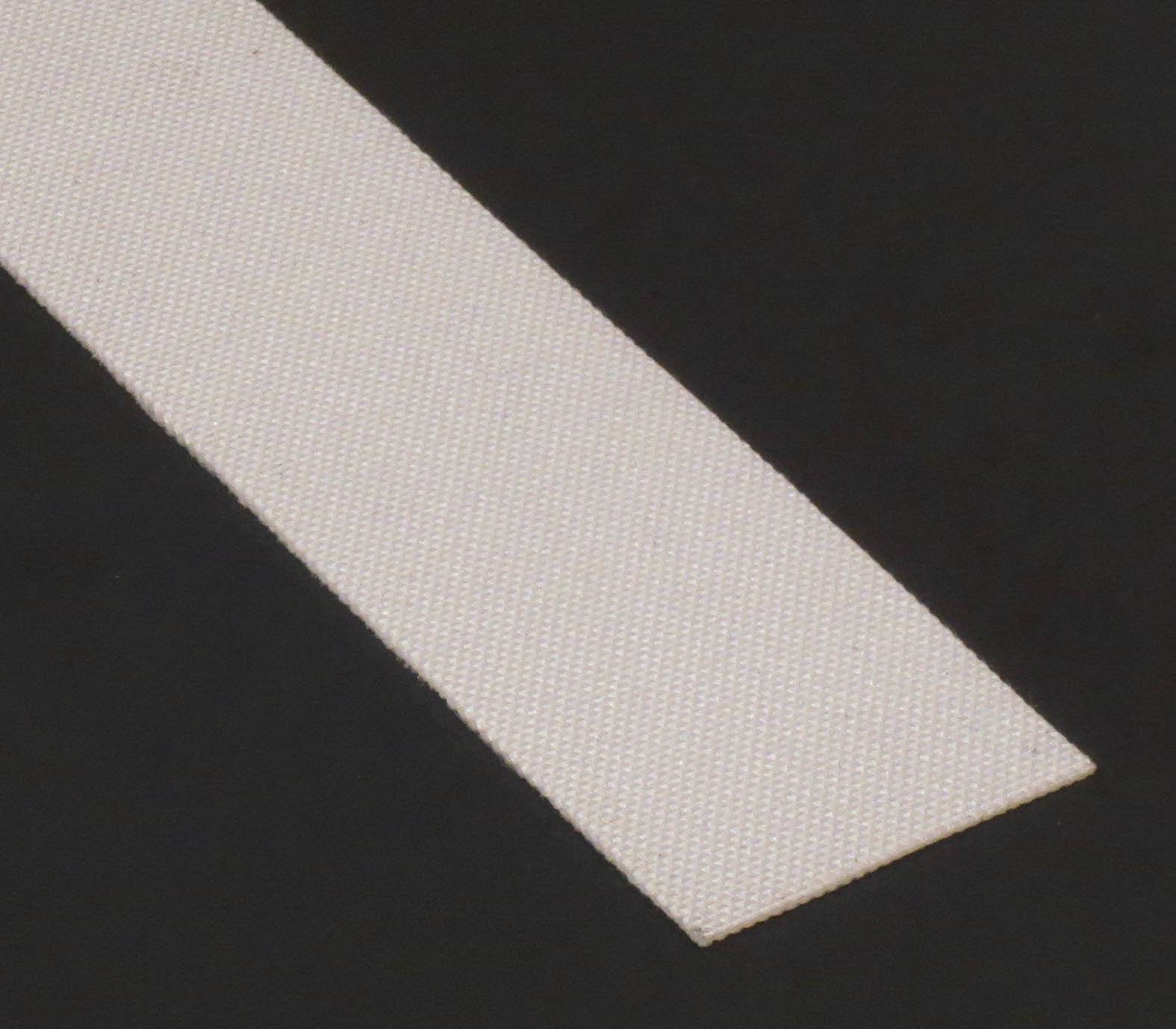

Mono Flex Wu 200 Cover Mono Flex WU 200

Good oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. Belt lays very flat. Ideal for light duty accumulation and diverting of products. Uses include scale belts for tobacco, paper sheeters, paper ream conveyors, plastic bottle conveyors, and conveyors of light steel/metal.

03-122 Download

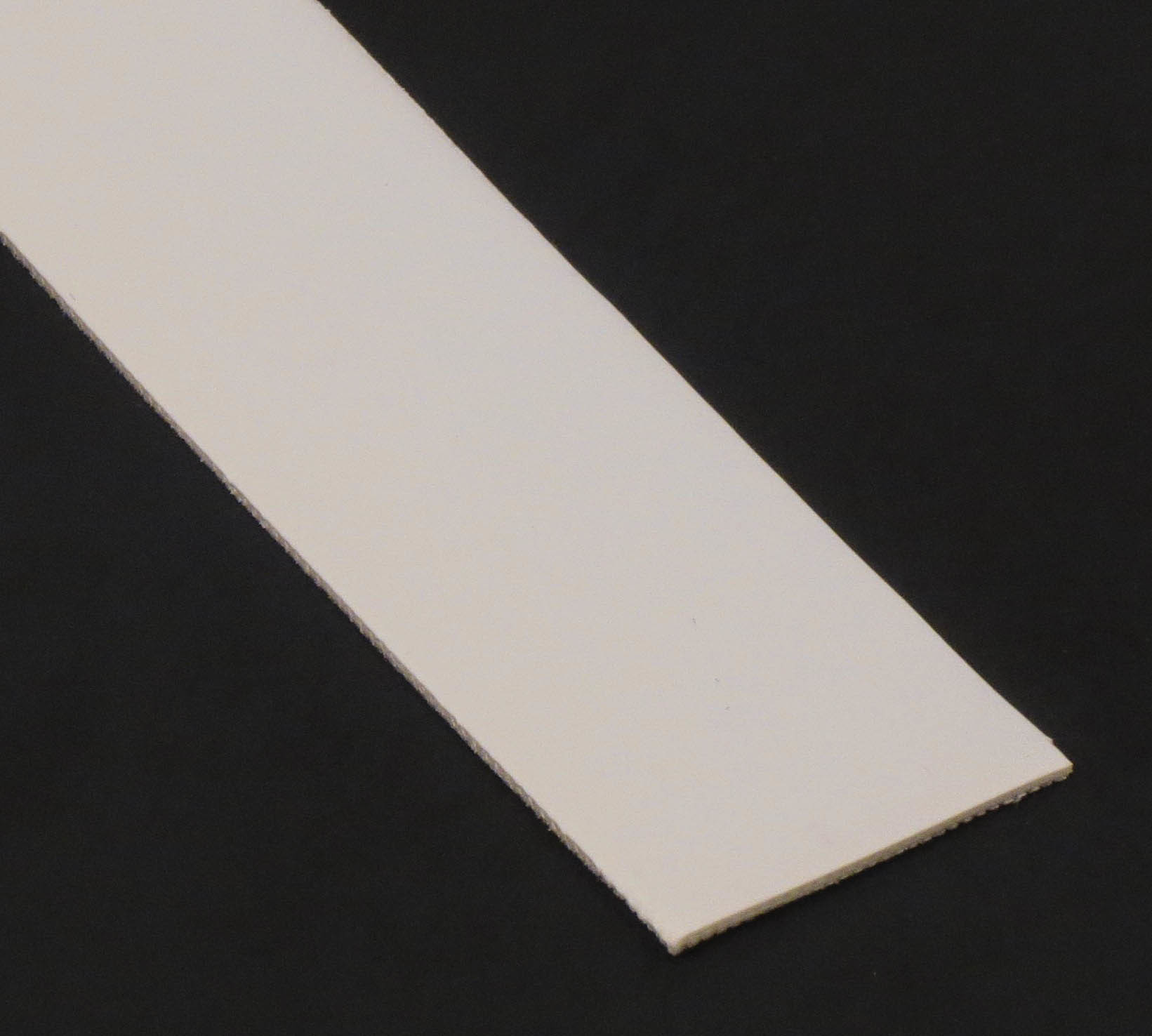

Mono Flex Wu 210 Cover Mono Flex WU 210 A/S

Excellent oil and grease resistance, including coconut oil and cocoa butter. Limited resistance to acids, solvents, and alkaline solutions. Excellent product release. Easy to clean. Belt lays very flat. Proven performance on cooling applications for chocolate, confectionery, and baked goods. Other uses include dough forming, scale belts, and packaging line belts.

03-131 Download
Mf Wu 210 Am As Pic Mono Flex WU 210 AM AS

Anti-Microbial compound is preferred for messy food processing applications to reduce the bacteria count. Non-fray construction provides less opportunity for contaminants to migrate into the belt. Excellent oil, fat and abrasion resistance.

03-709 Download
Mono Flex WU 210 H A/S

Excellent oil and grease resistance. Limited resistance to acids, solvents and alkaline solutions. Excellent product release. Easy to clean belt lays flat. Proven performance for chocolate, confectionary, baked goods and vegetable processing. Tensile force = 8n/mm 46 lbs/in @ 1% elongation.

03-000
Mf Wu 210 Ht Pic Mono Flex WU 210 HT

Ideal for bakeries for oven infeed and outfeed conveyors. Suitable for high temperature applications in plastic injection molding. Perfect choice for a variety of industrial applications where a traditional monofilament belt will not withstand the temperature constraints.

03-701 Download
Mf Wu 211 As Pic Mono Flex WU 211 AS

Smooth cover on both side design is ideal for a variety of food applications. The high grip on the gloss side is perfect for roller conveyor systems. Recommended tension on this belt is .5%. The edges of the belt can be capped to prevent any oil, fat, water or bacteria from penetrating the fabric.

03-705 Download

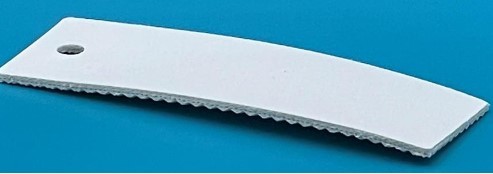

Mf Wu 212 Am Pic Mono Flex WU 212 AM

Food approved urethane with anti microbial inhibitor in compound for use in food applications. Cover x cover design is ideal for unsupported roller systems with backbend. Anti-Microbial formulation makes this a desirable choice in the food and medical industries. Other applications include fruit/vegetable, fish/poultry/meats and cheese and dairy industries.

03-711 Download

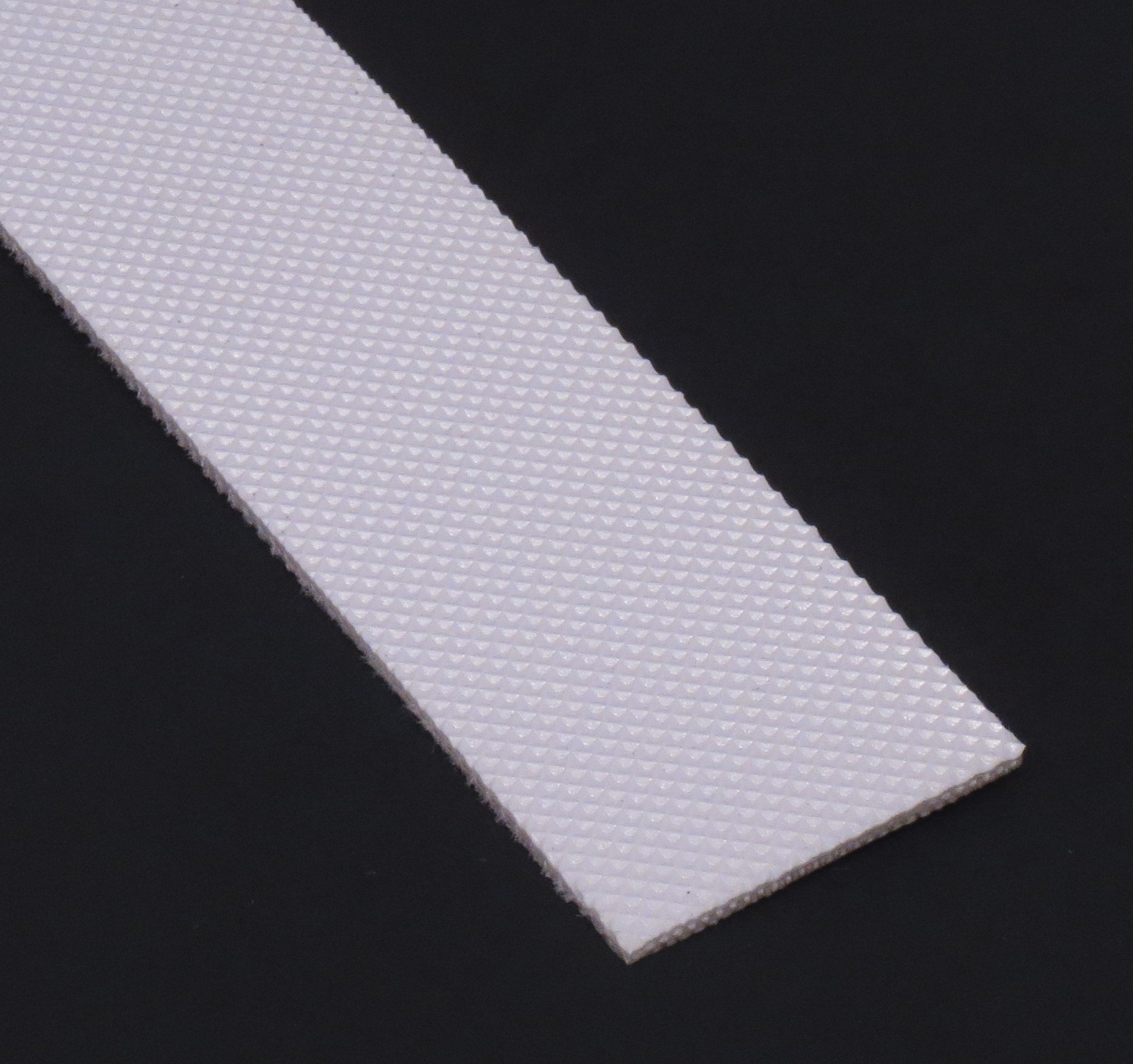

Mono Flex Wu 220 M Cover Mono Flex WU 220 M

Excellent oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. This belt has a tiny diamond profile which provides both grip and release of food products. USDA - FDA approved for feed belts handling leafy vegetables, bacon slicing belts, high-speed red meat processing, and applications where moisture makes smooth belts too slippery.

03-146 Download

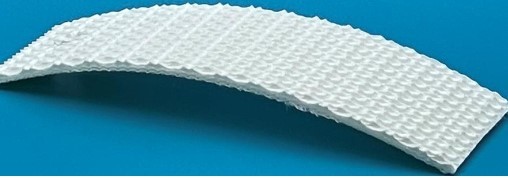

Mf Wu 220 S Pic Mono Flex WU 220 S

Excellent grip properties for bakeries and general food applications.Very good resistance to oils, fats and solvents. Proven winner for moulders and bagel formers.

03-016 Download
Mono Flex WU 220 S

Excellent oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. This belt has a tiny diamond profile which provides both grip and release of food products. USDA-FDA approved for feed belts handling leafy vegetables, bacon slicing belts, high speed red meat processing, and applications where moisture makes smooth belts too slippery.

03-016 Download
Mono Flex Wu 270 Cover Mono Flex WU 270

Polyurethane lattice top cover has excellent release and is easy to clean, making it a good replacement for fabric/cotton belts on rounders, moulders and sheeters. Polyurethane impregnation on pulley side seals the fabric and eliminates the possibility of ingress of pollutants and mold buildup. Monofilament carcass lays flat and reduces edge curl.

03-018 Download

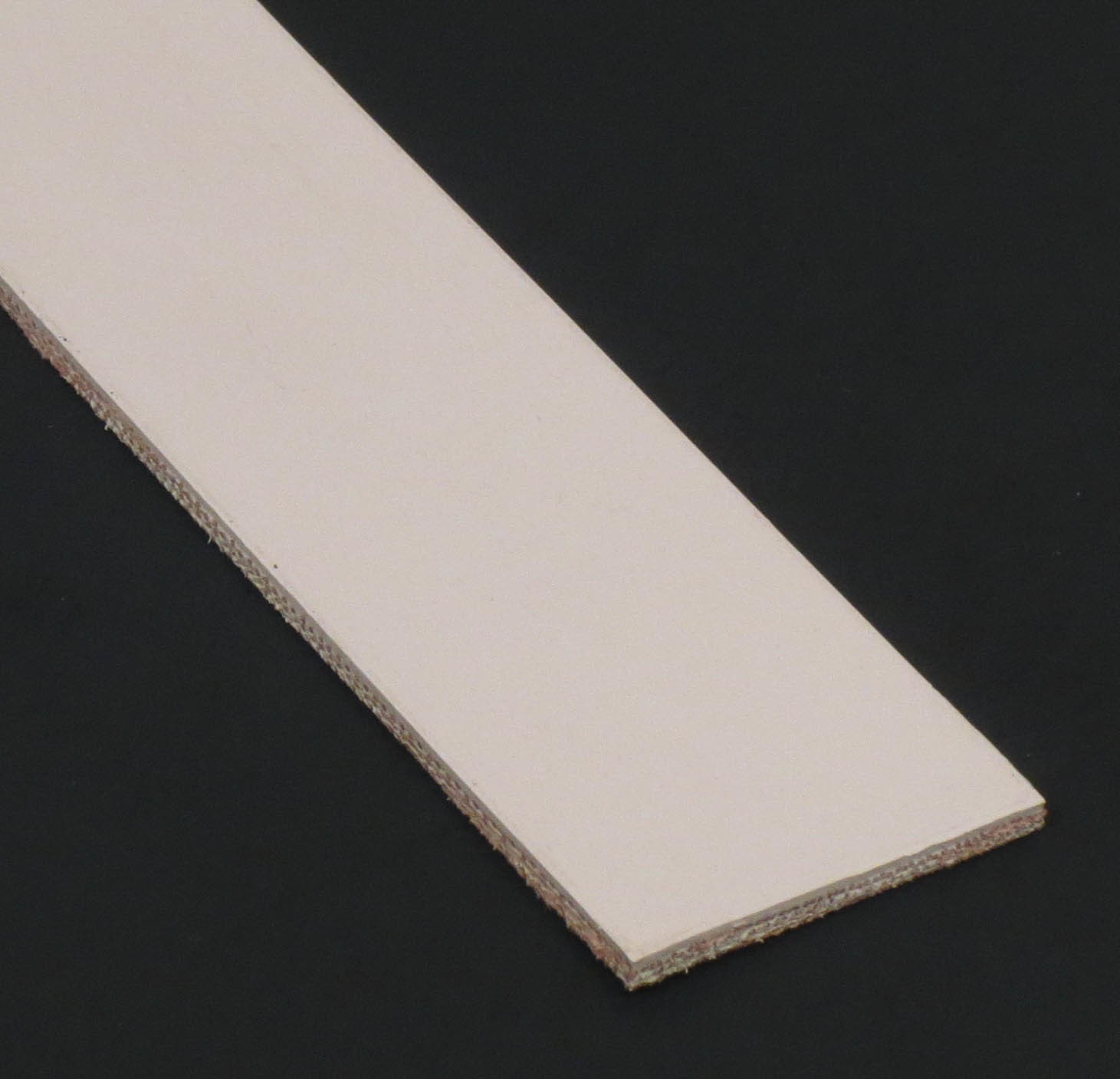

Multi Temp Cover Multi Temp

Limited oil and grease resistance. Avoid direct contact with animal or vegetable oils above ambient temperatures. Ideal for cold rooms and freezers. Will withstand heat to 300 degrees F on sealing machines and shrink tunnels provided belt has a chance to cool down on return side. For temperatures above 275 degrees F, allow 1% for shrinkage. For product temperatures below 30 degrees F, use 5" minimum pulley diameter.

02-040 Download

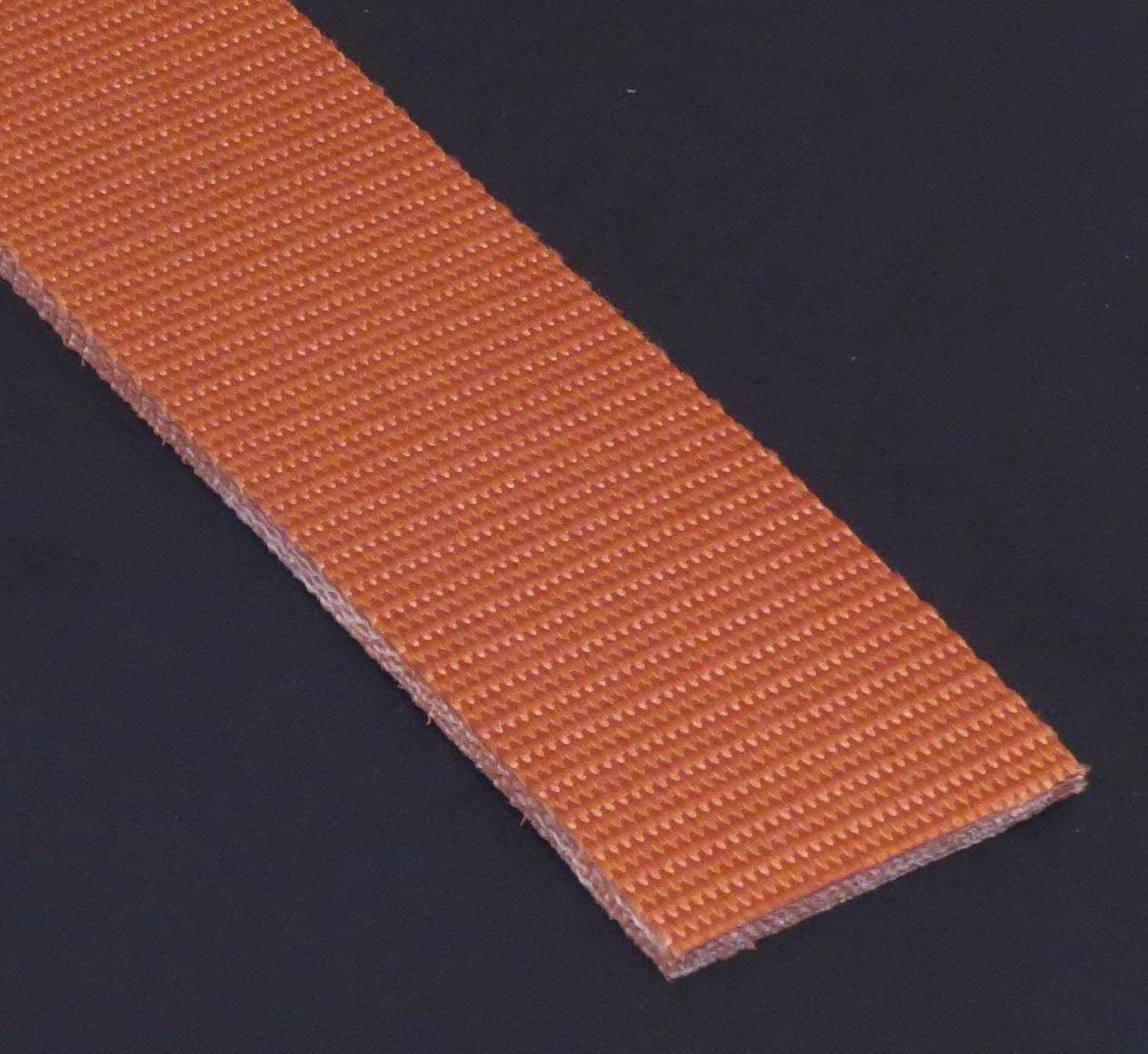

Nytop Cover Nytop

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Very low friction and good wear resistant top surfaces are well suited for accumulation and/or diverting applications. Run slippery side up when products are pushed or plowed. Run slippery side down for very low frictional drag. Uses include warehouse/distributions centers and stackers in corrugated box plants.

02-170 Download
