Belting Technical Data Sheets

Photo Name Part Number Technical Data

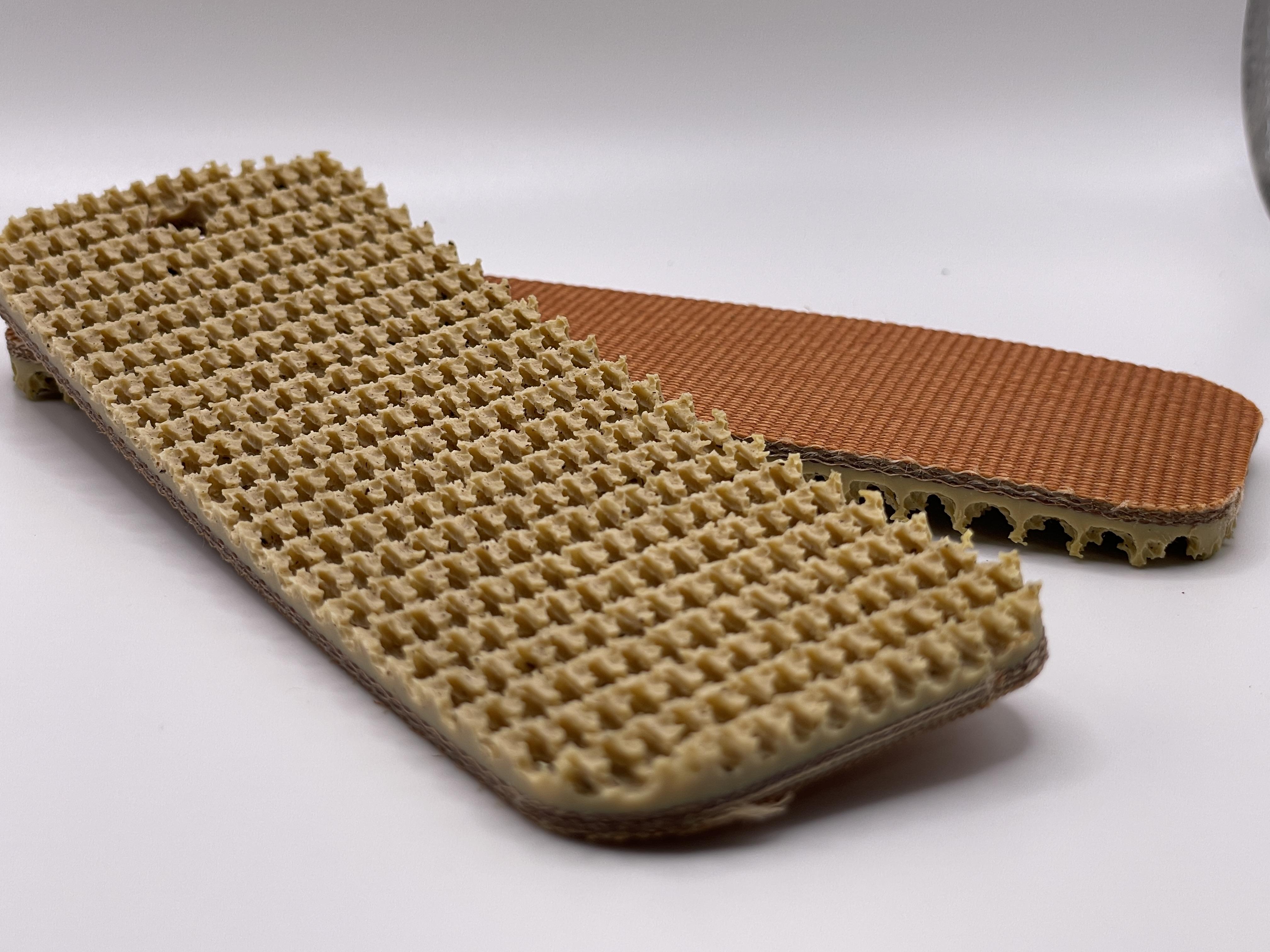

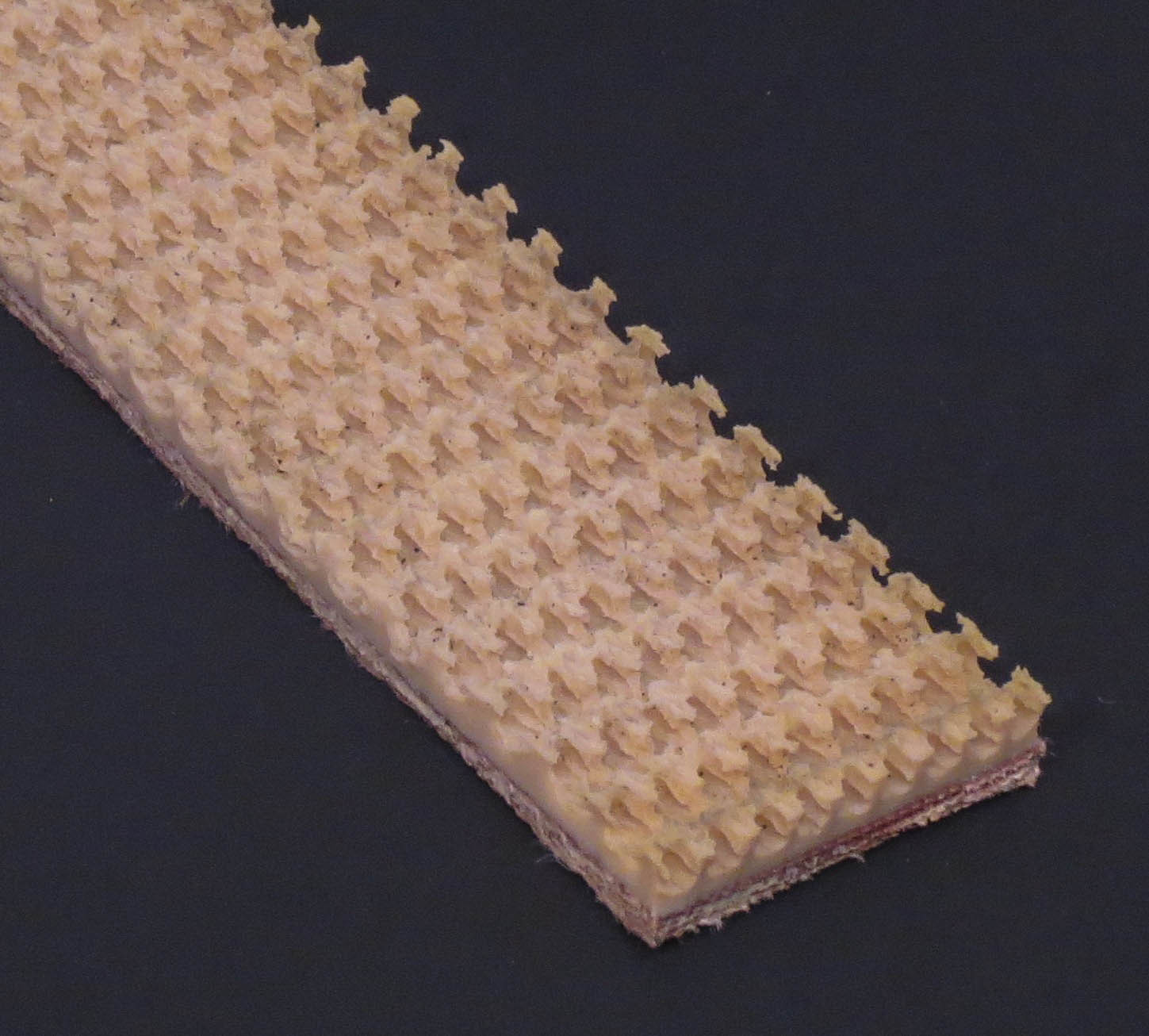

3 Ply Natural Rough Top Cover 3 Ply Tan SBR Rough Top

This SBR rubber rough top impression is excellent for incline/decline applications up to 35 degrees. Proven performance in corrugated box plant, case packers and labelers, wood sanding and plastic puller belts. Treated carcass increases ply adhesion and decreases edge curl. For laced applications, a recessed cover is recommended.

02-035 Download

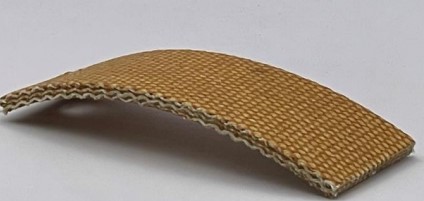

3 Ply Texan Pic 3 Ply Texan

Commonly referred to as 3-ply transmission belt or a "3-ply friction surface belt". Can be used for both slider bed and roller bed applications and has been a staple in general industrial applications for years. Avoid applications with high exposure to oils.

02-705 Download

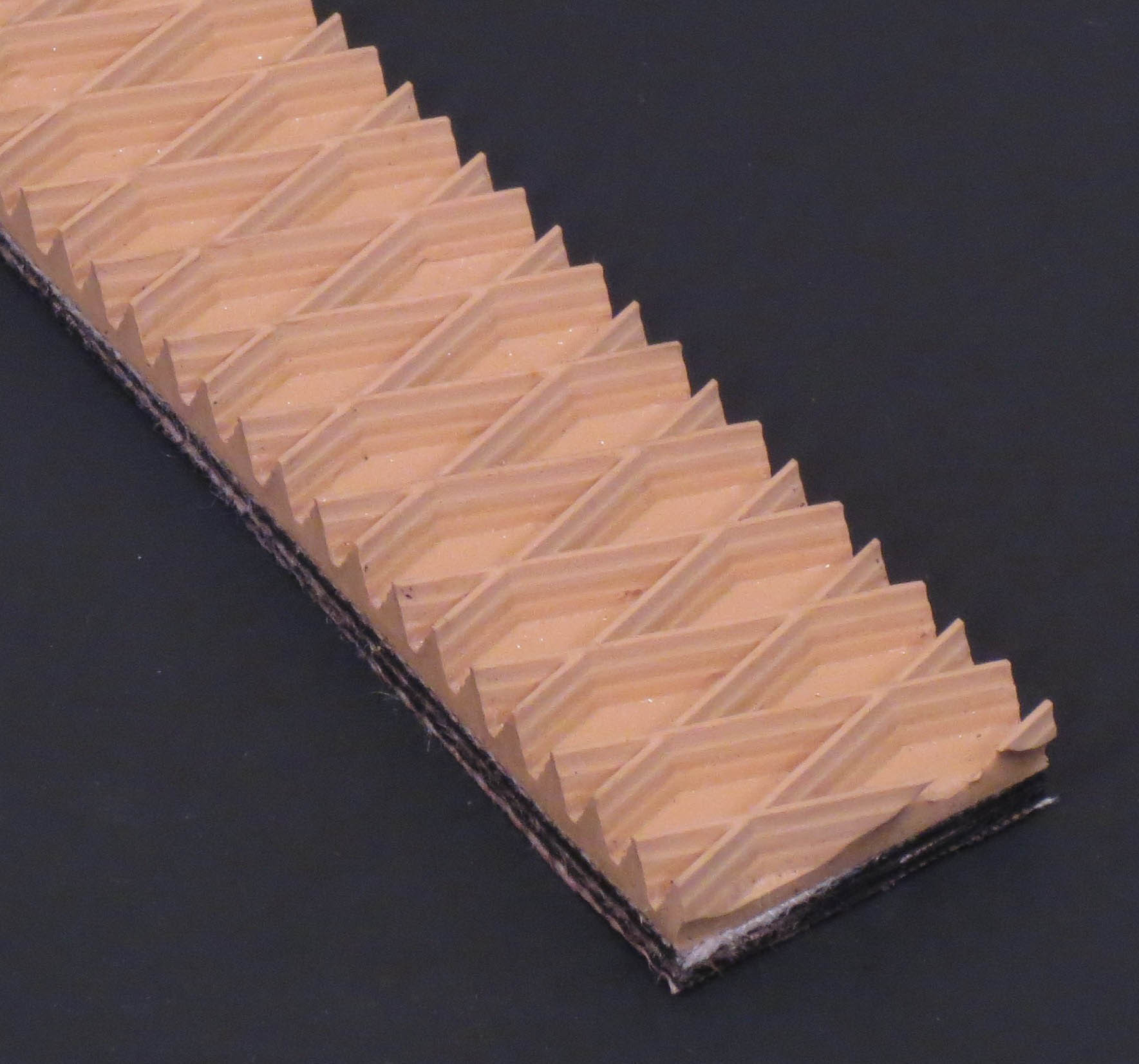

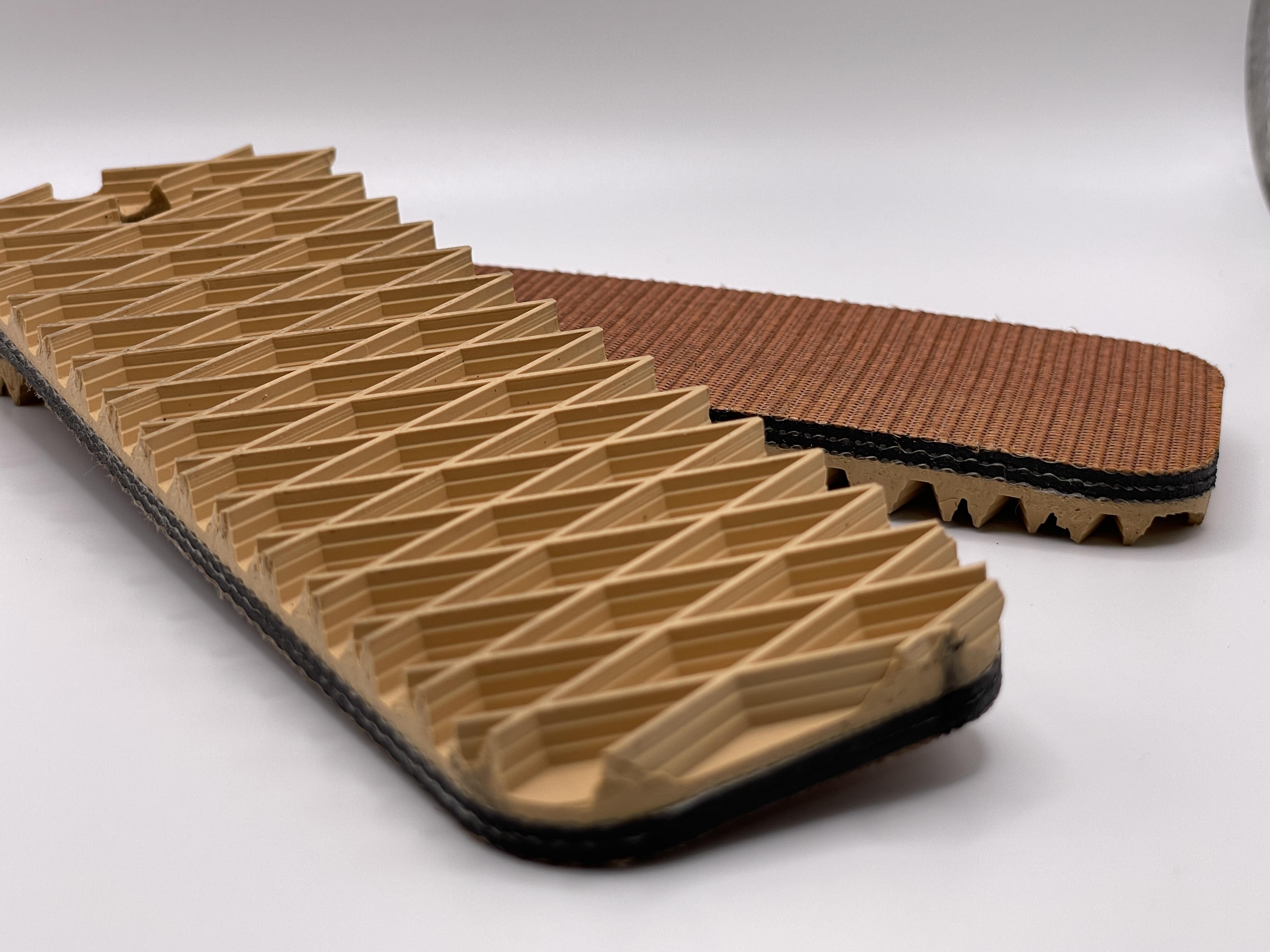

3 Ply Wedge Grip Cover 3 Ply Wedge Grip

Avoid oils, greases and solvents. Treated carcass increases ply adhesion and decreases edge curl. Extra thick non-marking cover is very abrasion resistant. Soft criss cross ribs form diamond pattern. Used in Gypsum plants for board stacking application. Also used in the woodworking industry on wide belt sanding applications. For laces a recessed cover is recommended.

02-374 Download

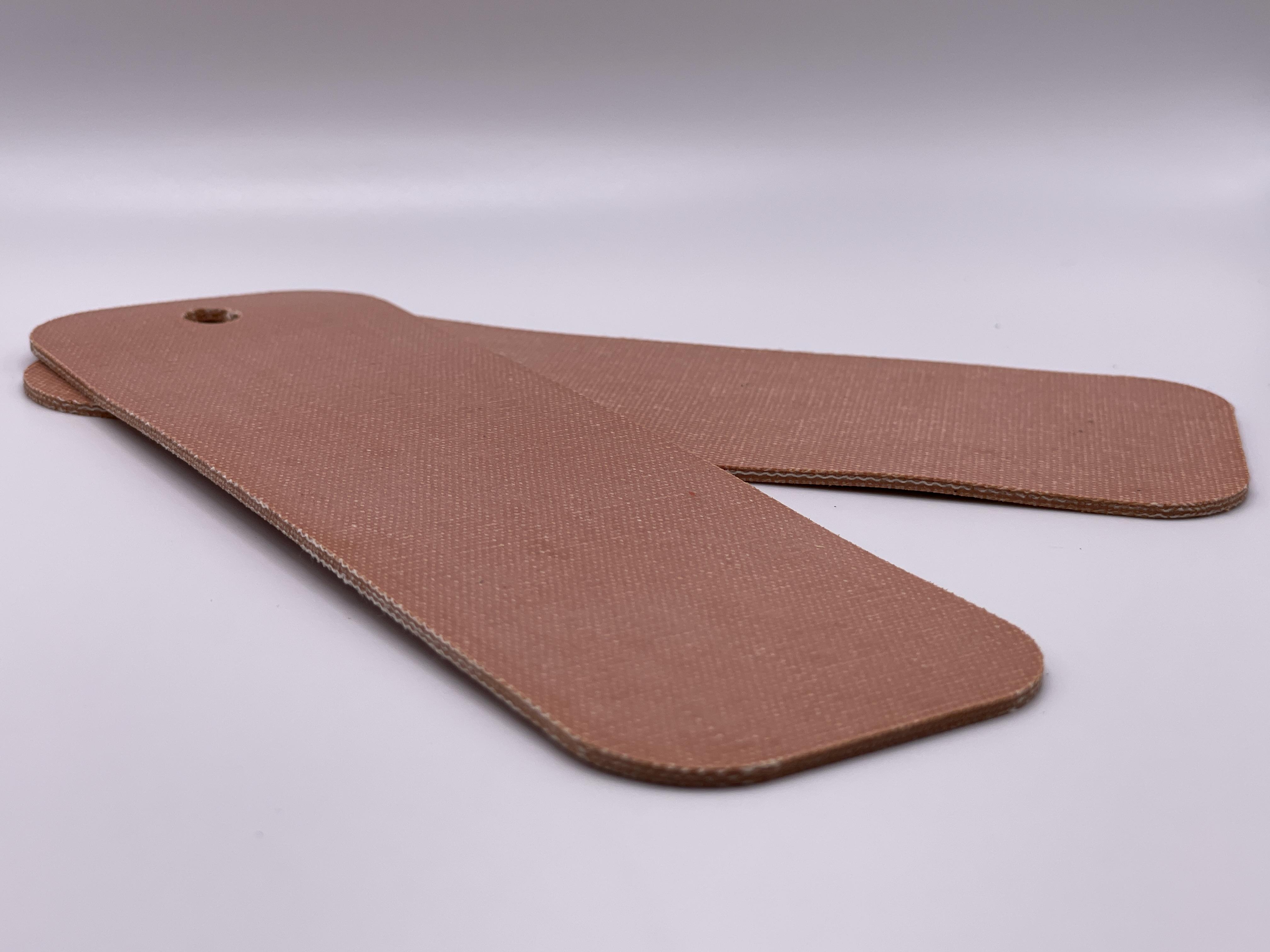

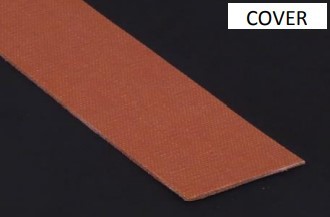

38Nff 38 N F & F

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Interchangeable friction surfaces on top and bottom. Good choice on some "checkweigher" scale belts and conveying recycled paper egg cartons from molding machines. Also, ideal for light service general conveying on finished product line.

02-080 Download

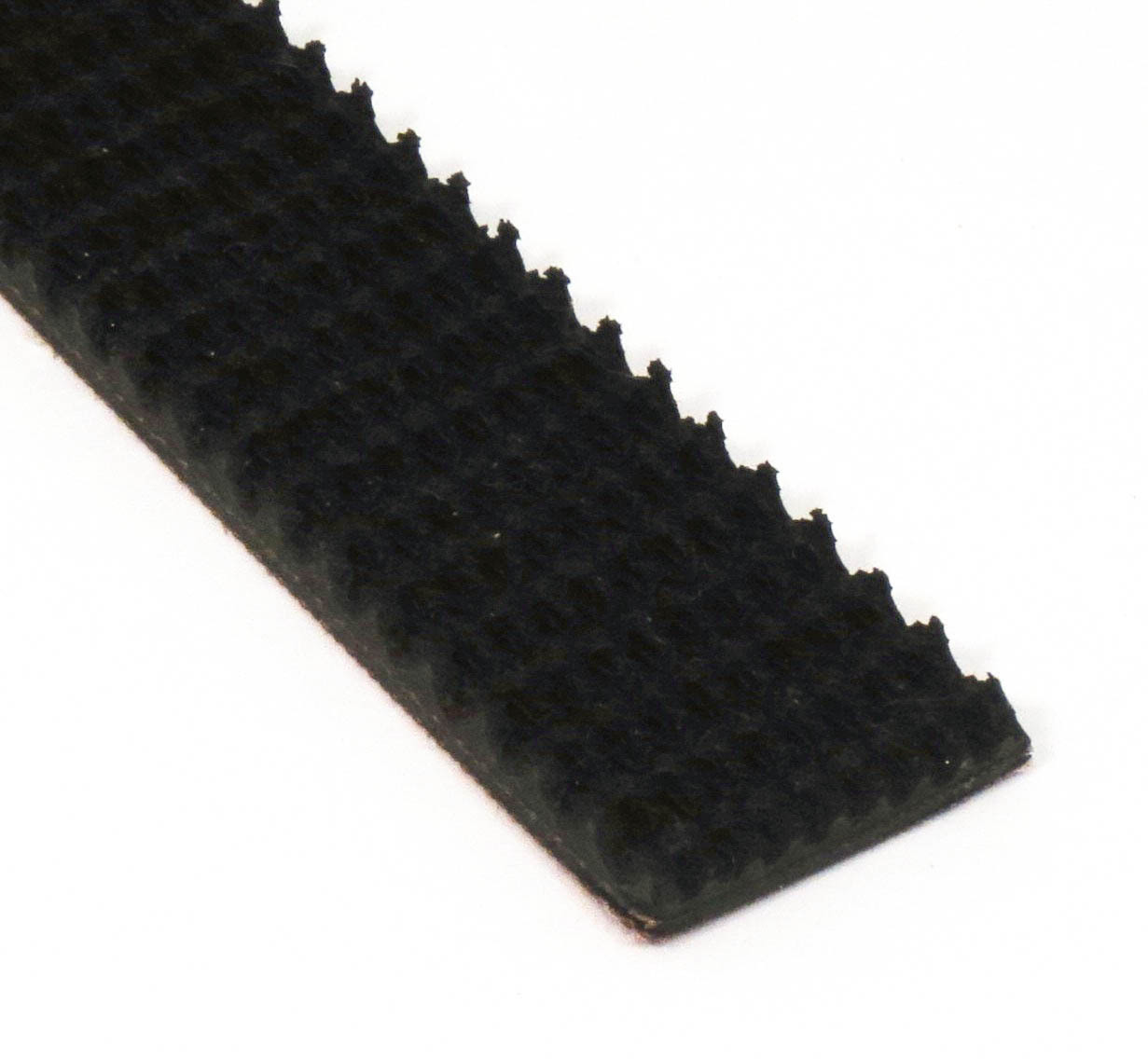

3 Xln Cover 3XLN

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. This belt has a deep rough top impression. Proven performance in airport baggage handling, wood and metal sanders and automotive stampings. For laces, a recessed cover is recommended.

02-340 Download

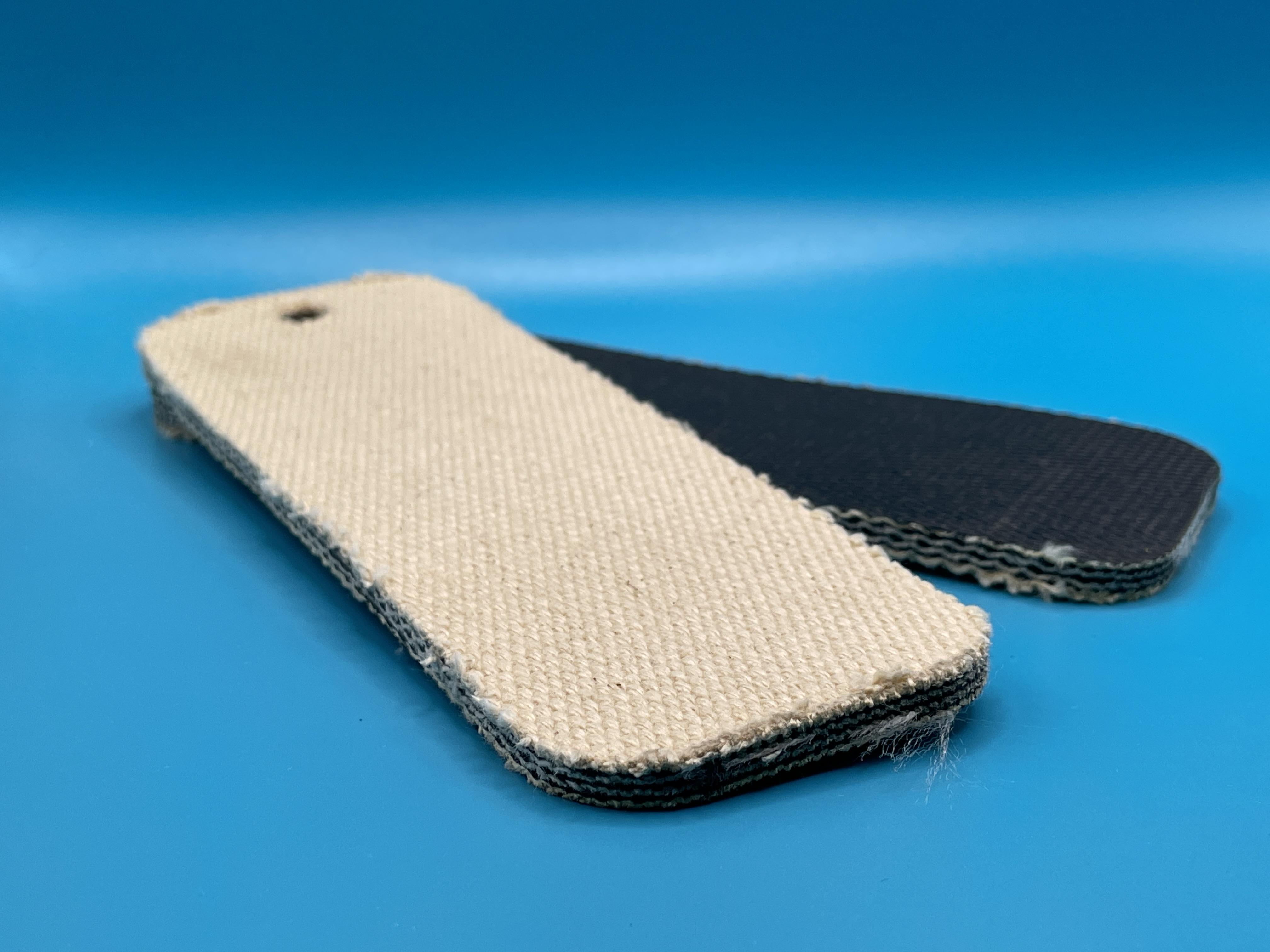

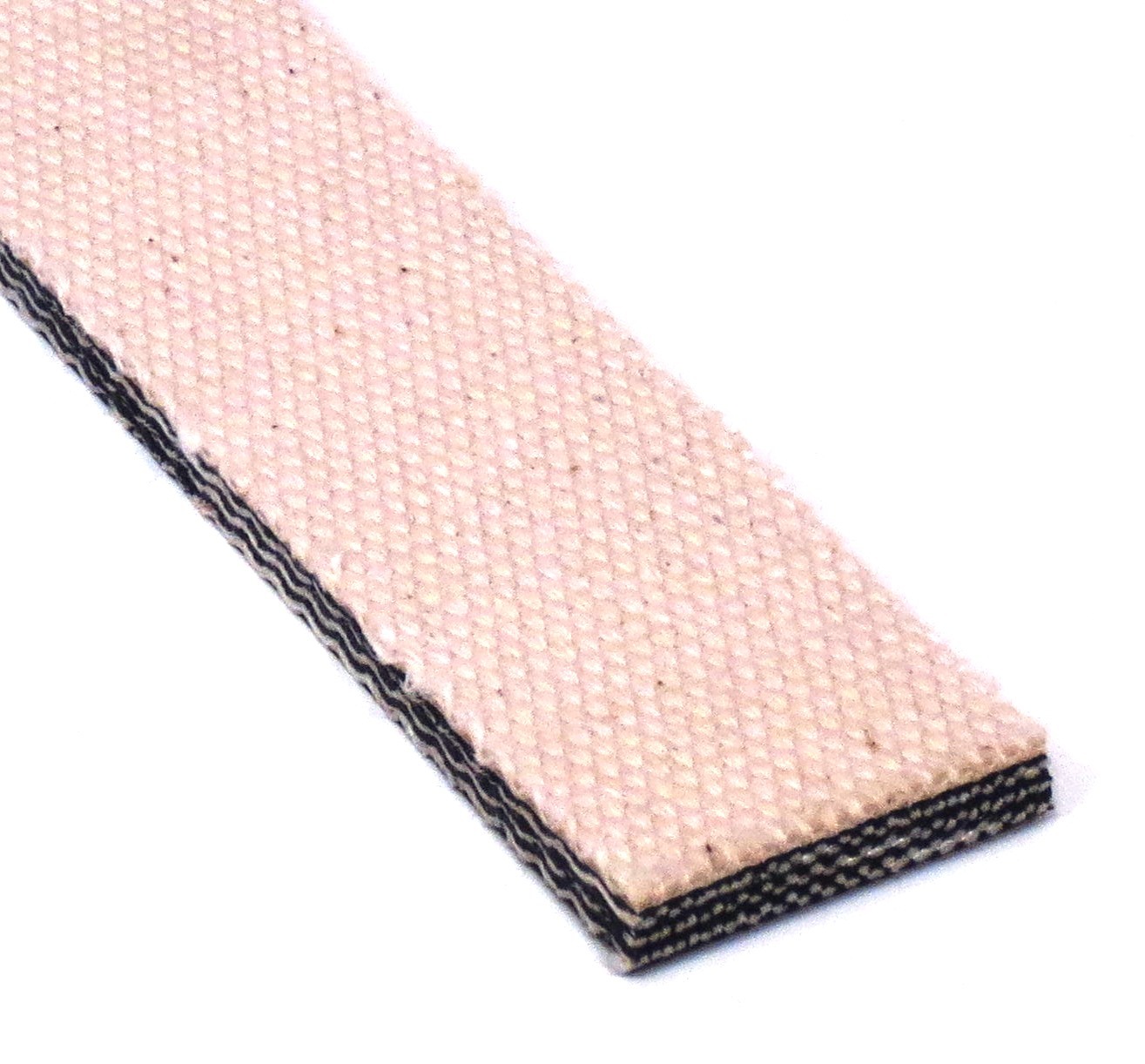

Hsw Rubber 4 Ply Cover 4 Ply HSW Rubber

Very limited resistance to oil, grease, acids and solvents. The cotton surface of the belt will absorb moisture. Good choice where non-marking or low friction qualities are required. Applications include conveying warm rubber extrusions and as an extra-wide down-stacker in the corrugated box industry. On slider bed applications needing low friction drag, run cotton duck surface as pulley side. Makes a great belt for special covers (like cast urethane in the die cutting industry).

02-402 Download

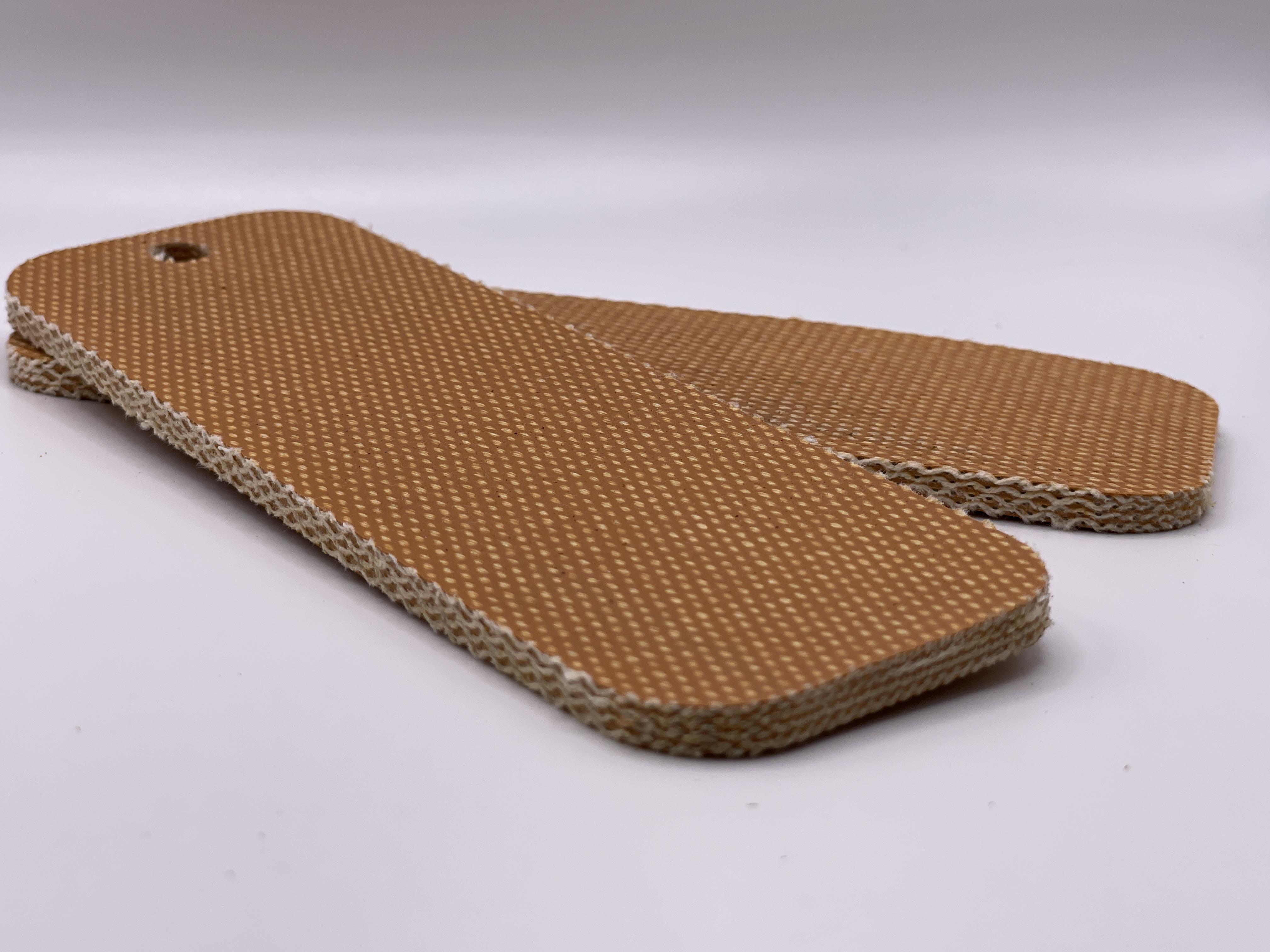

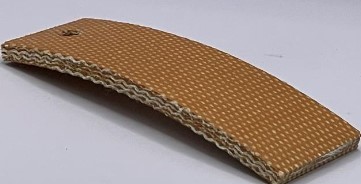

4 Ply Texan Pic 4 Ply Texan

Commonly referred to as 4-ply transmission belt or a "4-ply friction surface belt". Can be used for both slider bed and roller bed applications and has been a staple in general industrial applications for years. Avoid applications with high exposure to oils.

02-421 Download

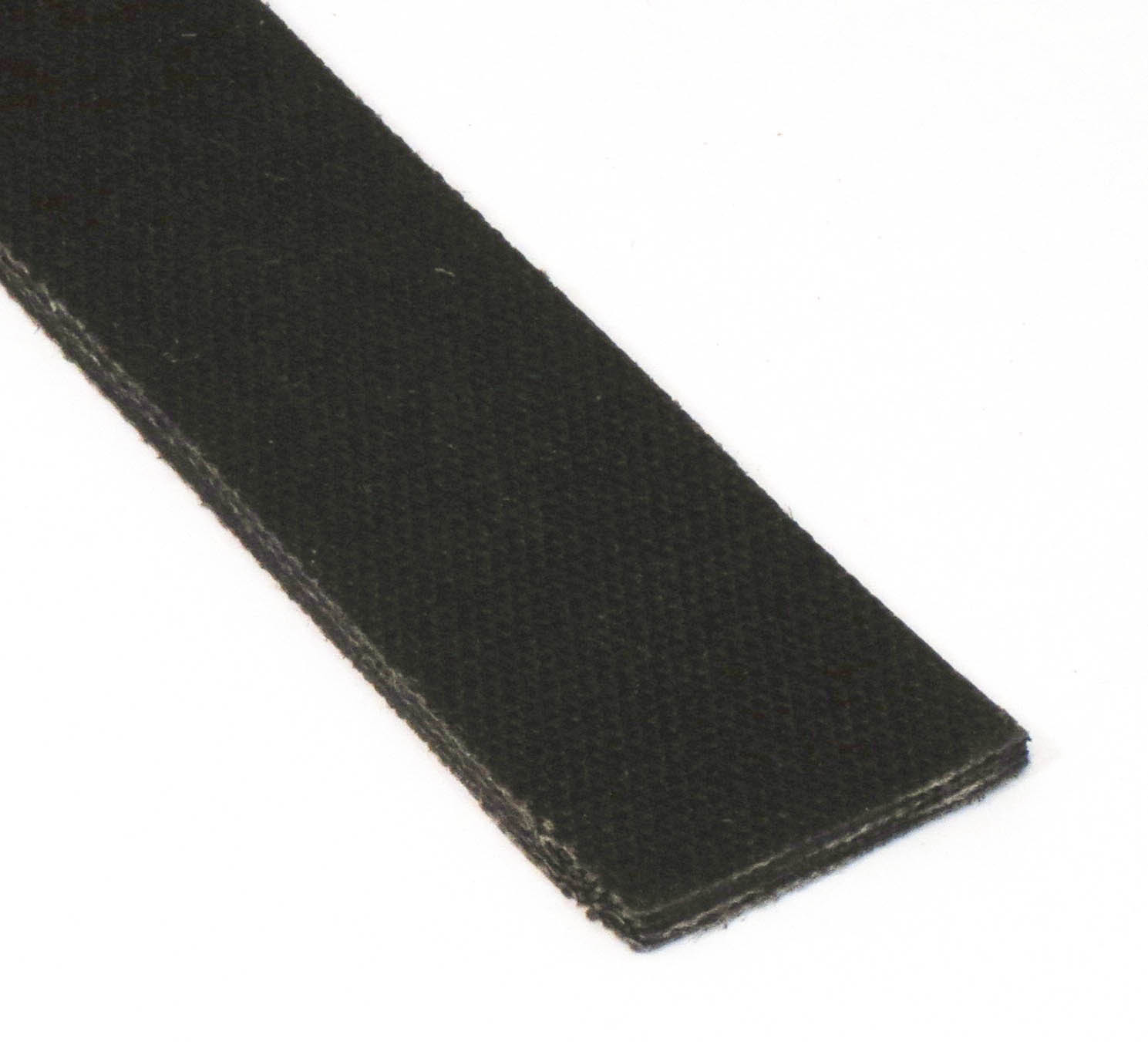

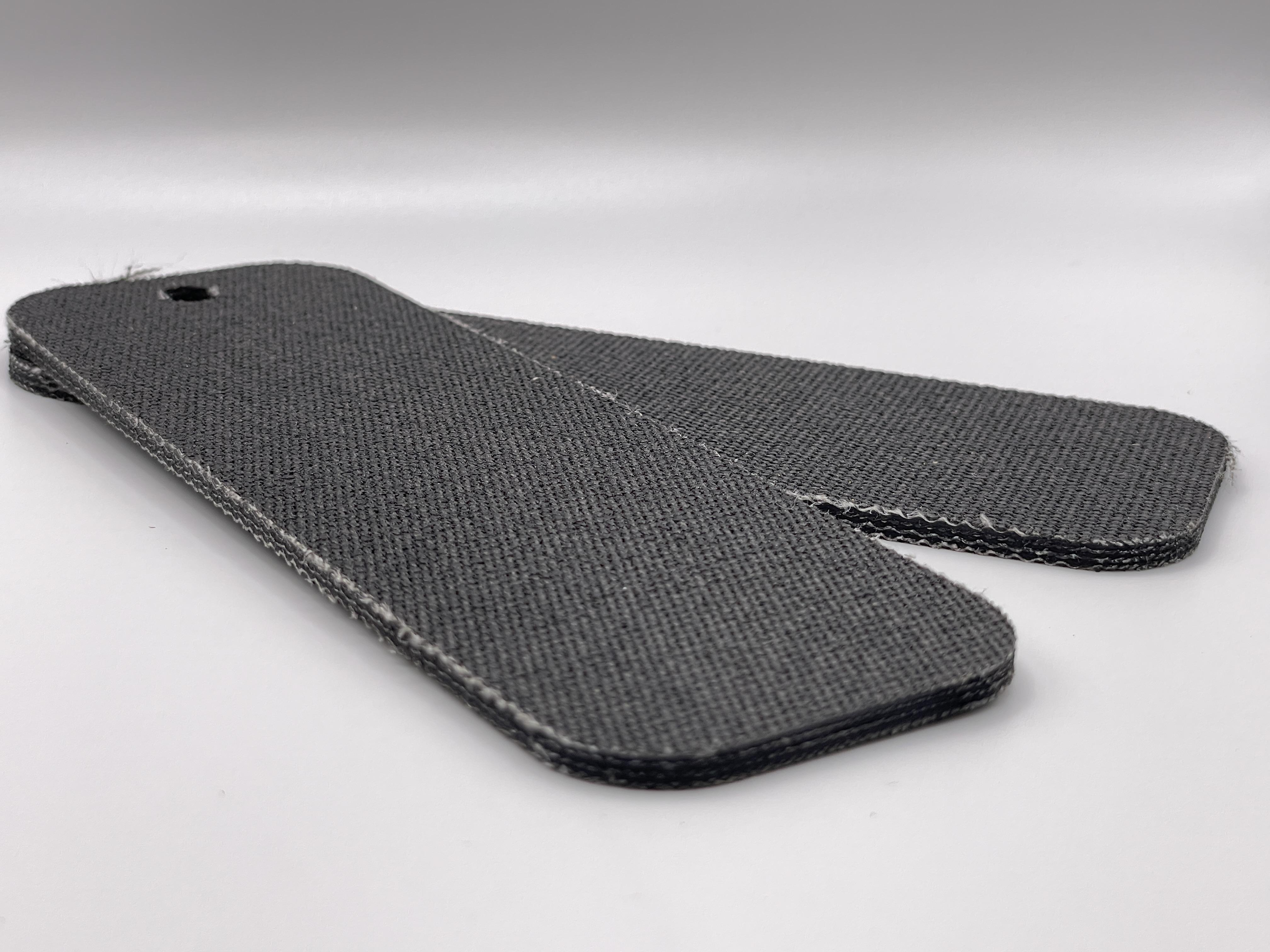

415 N Special Cover 415 N Special

Excellent oil and grease resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. Ideal for airport baggage, automatic setters and sizers in brick plants, fiberglass and roofing materials and light-to-medium duty shear lines and take-away units in the steel industry.

02-190 Download

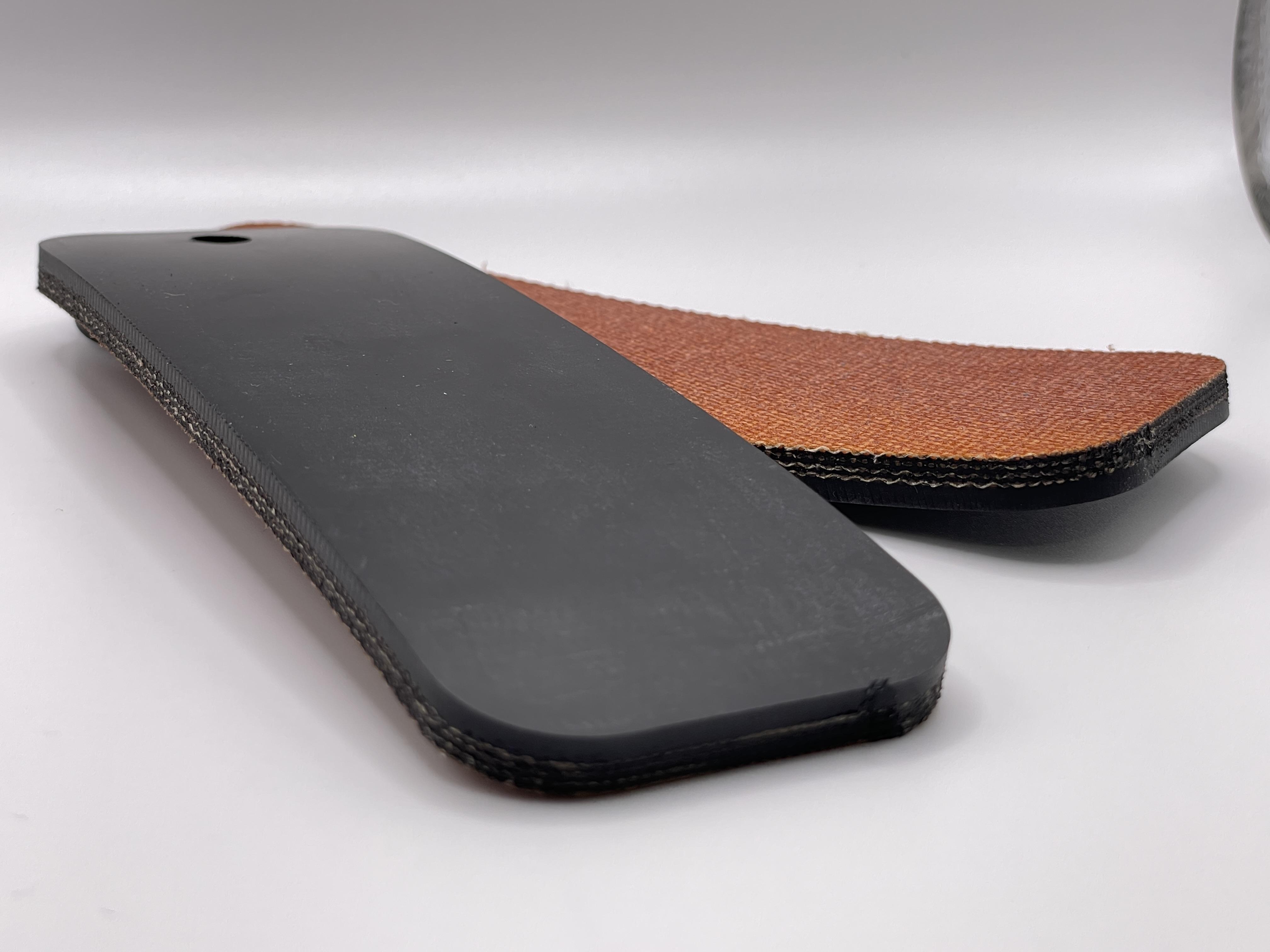

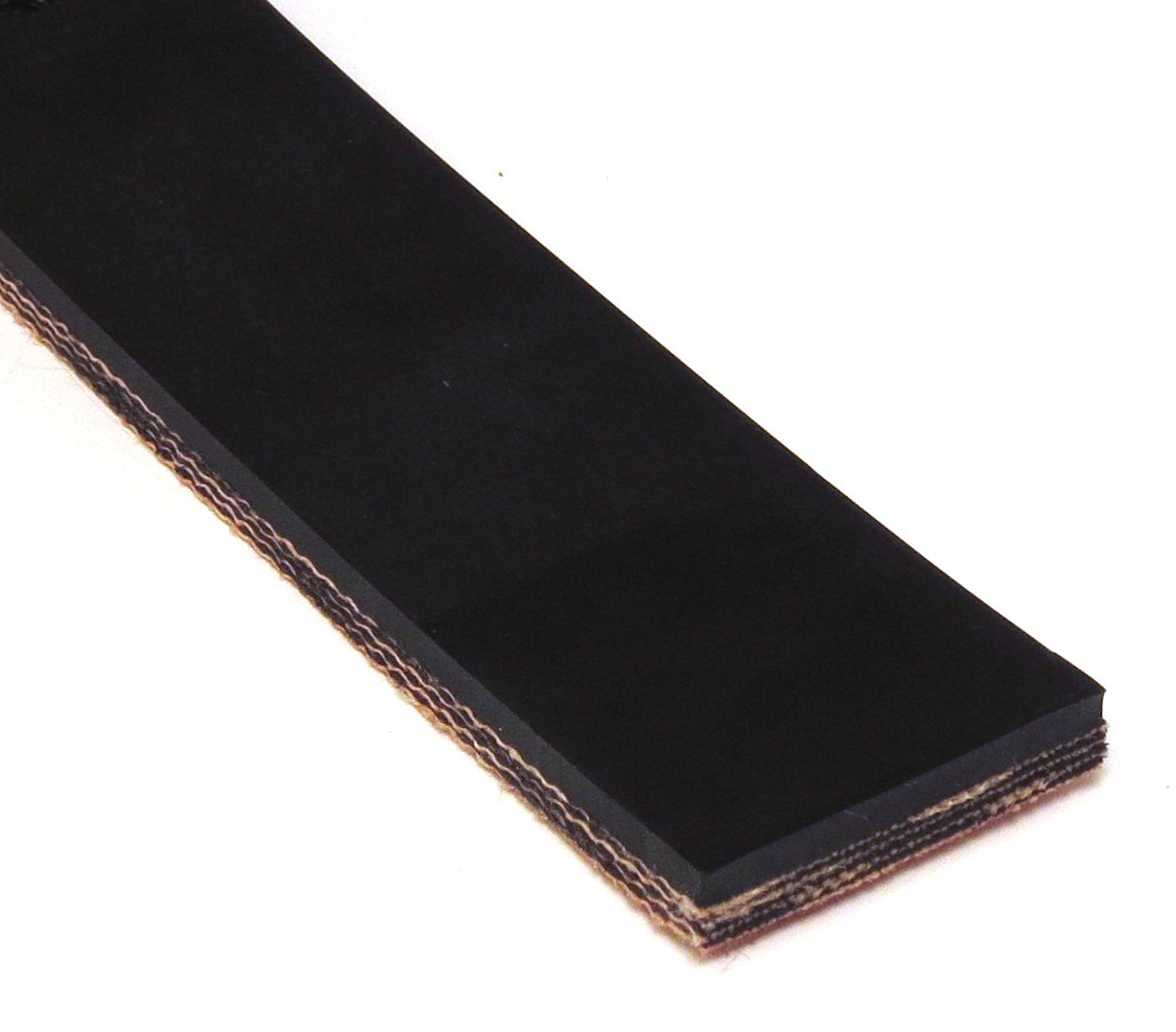

415 Nos Cover 415 NOS

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. This belt (no breaker) is ideal for wood planers and sanding equipment.

02-236 Download

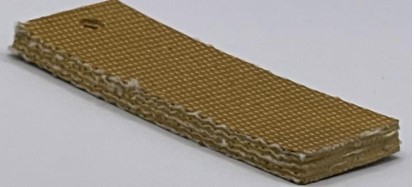

5 Ply Texan Pic 5 Ply Texan

Commonly referred to as 5-ply transmission belt or a "5-ply friction surface belt". Can be used for both slider bed and roller bed applications and has been a staple in general industrial applications for years. Avoid applications with high exposure to oils.

02-706 Download

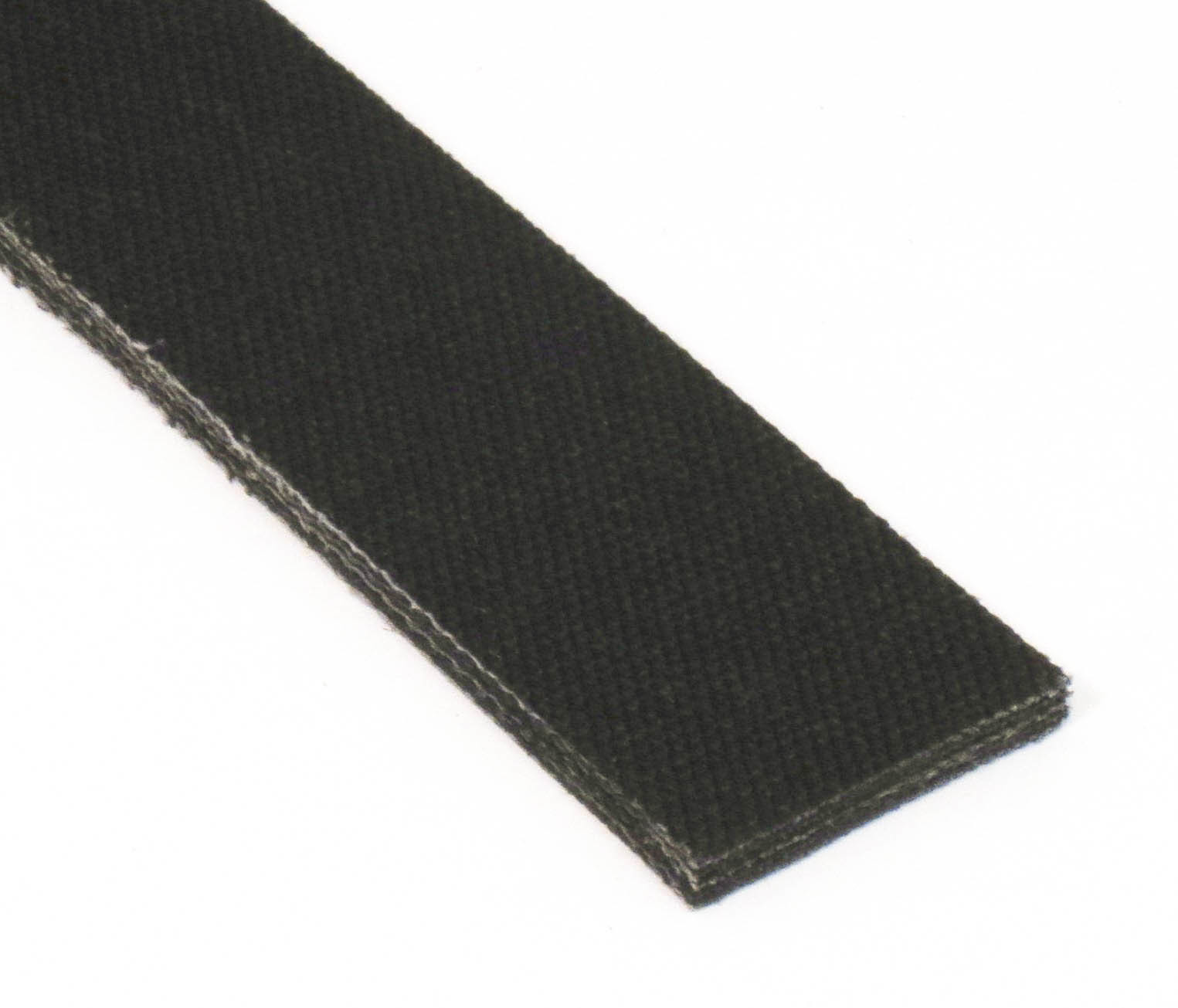

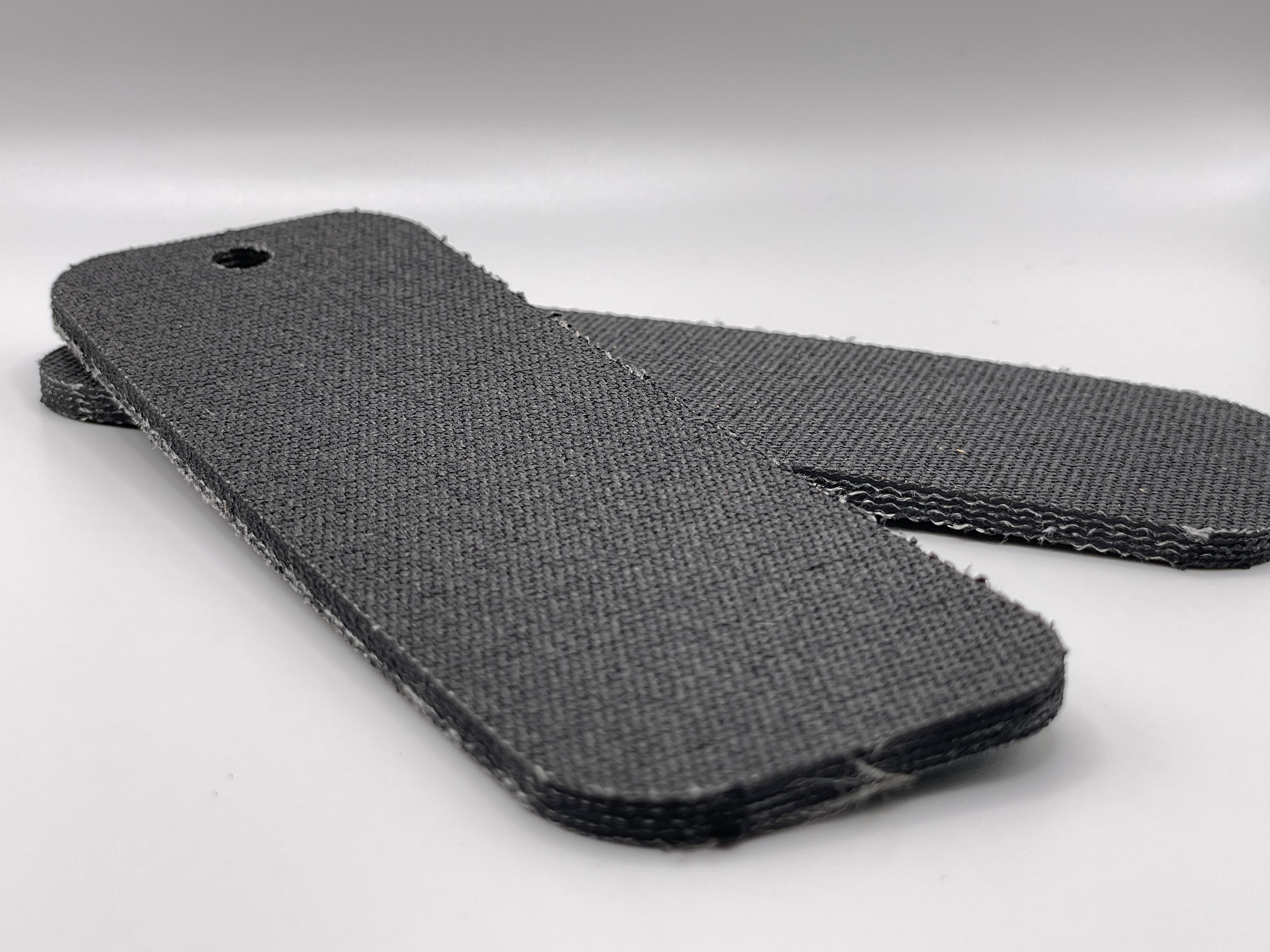

515 N Special Cover 515 N Special

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. Ideal for airport baggage, automatic setters and sizers in brick plants, fiberglass and roofing materials and light to medium duty shear lines and take-away units in the steel industry.

02-200 Download
58 Nf F Pic 58 NF & F

Ideal for accumulating applications or general transport. 58NF&F is a robust belt that will wrap around a small 1.5" pulley. The belt features a tightly woven construction of polyester impregnated with nitrile that is suitable for oily applications. Due to the nitrile construction, the belt is inherently oil resistant and will withstand higher temperatures compared to a monofilament style belt.

02-704 Download

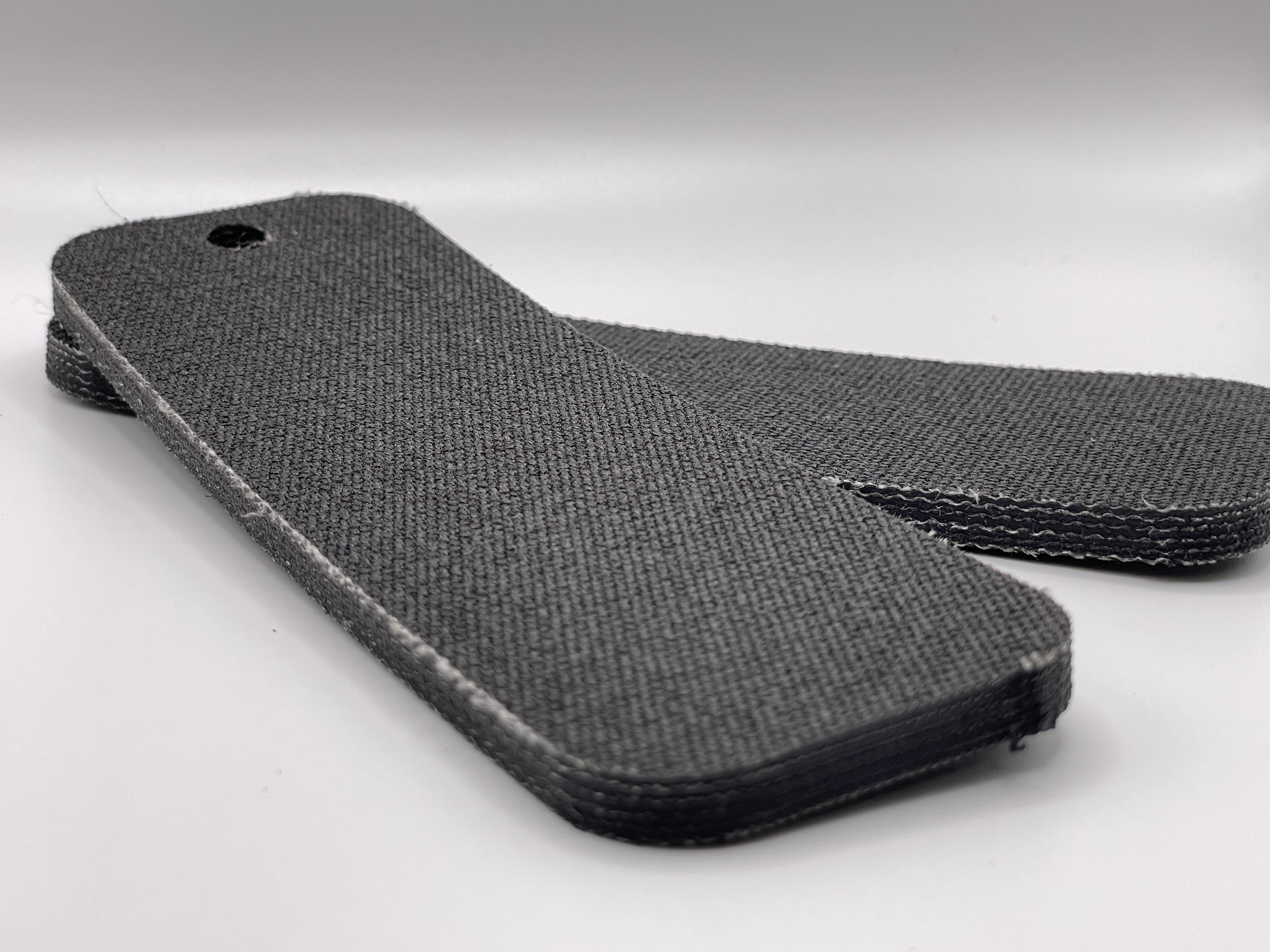

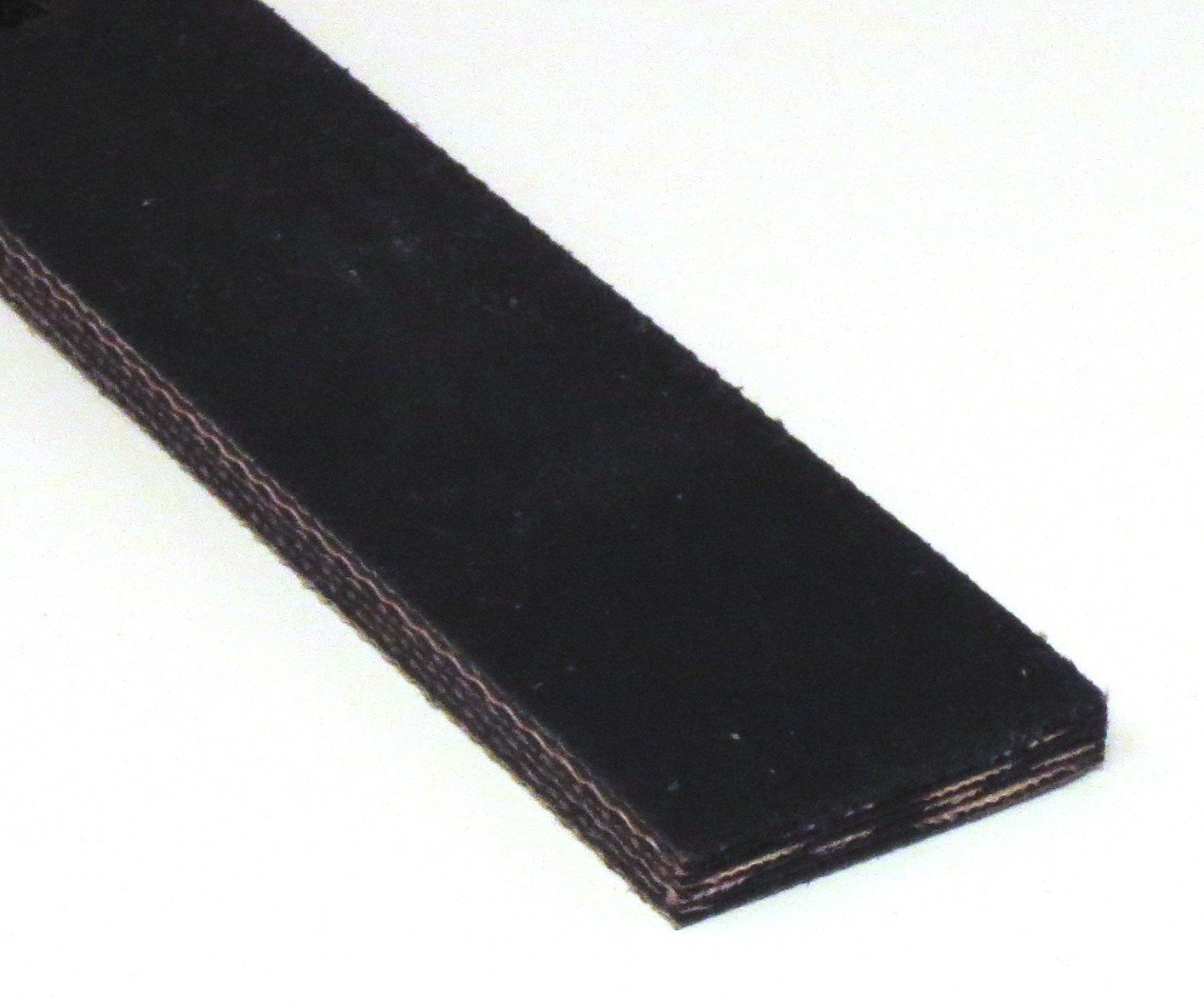

615 N Special Cover 615 N Special

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. Ideal for automotive parts and stampings, sheet glass tray belts and medium to heavy duty steel classifiers, shear lines and take-aways.

02-210 Download

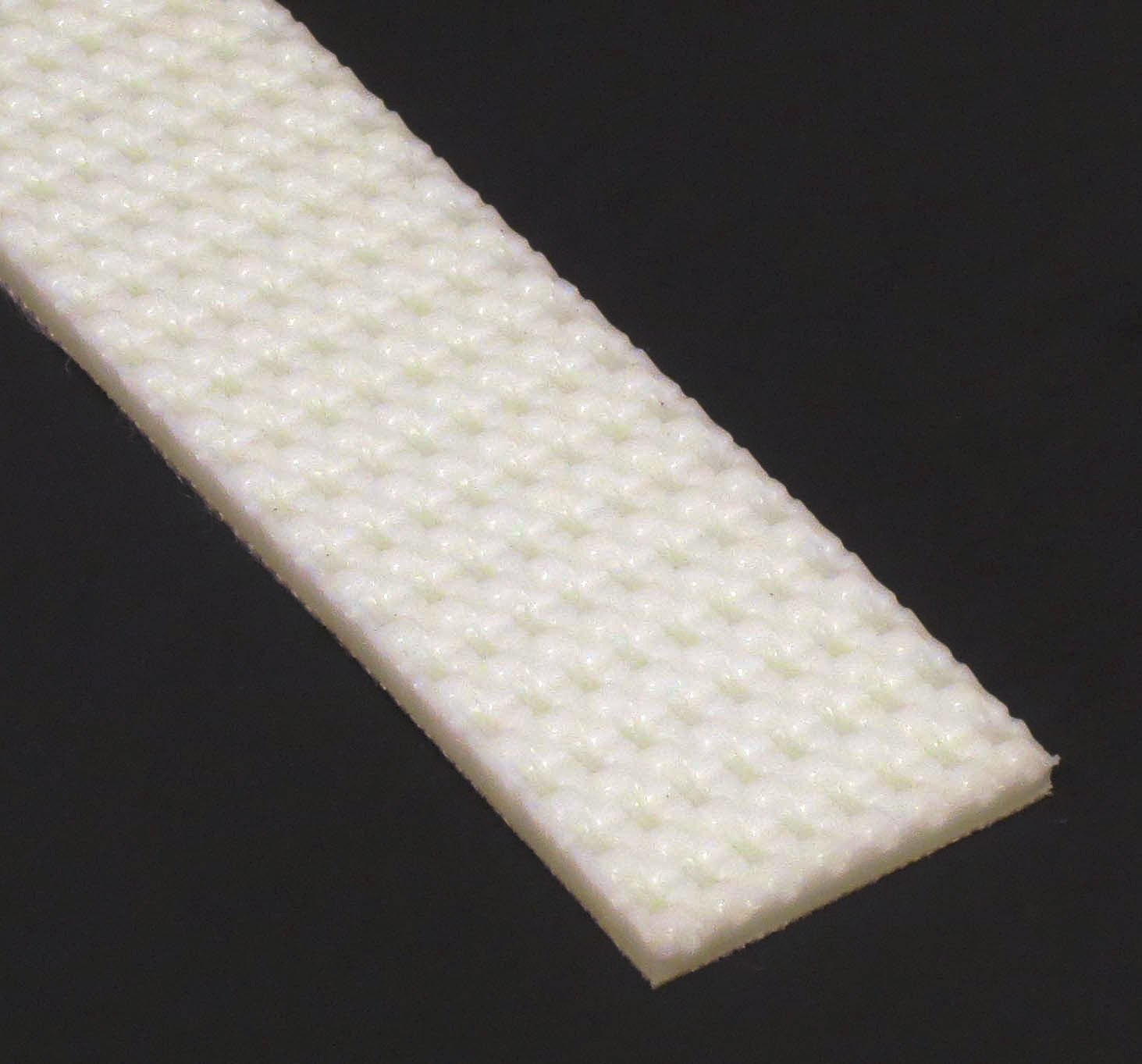

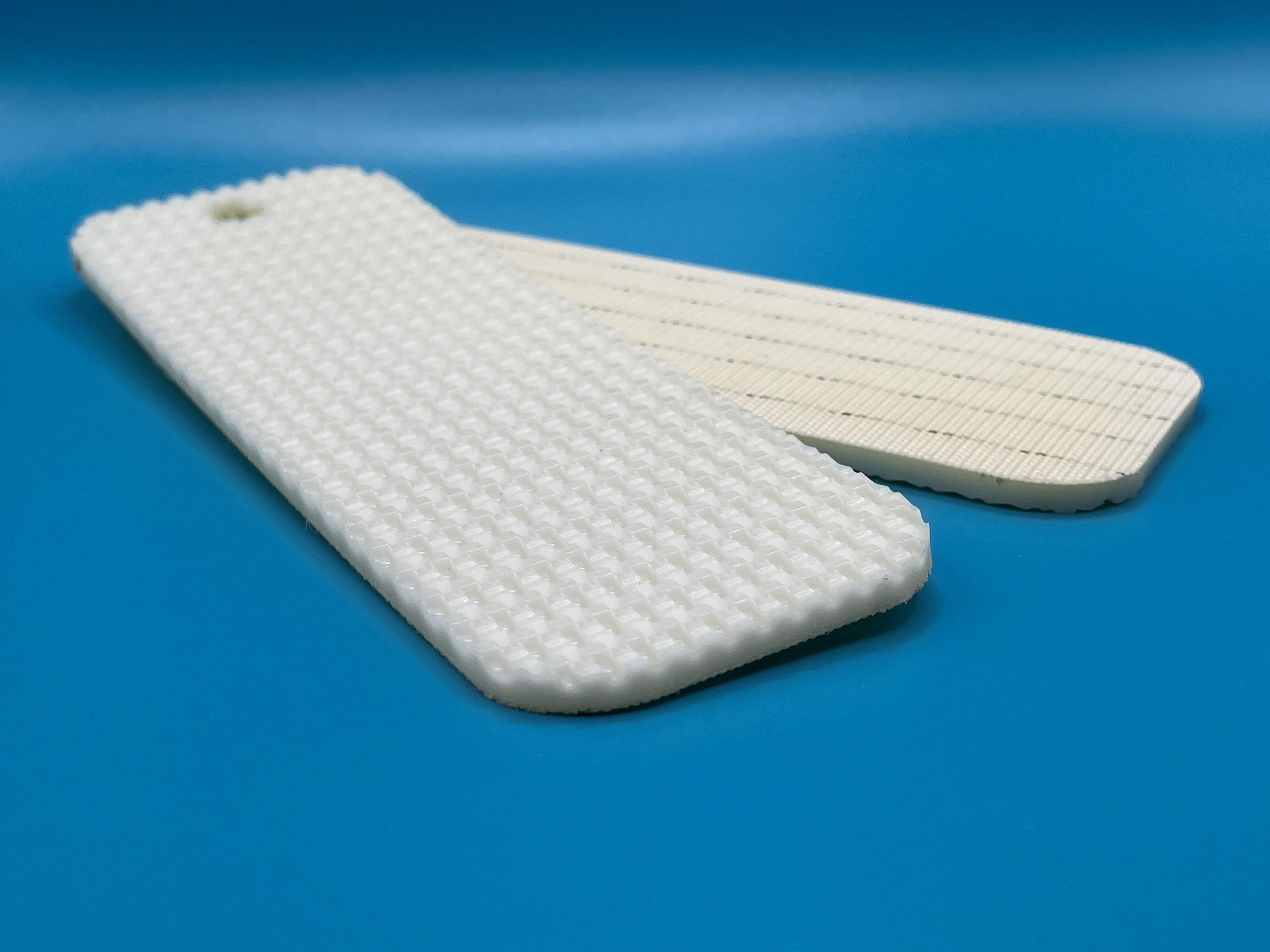

Apf 1040 Rt Cover APF 1040 RT

Used in high wear and abrasive applications, such as shingle and roof tile manufacturing. Reinforcement layer eliminates stretch. Easily made endless with welded butt splice. Rough top surface gives added grip and also resists cutting and gouges.

08-001 Download

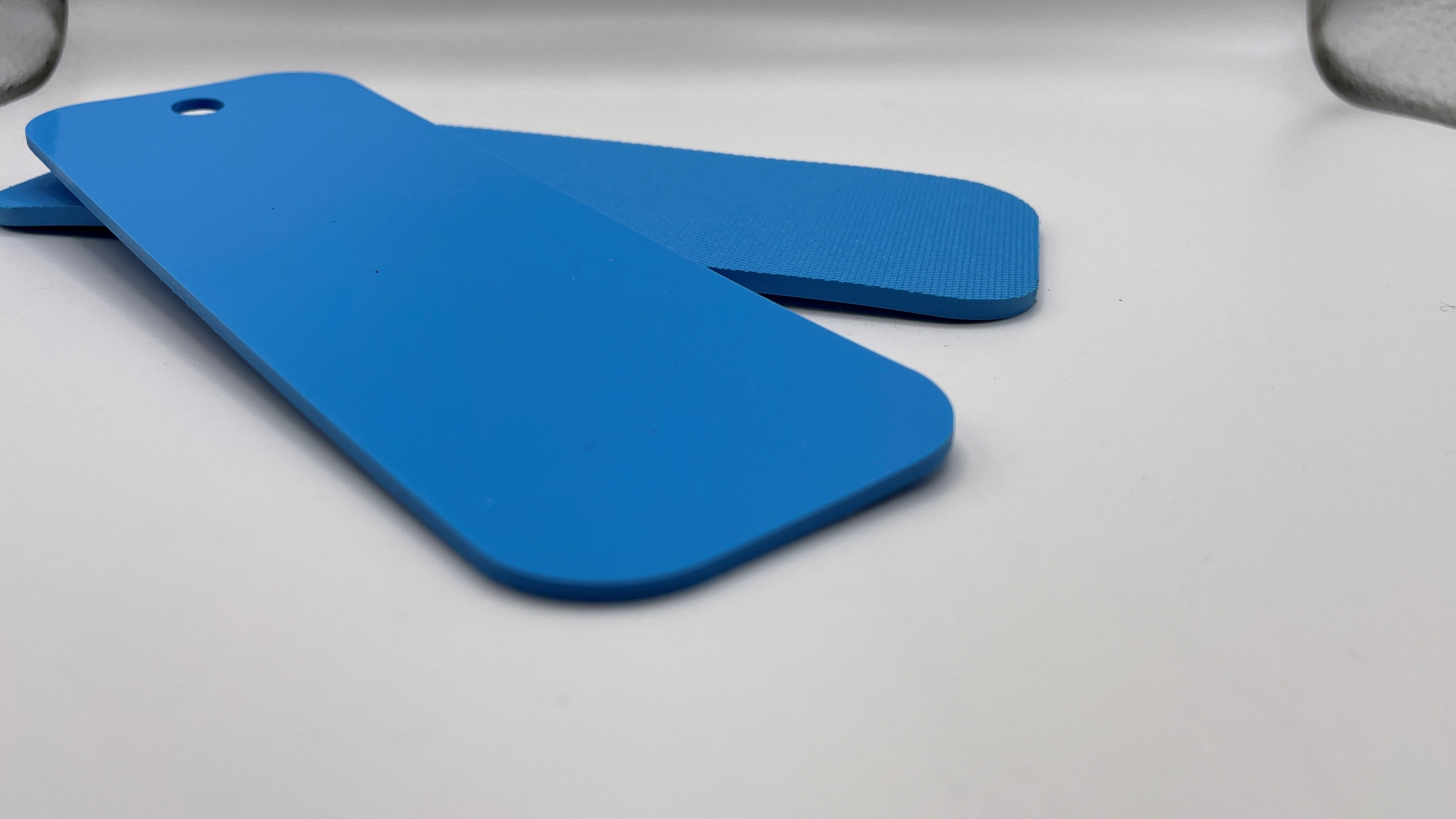

APF B 920 E

No Strings. Cleans easily. Heavy chemical wahdown resistance. Flexible. Easily installed endless. Used mostly in direct food handling applications: Poultry, beef and pork processing; grated or shredded cheese, pasta, dough, vegetable inspection tables

08-014 Download

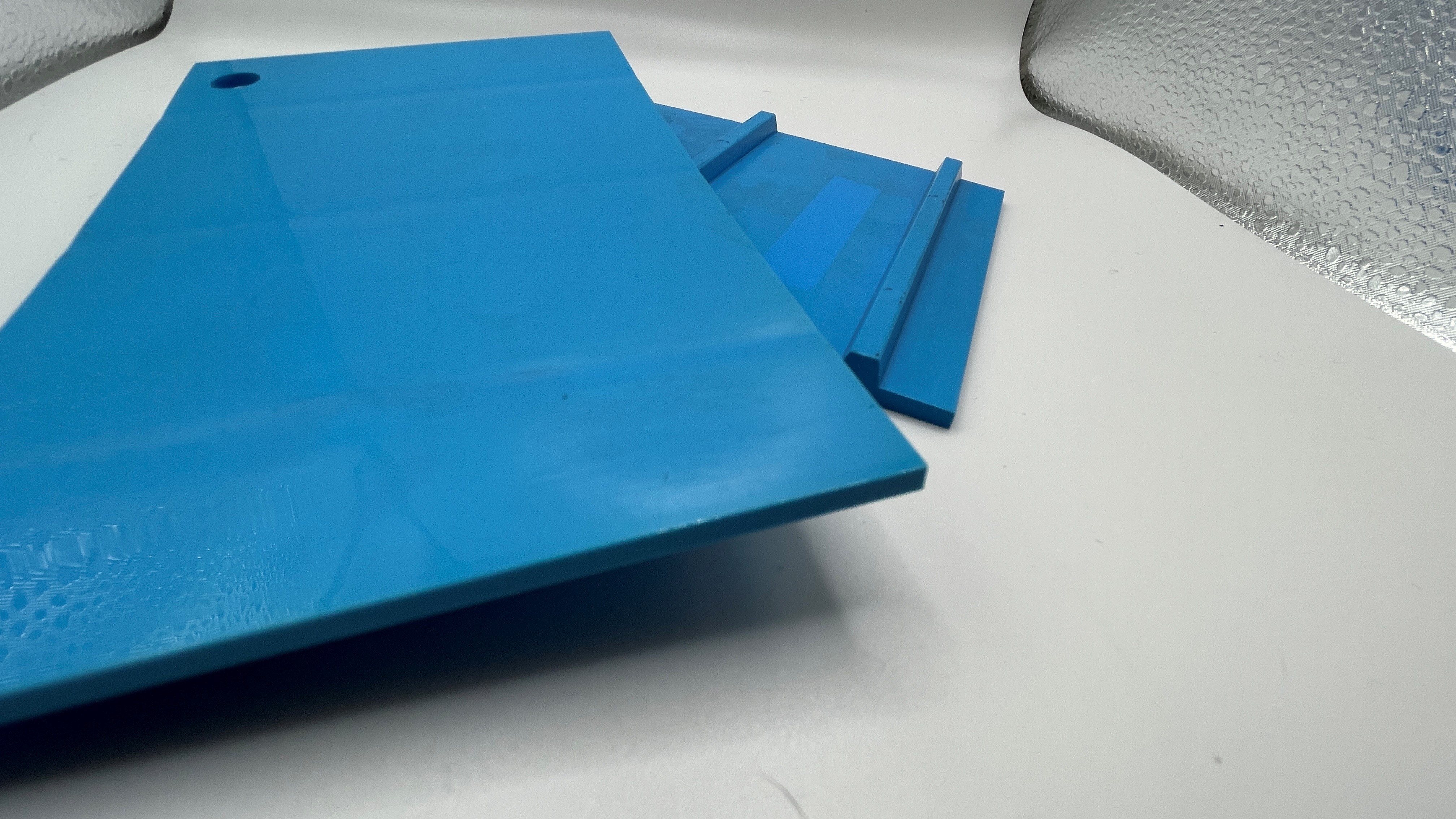

APF B 930 DD (FMB 3 DD)

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables. Additional benefit of Positive Drive material is that no system tension is required for operation.

08-013 Download

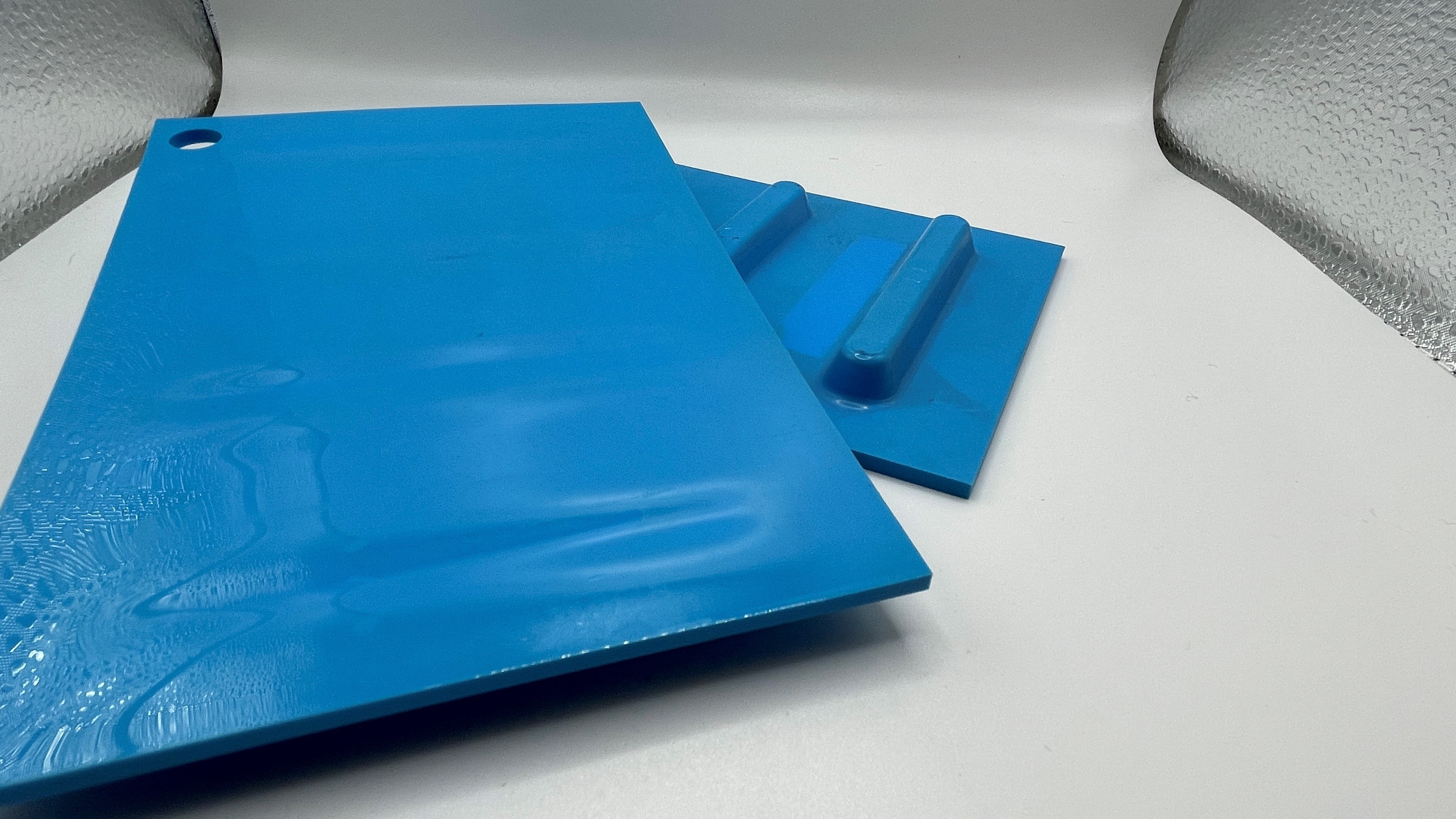

APF B 930 SD (FMB 3 SD)

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables. Additional benefit of Positive Drive material is that no system tension is required for operation.

08-010 Download

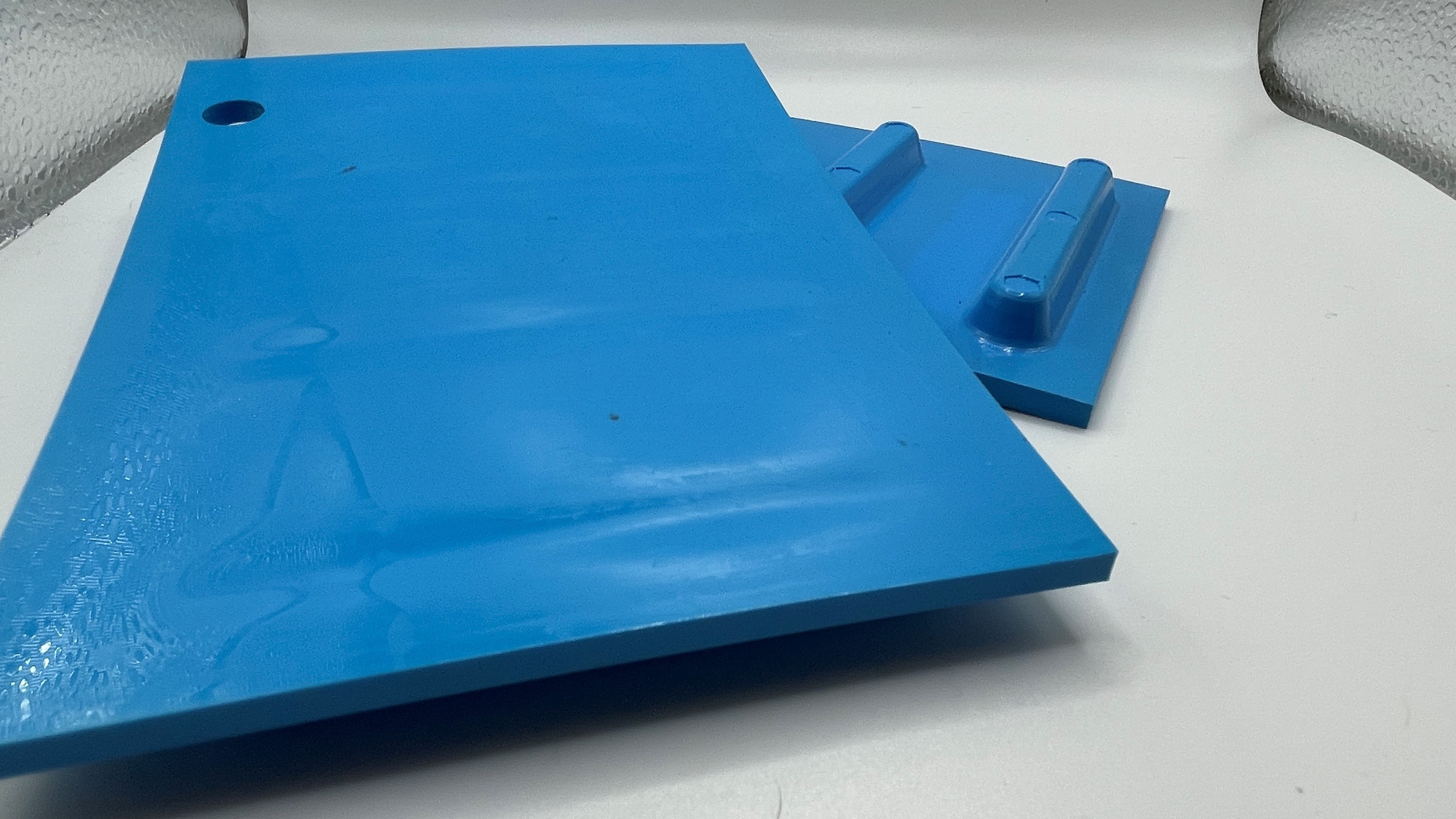

APF B 940 SD (FMB 4 SD)

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables. Additional benefit of Positive Drive material is that no system tension is required for operation.

08-012 Download

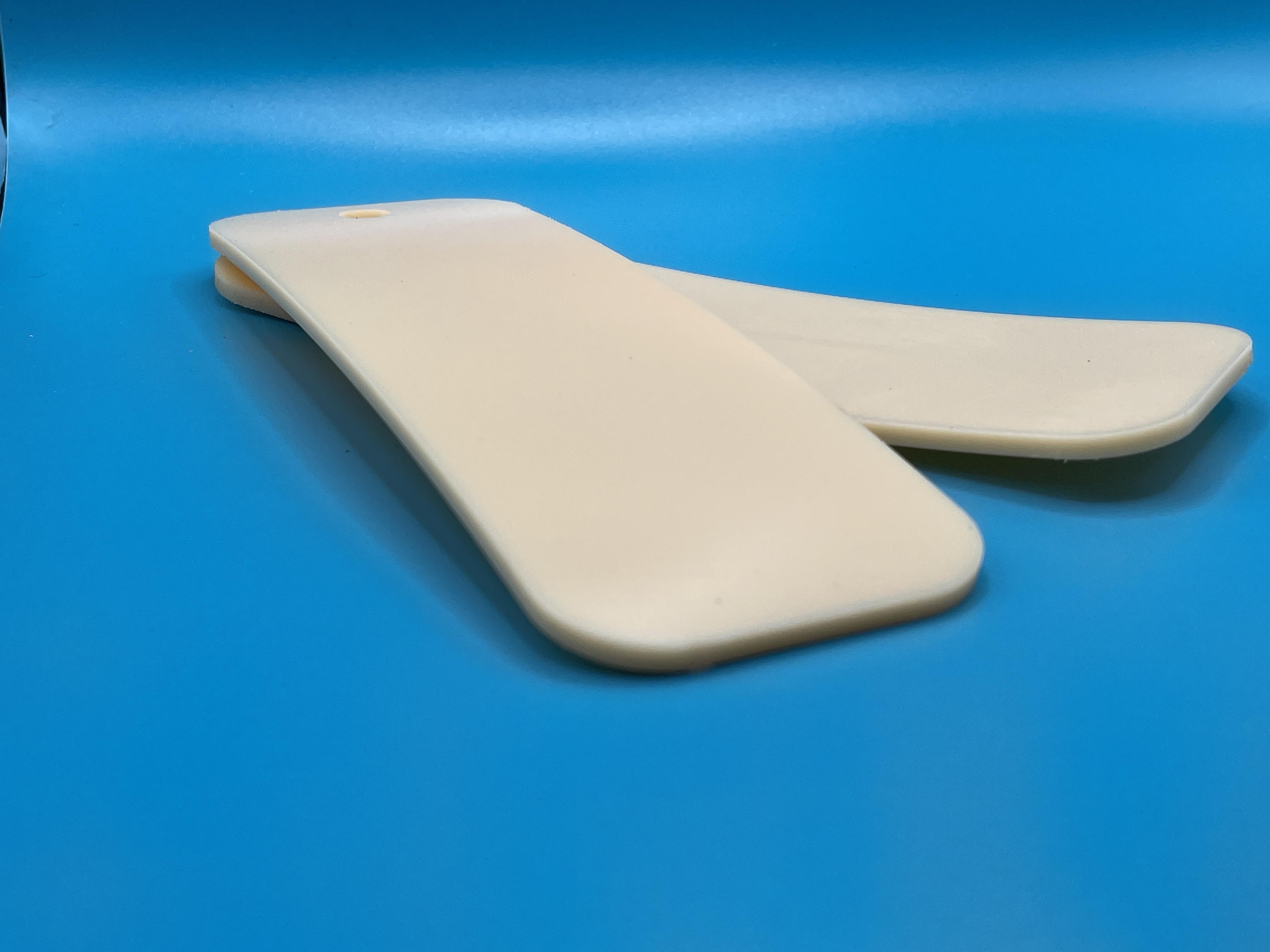

Apf P 930 Cover APF P-930

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium chloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: Poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-051 Download

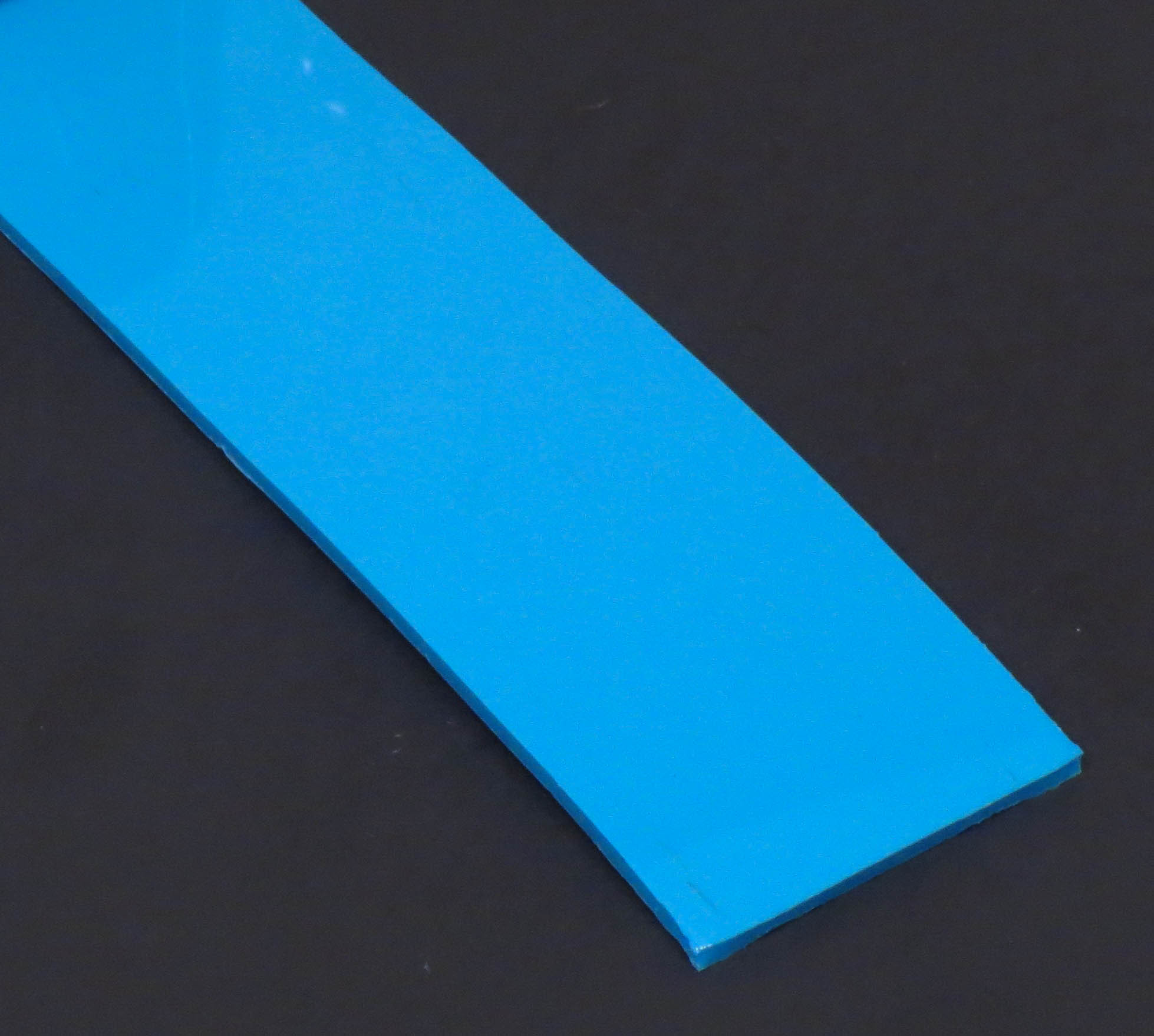

Apf B 920 Cover APF-B-920

Resistant to sodium hyphochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium chloride solutions. No strings, cleans easily. Heavy chemical washdown resistance. Flexible, easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications. Poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-145 Download
