Belting Technical Data Sheets

Photo Name Part Number Technical Data
Ddp 3 19 DDP 3.19

The Dura Drive Plus one piece motorized pulley is compact yet powerful. All gearing is made of high-quality alloy steel ensuring years without breakdown. The Dura Drive Plus is also low maintenance with an in-place oil change after 40,000 hours. This ensures minimal downtime, which in turn ensures lower cost and higher productivity.

DDP 3.19 Download

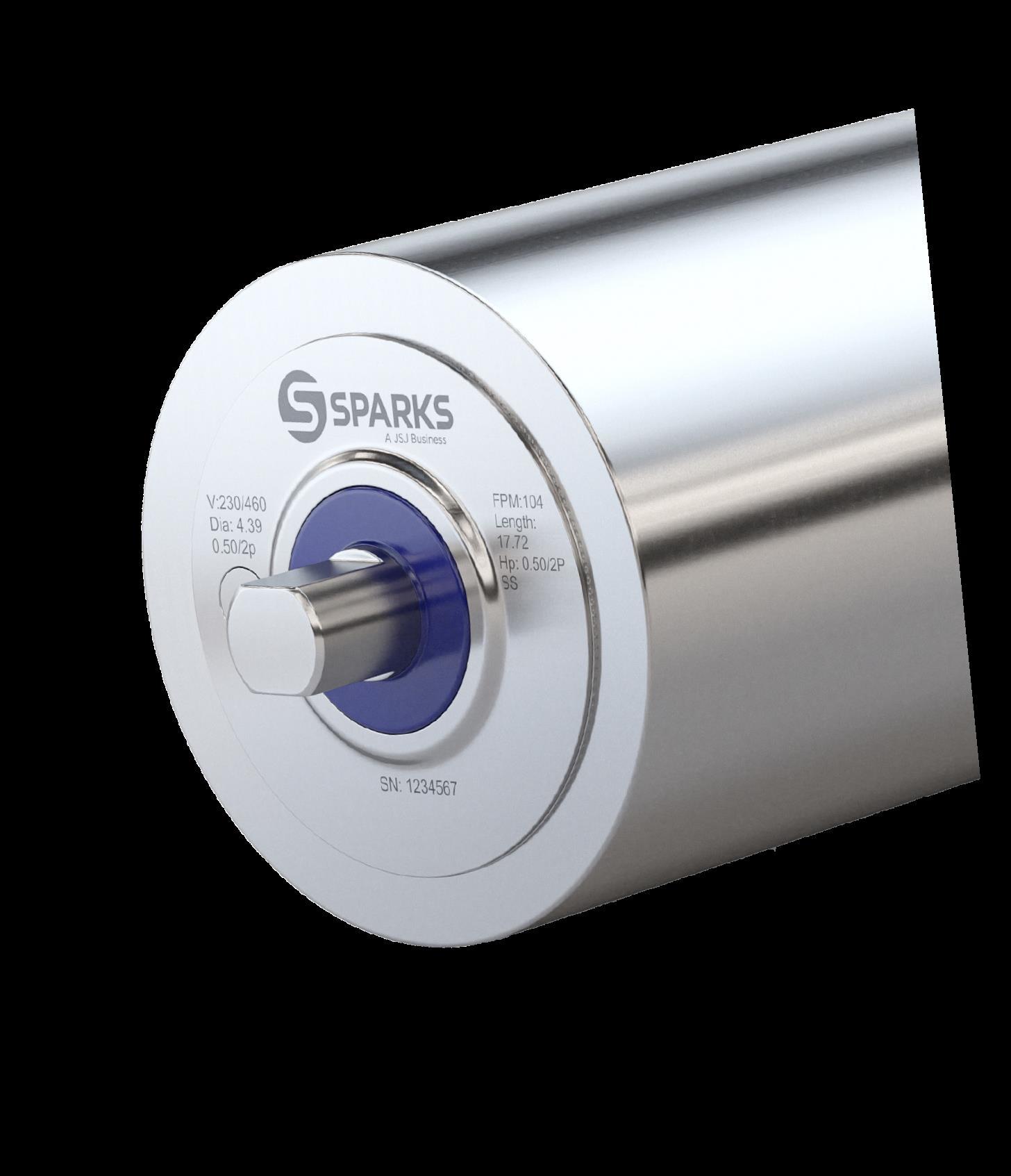

Ddp 4 39 DDP 4.39

The Dura Drive Plus one piece motorized pulley is compact yet powerful. All gearing is made of high-quality alloy steel ensuring years without breakdown. The Dura Drive Plus is also low maintenance with an in-place oil change after 40,000 hours. This ensures minimal downtime, which in turn ensures lower cost and higher productivity.

DDP 4.39 Download
Ddp 4 39 DDP 5.38

The Dura Drive Plus one piece motorized pulley is compact yet powerful. All gearing is made of high-quality alloy steel ensuring years without breakdown. The Dura Drive Plus is also low maintenance with an in-place oil change after 40,000 hours. This ensures minimal downtime, which in turn ensures lower cost and higher productivity.

DDP 5.38 Download
Ddp 4 39 DDP 6.46

The Dura Drive Plus one piece motorized pulley is compact yet powerful. All gearing is made of high-quality alloy steel ensuring years without breakdown. The Dura Drive Plus is also low maintenance with an in-place oil change after 40,000 hours. This ensures minimal downtime, which in turn ensures lower cost and higher productivity.

DDP 6.46 Download
Ddp 4 39 DDP 8.48

The Dura Drive Plus one piece motorized pulley is compact yet powerful. All gearing is made of high-quality alloy steel ensuring years without breakdown. The Dura Drive Plus is also low maintenance with an in-place oil change after 40,000 hours. This ensures minimal downtime, which in turn ensures lower cost and higher productivity.

DDP 8.48 Download

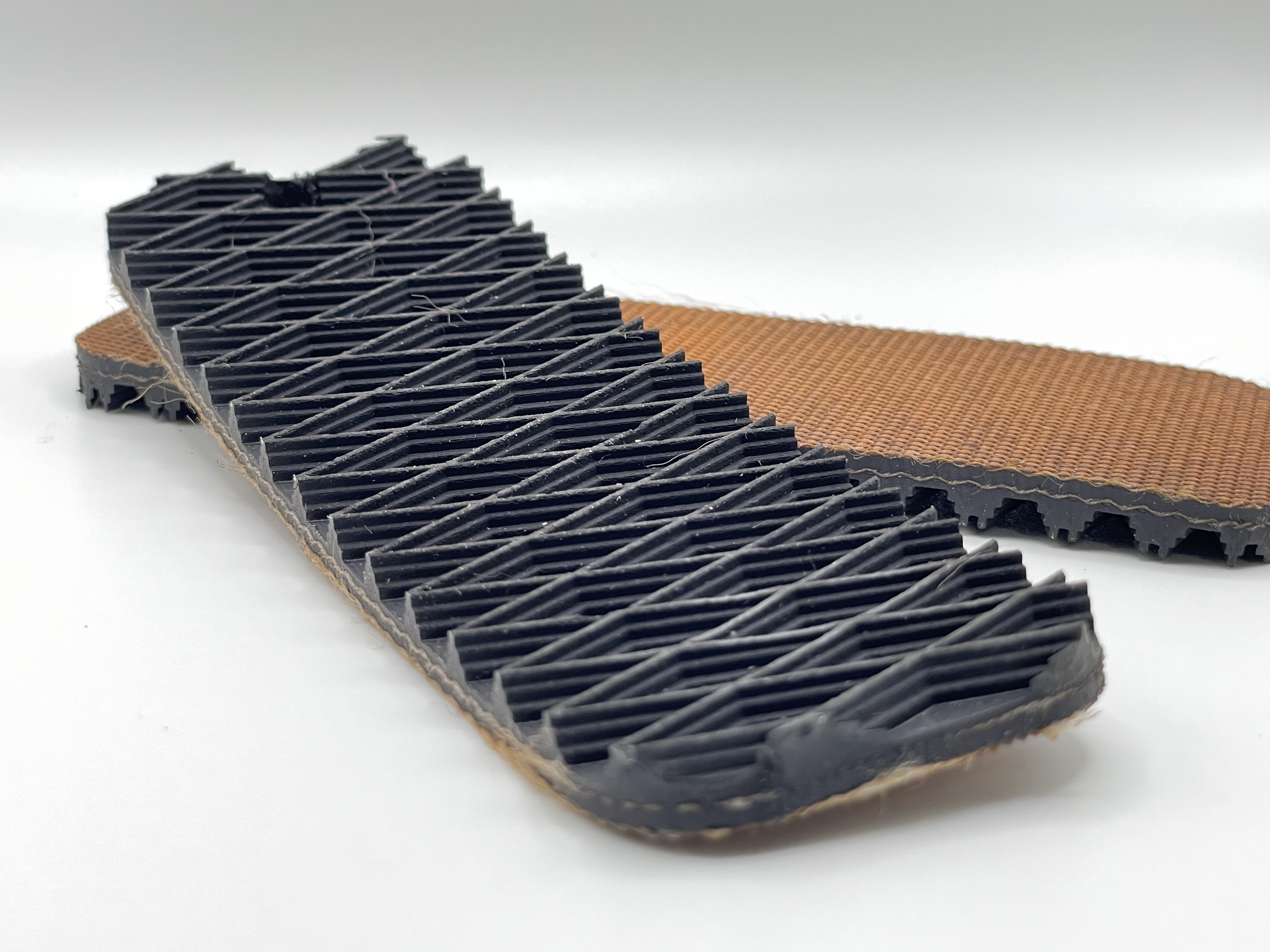

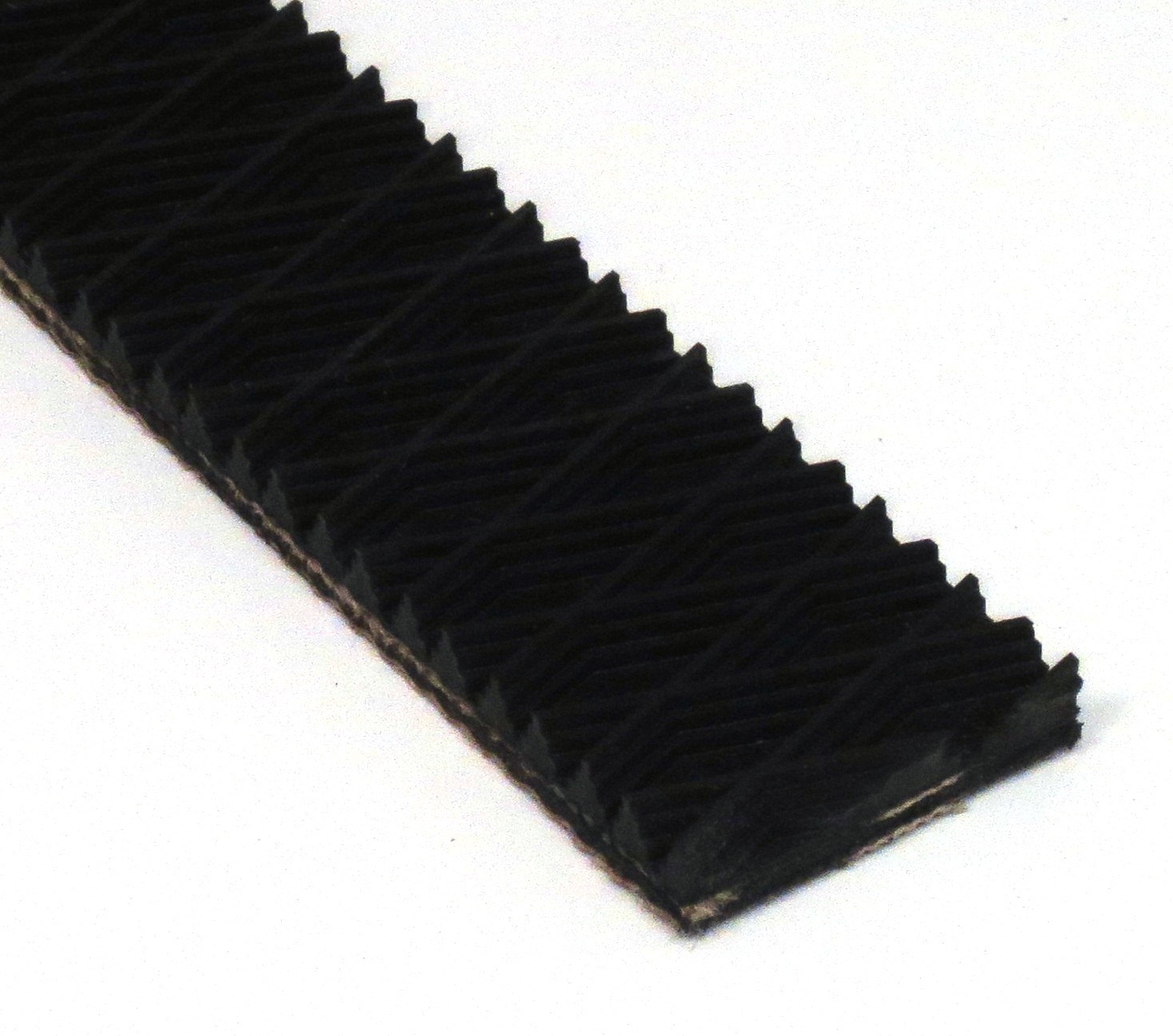

Diamond Top Cover Diamond Top

Avoid oil, grease and solvents. Treated carcass increases ply adhesion and decreases edge curl. Extra thick non-marking covers are very abrasion resistant. Soft criss-crossing ribs form a diamond pattern. Handles some products up to 35 degrees. Good for light-weight, wax-coated or hard-surfaced products. Used extensively in airports and package/parcel handling. For laces, a recessed cover is recommended.

02-315 Download

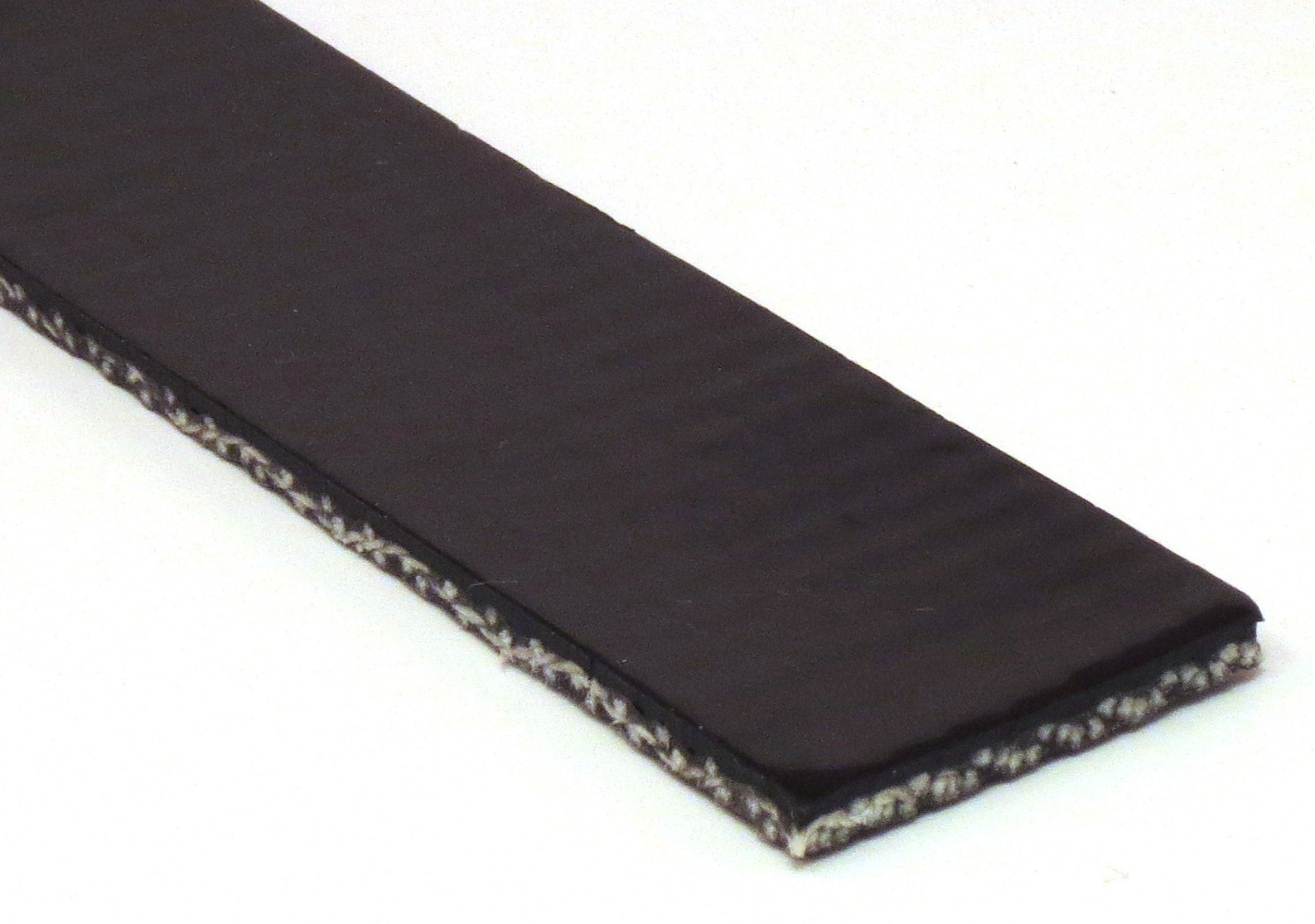

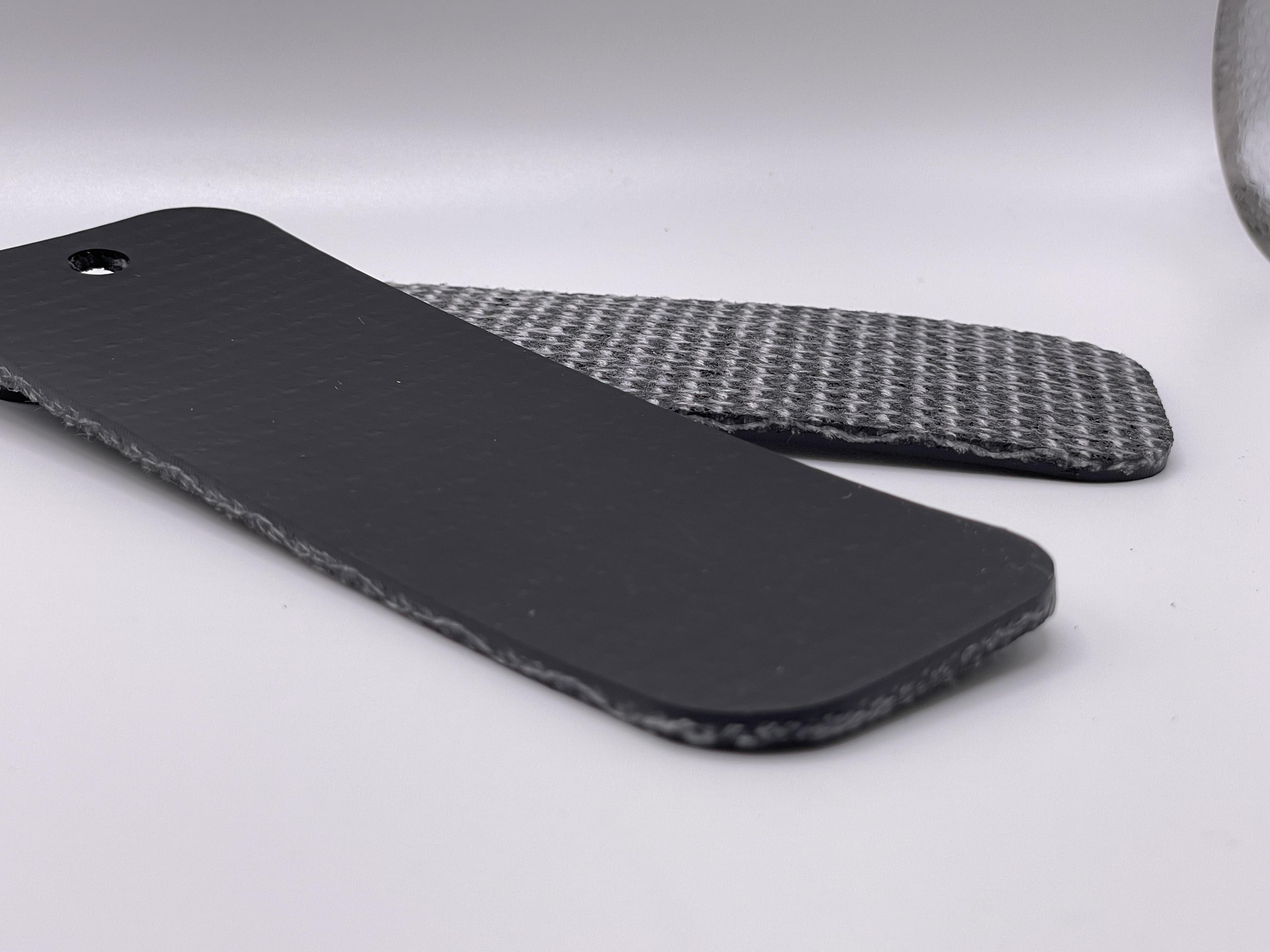

Econo Pac Cover Econo Pac 120 B

Very good mineral and petroleum oil resistance. Good resistance to acids and solvents but avoid high concentrations. Fire resistance. Woven carcass eliminates ply separation. Stretches less than 2%. Proven performance handling light metal stampings and plastic parts. Also used in handling bagged fertilizer, agricultural harvesting, lumber and plywood, case sealers, and live roller applications. Inexpensive base belt for cleated belts. Best tracking on conveyors with 5:1 ratio (length:width).

01-025 Download

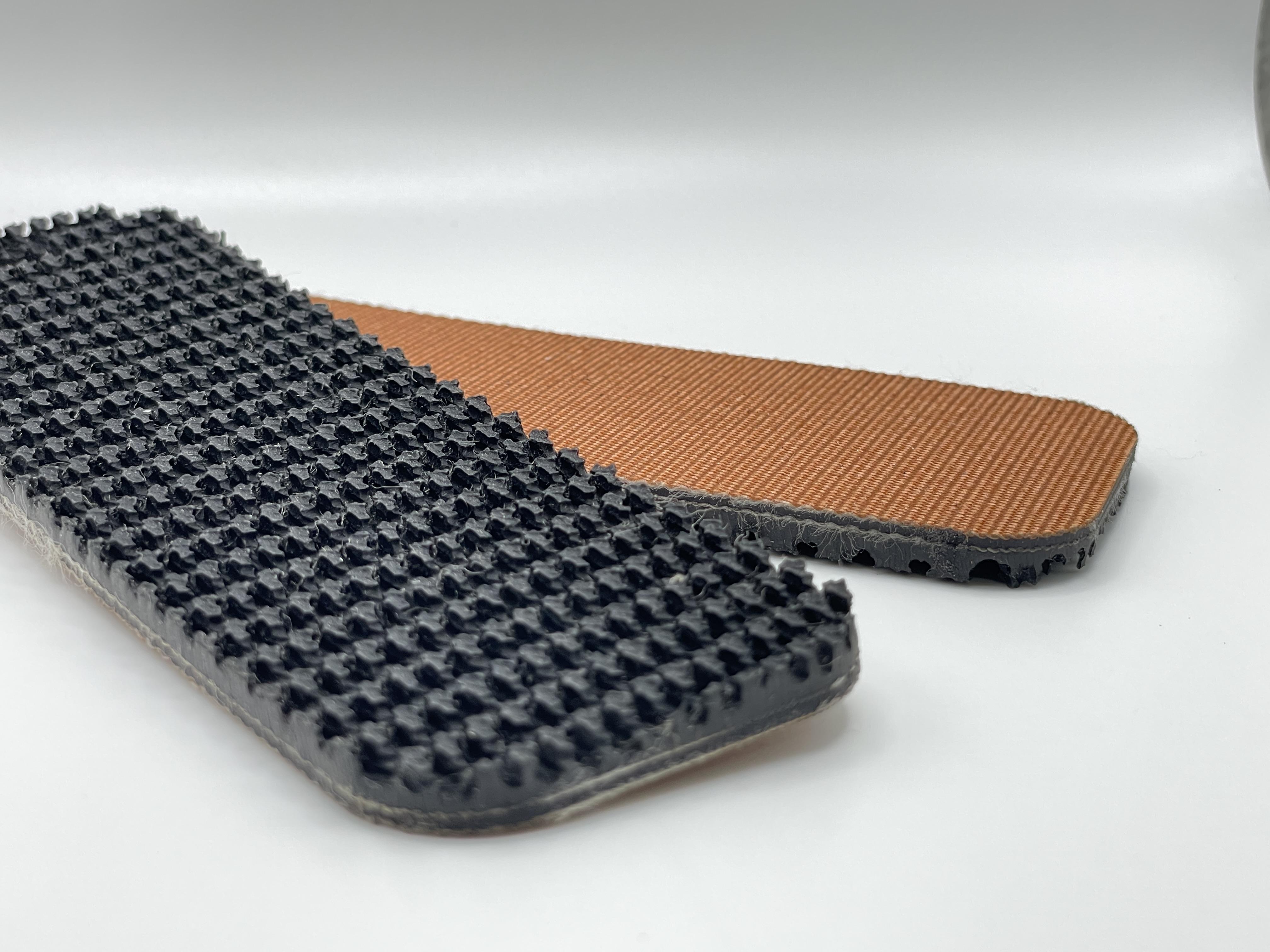

Econo Ruff Black Cover Econo Ruff Black

Avoid oil, grease and solvents. Treated fabric increases ply/cover adhesion and decreases edge curl. Thick skims between the plies provide greater bulk and desired rigidity. Excellent for general warehouse applications. For laces, a recessed cover is recommended.

02-382 Download
Econo Ruff Black FR Download

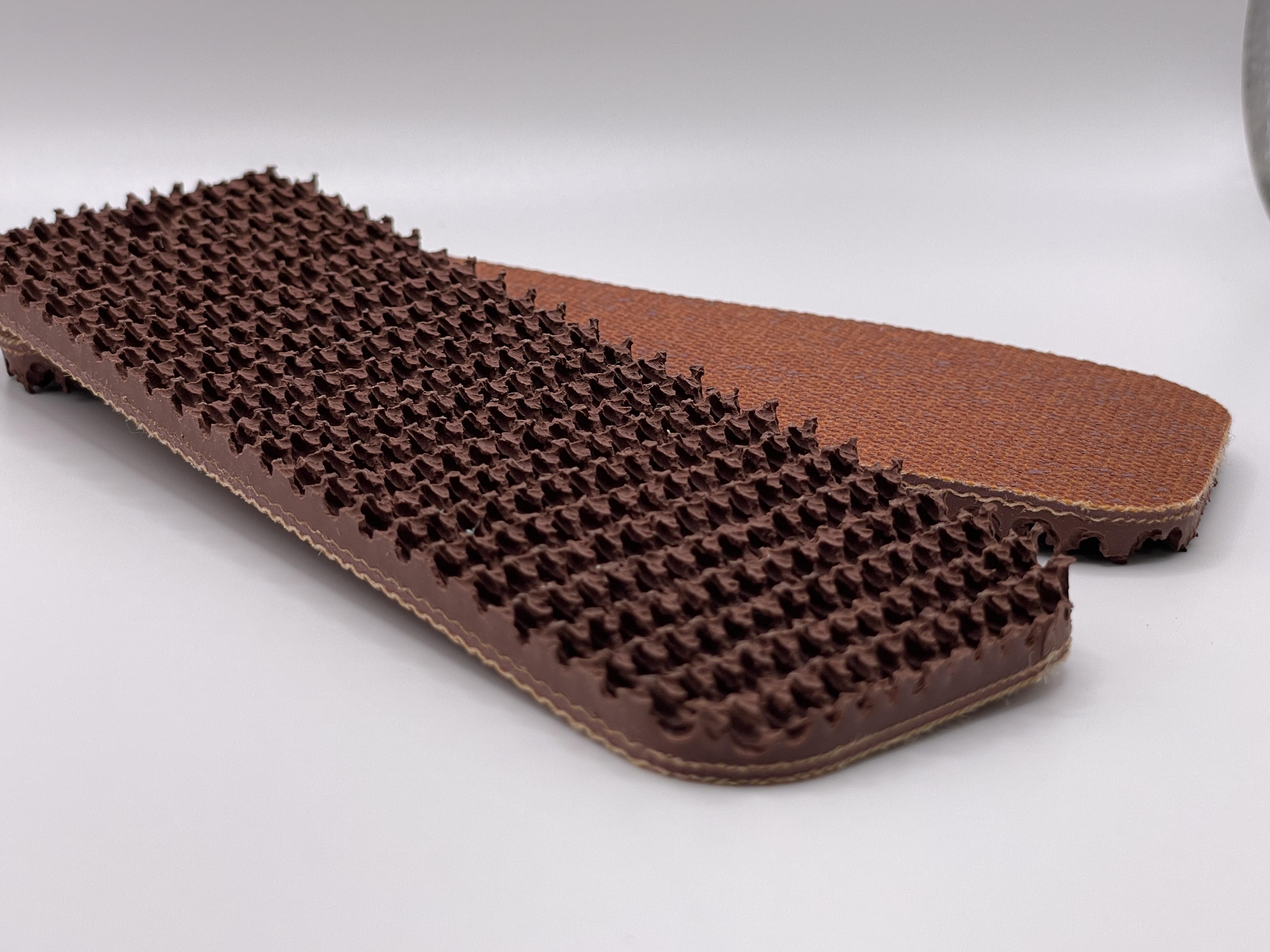

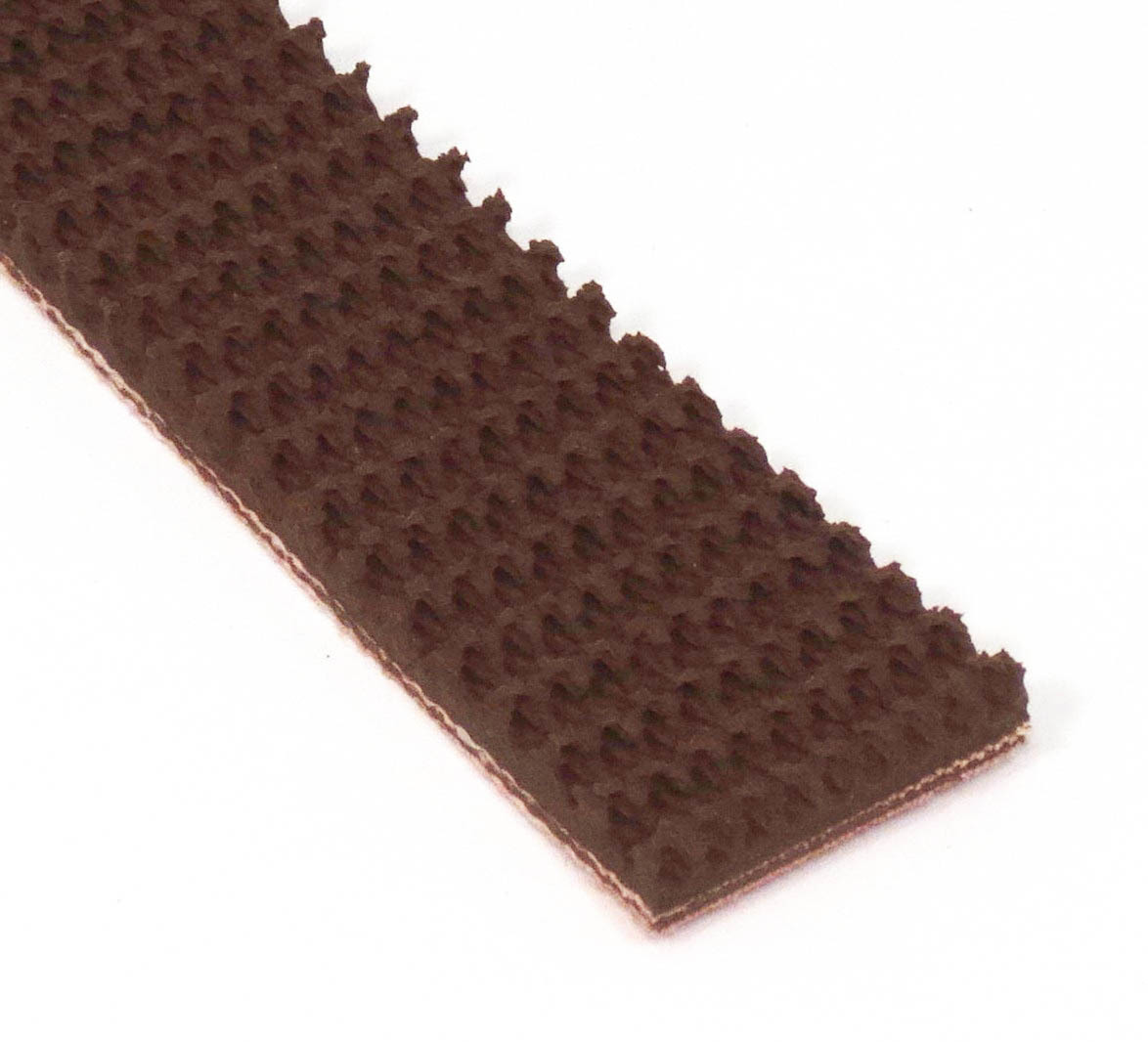

Econo Ruff Tan Or Cover Econo Ruff Tan (OR)

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated fabric increases ply/cover adhesion and decreases edge curl. Thick skims between the plies provide desired bulk. Ideal for use as an inexpensive, yet oil resistant, rough top for general duty inclines/declines. For laces, a recessed cover is recommended.

02-380 Download

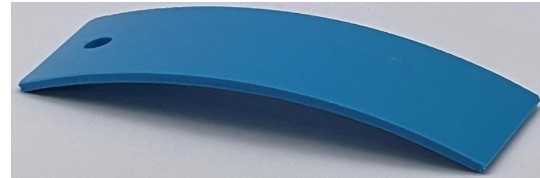

El Bl810 Pic EL BL810

Standard pre-tension of 1.5% to 5% is recommended with this belt. Suited for light duty conveyors with no or minimal take-up adjustment. Elastic construction makes installation quick and easy. Reduced maintenance time resulting in cost savings . Homogenous material results in easy clean up and minimal contamination.

08-701 Download

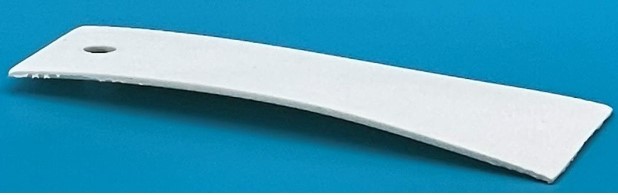

El W810 EL W810

Standard pre-tension of 1.5% to 5% is required with this belt. Suited for light duty conveyors with no or minimal take-up adjustment. Elastic construction makes installation quick and easy. Reduced maintenance resulting in cost savings. Homogenous material results in easy clean up and minimal contamination.

08-700 Download

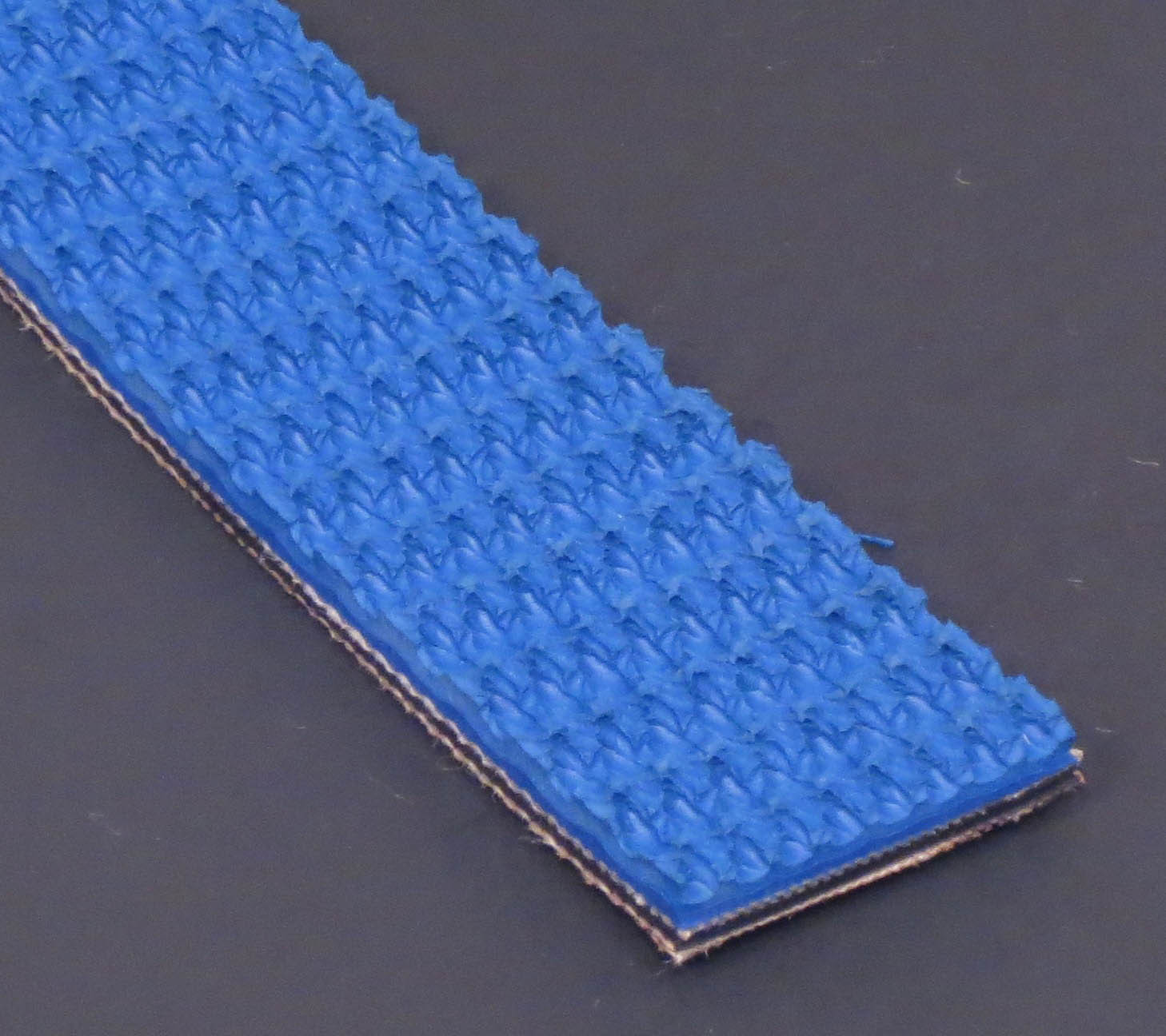

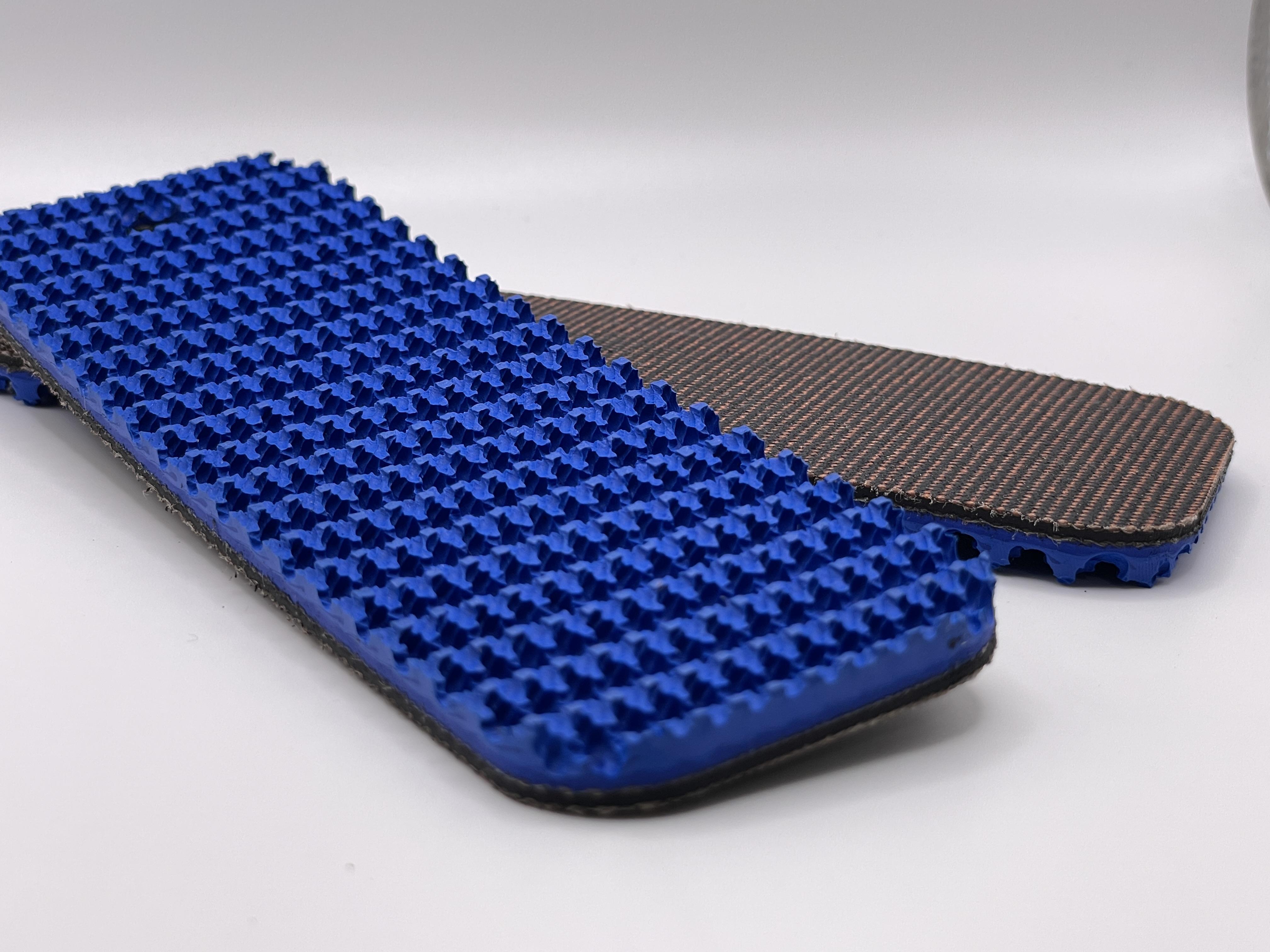

2 Ply Enduro Grip Blue Cover Enduro Grip Blue 2 Ply

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Tough, highly abrasive, cut and wear resistant compound acts like urethane in terms of durability and wear. Excellent in corrugated box plants and for handling sharp metal parts on inclines/declines. For laces, a recessed cover is recommended.

02-394 Download

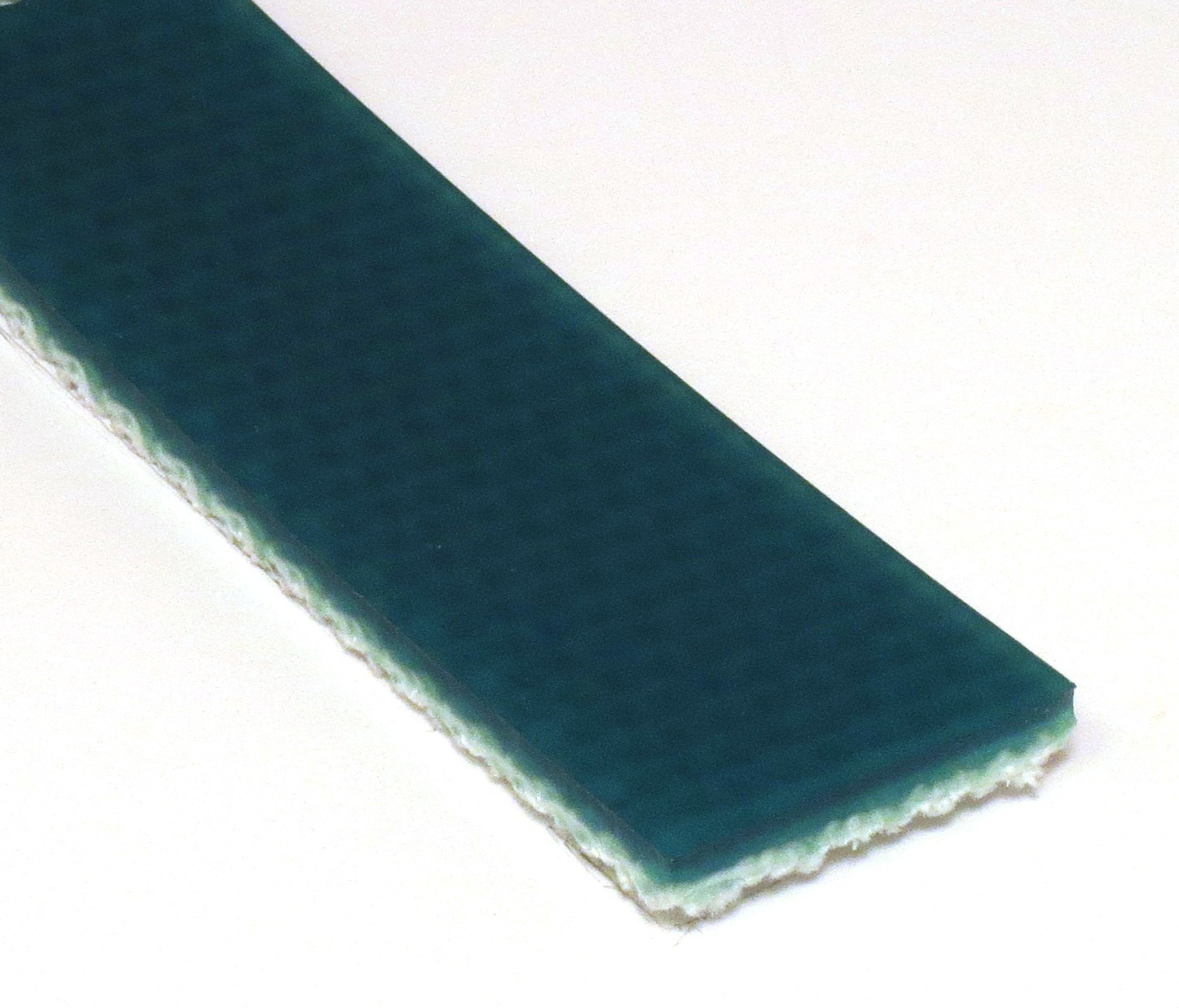

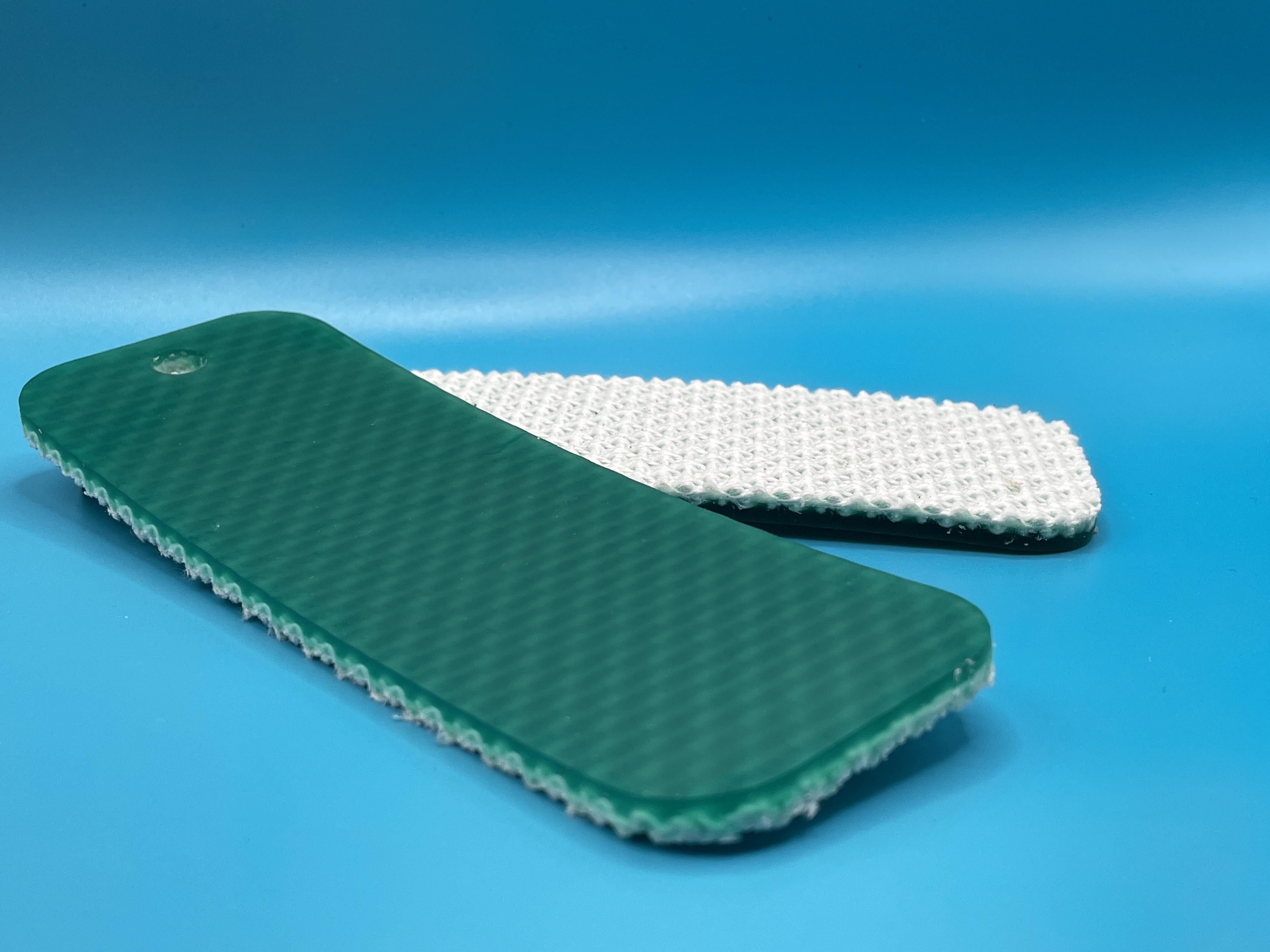

Endurothane 120 Cos Cover Endurothane 120 Green

Excellent oil and grease resistance. Good resistance to acids, chemicals and hydrocarbon solvents. Woven carcass eliminates ply separation. The smooth, heavy polyurethane cover offers superior wear and resistance to cutting, gouging and abrasion in steel and applications. Best tracking on conveyors with 5:1 ratio (length:width).

01-520 Download

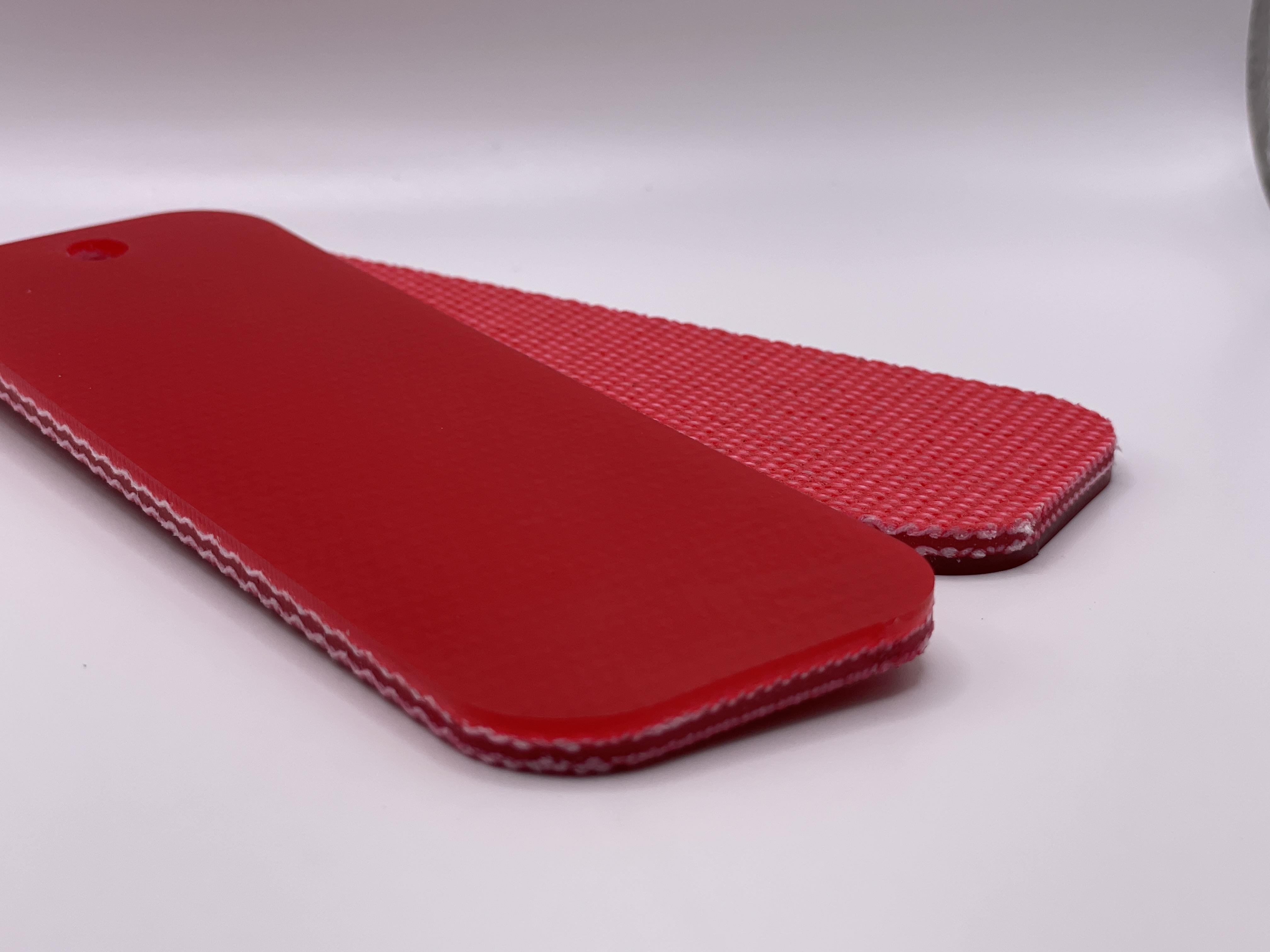

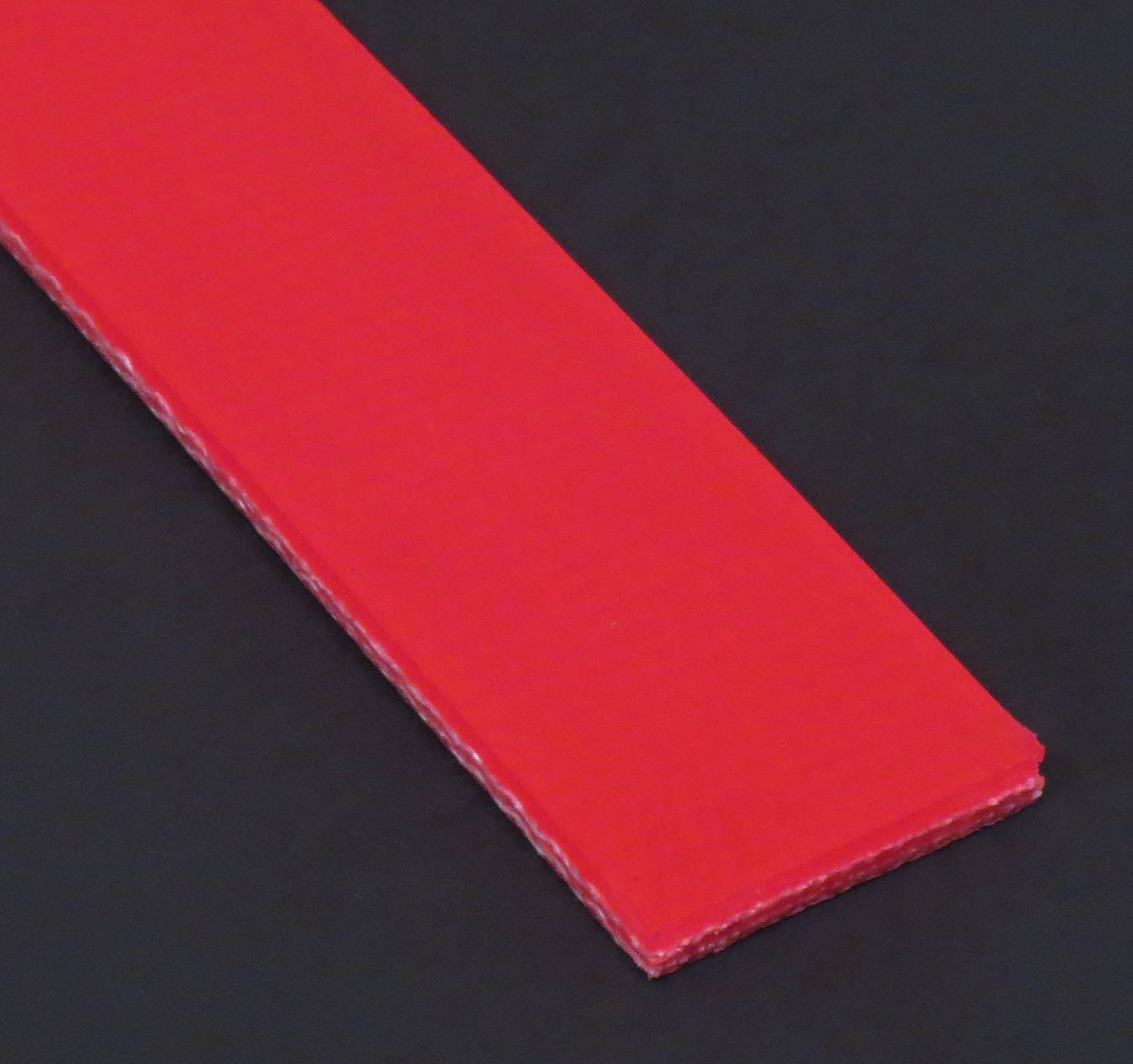

Endurothane Red 2 Ply 01 006 Cover Endurothane 150 2 Ply Red

Very good chemical resistance. Very smooth consistent top cover, excellent for metal stamping and recycling applications. Has very good chemical and oil resistance for those tough metal stamping applications.

01-006 Download

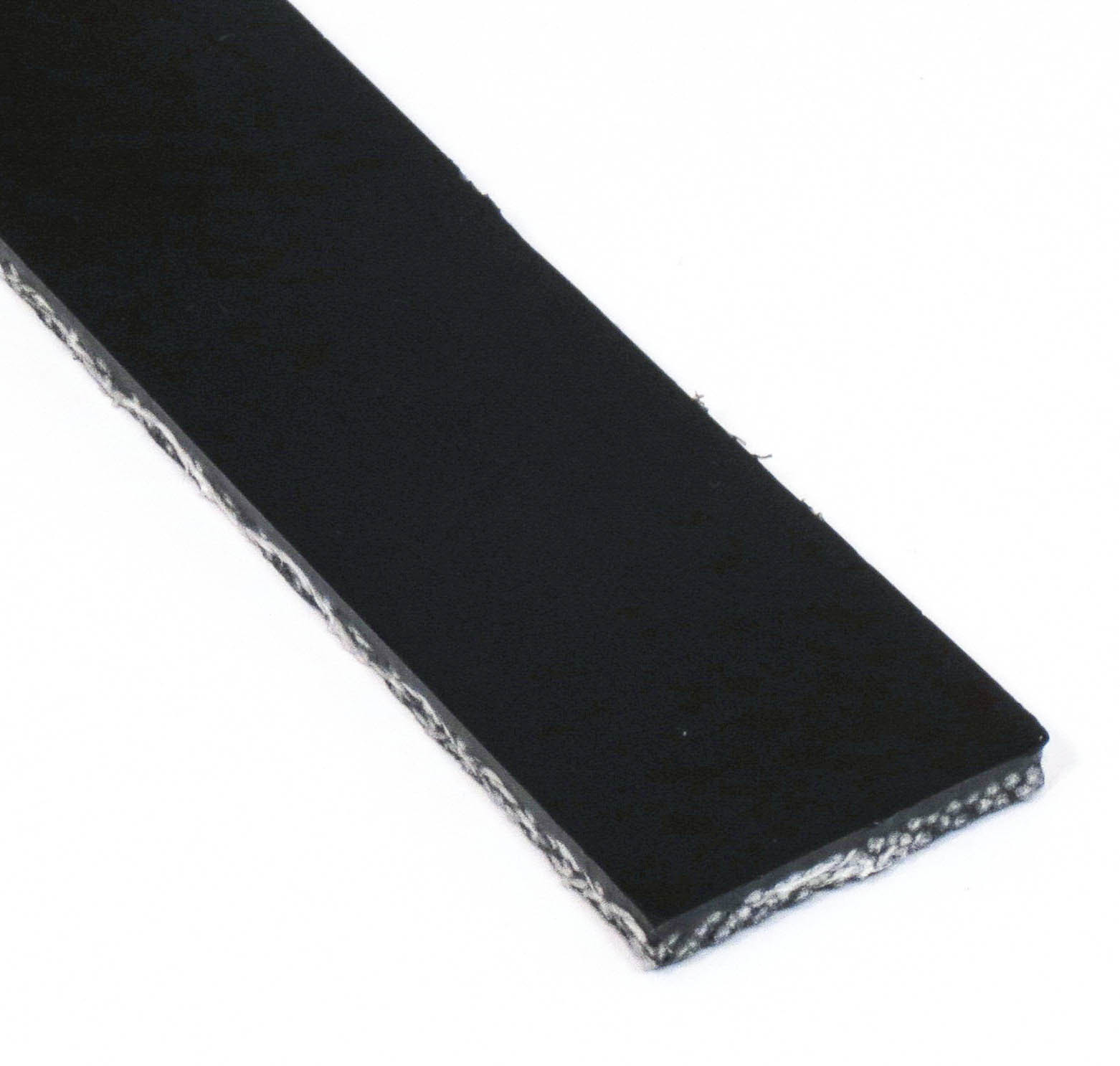

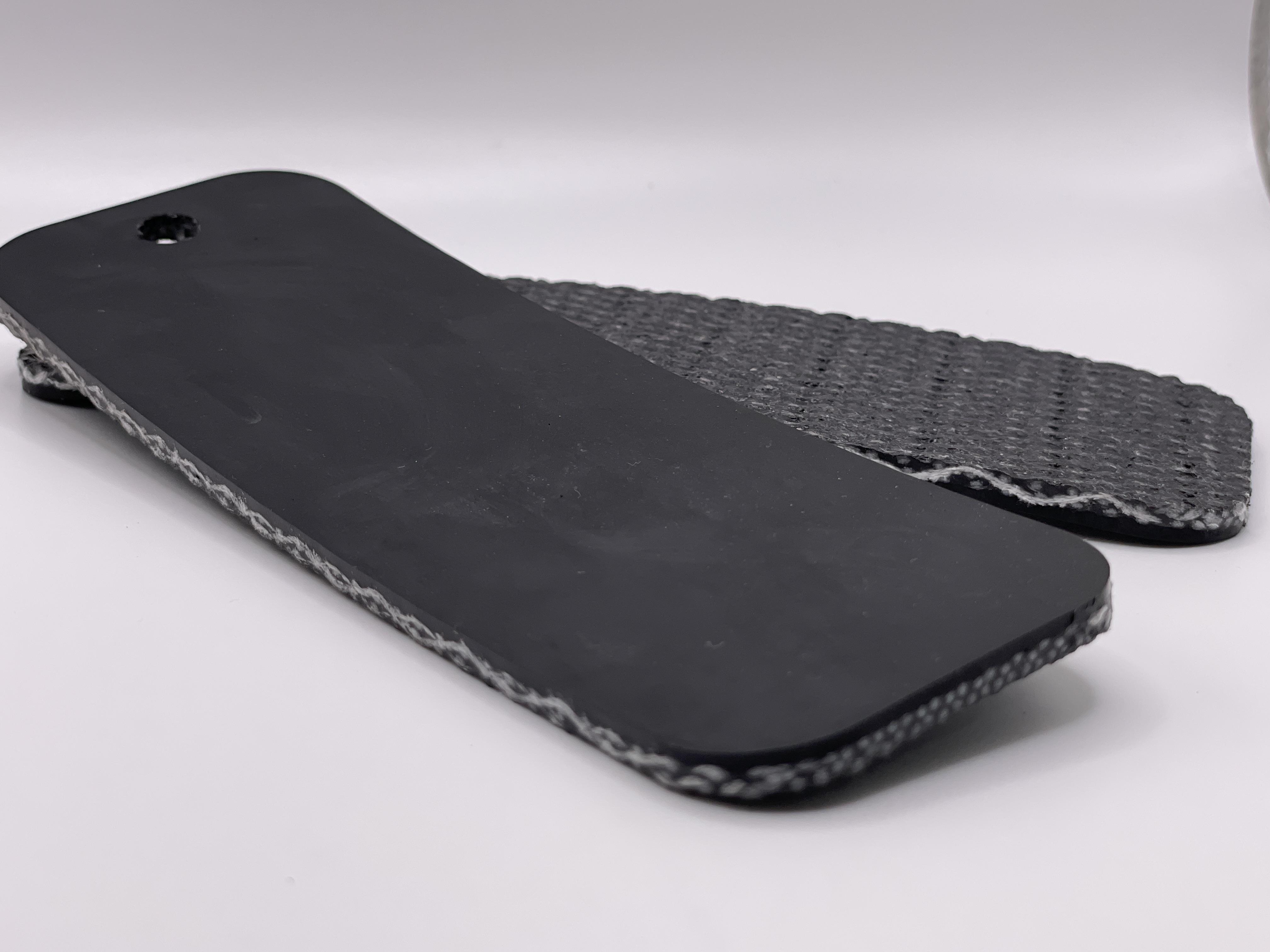

Endurothane 150 Black Cover Endurothane 150 Black

Very good resistance to chemicals and oils, in moderate concentrations. The woven carcass provides strength and above average lace retention. The 85 durometer heavy cover is durable and resistant to cutting and abrasion. Ideal for handling wood chips - horizontal or trough. Also a good solution for metal or steel bending applications (i.e., stamping plants for vehicles and appliances).

01-300 Download

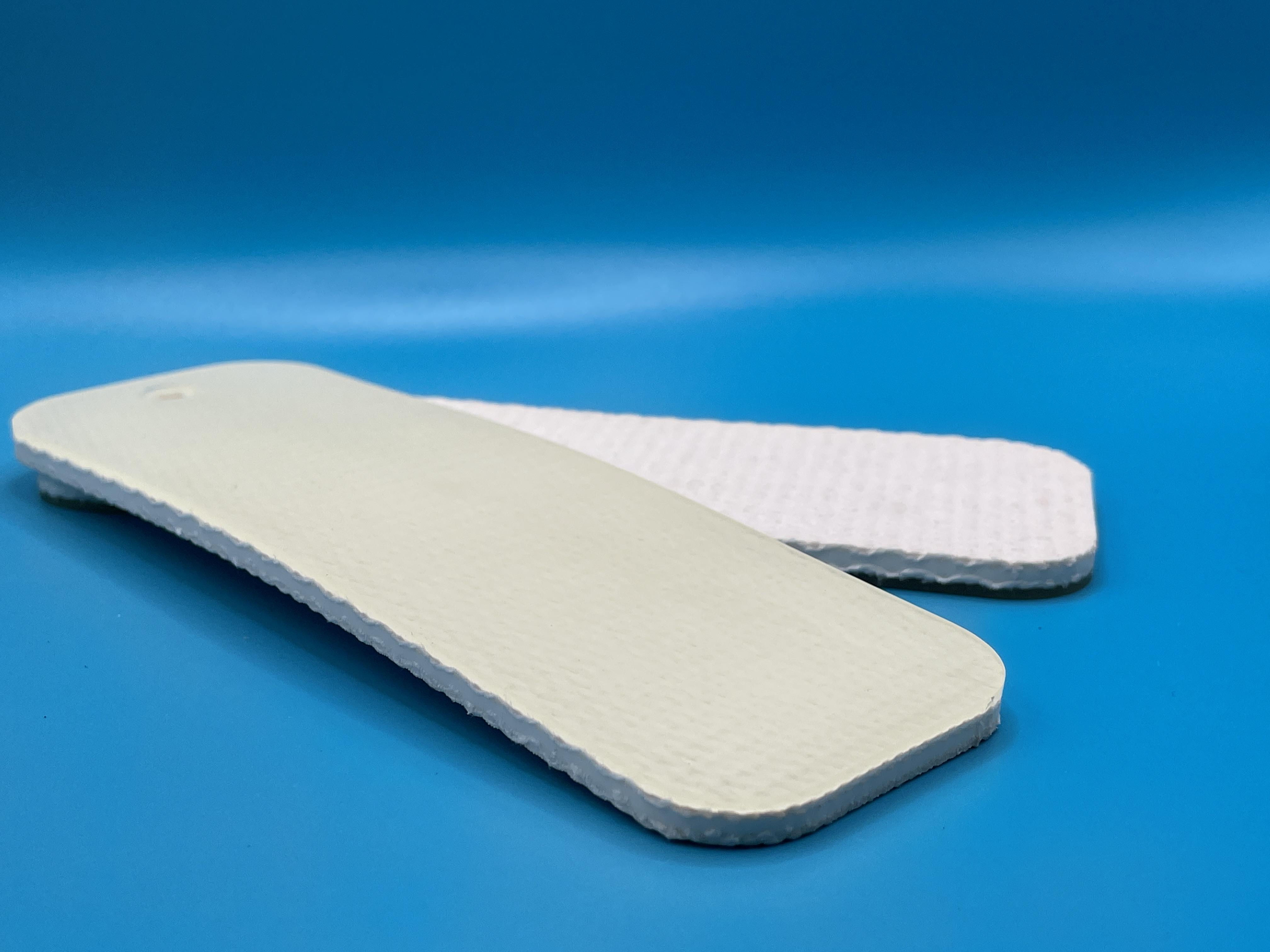

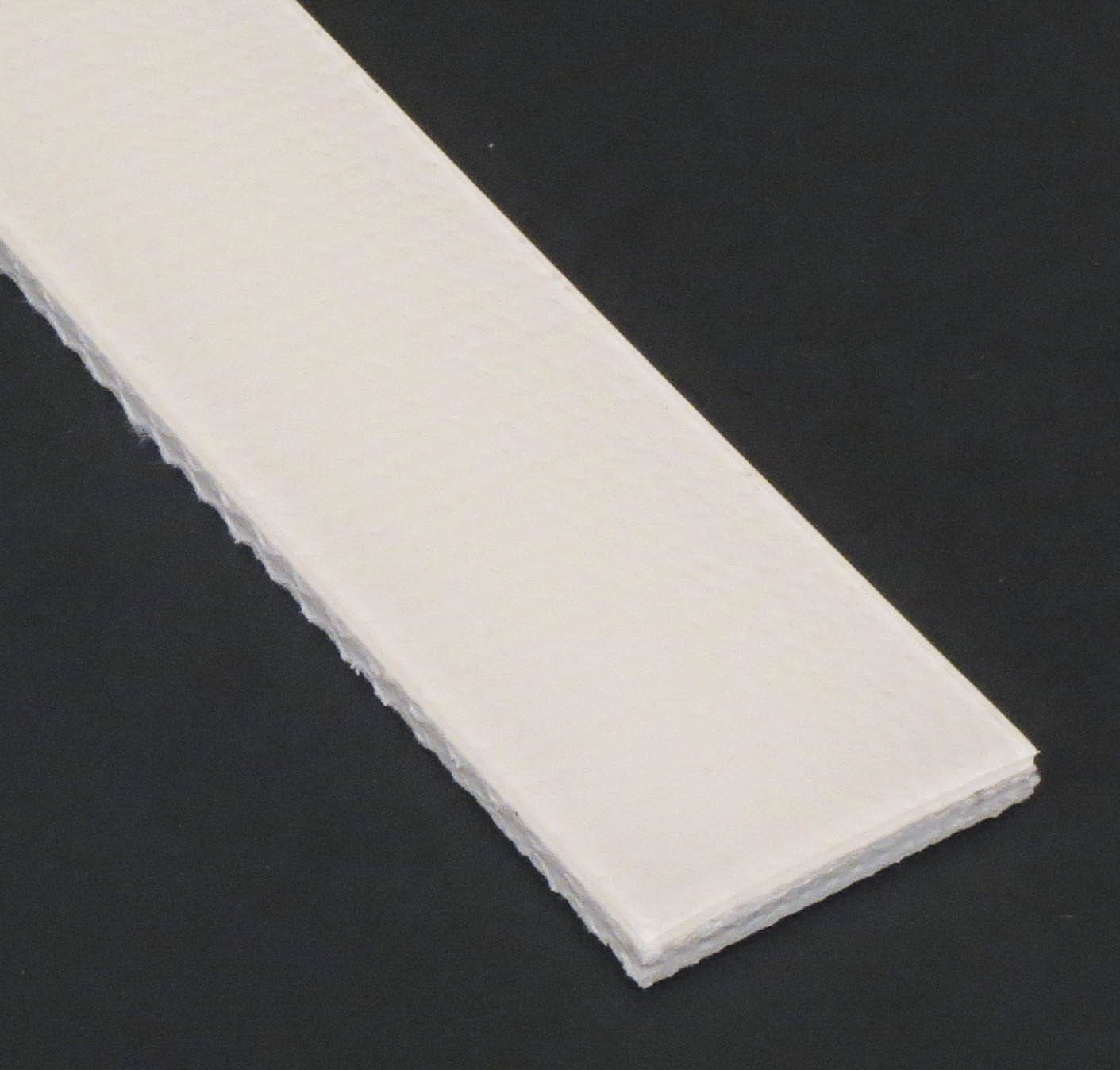

Endurothane 150 White Cover Endurothane 150 White

Excellent oil and grease resistance. Good resistance to acids and chemicals. This is a tough polyurethane-covered belt which has aggressive applications for metal parts stamping, brick plants, wood chips and scraps, as well as glass/trash recycling. For laces, stainless steel is recommended.

01-521 Download

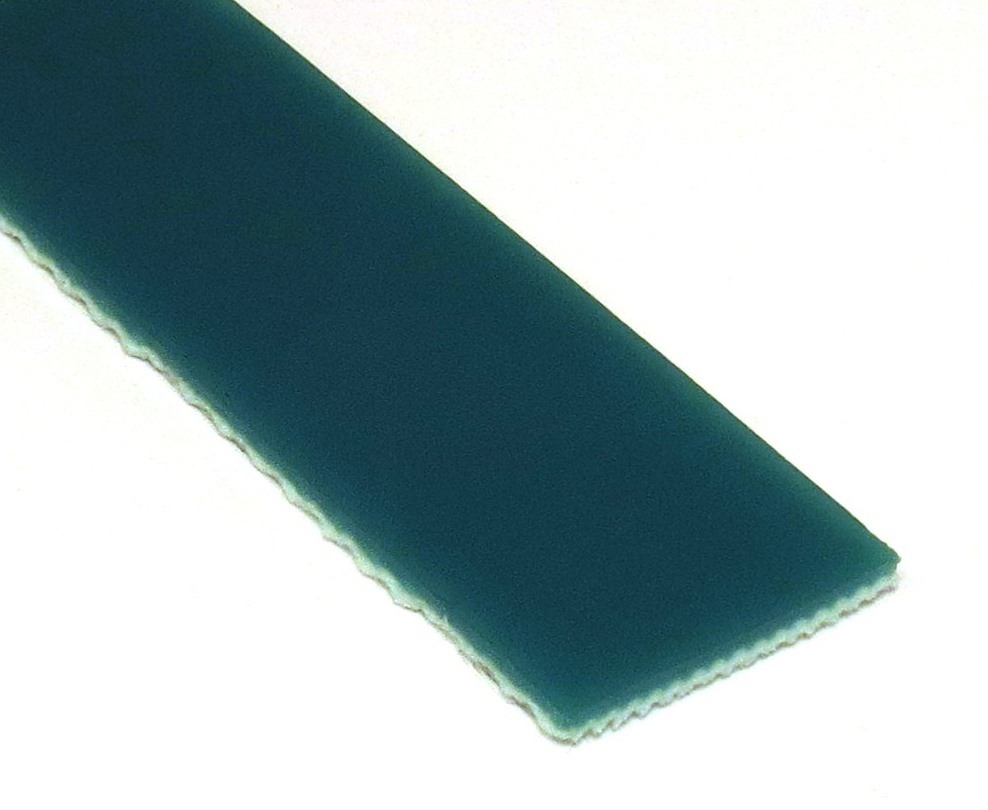

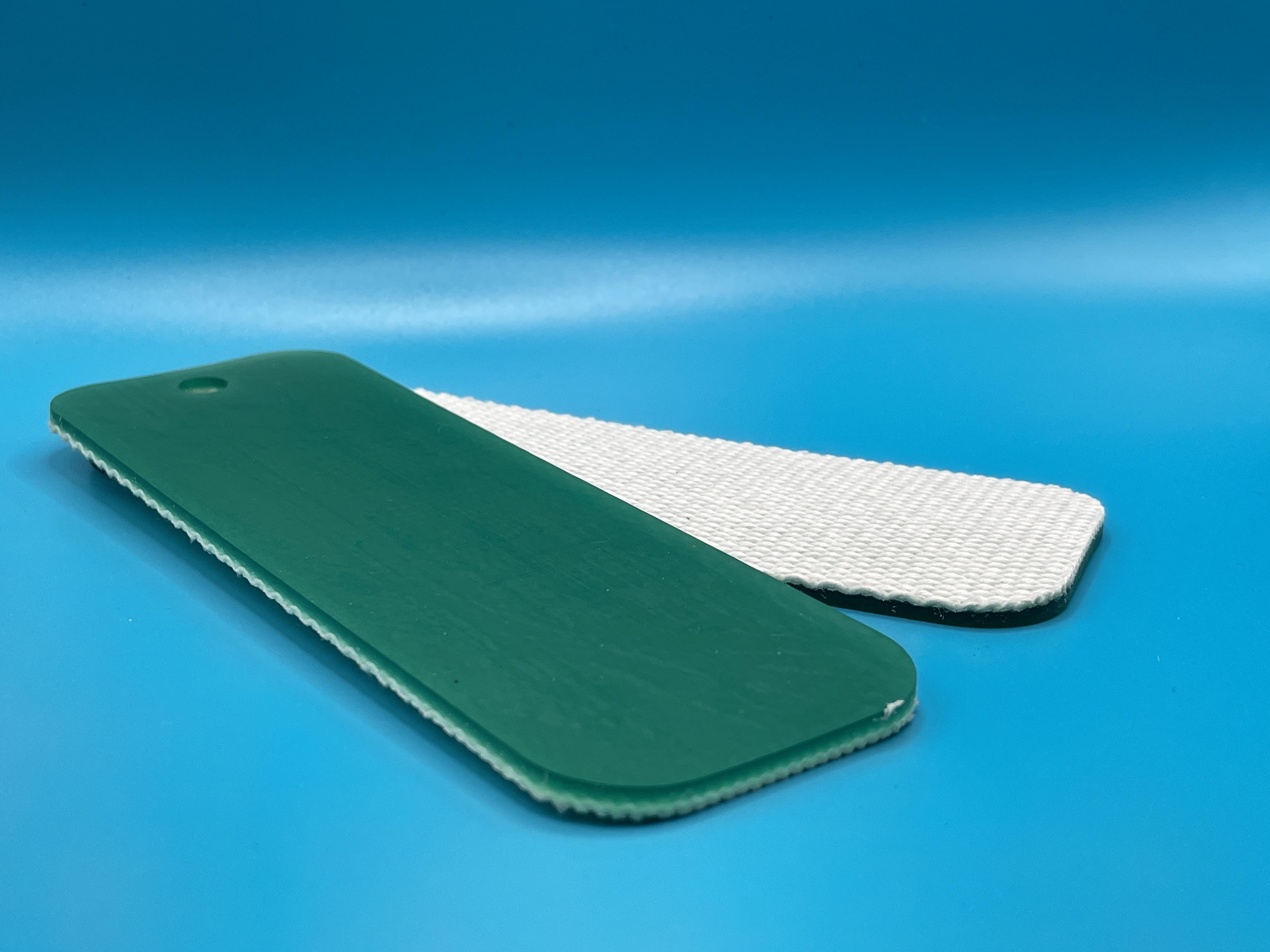

Endurothane 90 Cover Endurothane 90

Excellent resistance to cutting oils, grease and hydrocarbon solutions. Good resistance to acids and alkaline solutions, but avoid high concentrations. Good resistance to cutting, gouging and abrasion. This belt has low stretch and tracks easily. Uses include brick manufacturing, metal stampings, and reclamation/recycling applications.

01-433 Download

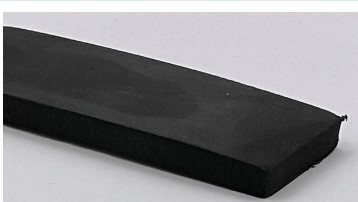

Epdm Foam Belt Pic EPDM Foam Belt

EPDM foam is suited preferred when ozone or UV are present in puller applications. Avoid contact with oils and most solvents. These belts are used in a variety of puller and buffing applications. The foam is generally bonded to a MF WU 200 belt.

Download

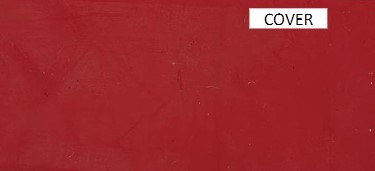

Feed Belt 150 S Pic Feed Belt 150 S

Features a .150" high grip NTR rubber cover ideal for feed belts on a folder gluer. The base belt is a Sparlon 15P suitable for high speeds and strong splice retention.

Download
