Belting Technical Data Sheets

Photo Name Part Number Technical Data

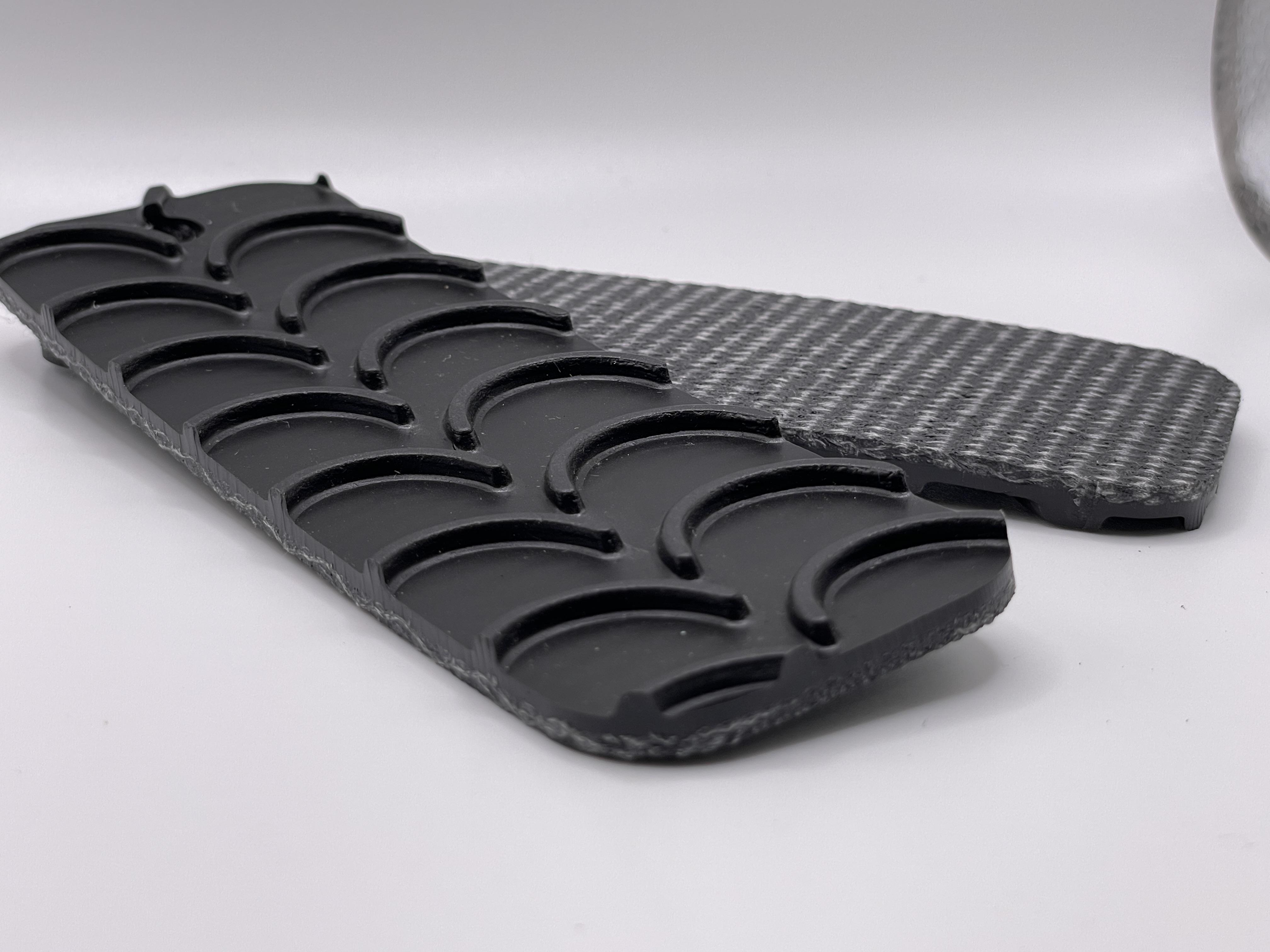

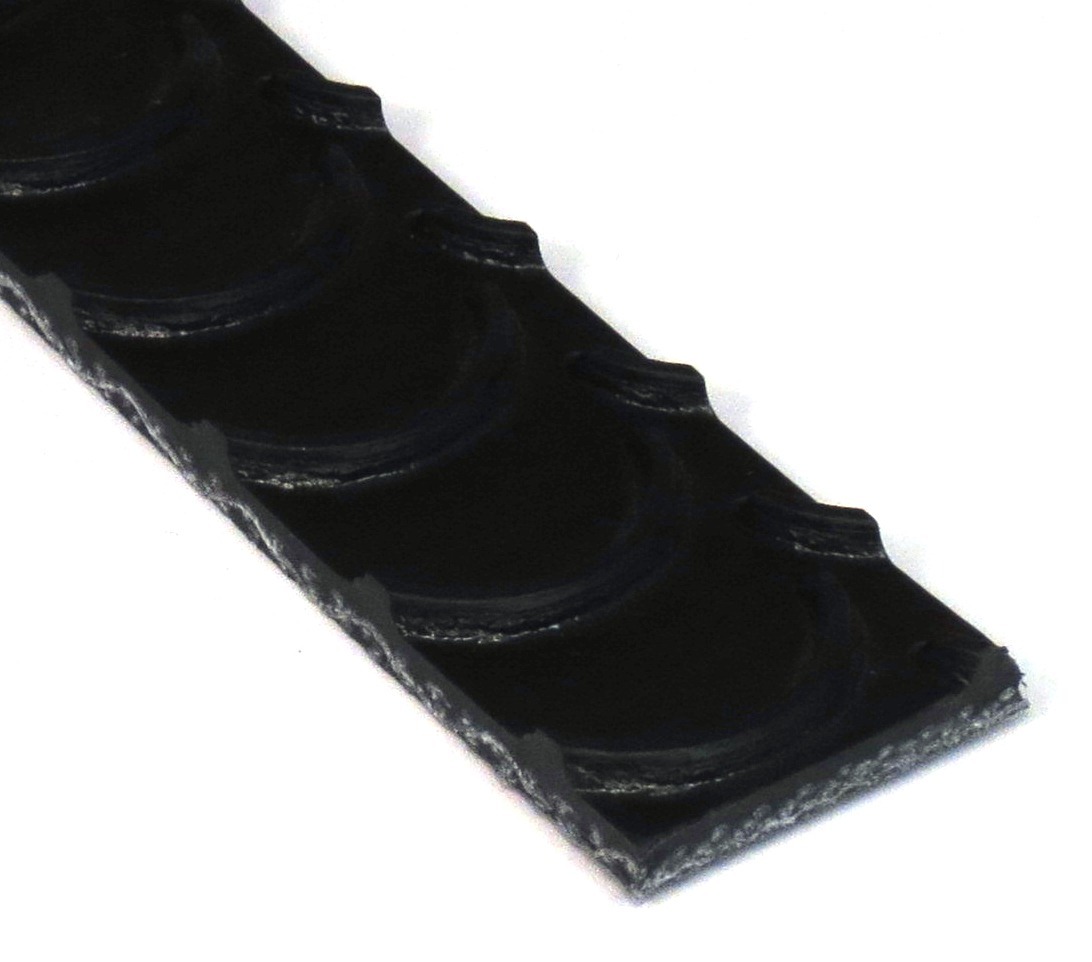

120 Black Crescent Top Cover 120 Black Crescent Top

Excellent oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. This belt has a textured surface profile which provides both grip and release of food products. USDA-FDA approved for feed belts handling leafy vegetables, bacon slicing belts, high-speed red meat processing, and applications where moisture makes smooth belts too slippery.

01-003 Download

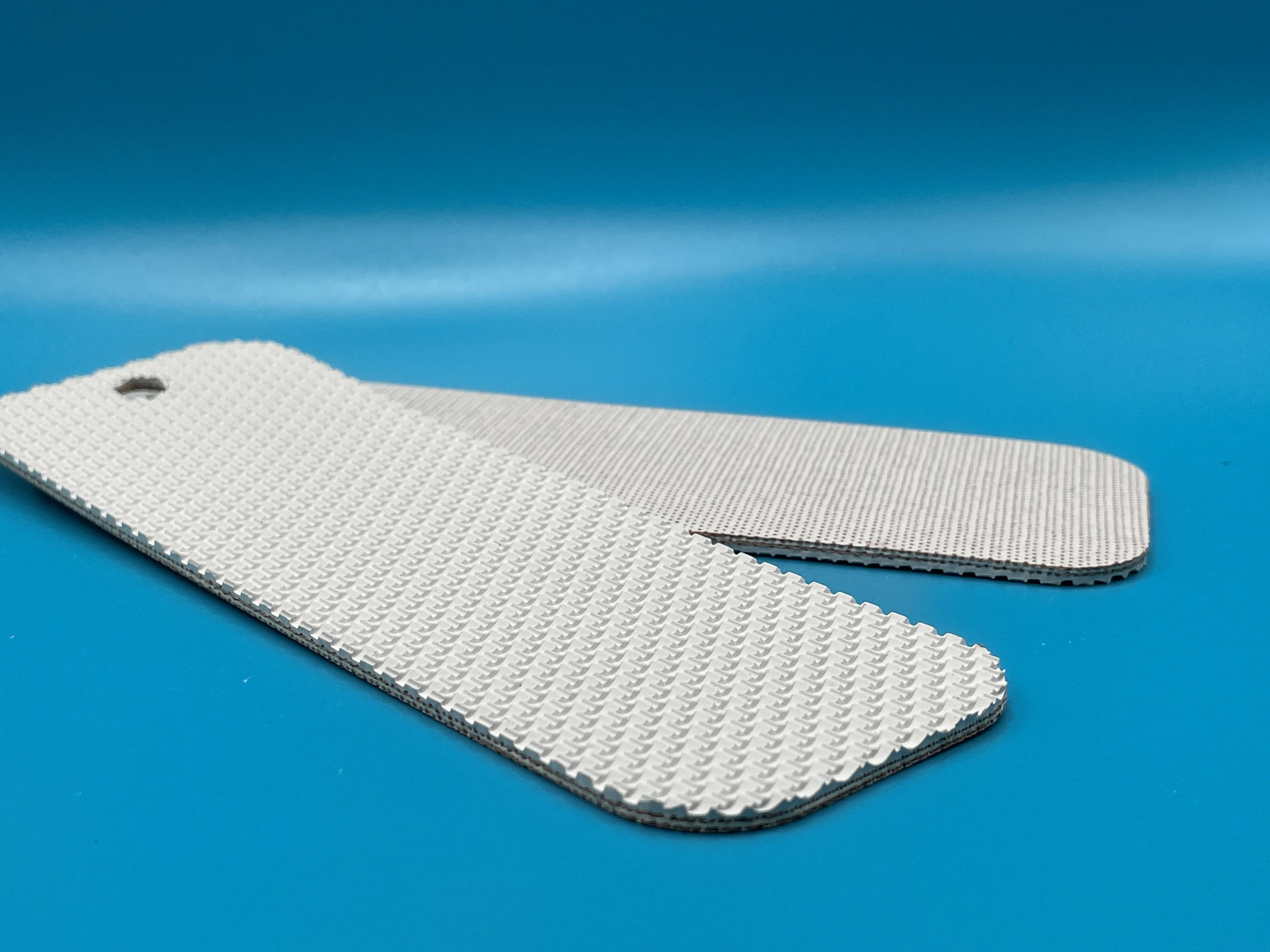

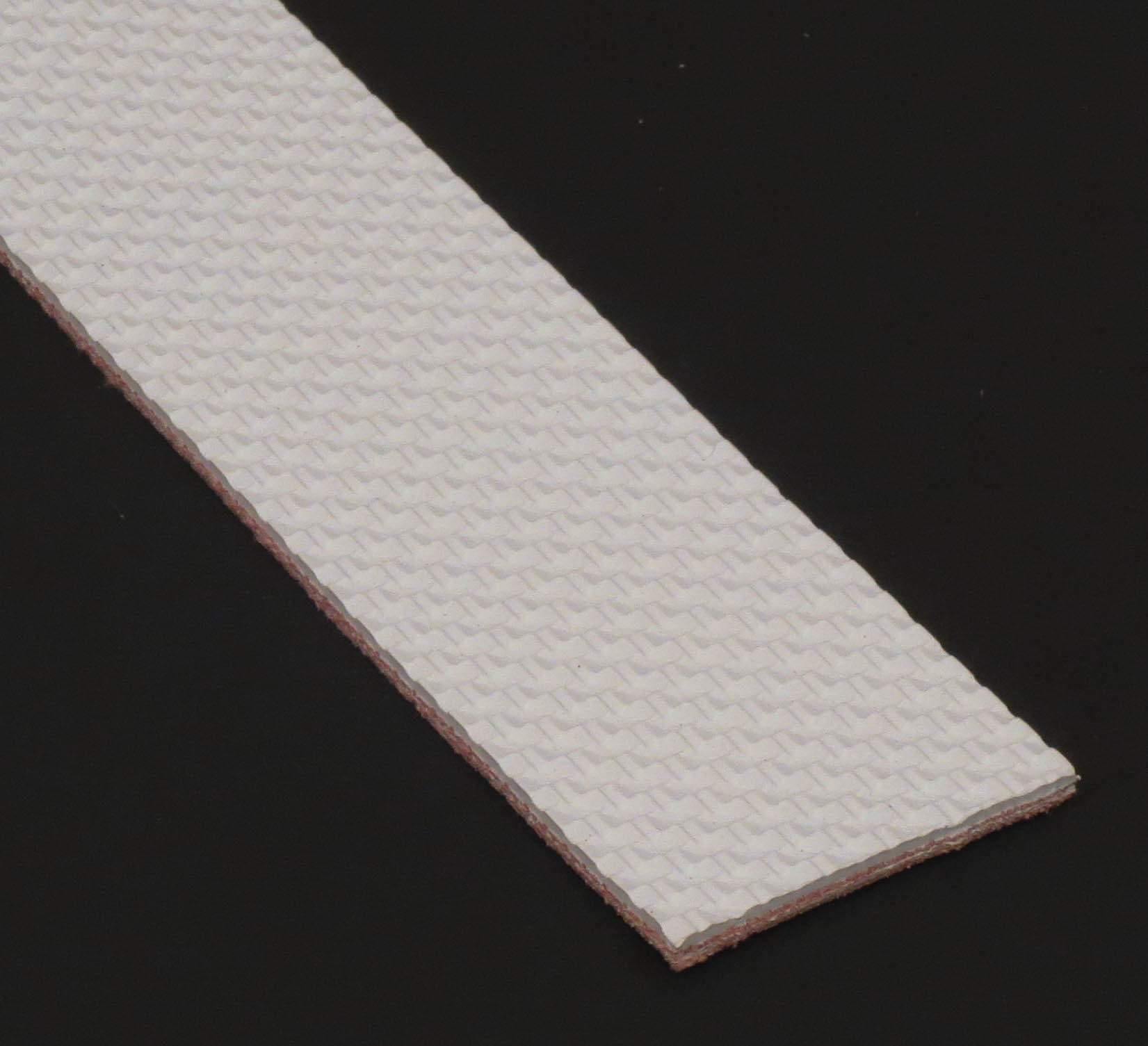

142 Snoflake Cover 142 Sno Flake

Tyler wire "rippletop" cover surface conveys packaged products on moderate inclines/declines. 142 Snoflake has uses in bakery applications. Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant.

02-260 Download

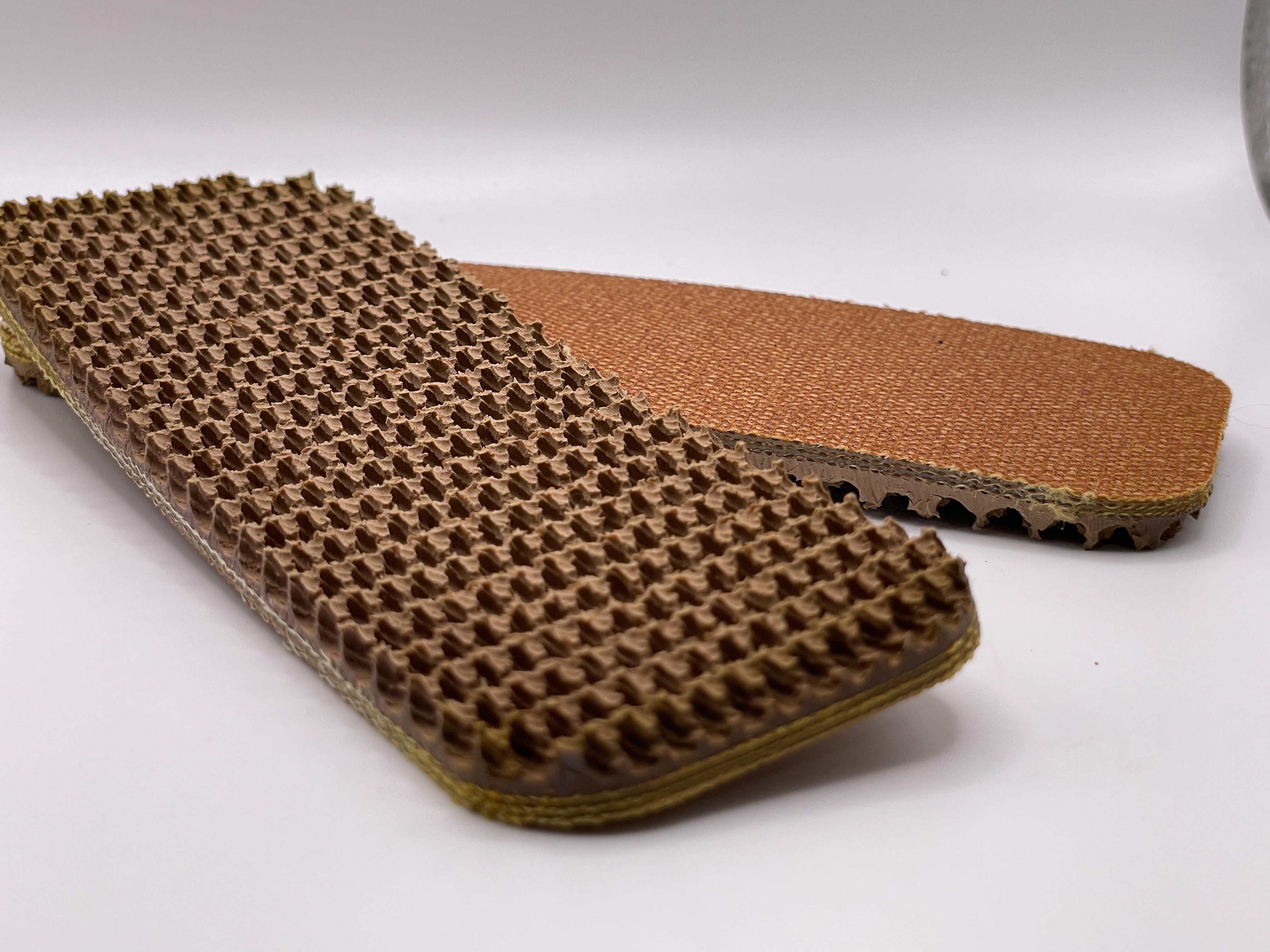

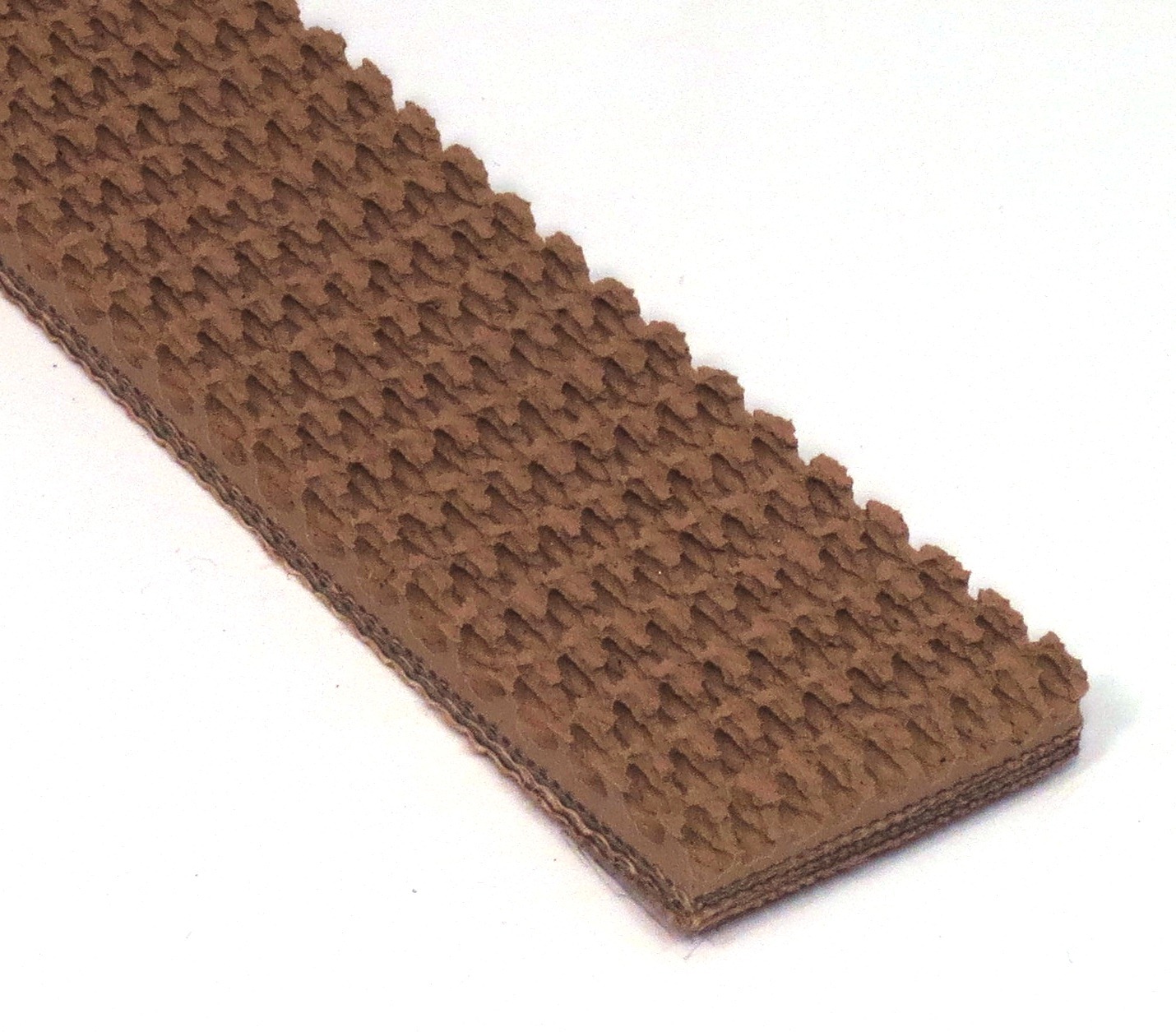

143 Ruff Tex Cover 143 Ruff Tex

Avoid oil, grease and solvents. Treated carcass increases ply adhesion and decreases edge curl. This belt has deep, soft pure gum rubber rough top impression to convey packaged products up/down 35 degrees. Proven performance in corrugated box plants, case packer and labelers, wood sanders and plastic puller belts. For laces, a recessed cover is recommended.

02-330 Download

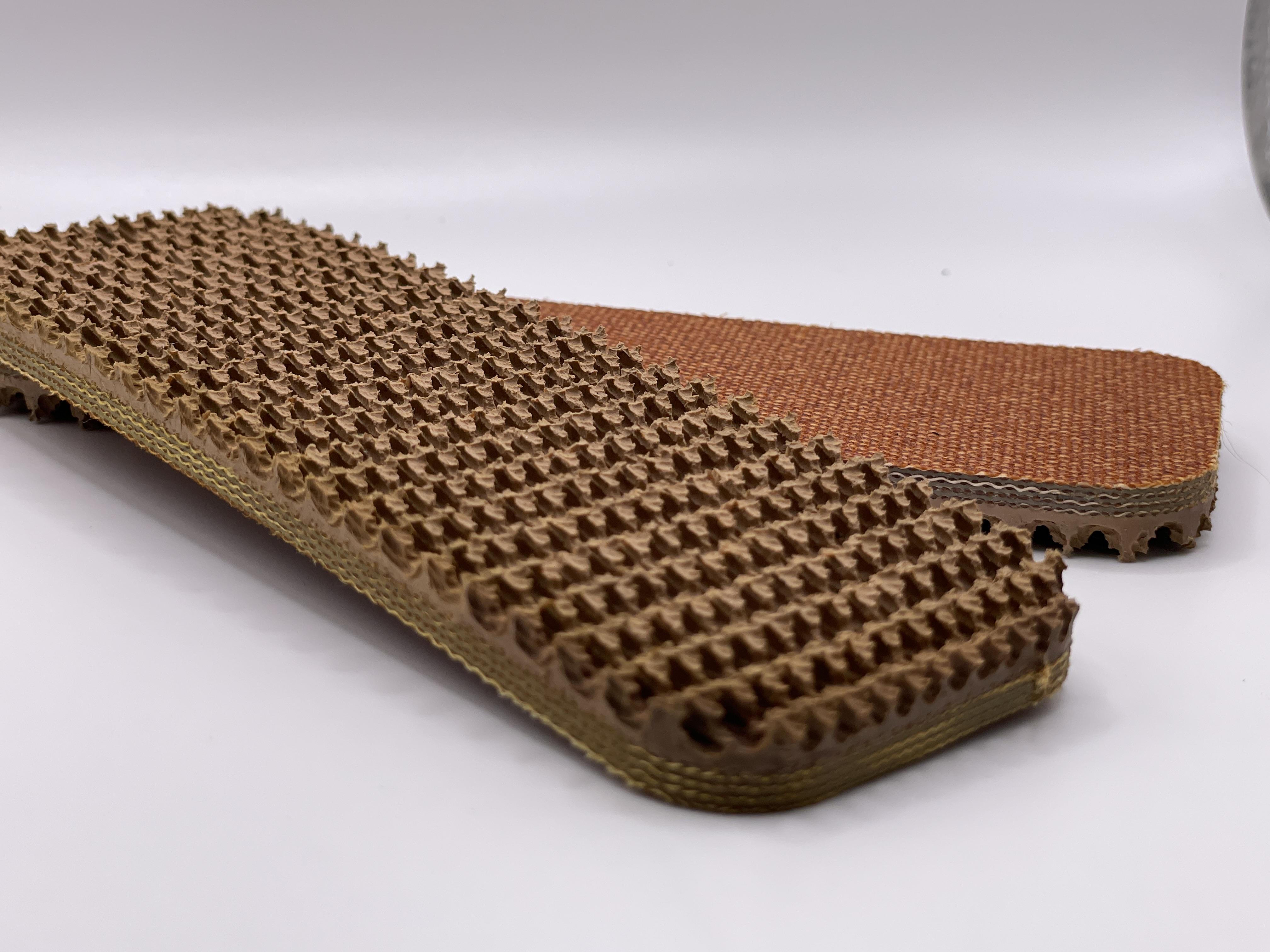

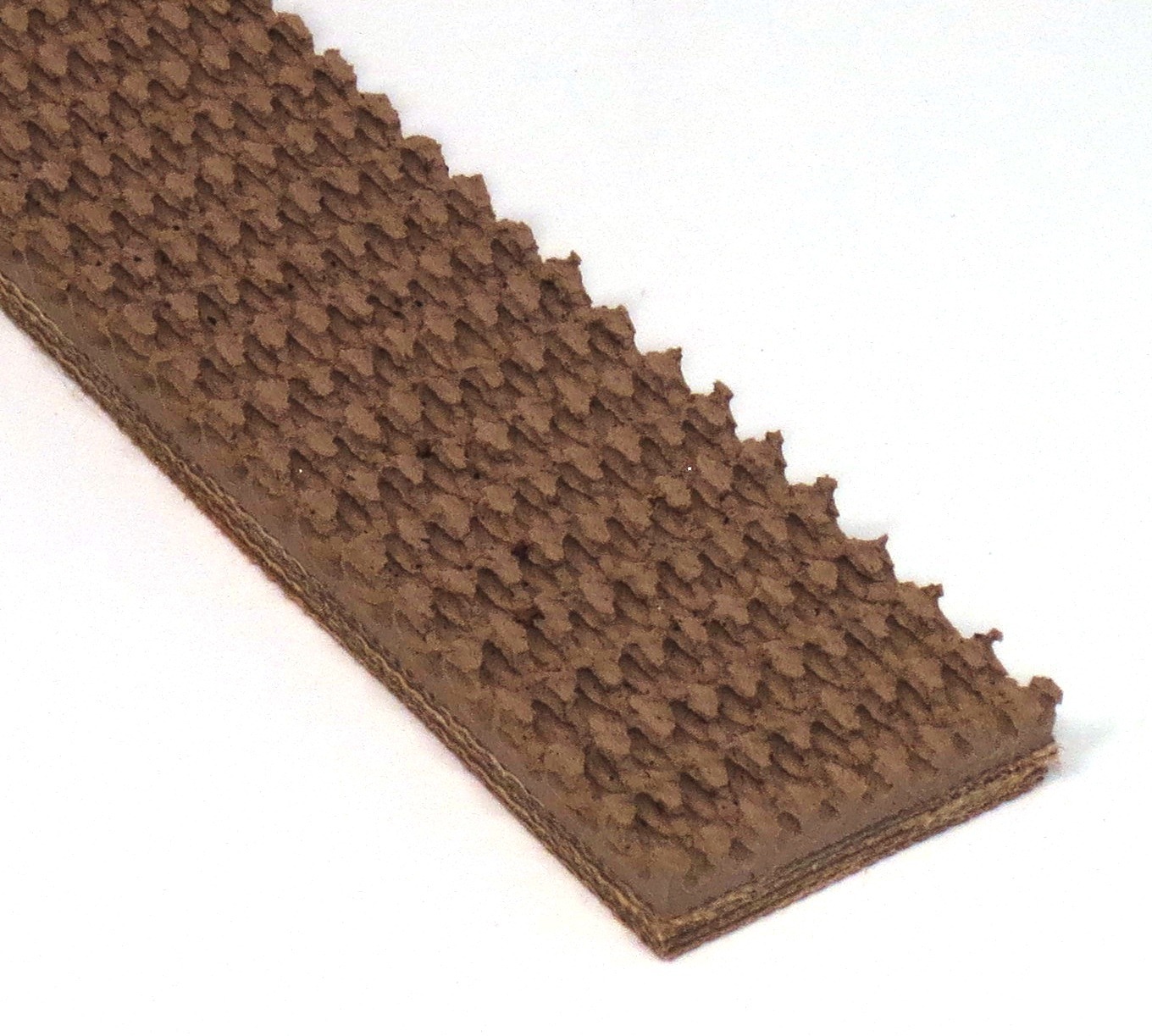

144 Ruff Tex Cover 144 Ruff Tex

Avoid oil, grease and solvents. Treated carcass increases ply adhesion and decreases edge curl. This belt has a deep, soft pure gum-rubber rough top impression to convey packaged products up/down 35 degrees. Proven performance in corrugated box plants, case packer and labelers, wood sanders and plastic puller belts. For laces, a recessed cover is recommended.

02-331 Download

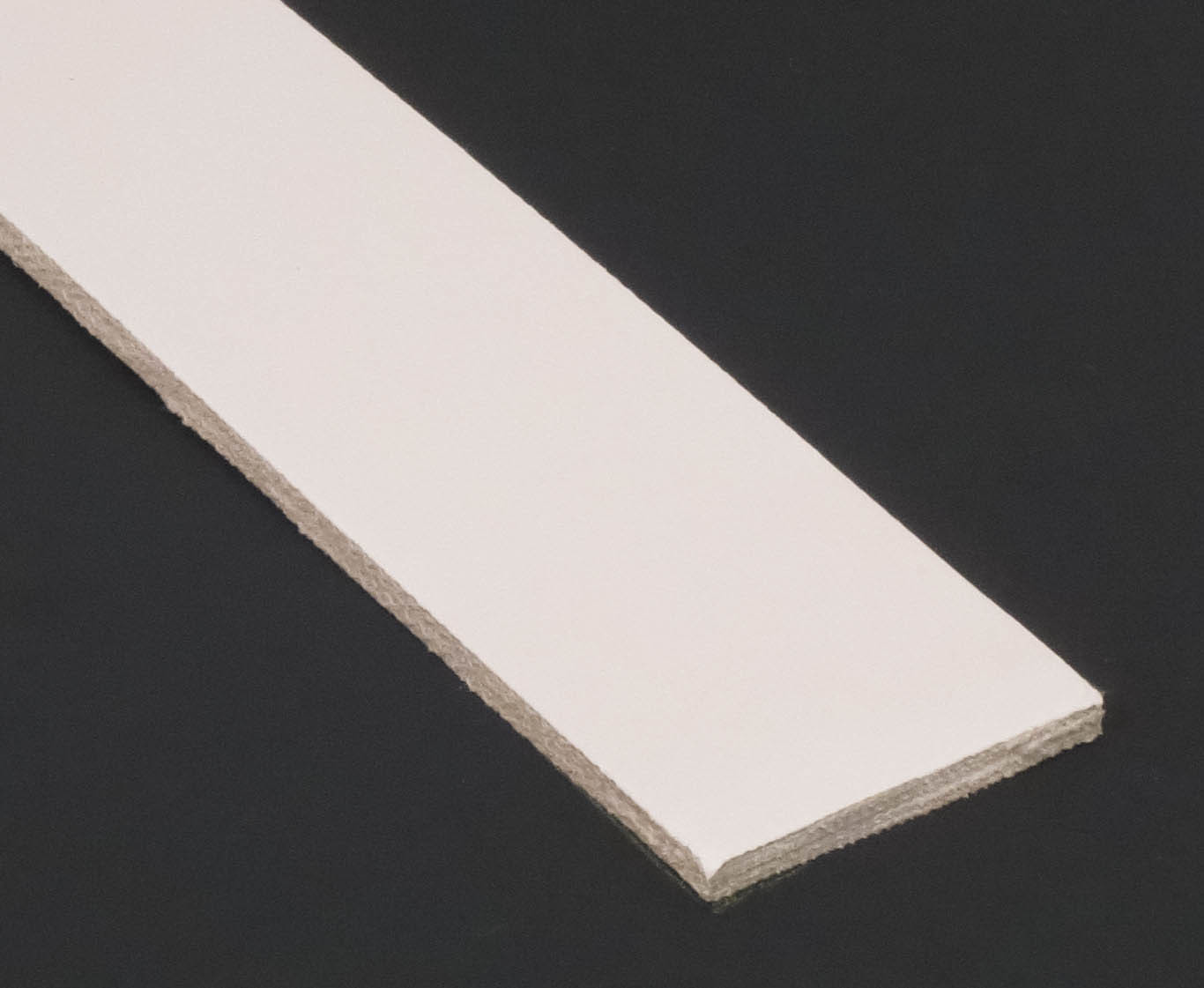

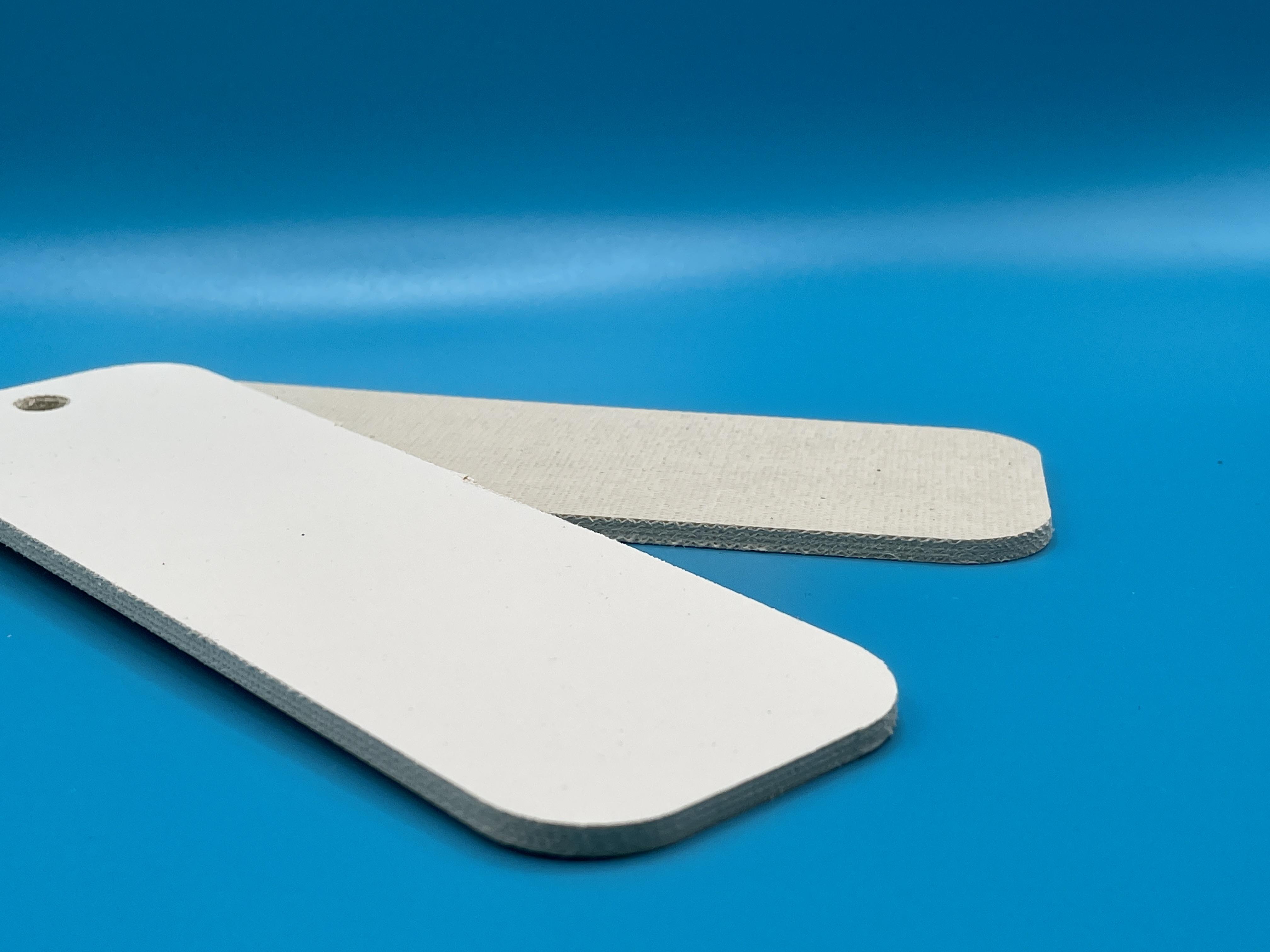

Tev Tex 144 Cover 144 Tev Tex

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Teflon cover offers superior release and easy cleaning of sticky products. Stain resistance is ideal for handling cherries, beets and carrots. Four-ply fabric provides desired bulk. Do not use on conveyors with scrapers or where pulleys cause belt to backbend.

02-052 Download

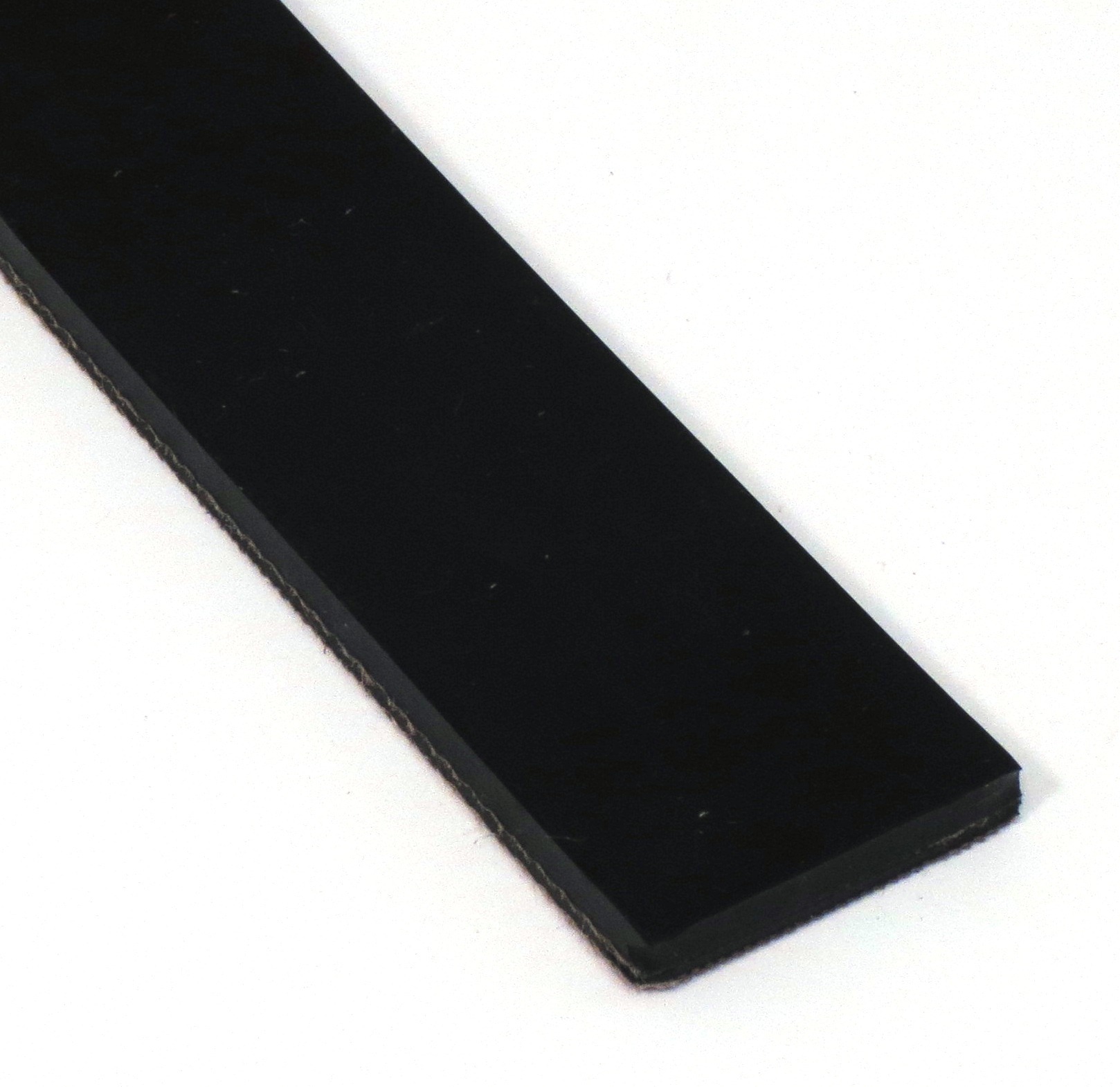

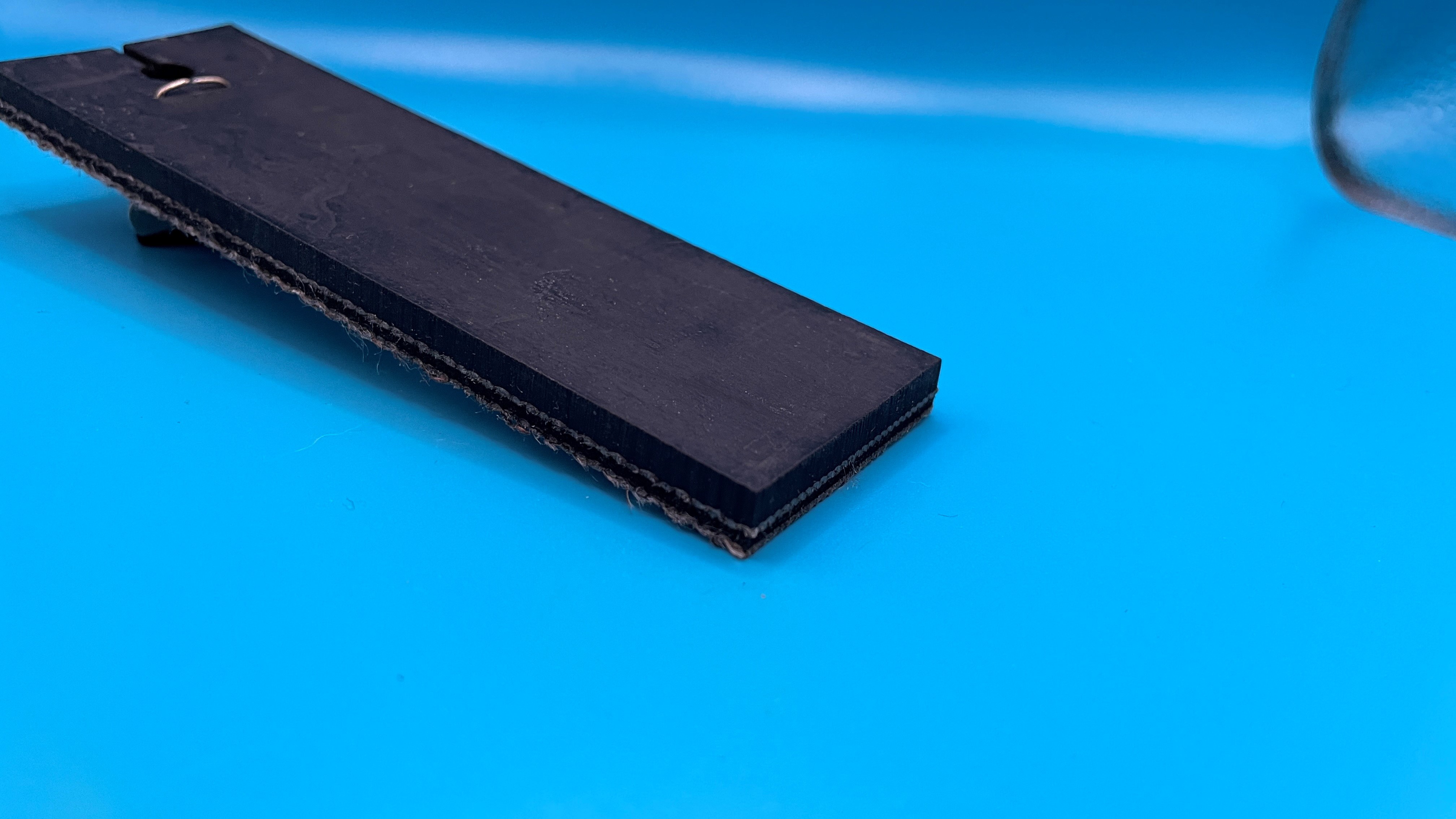

2 Ply 160 1 8 X Bare Cover 2 Ply 160 Black 1/8 x Bare Mor

Suitable for slider bed application where a rubber cover is required. General utility applications such as recycling, scrap, conveyors and general conveying.

02-016 Download

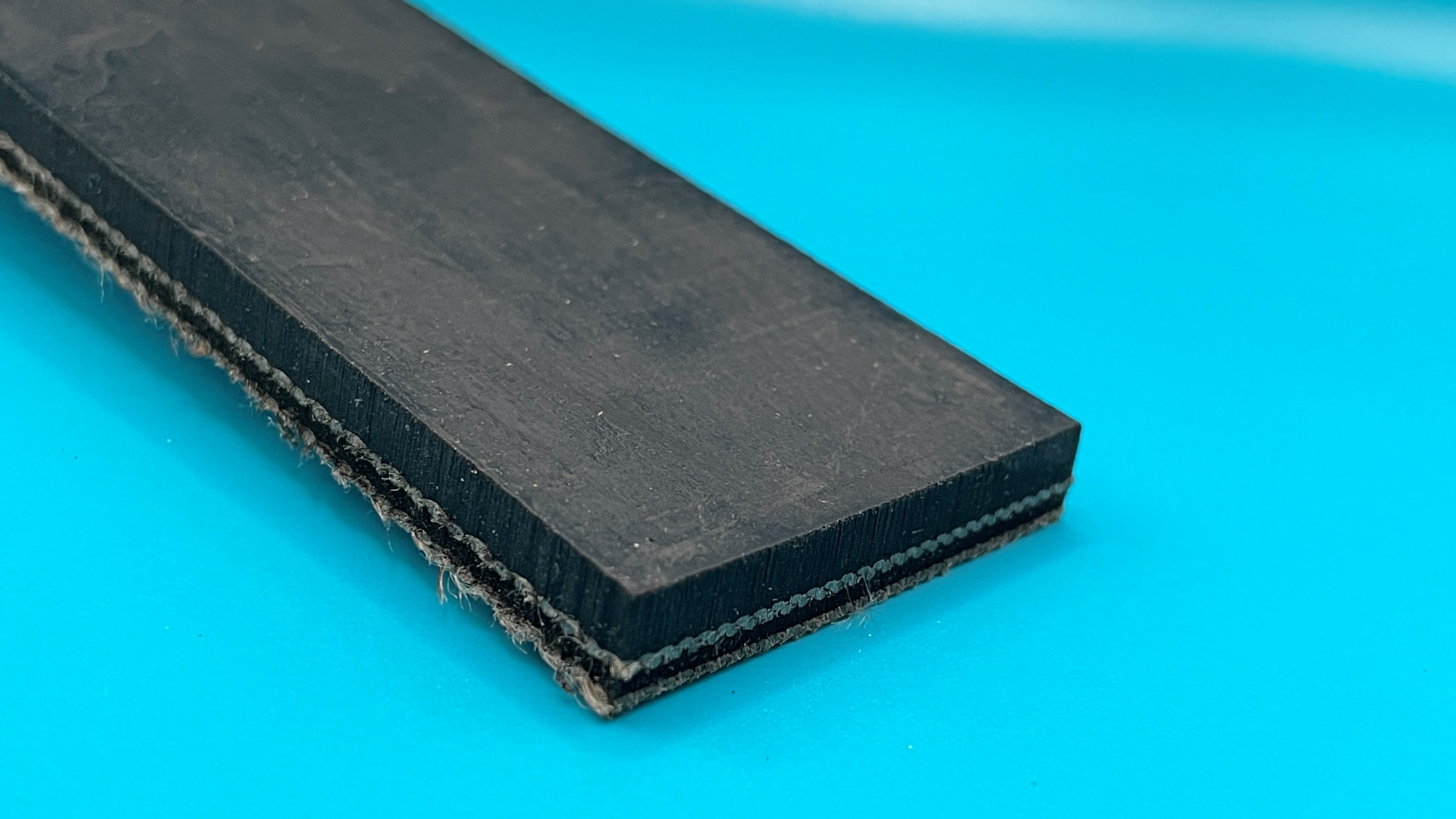

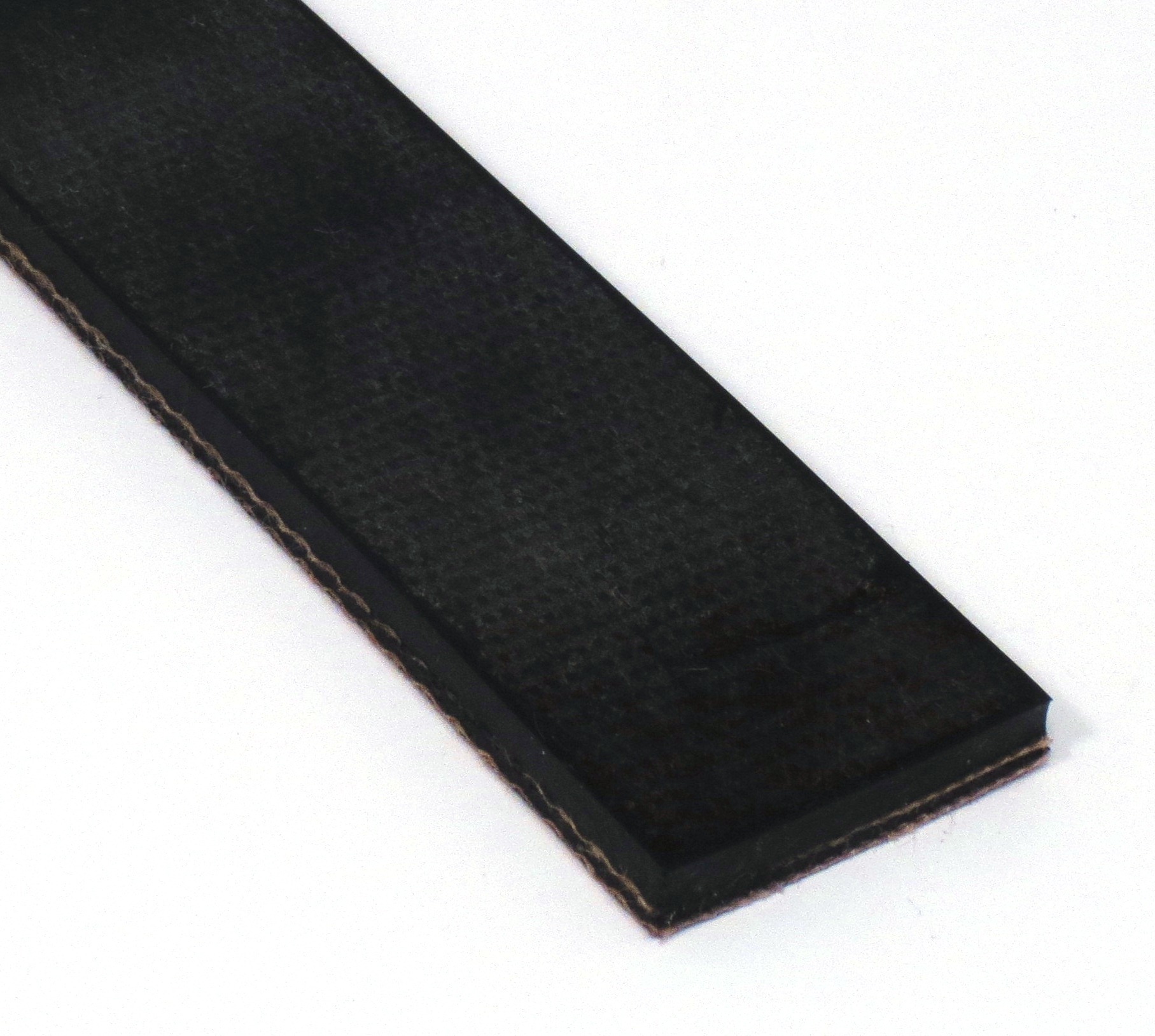

2 Ply 220 1 8 X Bare Cover 2 Ply 220 1/8 x Bare MOR

Excellent light to medium duty conveyor belt with 1/8" thick cover. MOR compound has moderate oil resistance to wood chips and many non-petroleum oils. Often used in handling wood products and in recycling applications where materials contain food oils and greasy waste materials.

02-007 Download

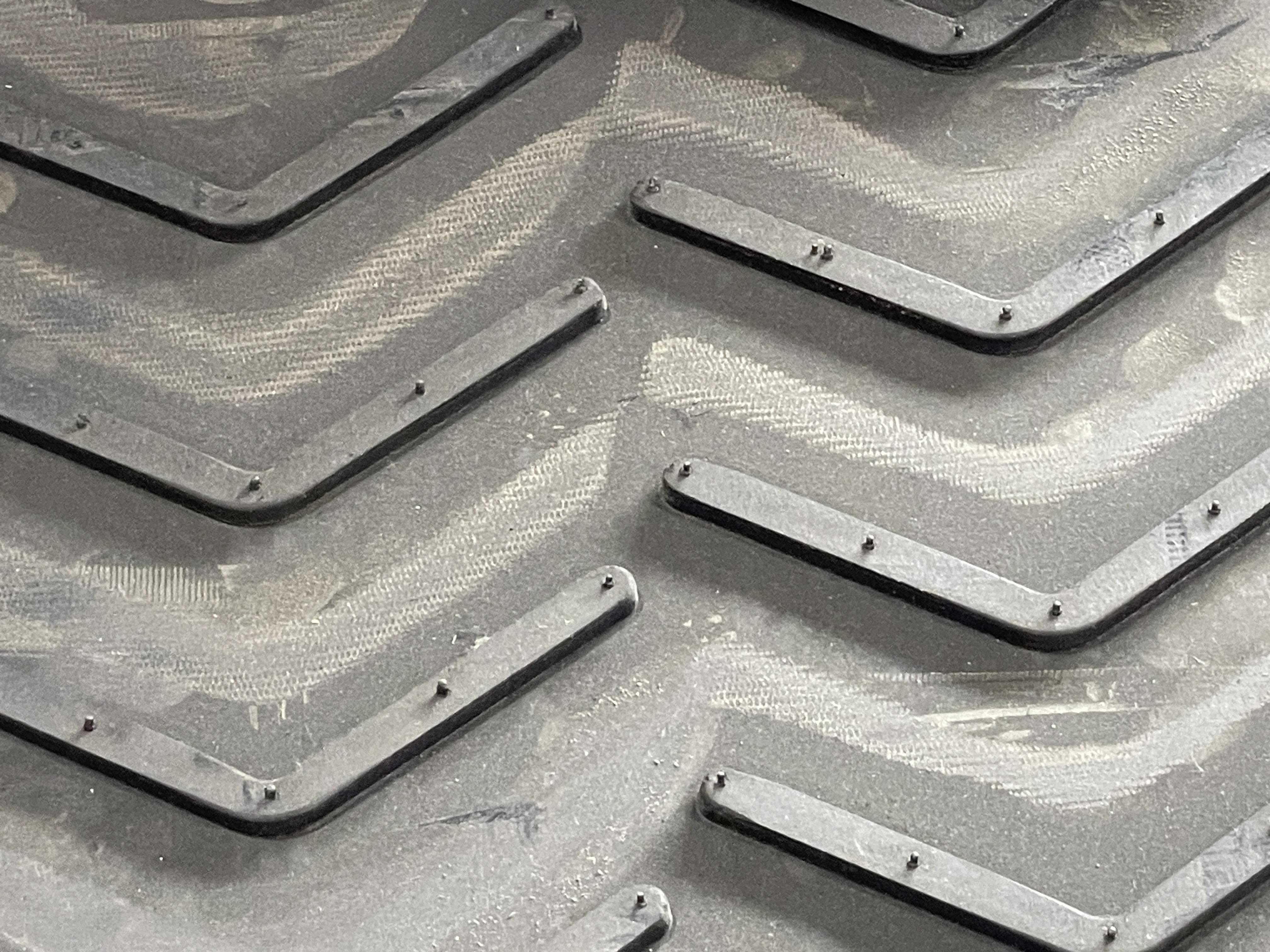

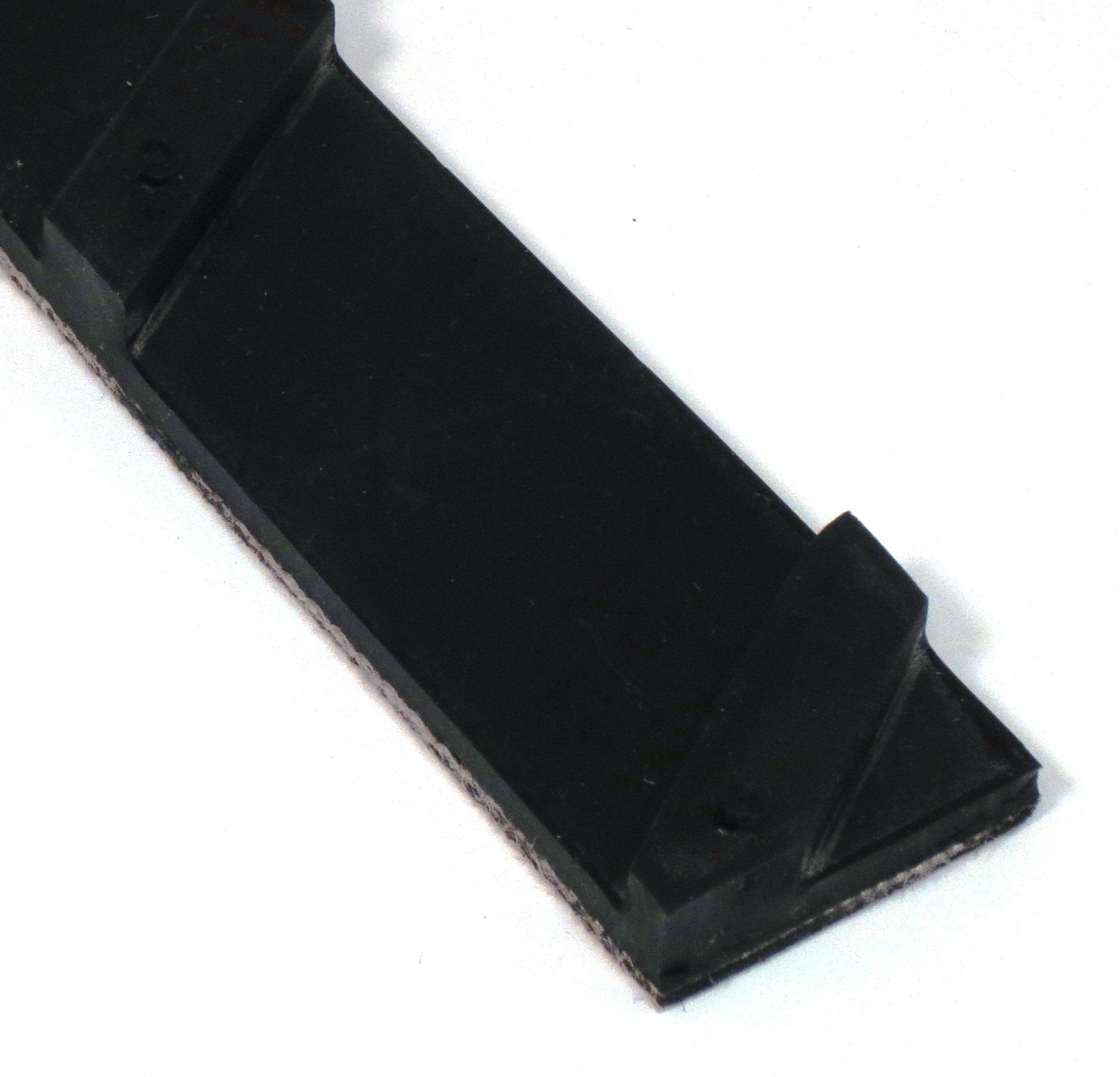

2 Ply Dura Cleat Cover 2 Ply Dura Cleat

V-Cleated Dura Cleat rubber top cover is great for incline applications. The MOR rubber compound makes the belt resistant to moderately oil contaminants and the synthetic fabric makes it strong and dimensionally stable. Bare back surface is ideal for slider bed applications. Uses include carrying wood chips to surge piles, moving waste and demolition debris in the waste and recycling industries.

02-022 Download

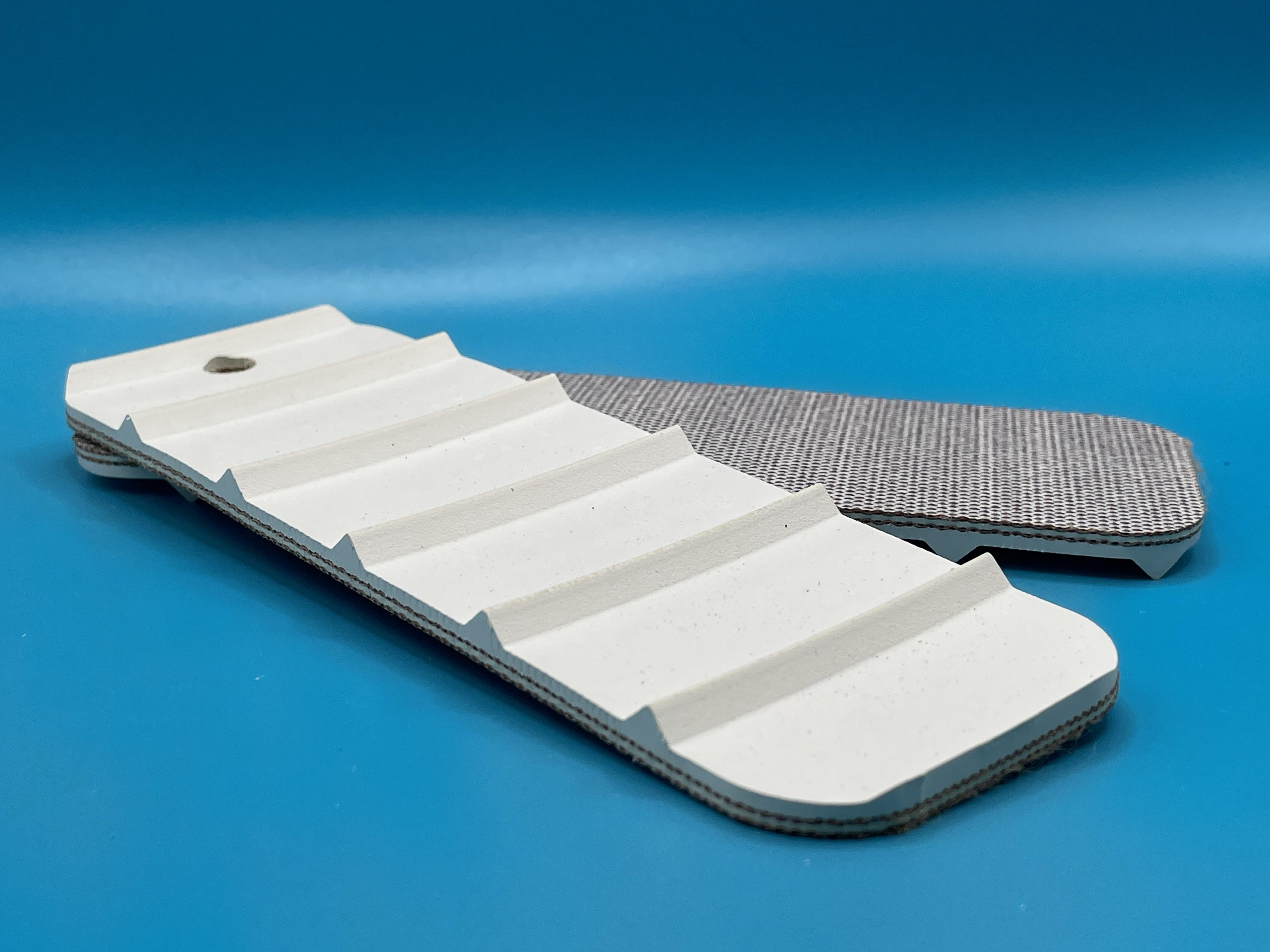

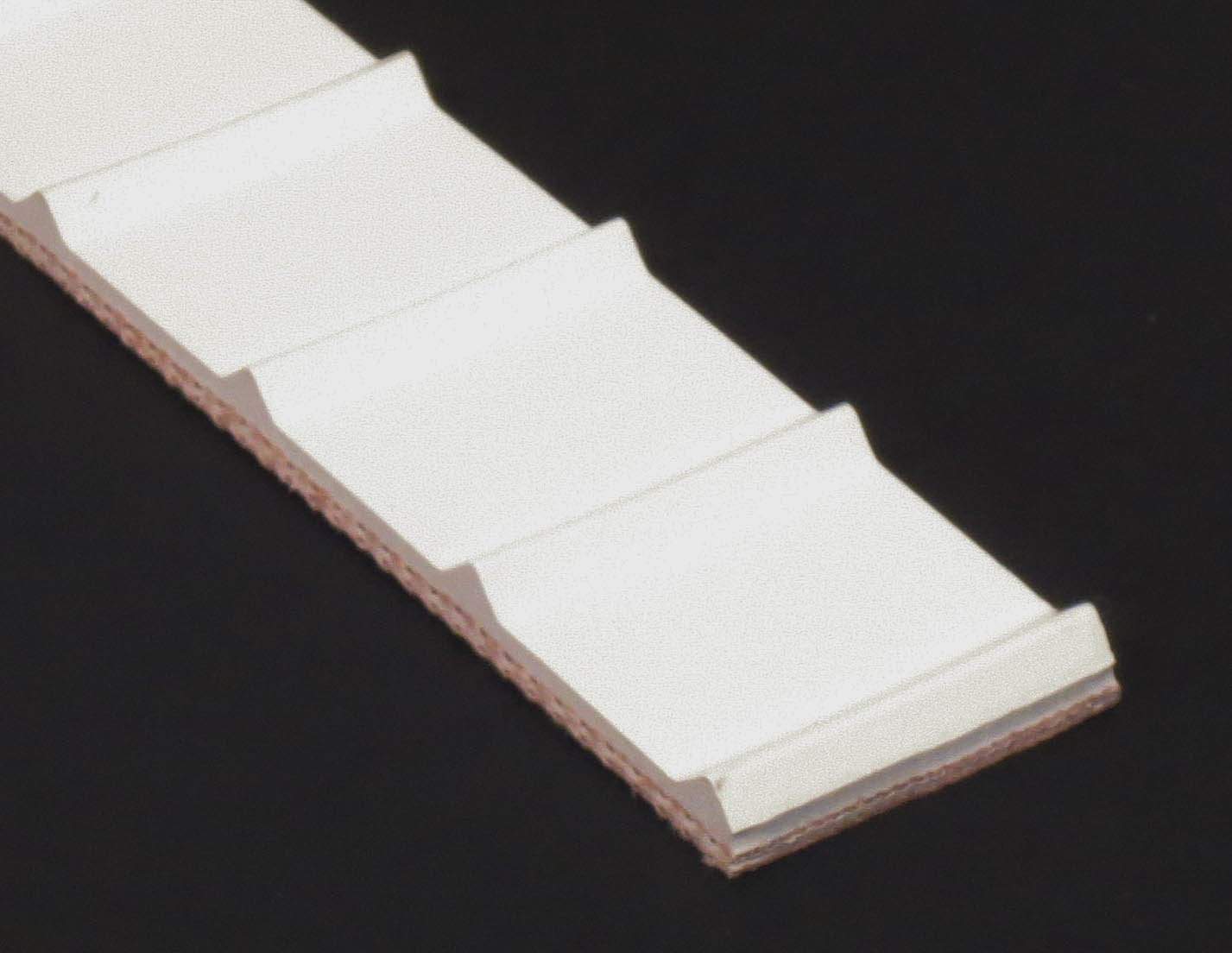

2 Ply Rib Cleat Cover 2 Ply Rib Cleat

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. 1/8" high pyramid shaped ribs on 1" centers that run across the belt width allow excellent conveying of meat, poultry and many other food products. Great choice for slight inclines handling oily products. Ribs can be removed to provide greater spacing.

02-310 Download

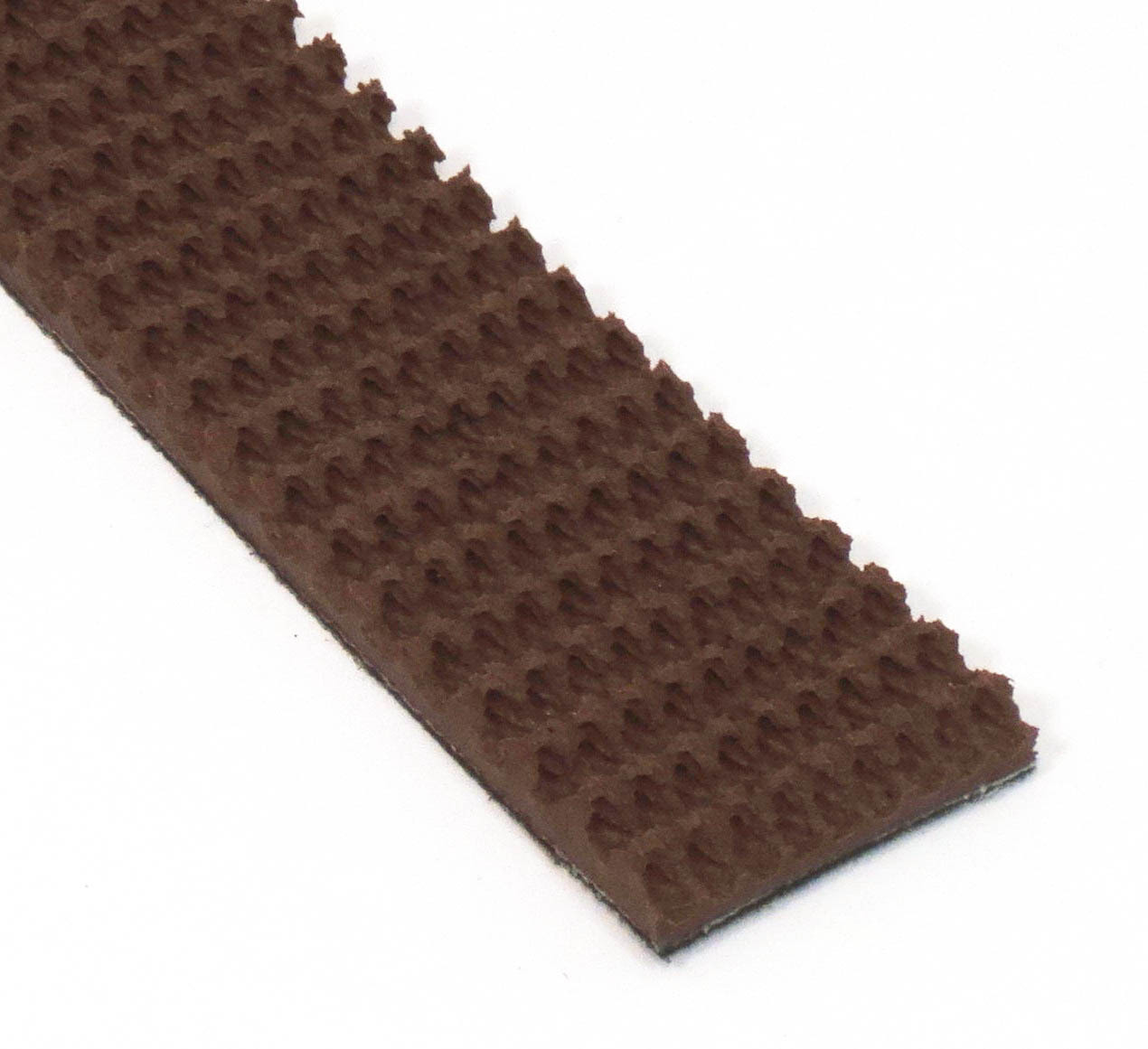

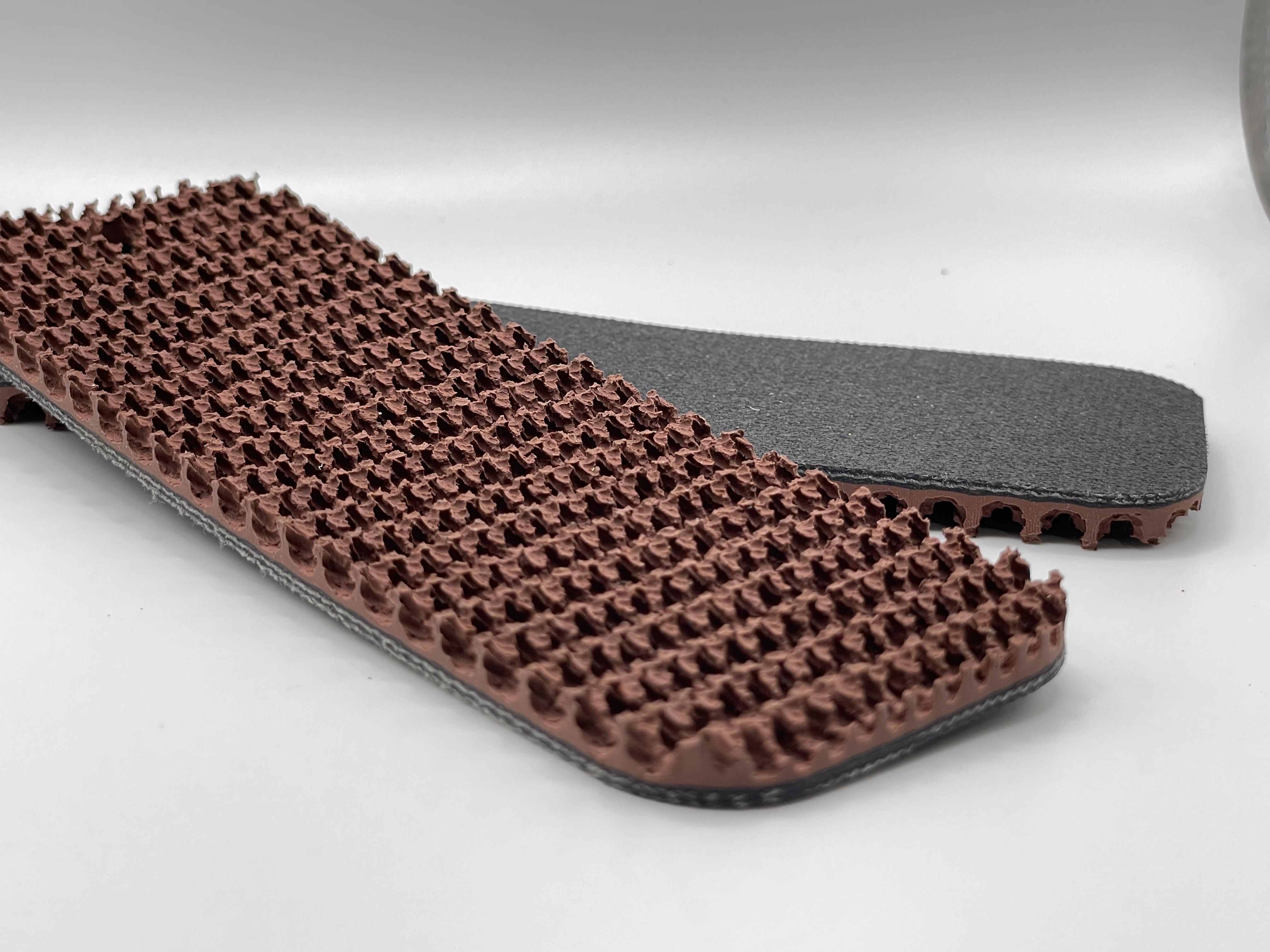

2100 Rt Cover 2100 RT

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Treated fabric increases ply/cover adhesion and decreases edge curl. Thick skims between the plies provides desired bulk. These belts are ideal as inexpensive, yet oil resistant rough tops for general duty inclines/declines. For laces, a recessed cover is recommended.

02-500 Download

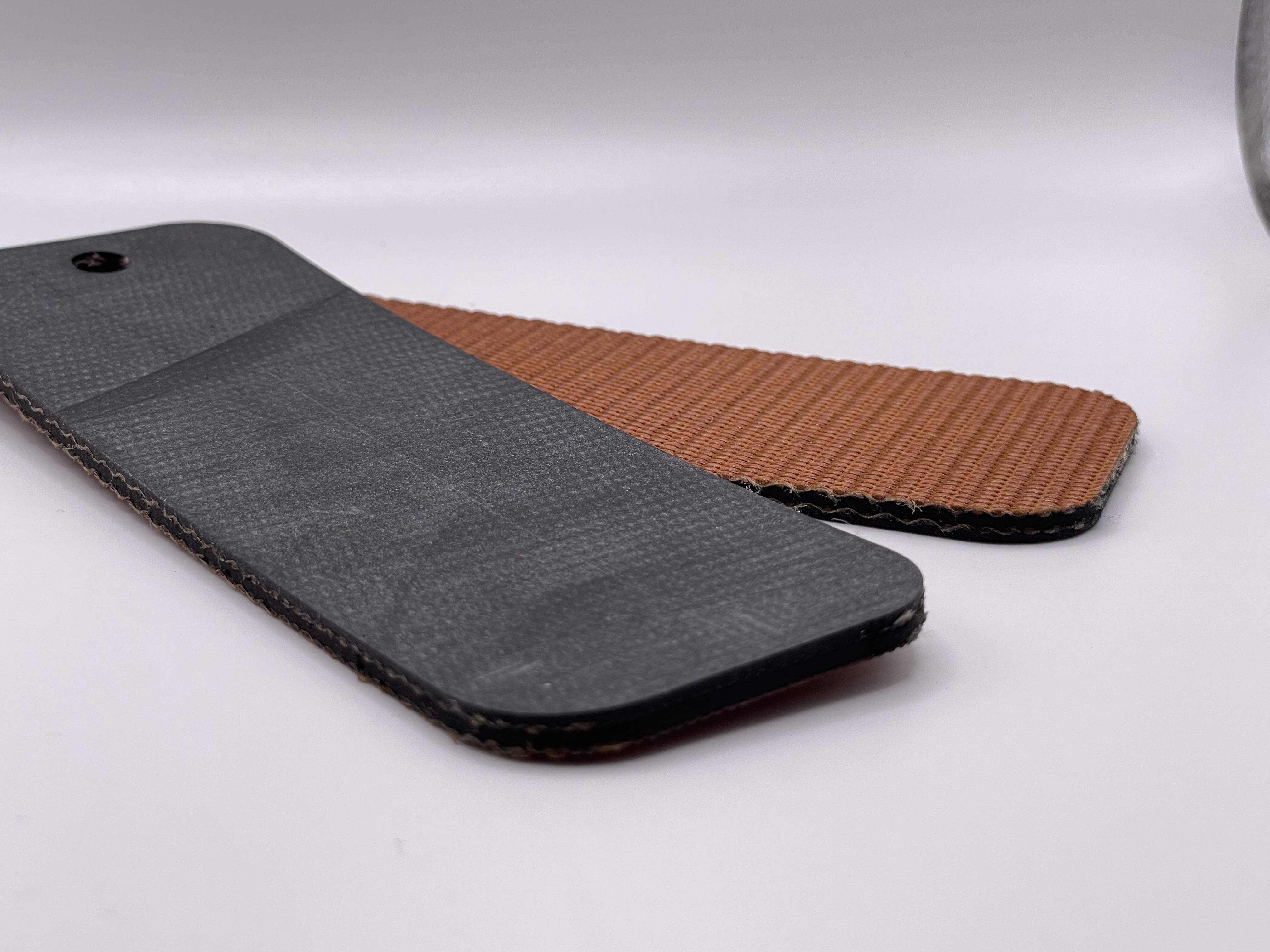

220 Cos X Bb Cover 220 COS x BB

Avoid oil, grease and solvents. Treated carcass increases ply adhesion and decreases edge curl. Inexpensive option for horizontal case and package handling in warehouses and airports. This belt offers product grip and has heavy skims between the plies for desired bulk and impact resistance.

02-530 Download

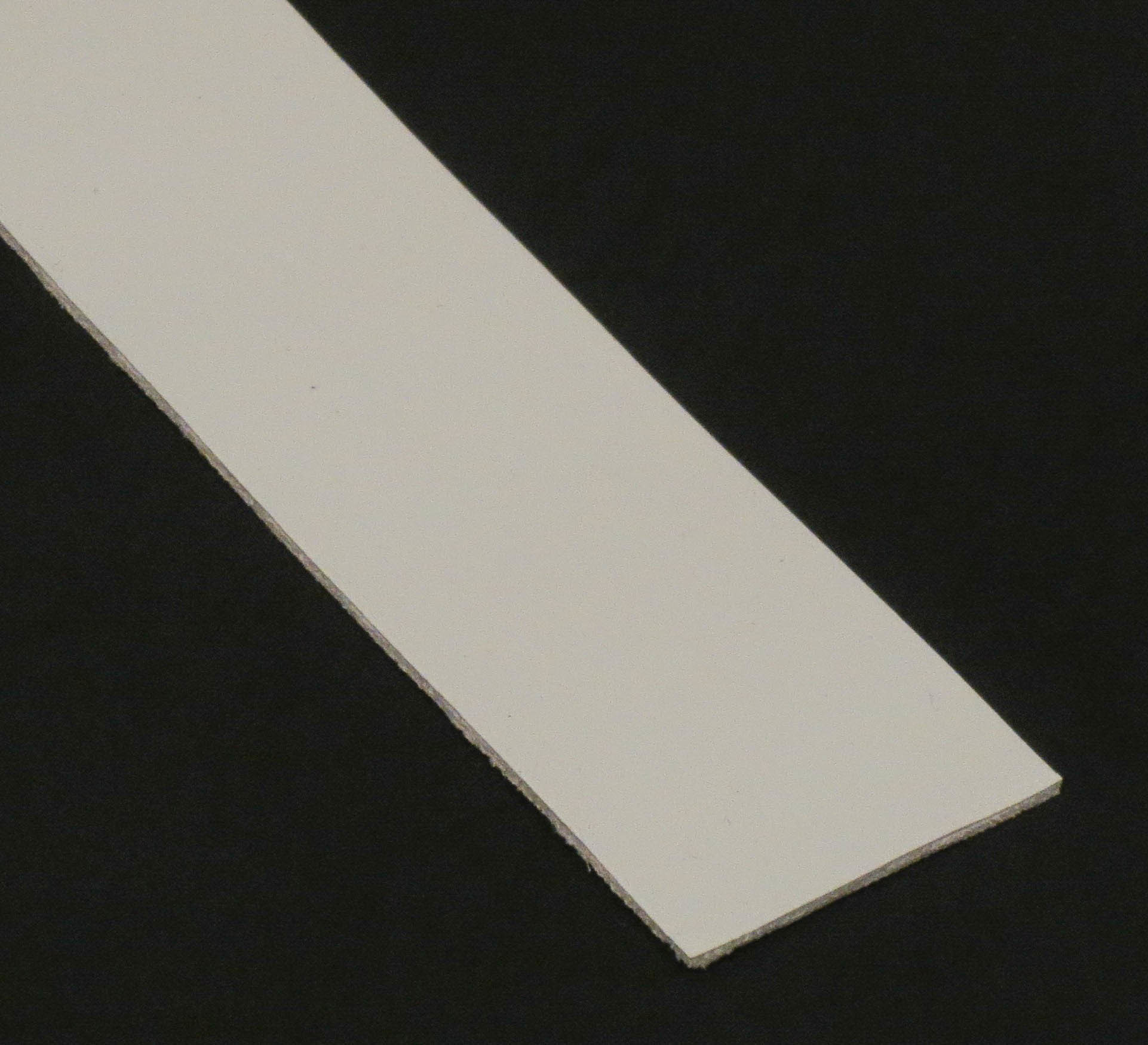

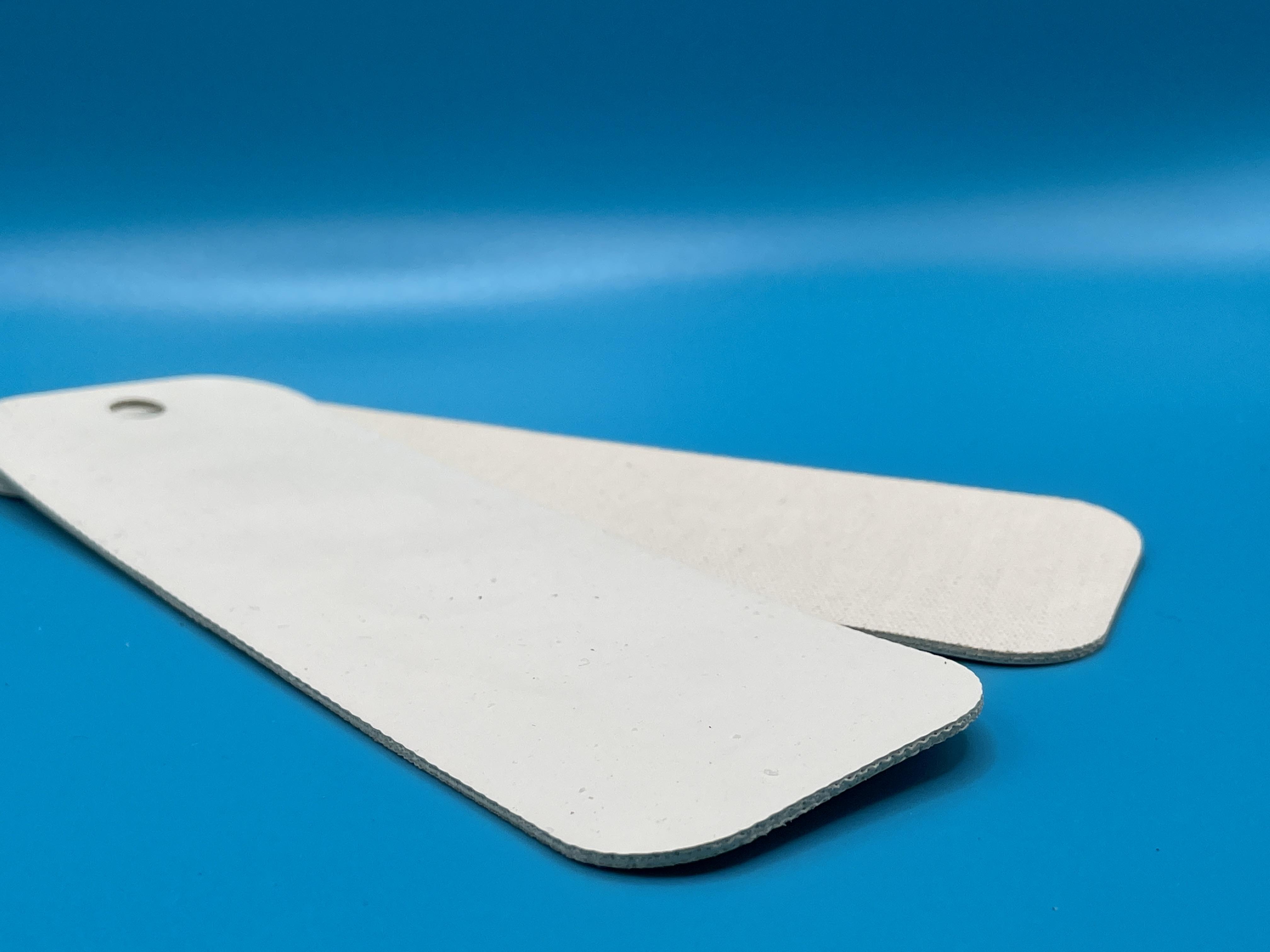

28 Nos Cover 28 NOS

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. Thin, flexible and highly oil resistant. 28 NOS is ideal for cookie transfers from metal belts to packaging lines.

02-060 Download
3 Ply 225 1 8 X Bare Cover 3 Ply Black 1-8x Bare MOR

Combines excellent abrasion reistance and long flex life with moderate oil resisting properties. Ideal for conveying oily whole grains and wood chips.

02-020 Download

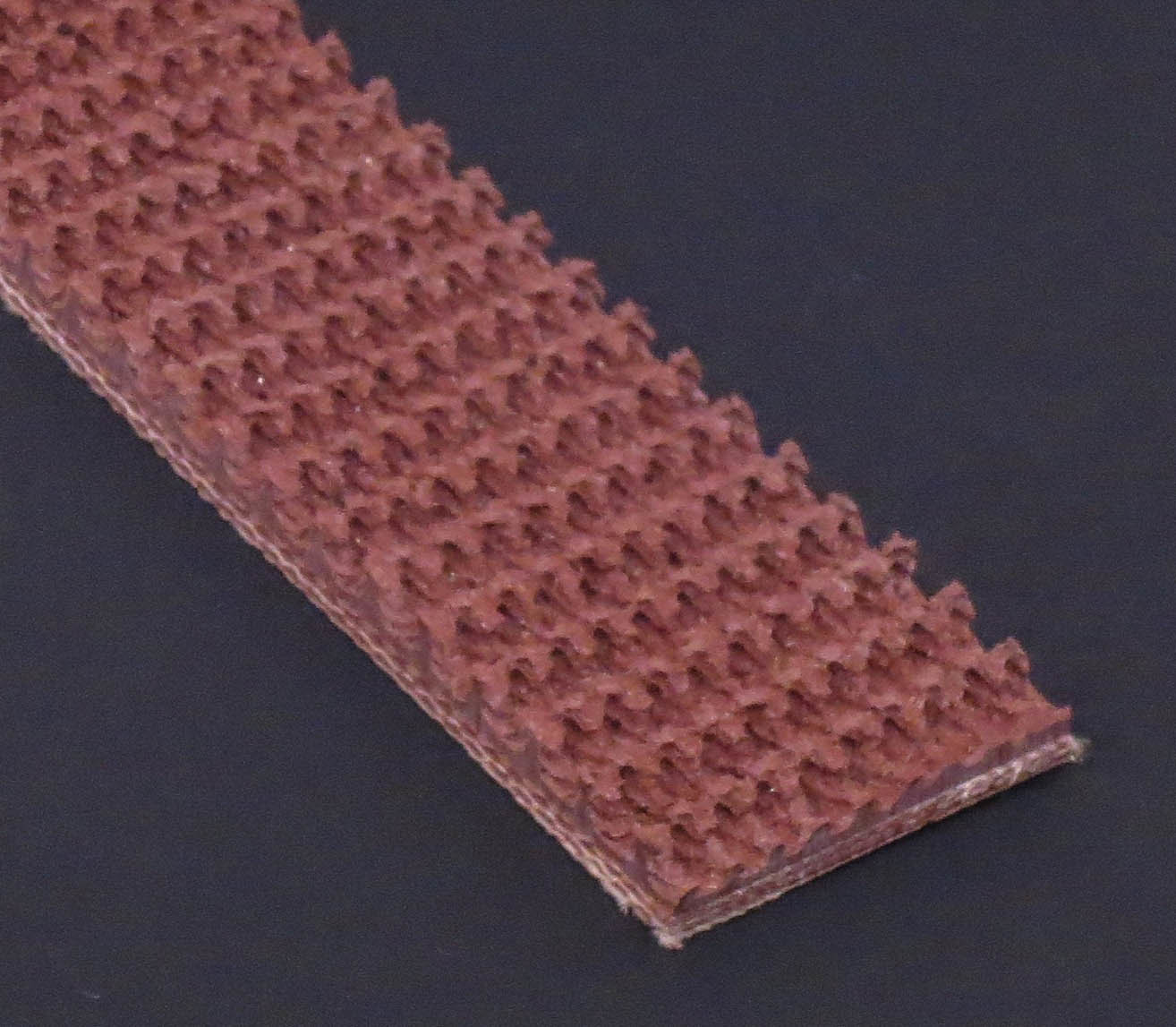

3 Ply Butyl Rough Top Cover 3 Ply Butyl Rough Top

Butyl compound gives a broad range of operating temperatures for use in both hot and cold applications. Rough Top surface has excellent grip for carrying products up and down inclines (cover coefficient of friction is .70)

02-027 Download

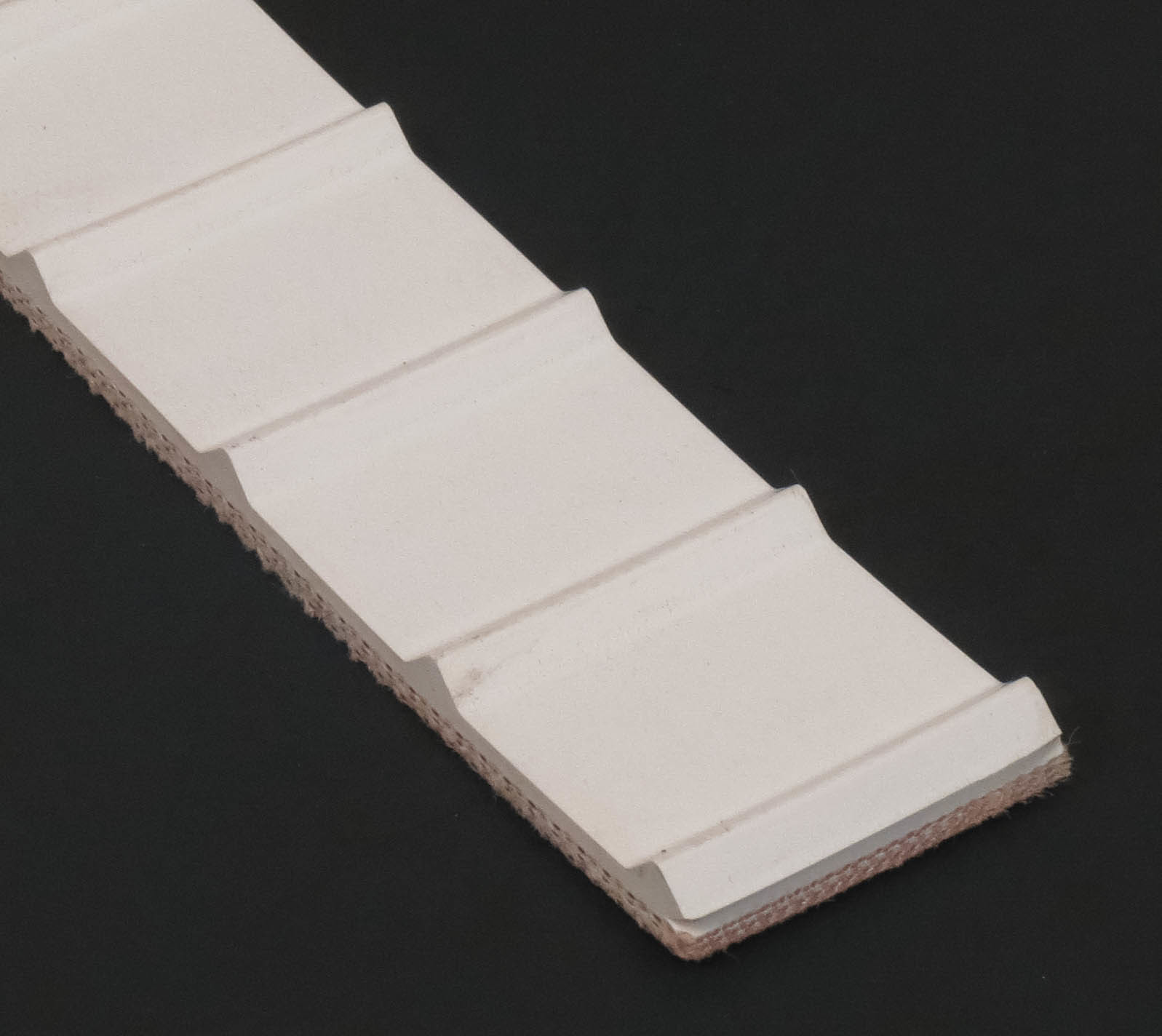

3 Ply Rib Cleat Cover 3 Ply Rib Cleat

Excellent oil and grease resistance. Very good resistance to acids and solvents but avoid high concentrations. Ozone resistant. 1/8" high pyramid shaped ribs on 1" centers that run across the belt width allow excellent conveying of meat, poultry and many other food products. Great choice on slight inclines handling oily products. Ribs can be removed to provide greater spacing, if needed.

02-311 Download
3 Ply Natural Rough Top Cover 3 Ply Tan SBR Rough Top

This SBR rubber rough top impression is excellent for incline/decline applications up to 35 degrees. Proven performance in corrugated box plant, case packers and labelers, wood sanding and plastic puller belts. Treated carcass increases ply adhesion and decreases edge curl. For laced applications, a recessed cover is recommended.

02-035 Download
3 Ply Wedge Grip Cover 3 Ply Wedge Grip

Avoid oils, greases and solvents. Treated carcass increases ply adhesion and decreases edge curl. Extra thick non-marking cover is very abrasion resistant. Soft criss cross ribs form diamond pattern. Used in Gypsum plants for board stacking application. Also used in the woodworking industry on wide belt sanding applications. For laces a recessed cover is recommended.

02-374 Download
3 Xln Cover 3XLN

Excellent oil and grease resistance. Very good resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. This belt has a deep rough top impression. Proven performance in airport baggage handling, wood and metal sanders and automotive stampings. For laces, a recessed cover is recommended.

02-340 Download
Hsw Rubber 4 Ply Cover 4 Ply HSW Rubber

Very limited resistance to oil, grease, acids and solvents. The cotton surface of the belt will absorb moisture. Good choice where non-marking or low friction qualities are required. Applications include conveying warm rubber extrusions and as an extra-wide down-stacker in the corrugated box industry. On slider bed applications needing low friction drag, run cotton duck surface as pulley side. Makes a great belt for special covers (like cast urethane in the die cutting industry).

02-402 Download
415 N Special Cover 415 N Special

Excellent oil and grease resistance to acids and solvents, but avoid high concentrations. Ozone resistant. Treated carcass increases ply adhesion and decreases edge curl. Ideal for airport baggage, automatic setters and sizers in brick plants, fiberglass and roofing materials and light-to-medium duty shear lines and take-away units in the steel industry.

02-190 Download
