Belting Technical Data Sheets

Photo Name Part Number Technical Data
03 150 Mf Gu 210 Mono Flex GU 210

Very good oil (mineral and petroleum) resistance. Good resistance to acids and solvents, except in high concentrations. Good product release. Good abrasion resistance. Belt lays very flat. Uses include magnetic can elevators, lid lines, slugveyors, packaging conveyors and handling sharp or blunt metal parts. Avoid use in accumulating applications.

03-150 Download
03 332 Mf Lbp 210 Mono Flex LBP 210

Limited resistance to oil and grease. Good resistance to most acids and solvents, except in high concentrations. Belt lays flat with no edge curl. Proven performance on grocery check-out counters, newspaper handling, electronic components, and tape cartridges.

03-332 Download
03 143 Mf Lbu 220 Mono Flex LBU 220

Excellent oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. Mini-diamond profile offers good product release and, yet, appropriate grip for small metal parts. Good abrasion resistance. Uses include magnetic conveyors, slugveyors, tape cartridges and general metal processing.

03-143 Download
03 230 Mf Lwp 210 Mono Flex LWP 210

Good oil and grease resistance. Limited resistance to acids, solvents, and alkaline solutions. Belt lays flat with no edge curl. This is a multi-purpose belt for food applications. First choice on skinning, slicing, and transporting red meat products. Other uses include bakery and confectionary applications, transporting pharmaceutical products, and conveying plastic parts.

03-230 Download
03 247 Mf Lwp 250 Mono Flex LWP 250

Good oil and grease resistance. Limited resistance to acids, solvents and alkalines. Belt lays very flat with no edge curl. Belt works very well in fish processing bakery applications and the canning industry. Some customers like this product for pulley lagging. For laces, recessing the cover is recommended.

03-247 Download
03 210 Mf Wp 110 Mono Flex WP 110

Good oil and grease resistance. Limited resistance to acids, solvents, and alkaline solutions. This is a light duty, multi-purpose food belt.

03-210 Download
03 220 Mf Wp 200 Mono Flex WP 200

Good oil and grease resistance. Fair resistance to acids and solvents. Avoid high concentrations because the bare fabric is unprotected. Belt lays very flat with no edge curl. Belt has interchangeable surfaces. Ideal belt for accumulation of light products. This product is also ideal as a base belt for covers of rubber, sponge, urethane, etc.

03-220 Download
03 233 Mf Wp 210 Mono Flex WP 210

Good oil and grease resistance. Limited resistance to acids, solvents, and alkaline solutions. Belt lays flat with no edge curl. This is a multi-purpose belt for food applications. First choice on skinning, slicing, and transporting red meat products. Other uses include bakery and confectionary applications, transporting pharmaceutical products, and conveying plastic parts.

03-233 Download
03 236 Mf Wp 210 H Mono Flex WP 210 H

Good oil and grease resistance. Limited resistance to acids, solvents, and alkalines. Belt lays flat with no edge curl. This belt has a heavy cover which prolongs belt life. Excellent base belt for cleats and sidewalls.

03-236 Download
03 242 Mf Wp 220 Mono Flex WP 220

Good oil and grease resistance. Limited resistance to acids, solvents, and alkalines. Belt lays flat with no edge curl. This is a belt that is used in industrial laundries, fish and poultry-breading machines, and dough applications.

03-242 Download
03 244 Wp 220 S Mono Flex WP 220 S

Good oil and grease resistance. Limited resistance to acids, solvents, and alkalines. Belt lays flat with no edge curl. This is a belt that is an excellent choice for dough.

03-244 Download
03 367 Mf Wp 230 C Mono Flex WP 230 C

Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations. Belt lays very flat for improved tracking. Very good choice on bun slicers. Extremely quiet on returns due to Chevron pattern. Excellent for inclines and declines. For laces, a recessed cover is recommended.

03-367 Download
03 036 Mf Wp 280 Mono Flex WP 280

Oil and Grease Resistant. Use in applications such as food and vegetables were additional grip is required to feed product, such as slicers and dicers.

03-036 Download
03 712 Mf Wp 310 Mono Flex WP 310

M/F WP 310 is the go-to choice for Depanner belts in the bakery industry. The 3-ply construction is carefully engineered for recessed holes required for depanner retainer clips. Please reference bolt hole templates to accurately specify required recessed perforation patterns for these belts.

03-712 Download
03 249 Mf Wr 210 S Mono Flex WR 210 S

Moderate to good oil resistance. Limited resistance to chemicals and solvents. Check the specific chemical prior to recommending. Belt lays very flat with no edge curl. Good choice as base belt for cleats and sidewalls. Extra heavy monofilament strands provide additional crosswise rigidity. An excellent belt for horizontal to vertical inclines where hold-down rollers are used on the belt edges and you want to minimize belt lift in the middle.

03-249 Download
03 644 Mf Ws 210 Mono Flex WS 210

Limited oil, grease, acid and solvent resistance. Very good resistance to wide surface temperature ranges. Belt lays very flat with no edge curl. Ideal belt for applications requiring release from sticky products (marshmallows, carmel) and excellent tracking of monfilament polyester. Offers good release to polyethylene wrapped food products, sticky dough, hot oily chocolate, and hot plastic sheets, labels, and stickers.

03-644 Download
03 050 Mf Ws 210 U Mono Flex WS 210 U

Limited oil, grease, acid and solvent resistance. Very good resistance to wide surface temperature ranges. Belt lays very flat with no edge curl. Ideal belt for applications requiring release from sticky products (marshmallows, caramel) and excellent tracking of monfilament polyester. Offers good release to polyethylene wrapped food products, sticky dough, hot oily chocolate, and hot plastic sheets, labels, and stickers.

03-050 Download
03 111 Mf Wu 110 As Mono Flex WU 110 A/S

Excellent oil and grease resistance, including coconut oil and cocoa butter. Limited resistance to acids, solvents, and alkaline solutions. Excellent product release. Easy to clean. Belt lays very flat. Proven performance on cooling applications for chocolate, confectionery, and baked goods. Other uses include dough forming, scale belts, and packaging line belts.

03-111 Download
03 119 Mf Wu 120 M Mono Flex WU 120 M

Very good oil and grease resistance. Limited resistance to acids, solvents, and alkaline solutions. Very good product release. Easy to clean. Excellent choice for pretzel proofer. The hard impression surface releases dough, chocolate, and confectionary products very well.

03-119 Download

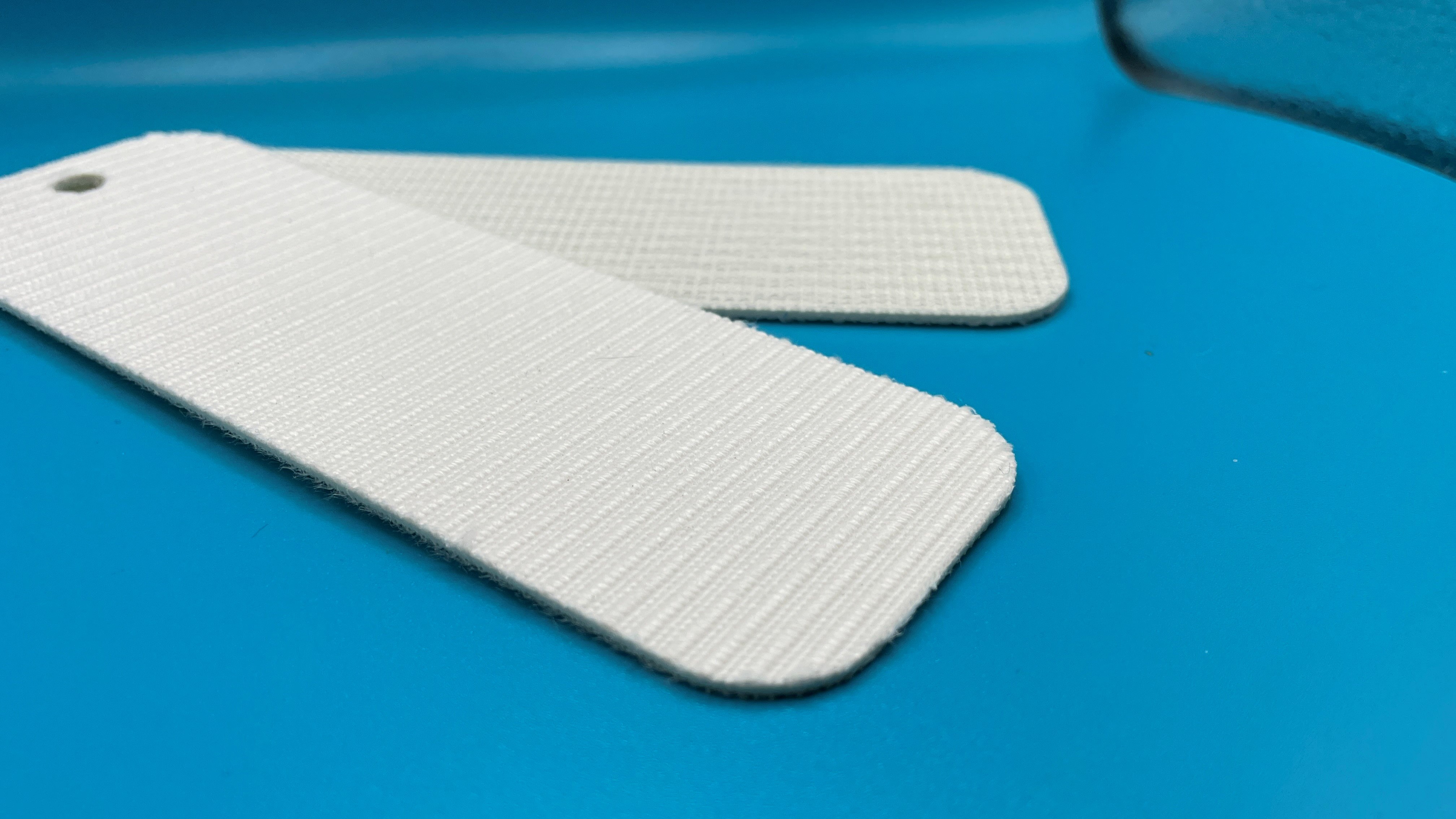

03 122 Mf Wu 200 Mono Flex WU 200

Good oil and grease resistance. Good resistance to acids and solvents, except in high concentrations. Belt lays very flat. Ideal for light duty accumulation and diverting of products. Uses include scale belts for tobacco, paper sheeters, paper ream conveyors, plastic bottle conveyors, and conveyors of light steel/metal.

03-122 Download
