Belting Technical Data Sheets

Photo Name Part Number Technical Data
08 010 Apf B 930 Sd APF B 930 SD (FMB 3 SD)

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables. Additional benefit of Positive Drive material is that no system tension is required for operation.

08-010 Download
08 012 Apf B 940 Sd APF B 940 SD (FMB 4 SD)

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables. Additional benefit of Positive Drive material is that no system tension is required for operation.

08-012 Download
08 051 Apf P 930 APF P-930

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium chloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: Poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-051 Download

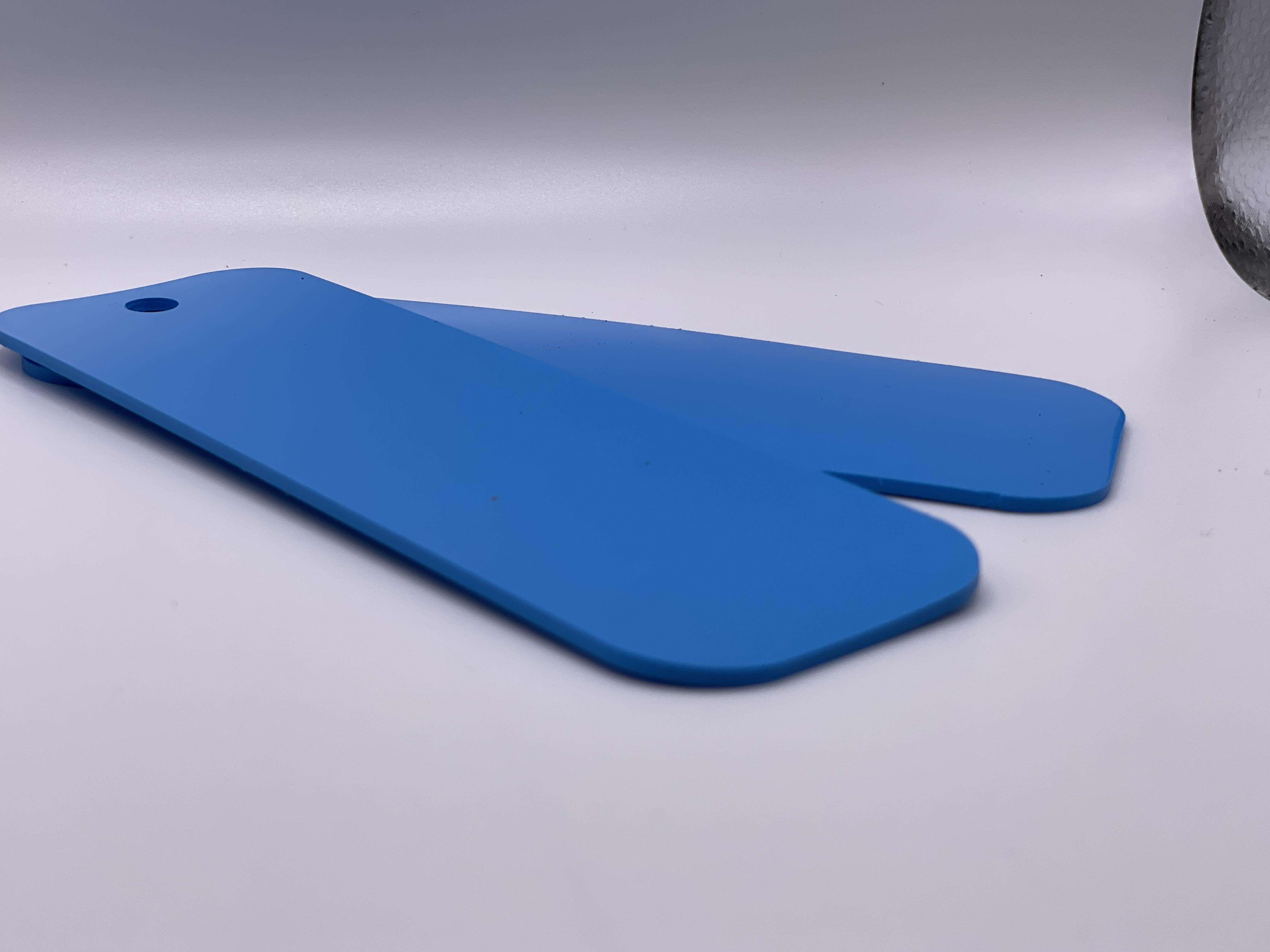

08 145 Apf B 920 APF-B-920

Resistant to sodium hyphochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium chloride solutions. No strings, cleans easily. Heavy chemical washdown resistance. Flexible, easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications. Poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-145 Download

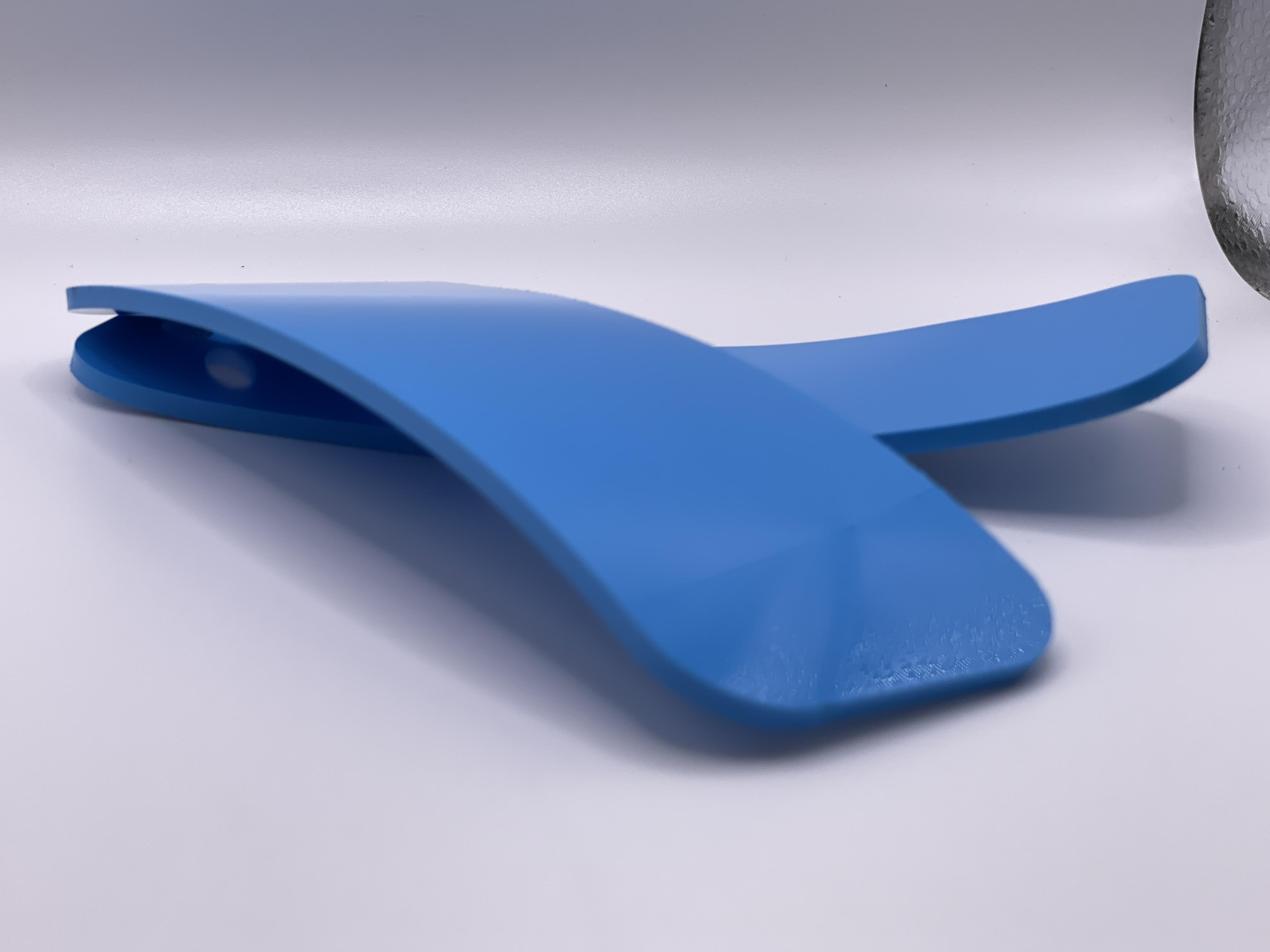

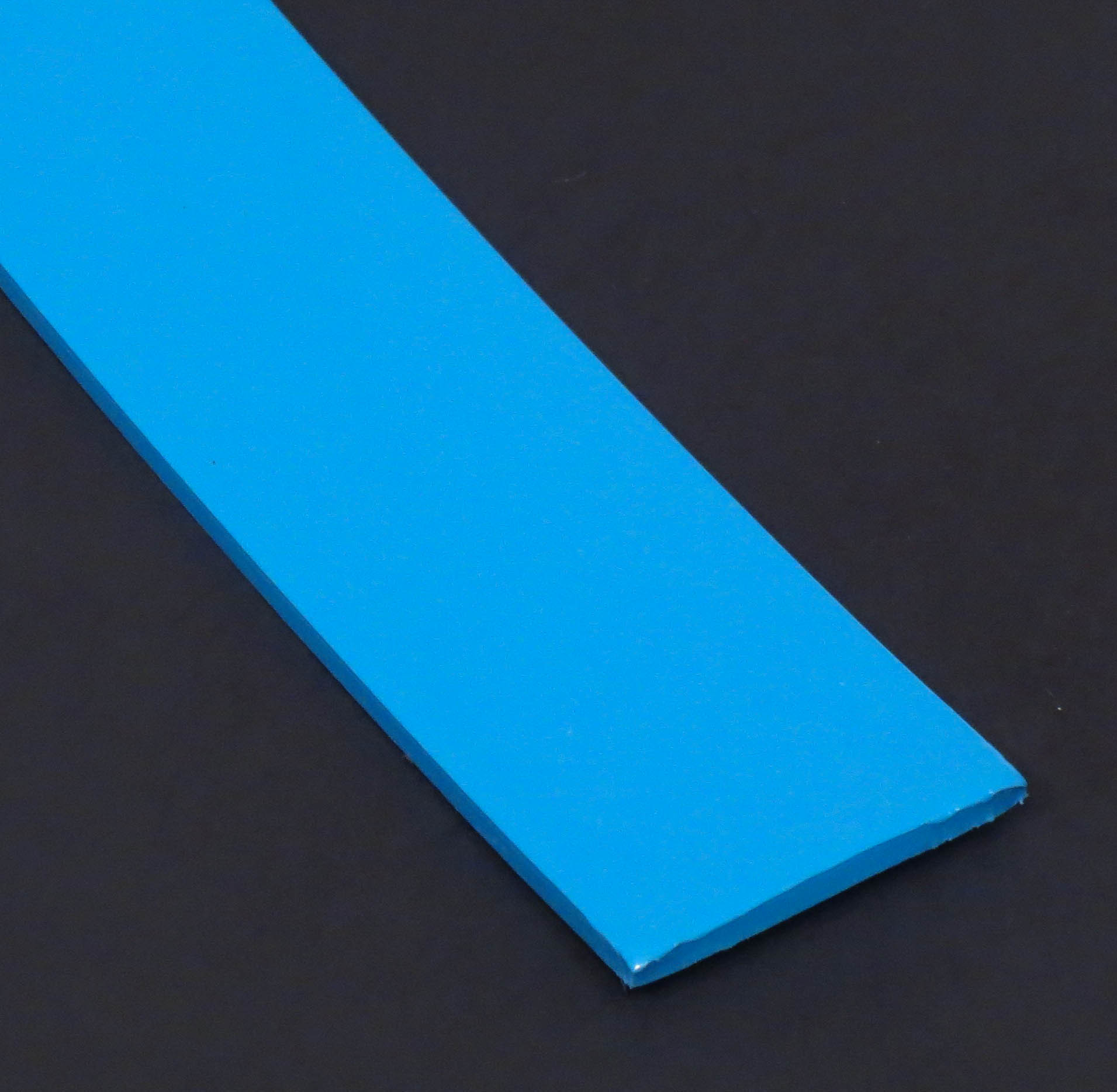

08 151 Apf B 930 APF-B-930

Resistant to sodium hypochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium choloride solutions. No strings. Cleans easily. Heavy chemical washdown resistance. Flexible. Easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications: poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-151 Download

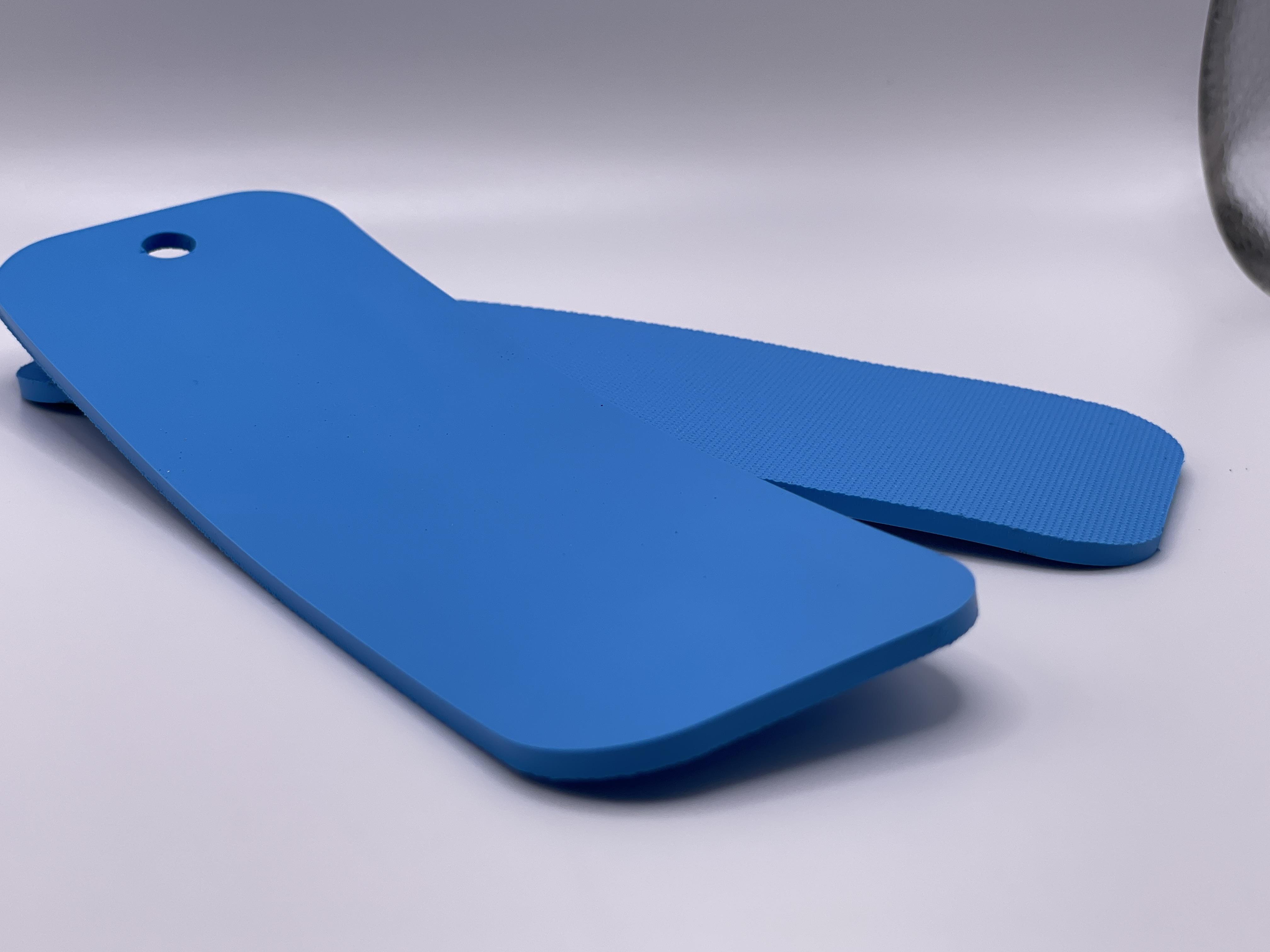

08 009 Apf B 930 Embossed APF-B-930 Embossed

Resistant to sodium hyphochlorite at 5%, sodium hydroxide at 46-1/2%, sodium chloride solutions, soap solutions, trisodium phosphate solutions, mineral oil, ammonium chloride solutions. No strings, cleans easily. Heavy chemical washdown resistance. Flexible, easily installed endless. Can be custom fabricated to many specifications. Used mostly in direct food handling applications. Poultry, beef and pork parts, grated or shredded cheese, pasta, dough, vegetable inspection tables.

08-009 Download

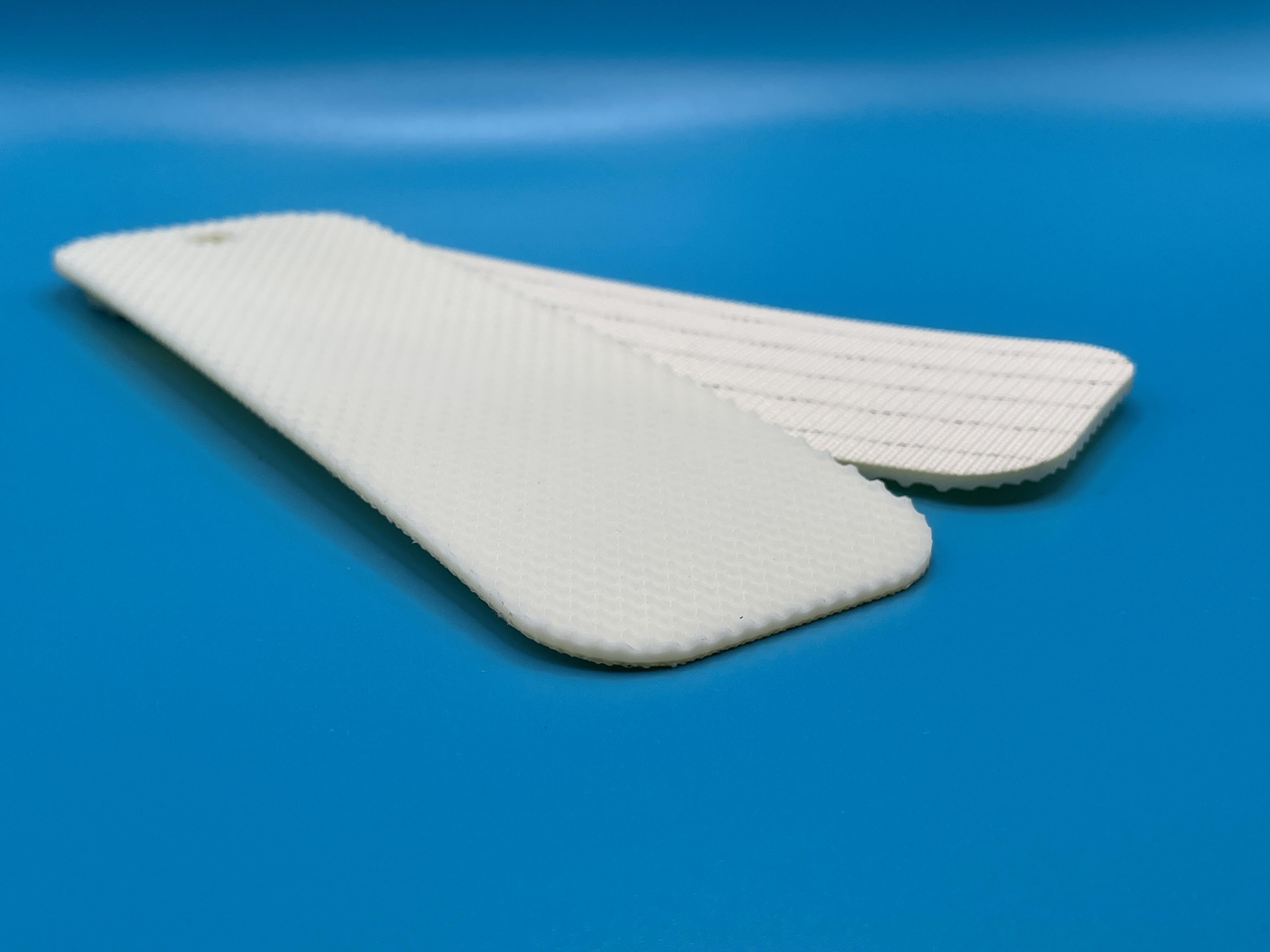

08 261 Apf Lb 825 120 APF-LB 825-120

Fabric reinforced to eliminate excessive stretch. Embossed profile on top cover to promote release of wet products. Suitable for use in poultry, dairy and most food products.

08-261 Download

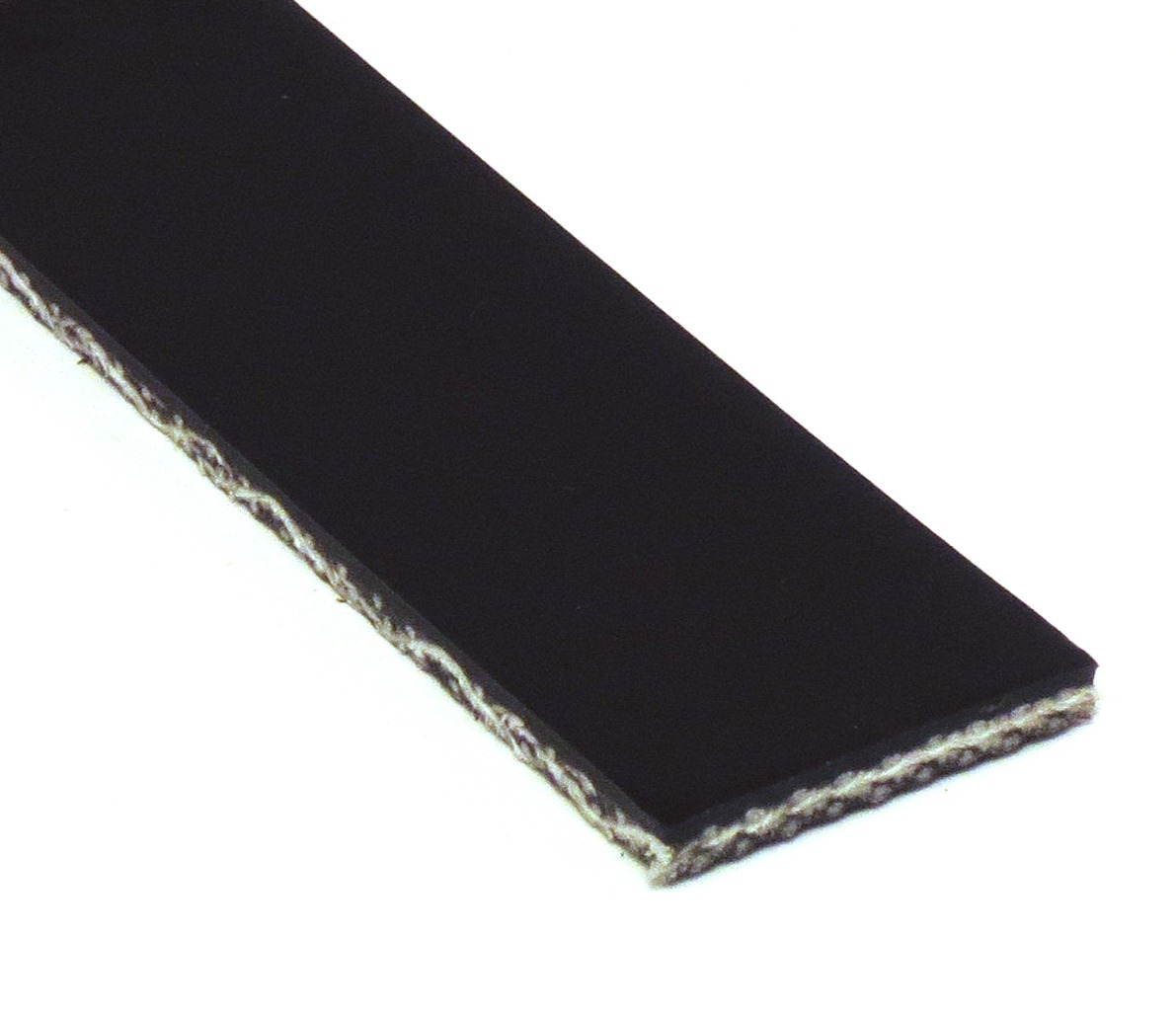

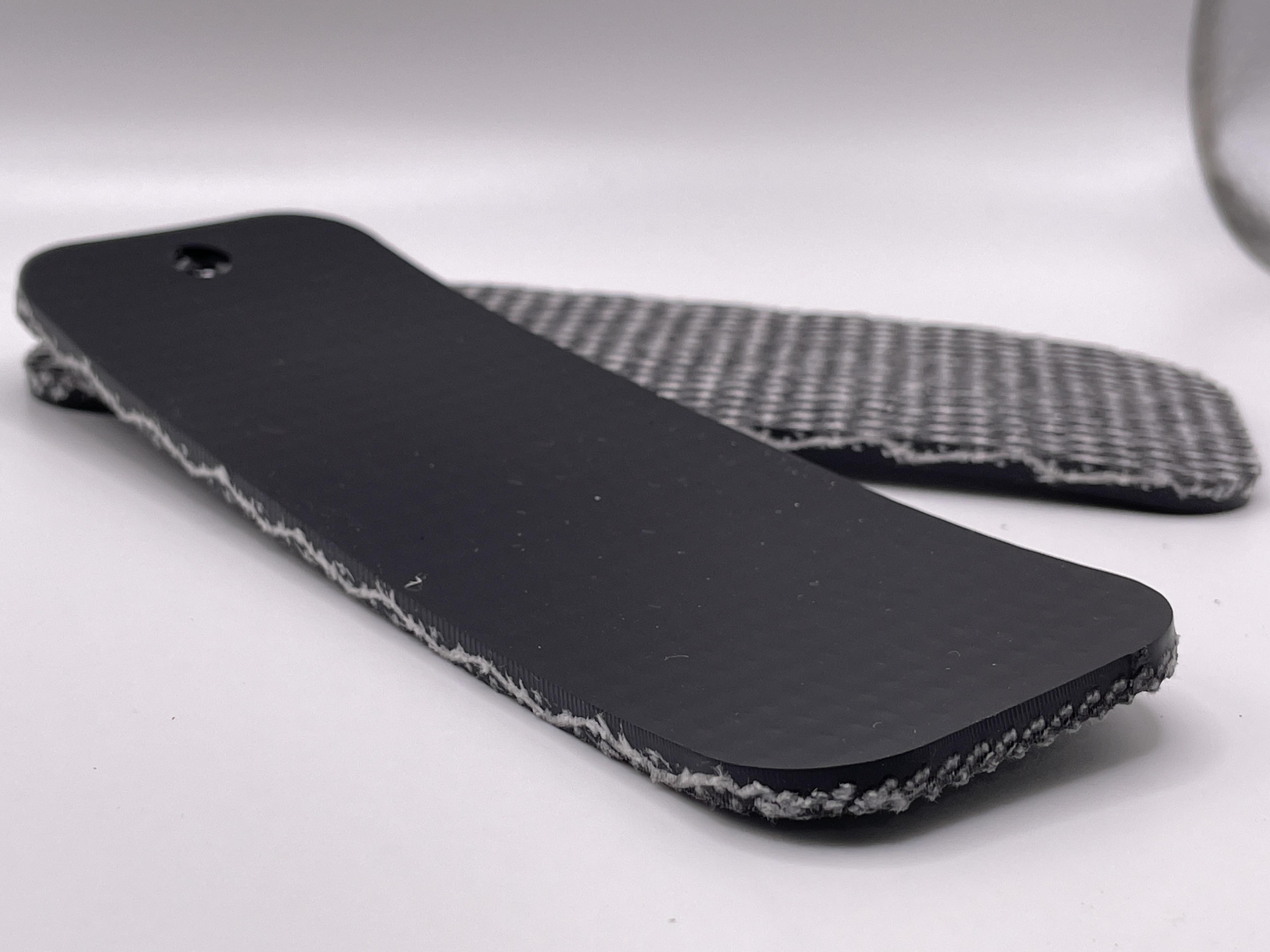

01 400 Automate 1 Automate I

Very good mineral and petroleum oil resistance. Good resistance to acids and solvents, but avoid high concentrations. Fire resistant. Woven carcass eliminates ply separation. Stretches to less than 2%. Proven performance on automotive parts, scrap, steel, baggage, batteries, bricks, glass and cullet, fertilizer, lumber, recycled products, warehouse case handling and live roller applications. Best tracking on conveyors with 5:1 ratio (length:width).

01-400 Download

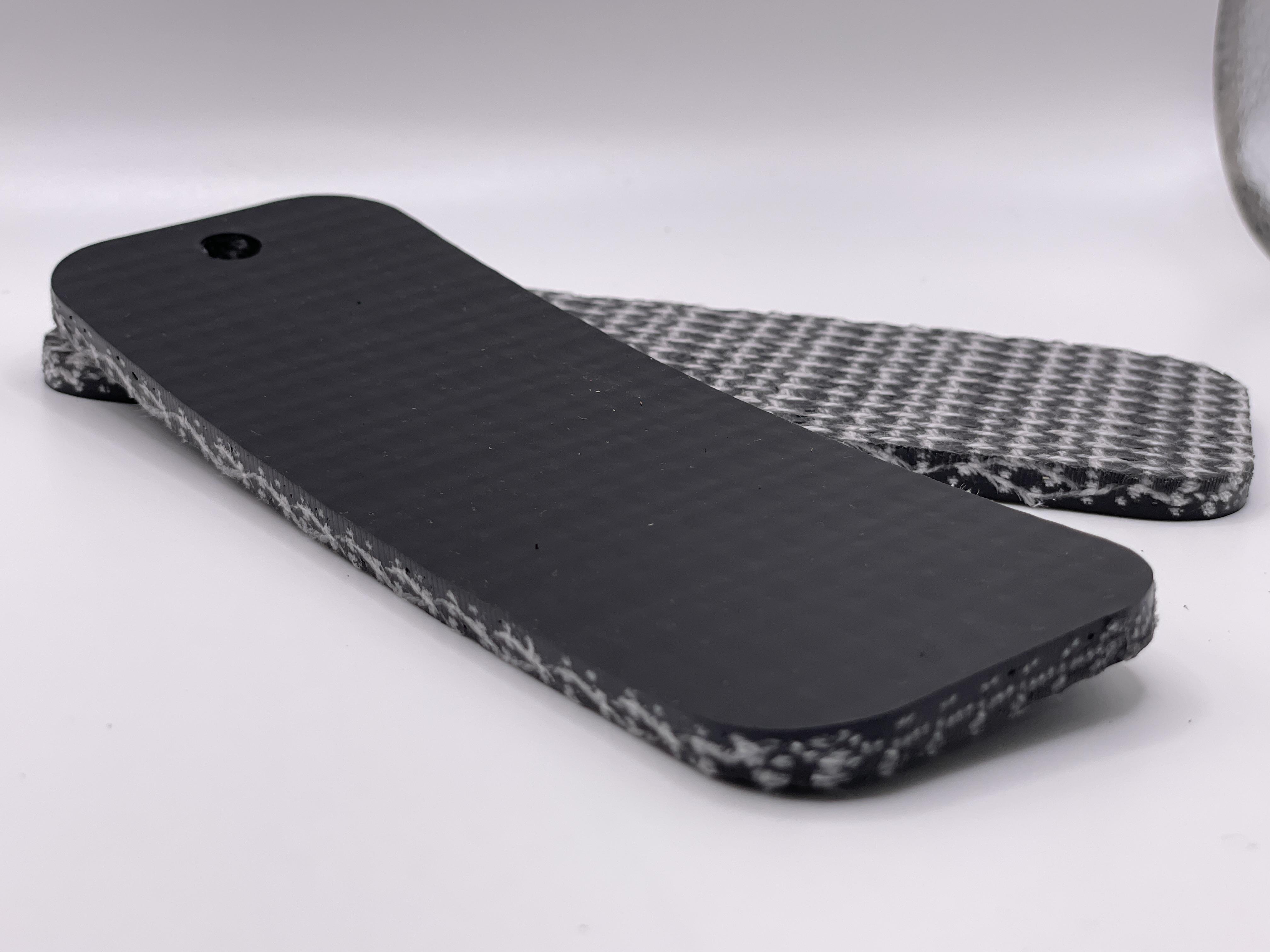

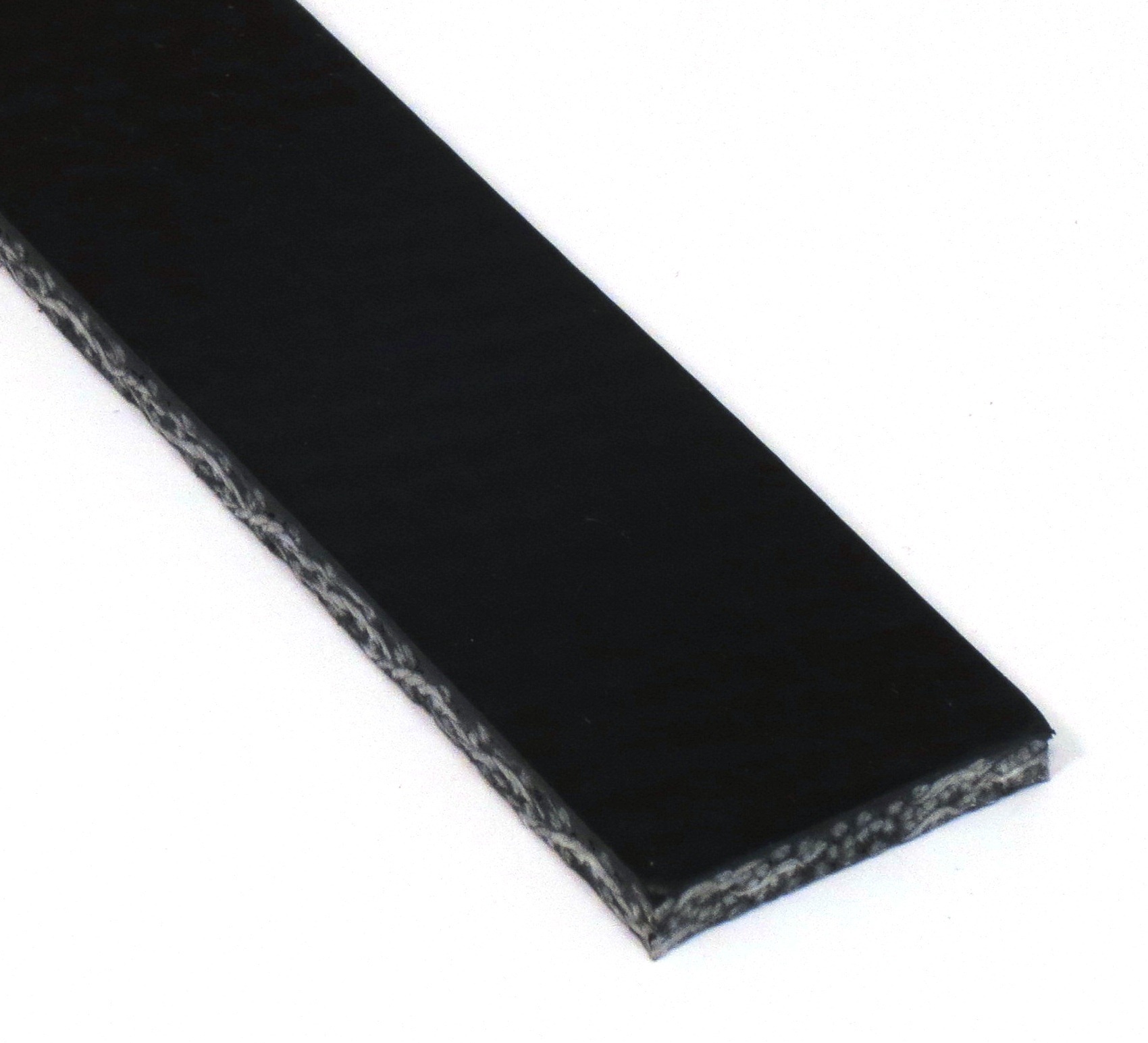

01 401 Automate 2 Automate II

Very good mineral and petroleum oil resistance. Good resistance to acids and solvents, but avoid high concentrations. Fire resistant. Woven carcass eliminates ply separation. Stretches to less than 2%. Proven performance on automotive parts, scrap, steel, baggage, batteries, bricks, glass and cullet, fertilizer, lumber, recycled products, warehouse case handling, and live roller applications. Best tracking on conveyors with 5:1 ratio (length:width).

01-401 Download

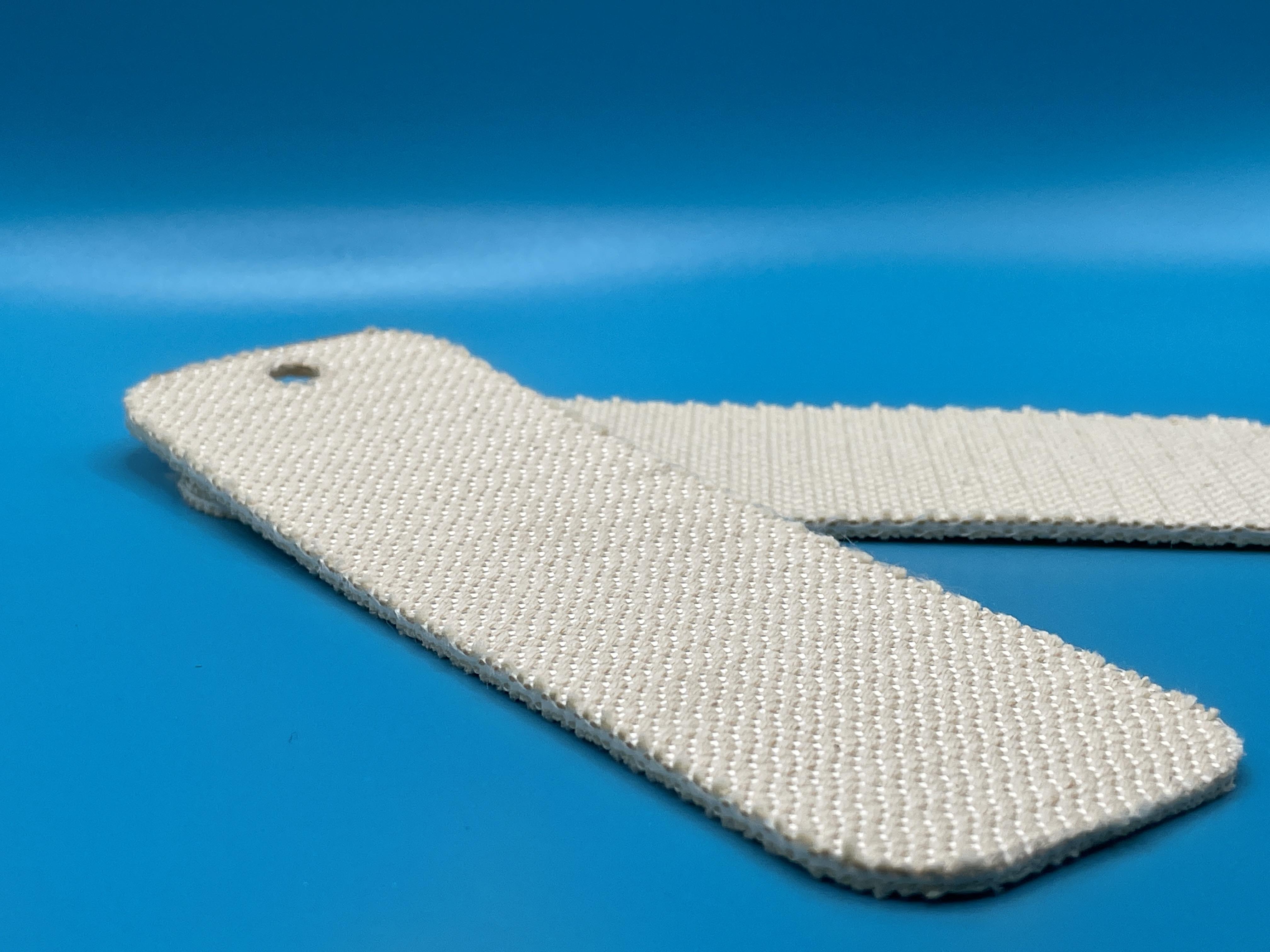

03 506 Bab Nu 200 BAB NU 200

Excellent product release, very flexible, easily spliced and low stretch. Industries served: pretzel and pita bread proofers.

03-506 Download

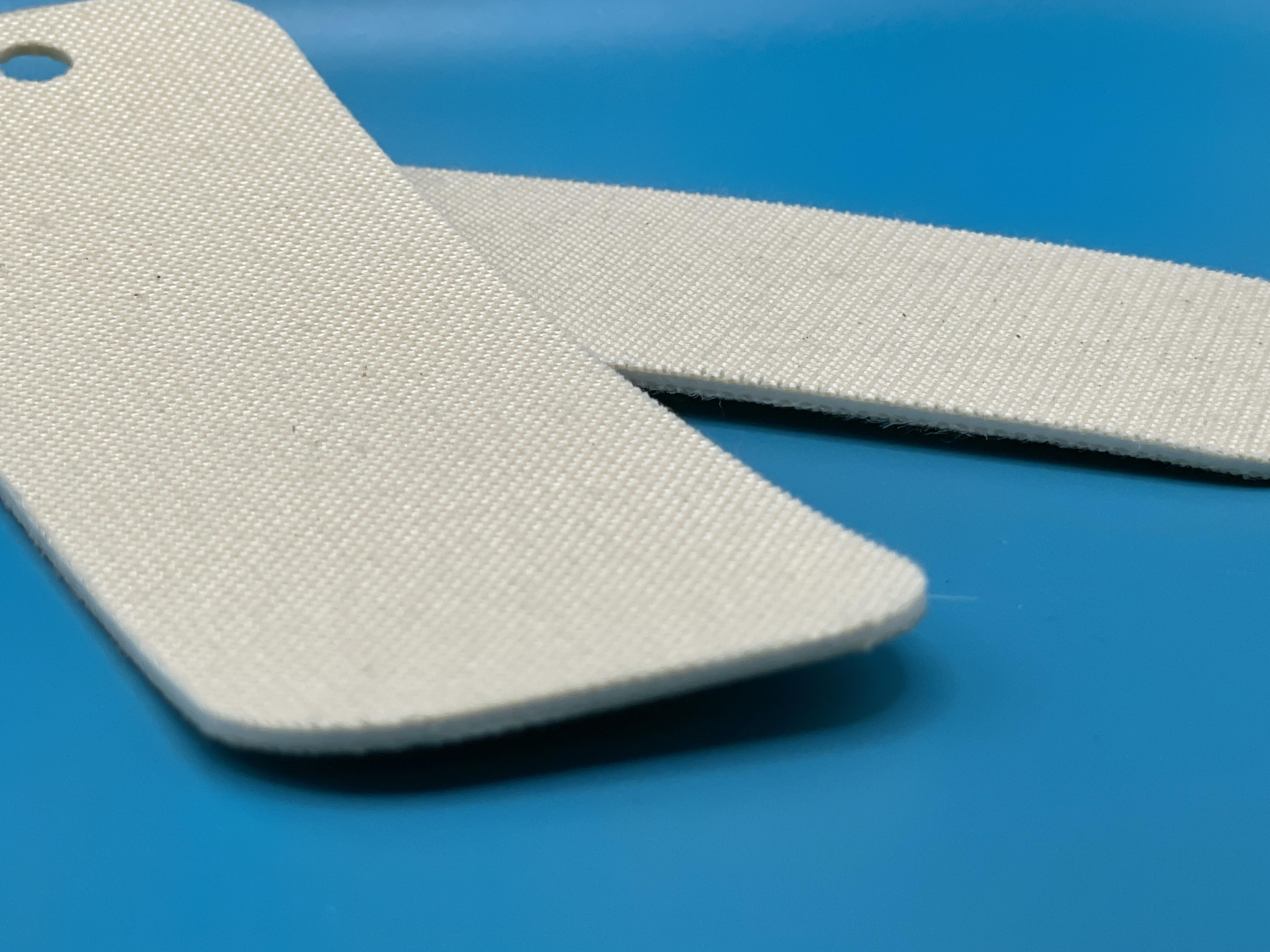

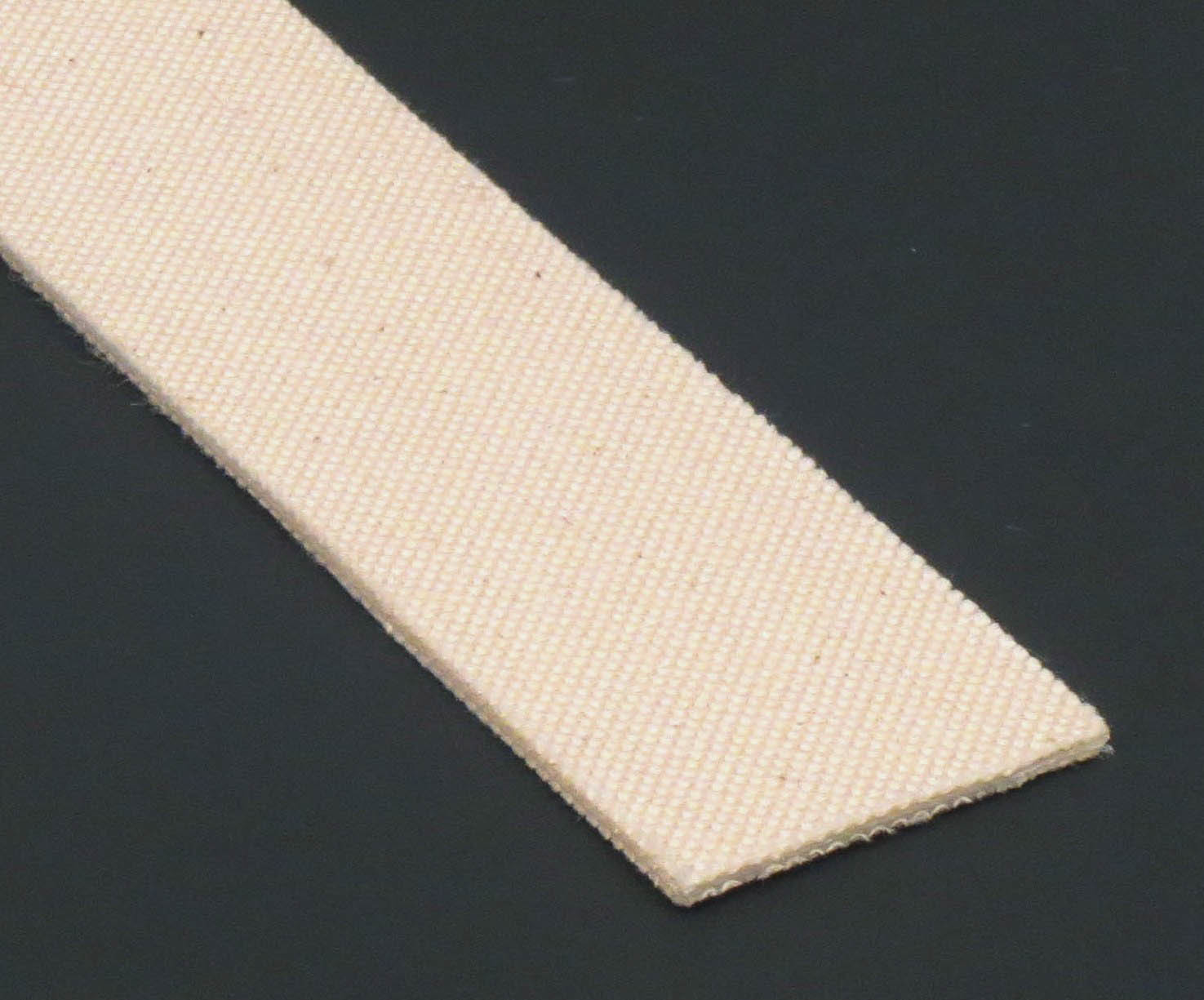

03 500 Bf Np 200 Bake Flex NP 200

Limited oil and grease resistance. The cotton fabric will absorb moisture. These belts will only require half the dusting flour that all cotton belts need on dough conveyors. Belts have interchangeable surfaces. Uses include dough conveyors, pretzel proofers, and molders.

03-500 Download

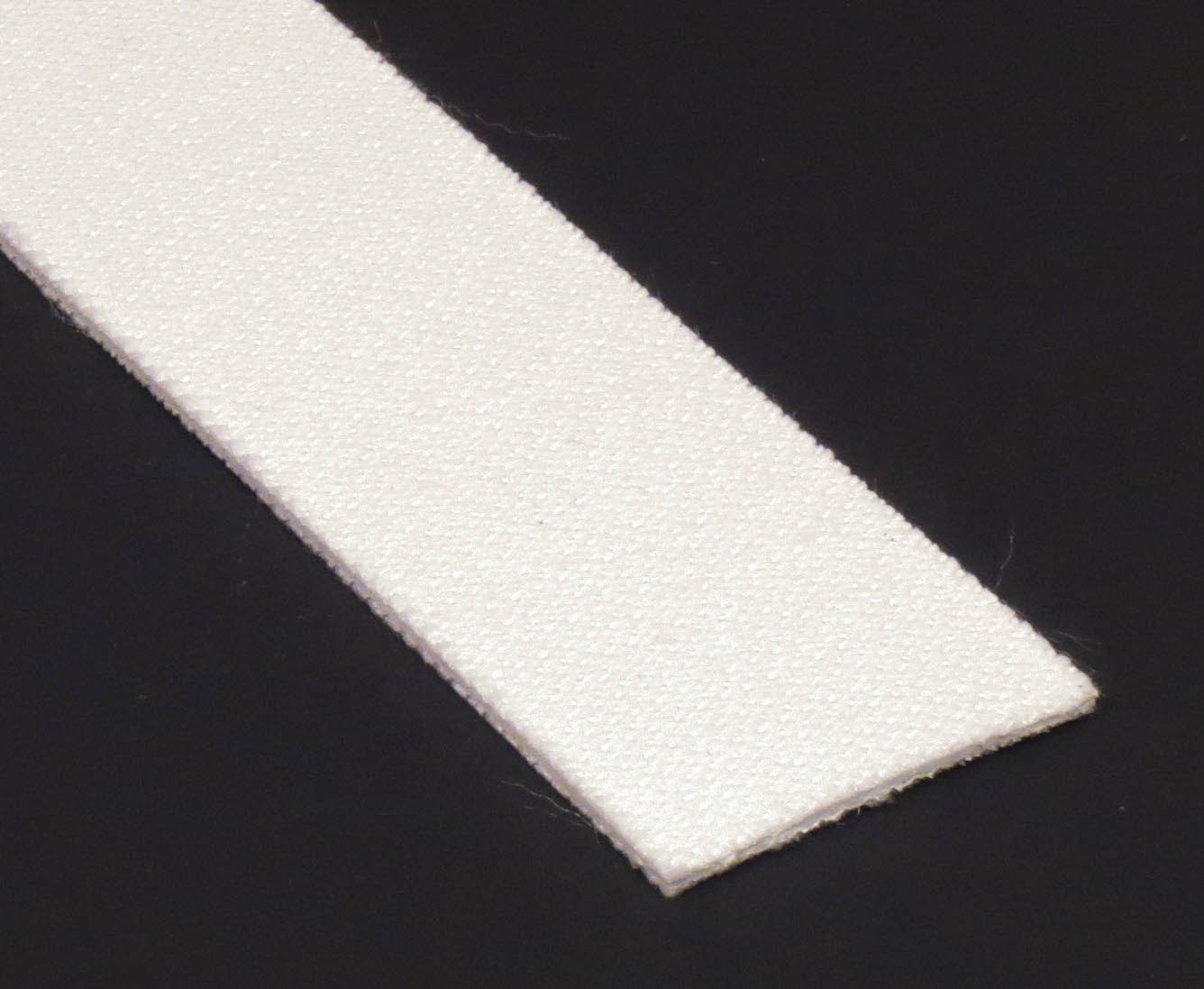

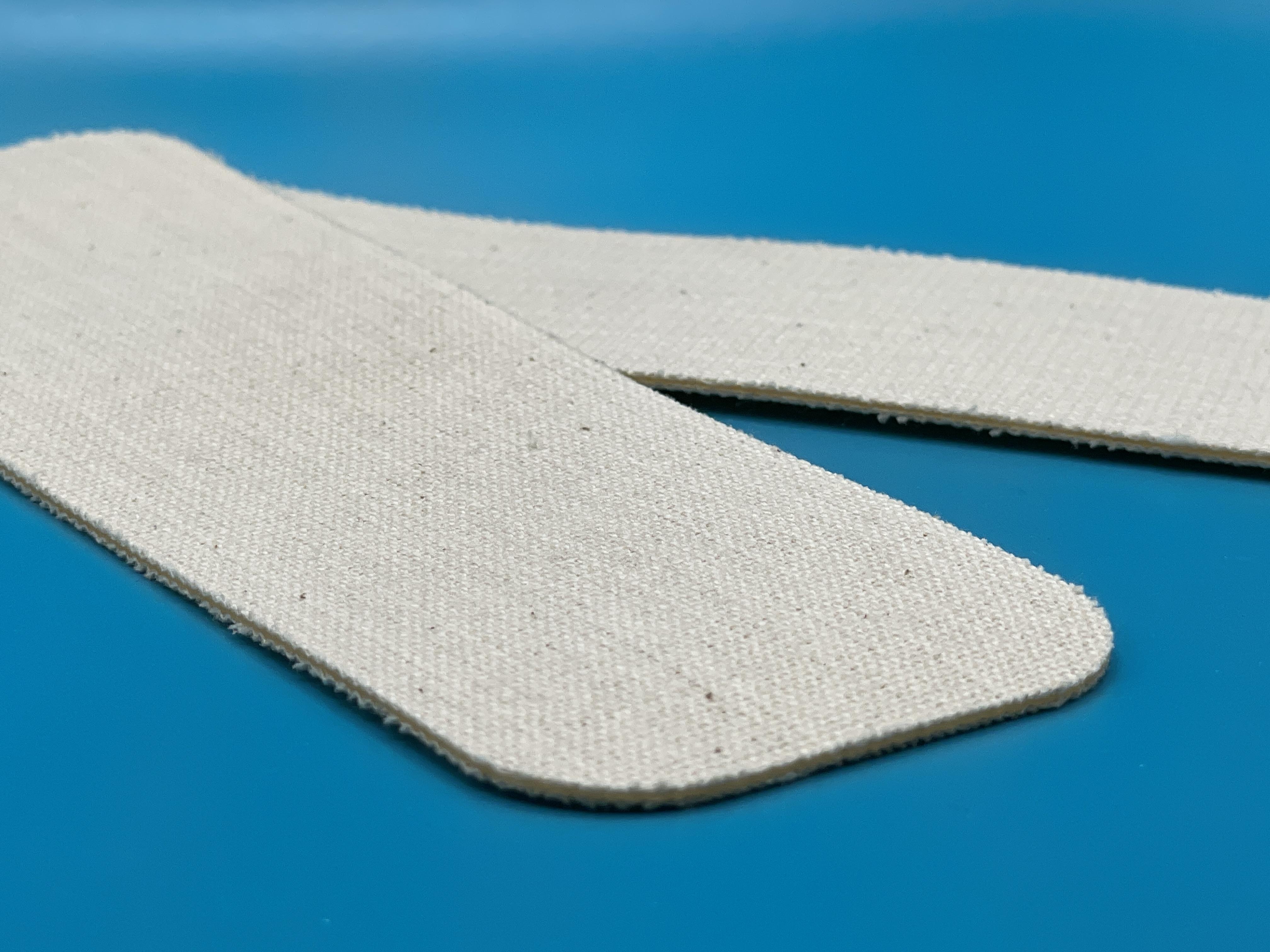

03 509 Bf Nu 200 Bake Flex NU 200

Limited oil and grease resistance. The cotton fabric will absorb moisture. Fair to good ozone resistance. The belt performs well on small nose-bar applications with raw, sticky dough. It has excellent tracking, good lateral flexibility, withstands cutting, and the surface offers excellent release. Also used for rotary cutters, pan-on or oven-feed belts in the baking industry, accumulators, diverters, ploughs, dough dividers, proofers, laminators and biscuit coolers.

03-509 Download

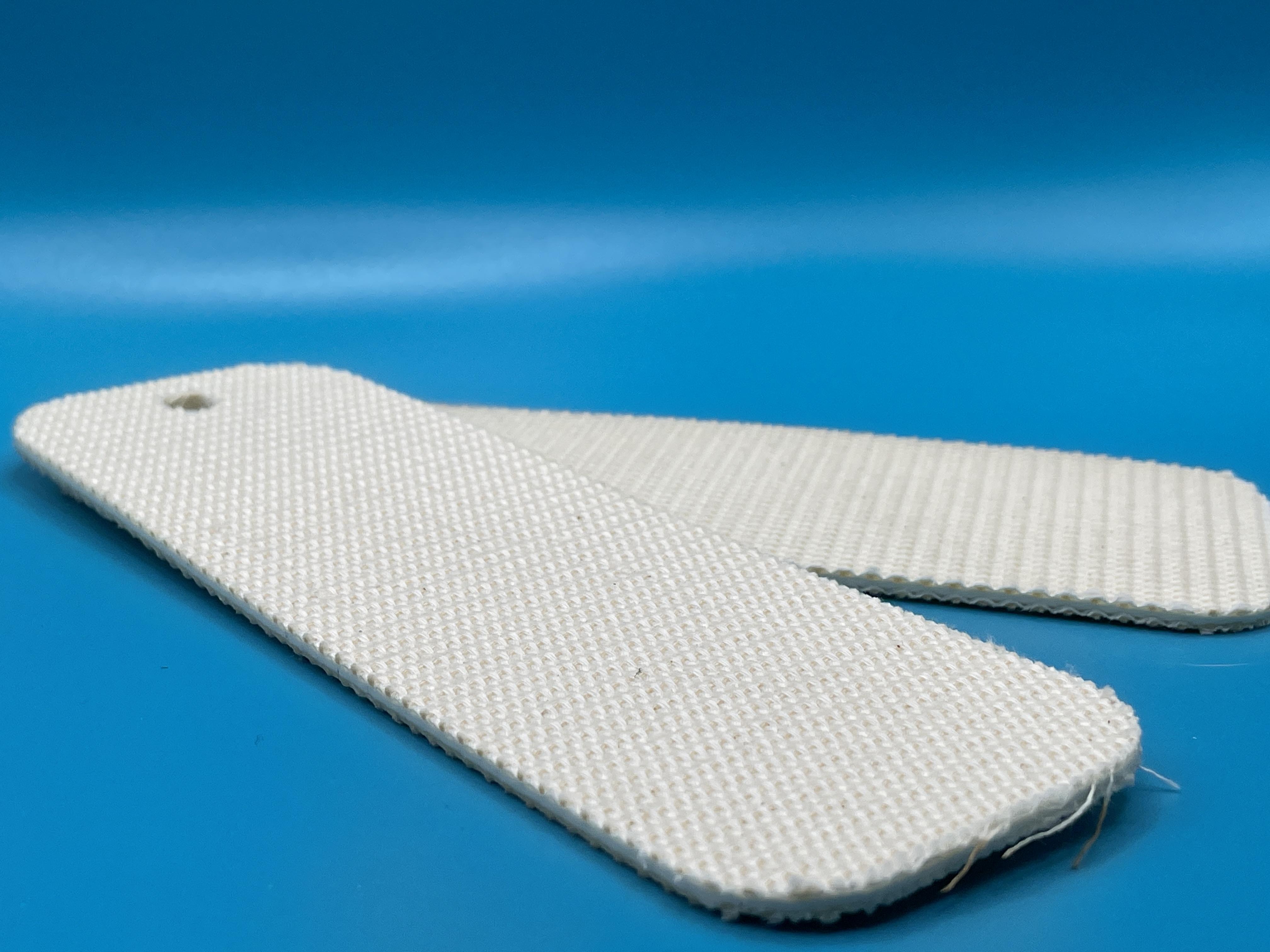

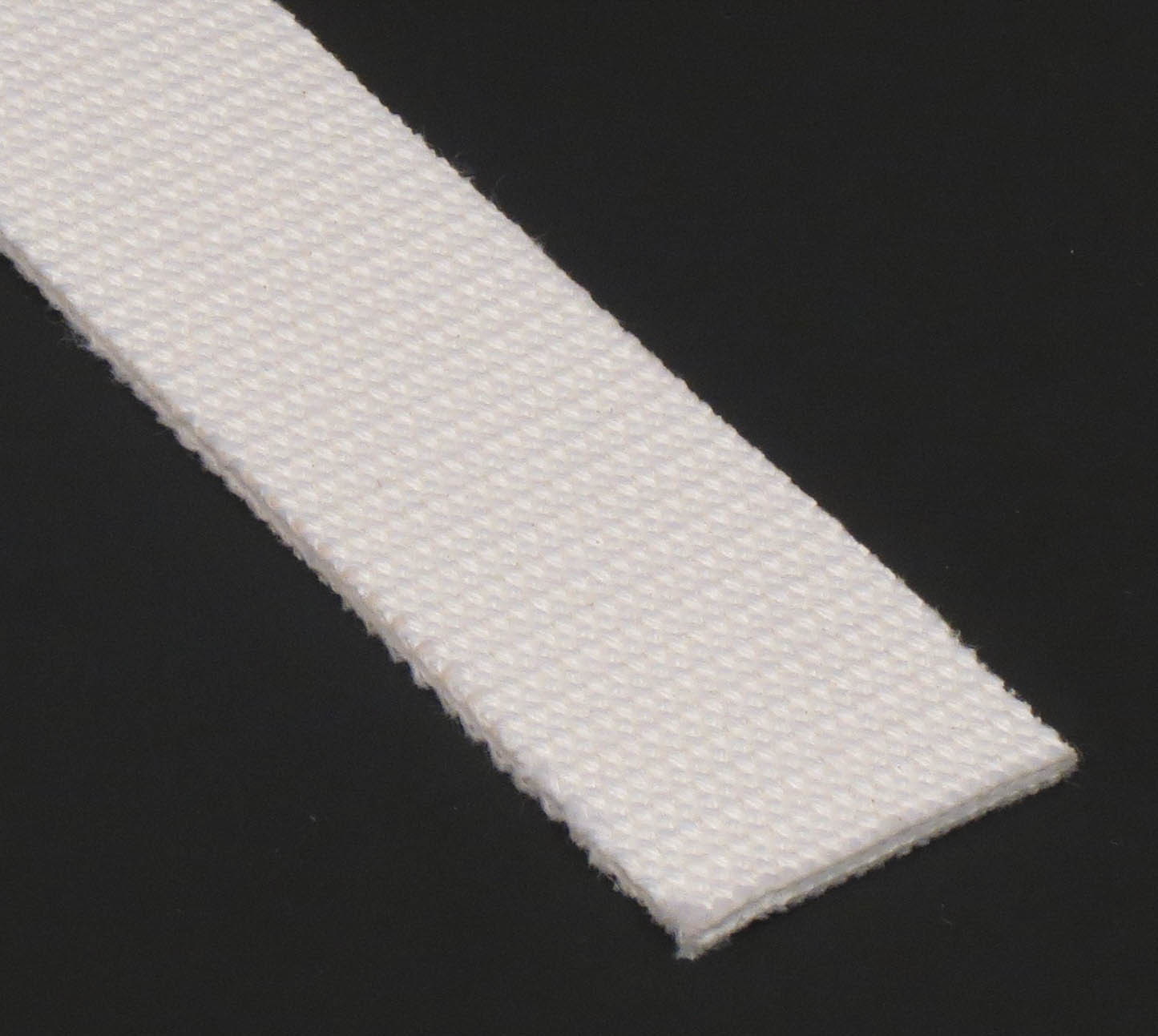

03 502 Bf Wp 200 W Bake Flex WP 200 W

Limited oil and grease resistance. The cotton fabric will absorb moisture. Good choice for dough applications. WP 200 W is a good choice for bagel forming machines.

03-502 Download

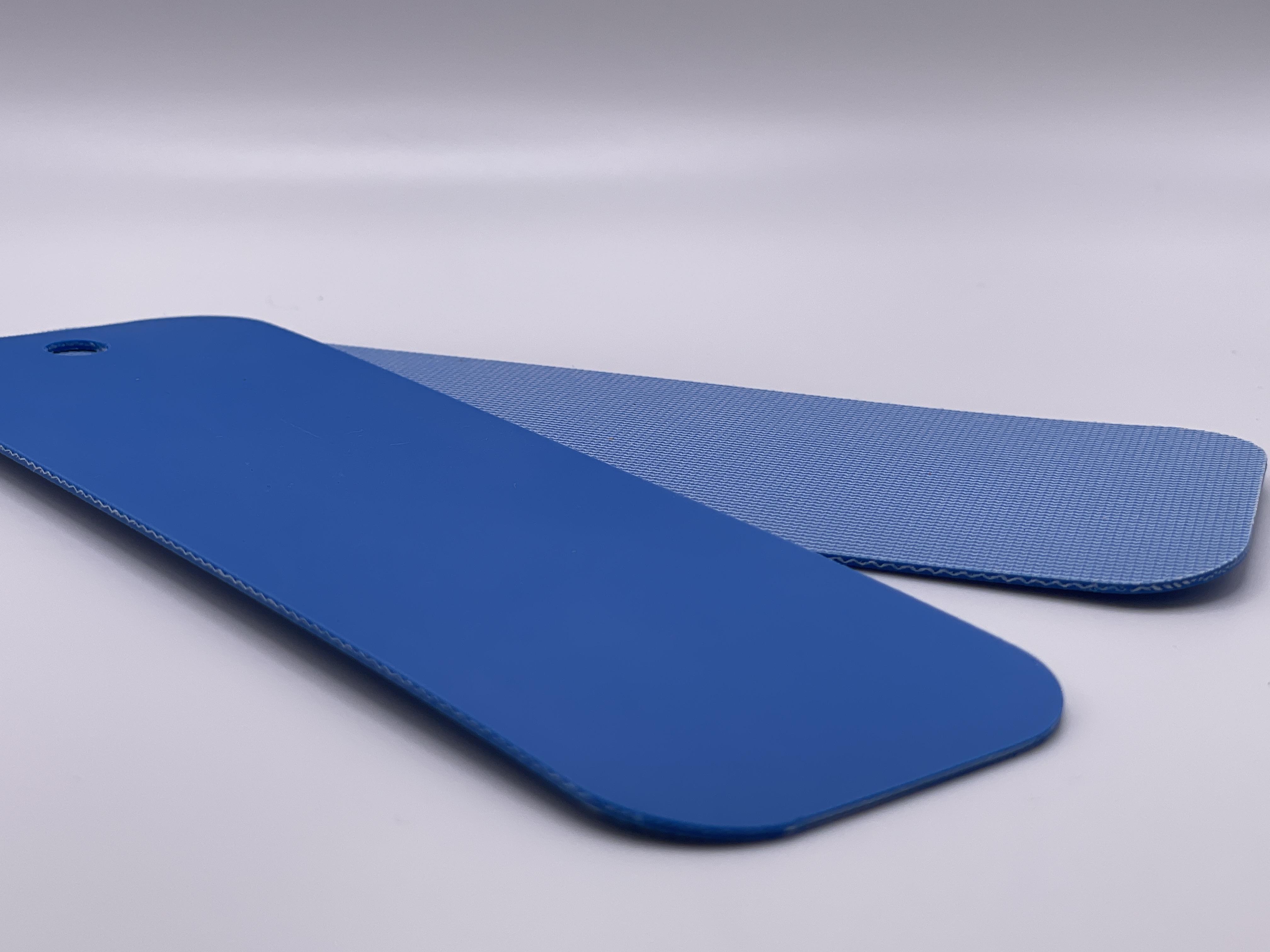

03 720 Bf Blpo 210 M BF BLPO 210M

Extremely flexible non-fray construction suitable for small nose bars and offers exceptional release of sticky products such as chocolate, caramel, or bars. Easy to clean, hydrolysis resistant and abrasion resistant. Suitable for Powerturn applications.

03-720 Download

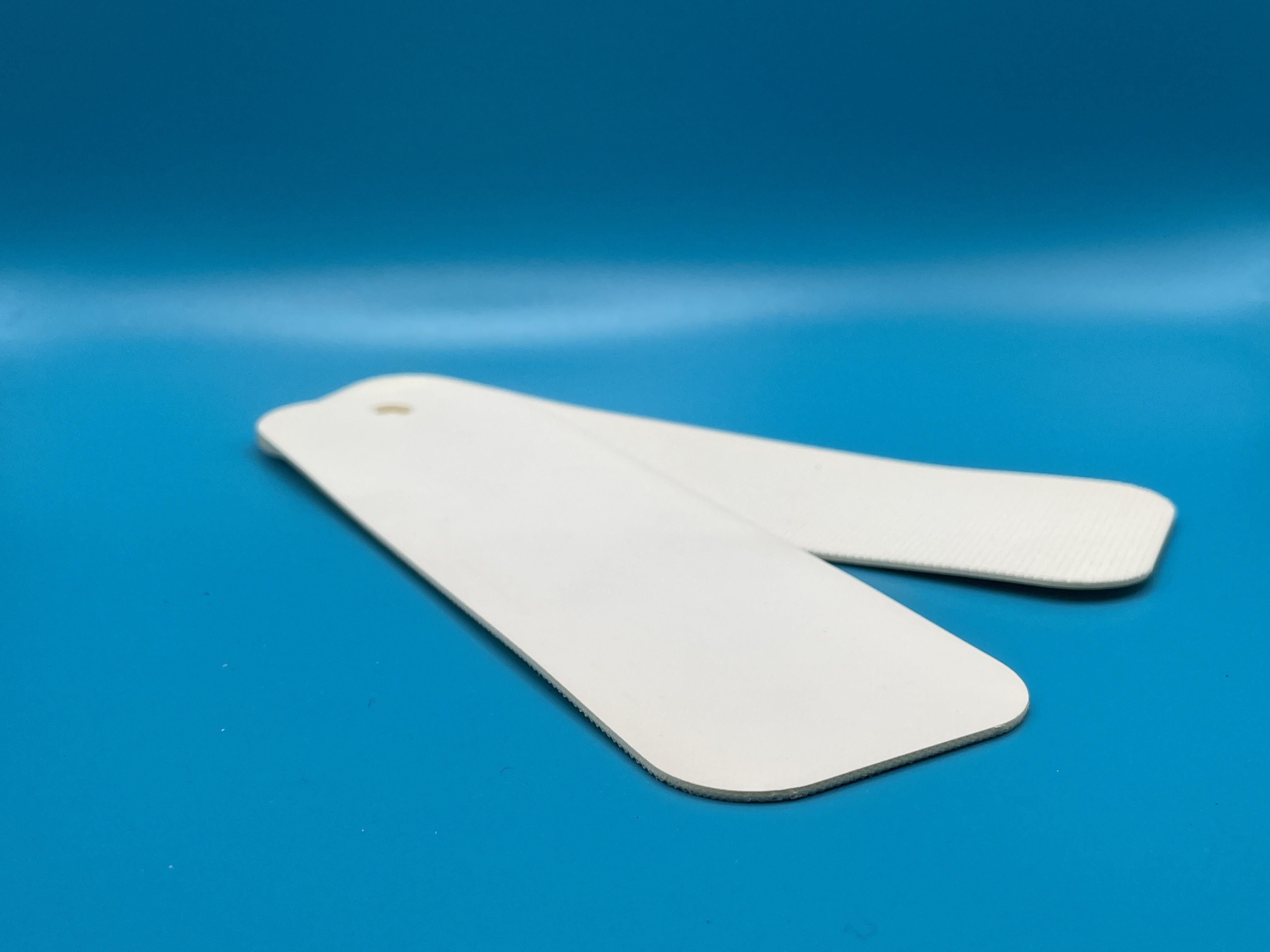

03 721 Bf Wpo 210 BF WPO 210

Extremely flexible non-fray construction suitable for small nose bars and offers exceptional release of sticky products such as chocolate, caramel, or bars. Easy to clean, hydrolysis resistant and abrasion resistant. Belt is suitable for Powerturn applications.

03-721 Download

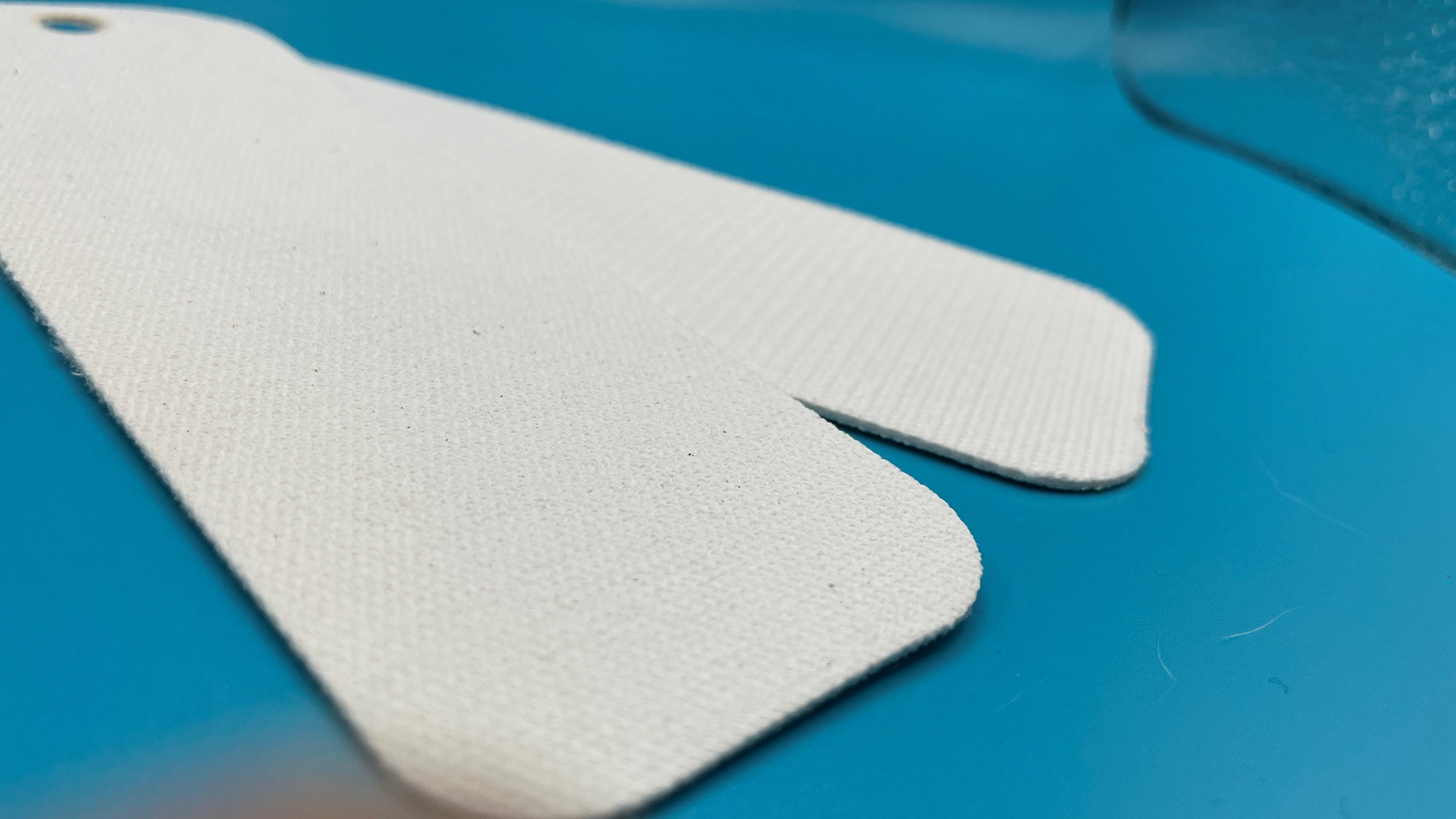

03 063 Bf Wu 200 BF WU 200

Limited oil and grease resistance. Fair to good ozone resistance. It has excellent tracking, good lateral flexibility, withstands cutting and the surface offers excellent release.

03-063 Download
03 505 Bf Bt 100 W Bi Flex B-T 100 W

Good oil and grease resistance. Limited resistance to acids, solvents and alkalines. The "Bagel Belt" is an excellent choice on bagel forming machines for forming "true bagels" (without fruit). Good choice for other dough applications too! Need grab/pull? Use textured side up. Need smooth dough transfer? Use low friction side up. For flour retention, use texture side up. For "Bagel Belts," the splice area must be sewn/stitched.

03-505 Download

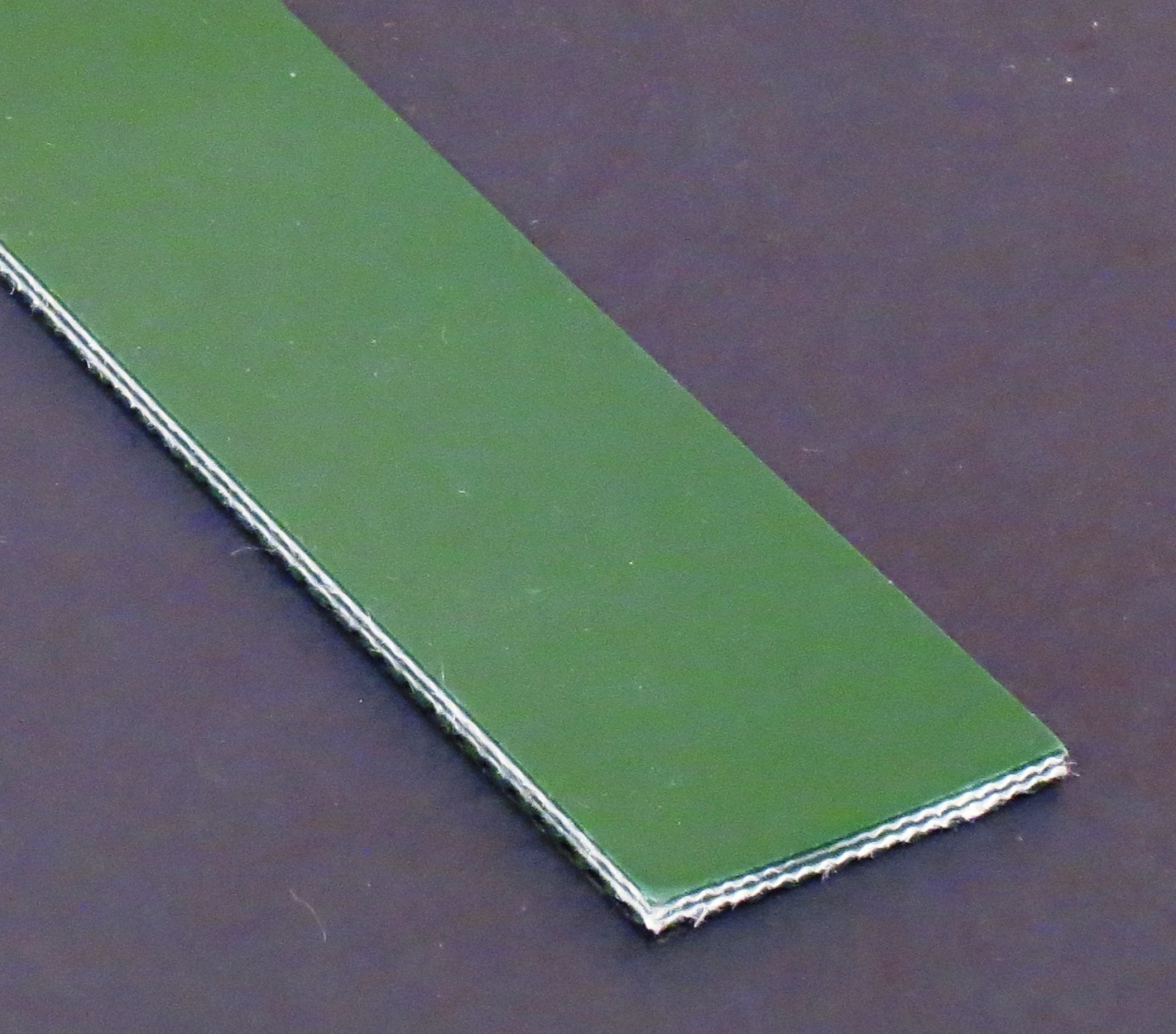

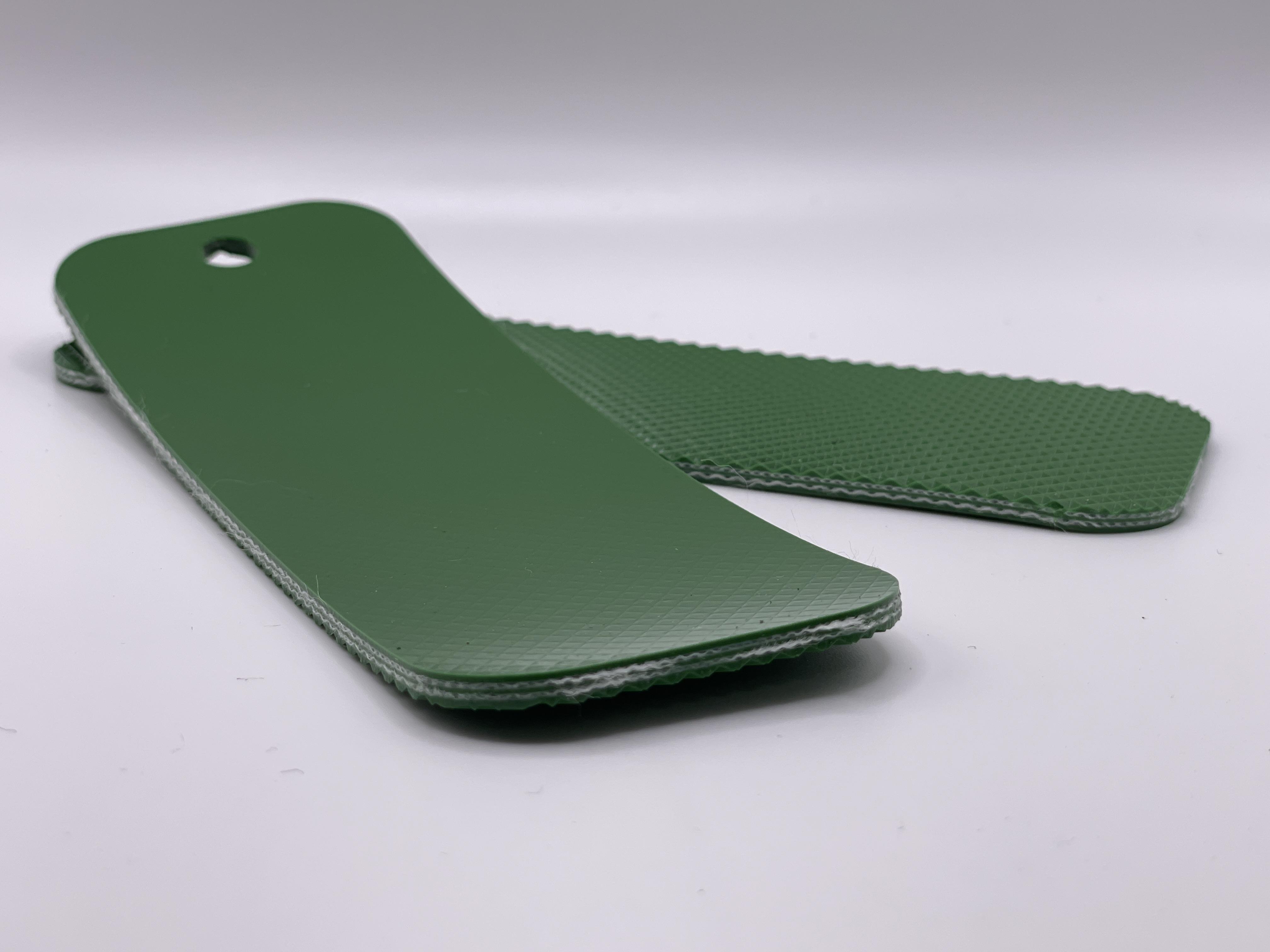

03 362 Bf Gp 212 Bi Flex GP 212

Limited oil and grease resistance. Good resistance to acids and solvents but avoid high concentrations. Belt tracks easily and is flexible in both directions. This belt is ideal for troughing conveyors. Other uses include can filling lines and the building material industry. The diamond bottom impression provides good drive on the pulley, yet low enough co-efficient of friction to operate on slider bed applications.

03-362 Download

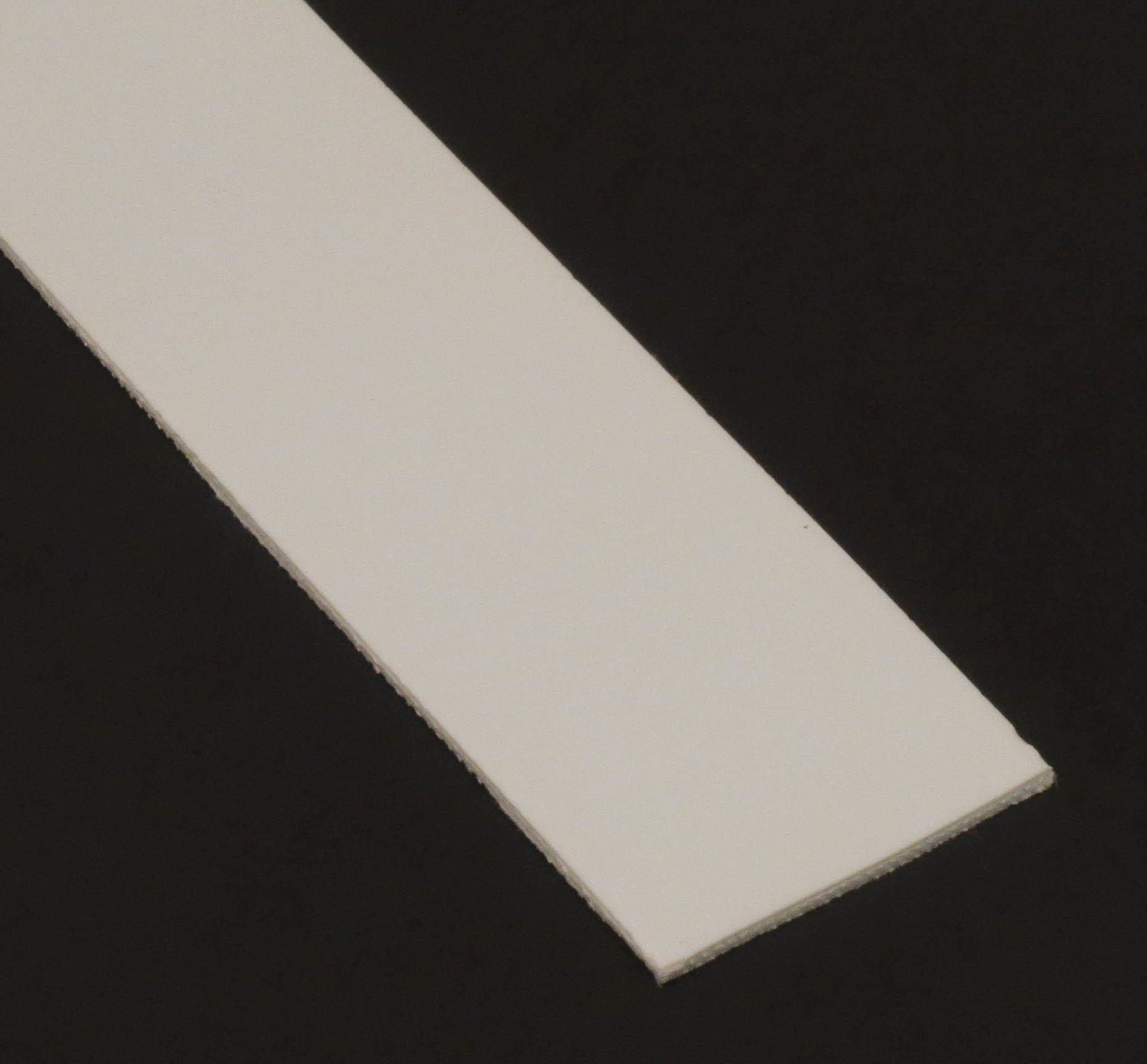

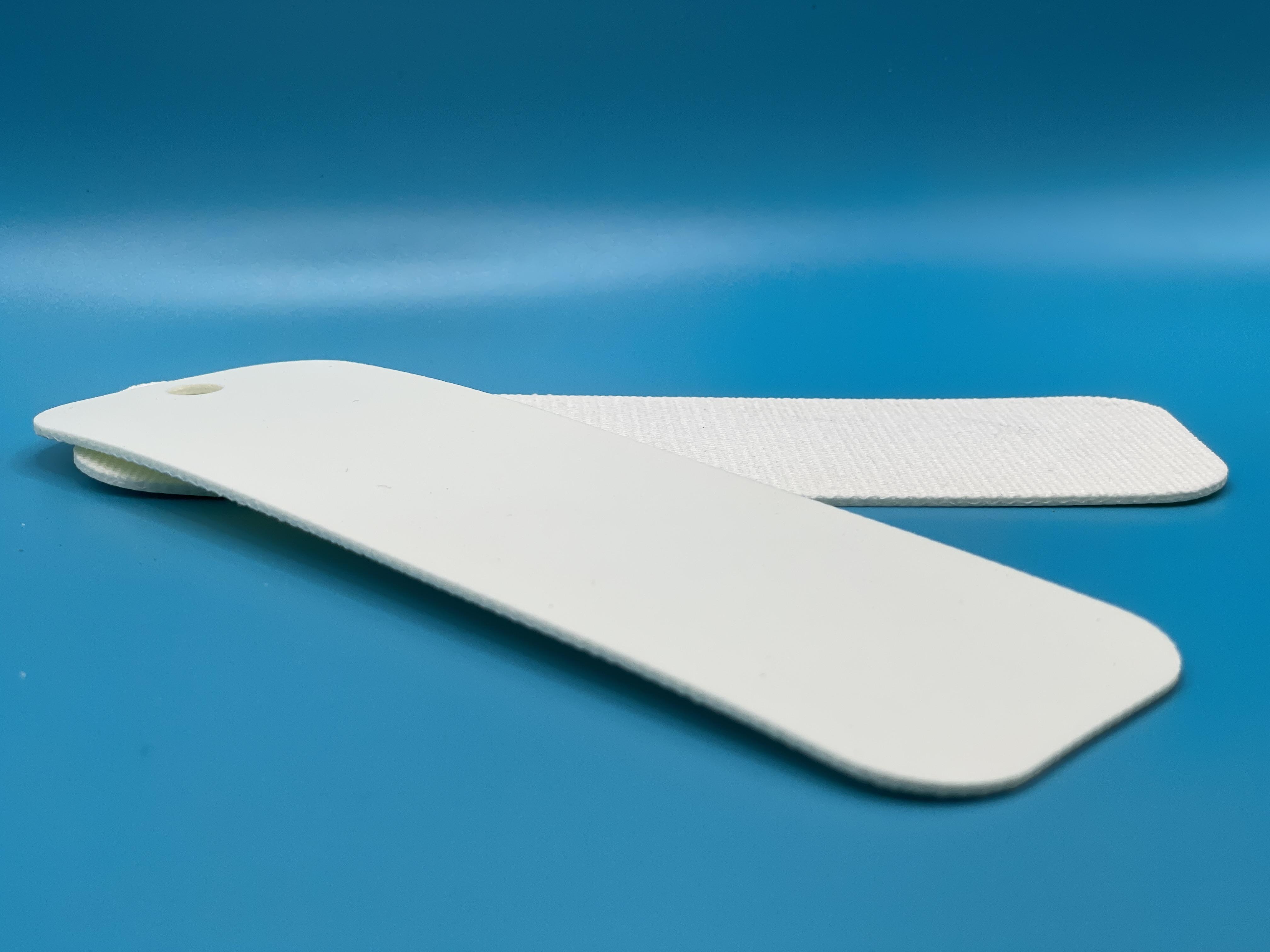

03 021 Bf Wu 210 Bi Flex WU 210

Excellent oil and grease resistance, including coconut oil and cocoa butter. Limited resistance to acids, solvents, and alkaline solutions. Very good product release. Easy to clean. Proven performance handling confectionery and baked goods, especially on troughing conveyors or applications requiring flexibility in the width fibers.

03-021 Download

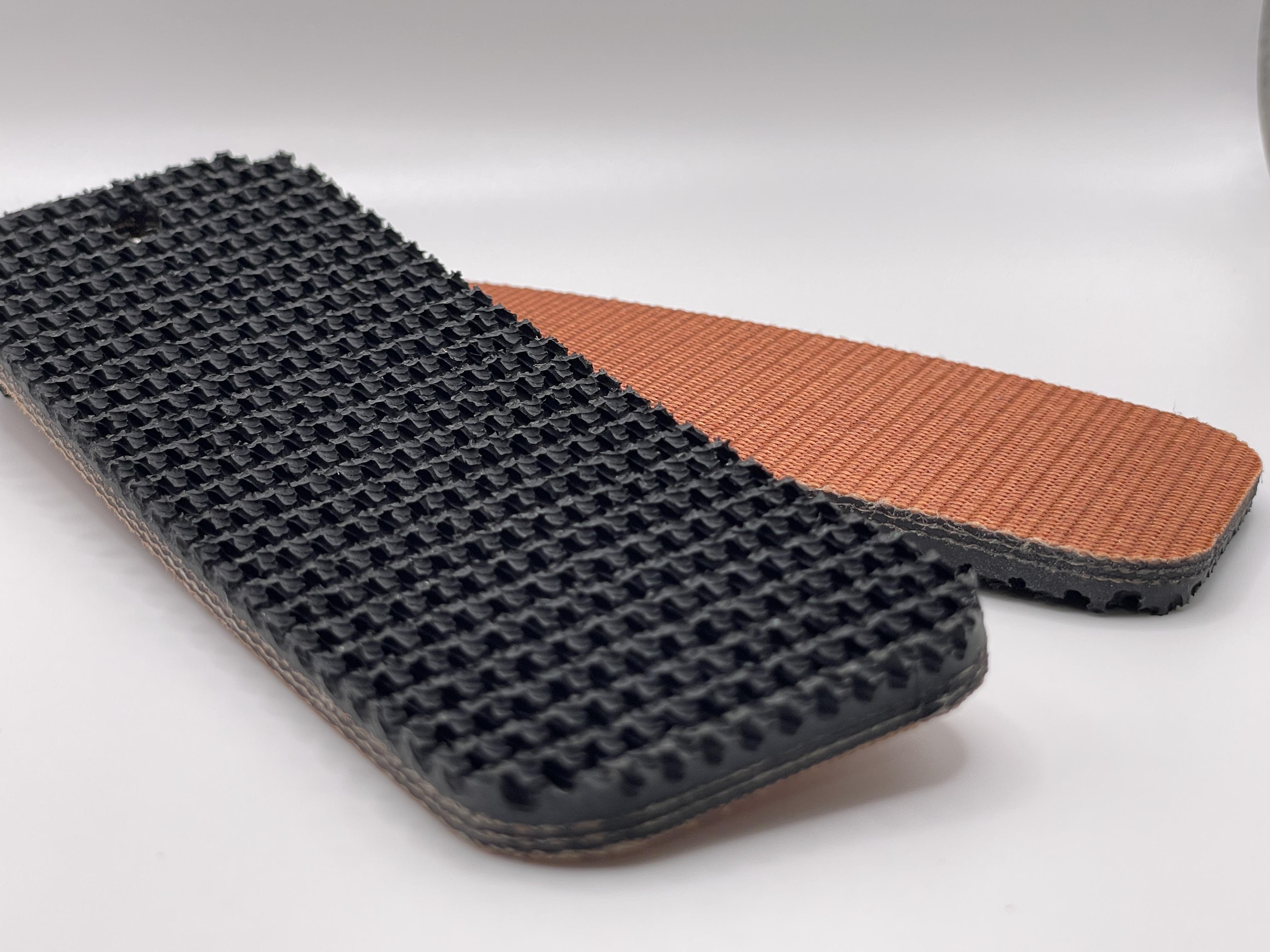

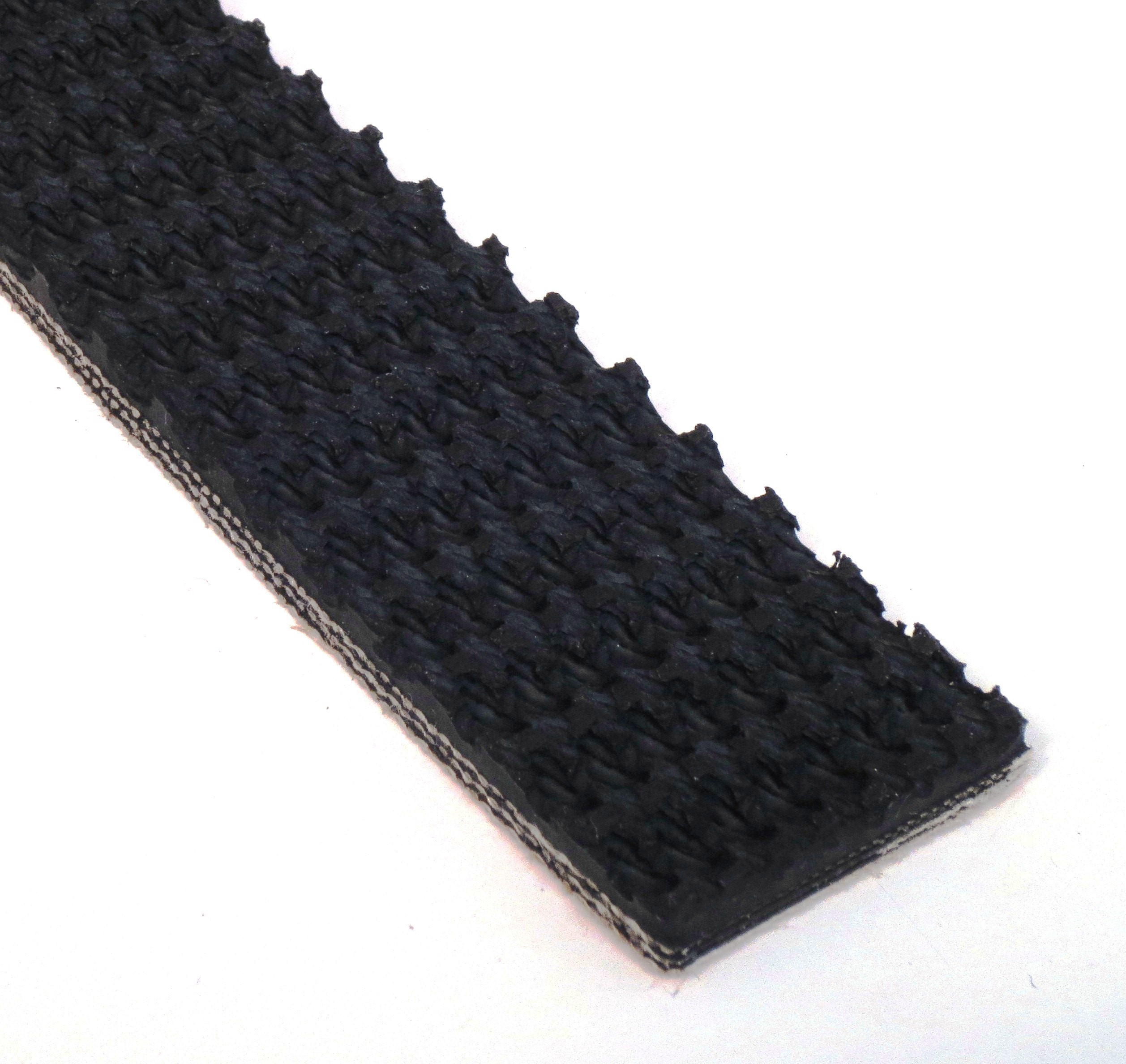

02 503 Brt 225 BRT 225

Moderate oil and grease resistance. This belt stretches less than 2%. This is a thick yet very flexible belt that provides excellent fastener holding capabilities. The top cover has excellent abrasion/wear characteristics. This belt is considered the workhorse of our rough top belt line and is also priced very competitively.

02-503 Download
